Weatherproof ‘Paddles’ Hooklatch Action

These paddles are weatherproof, lightweight, and acoustically ‘quiet’. Flush-fitting, and with no visible mounting points, they can be quickly installed in the same aperture as our standard rectangular ‘paddles’ using ‘U’ bracket and bolts provided. A loop-striker (in stainless steel) ensures positive engagement to resist vibration.
9/00406
9/00406
9/00406
9/00406
9/05462
9/05462
9/05462
9/05462
9/05462/01
9/05462/01
9/05462/01
9/05462/01

Ordering Code

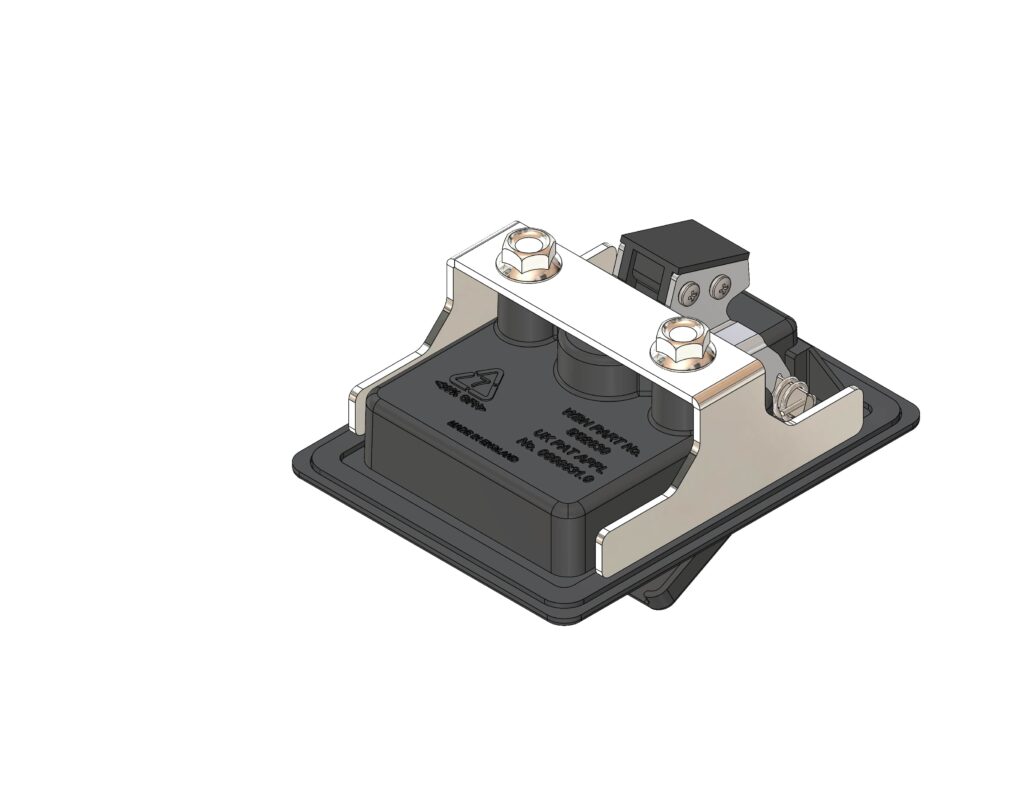

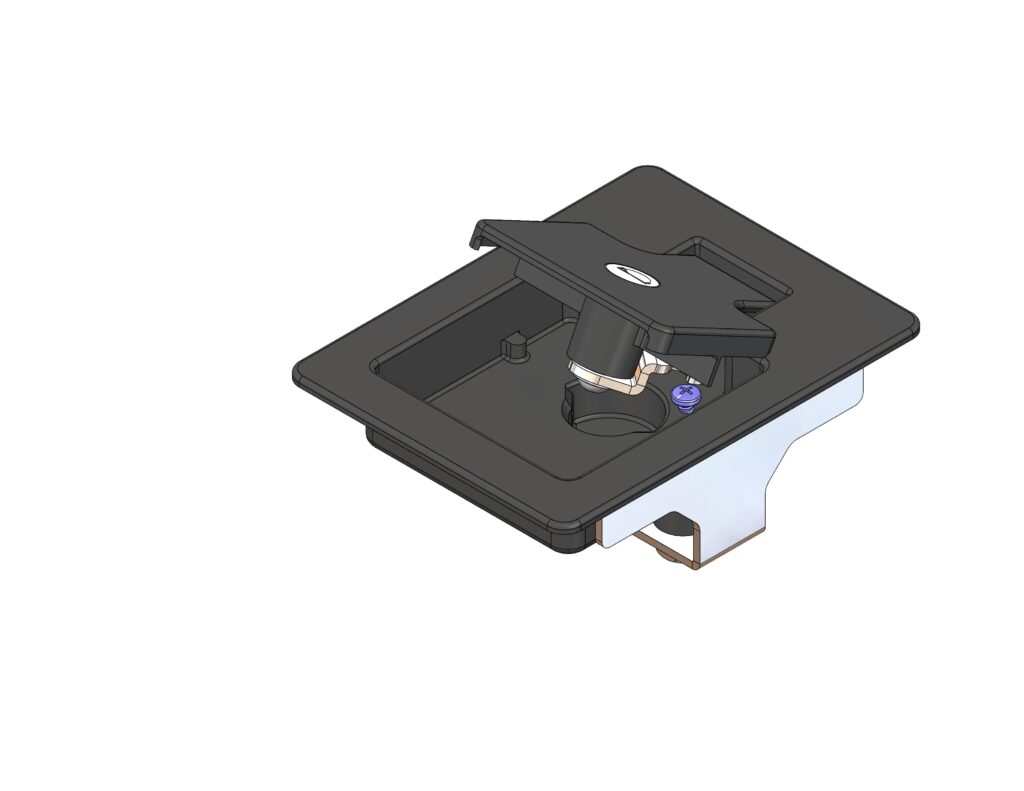

9/05462 Weatherproof paddle, locking

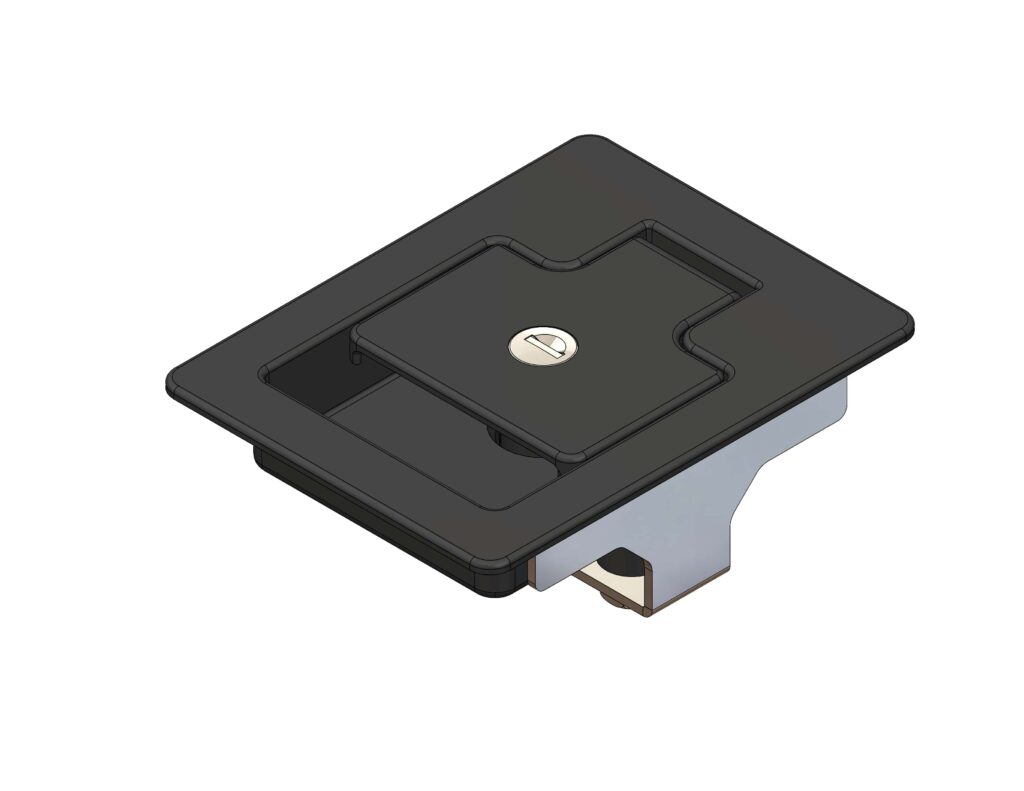

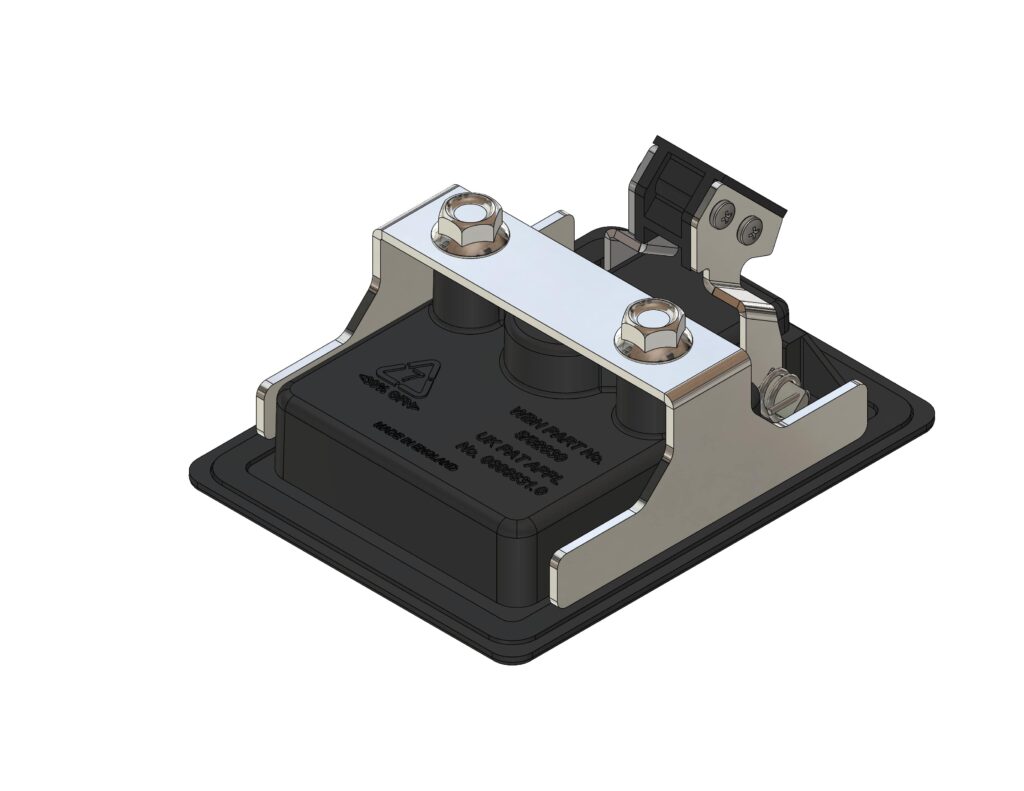

9/05462/01 As above, standard keys FT111

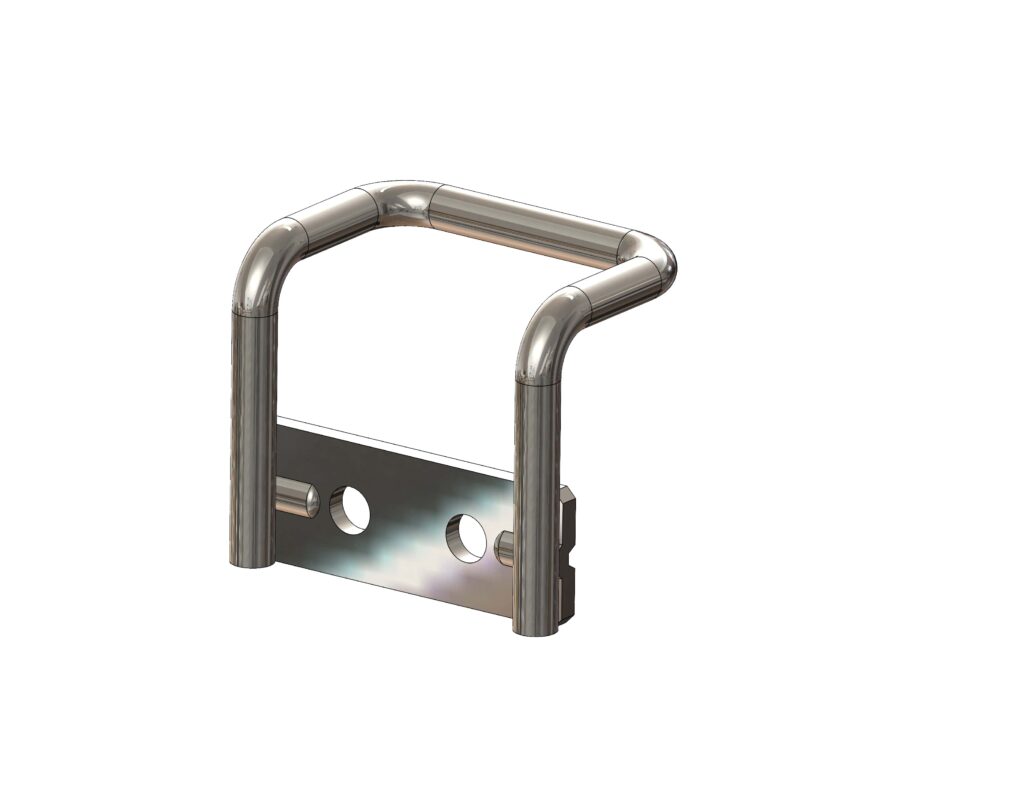

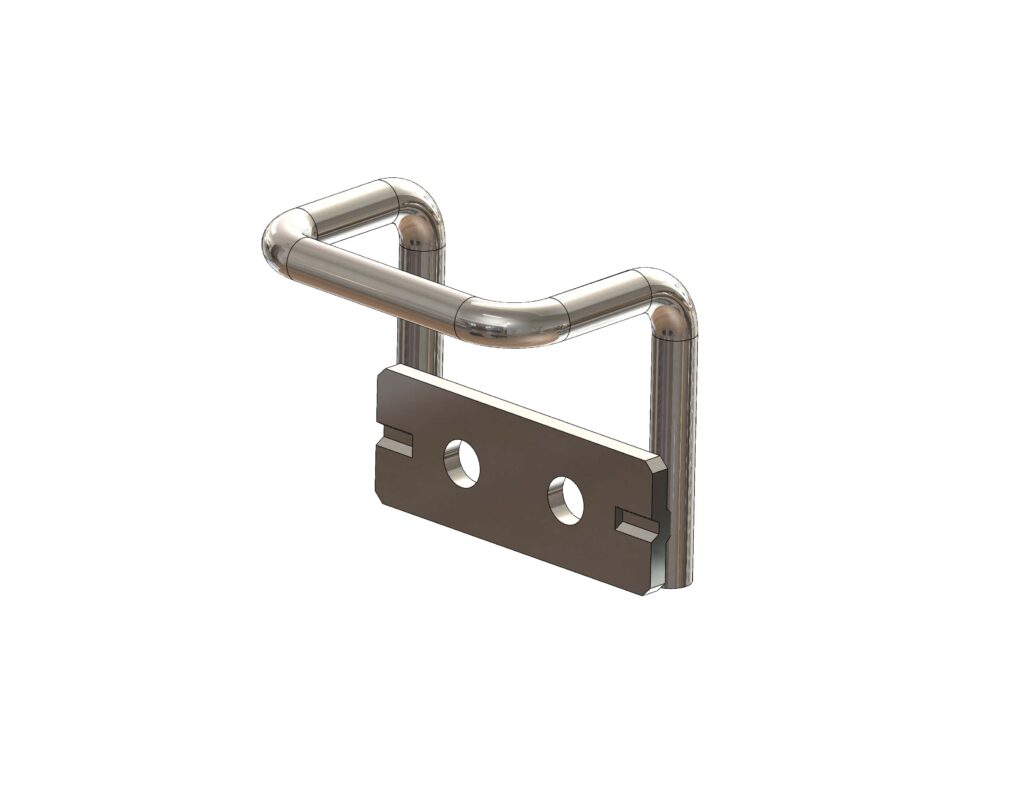

9/00406 Loop striker (stainless steel)

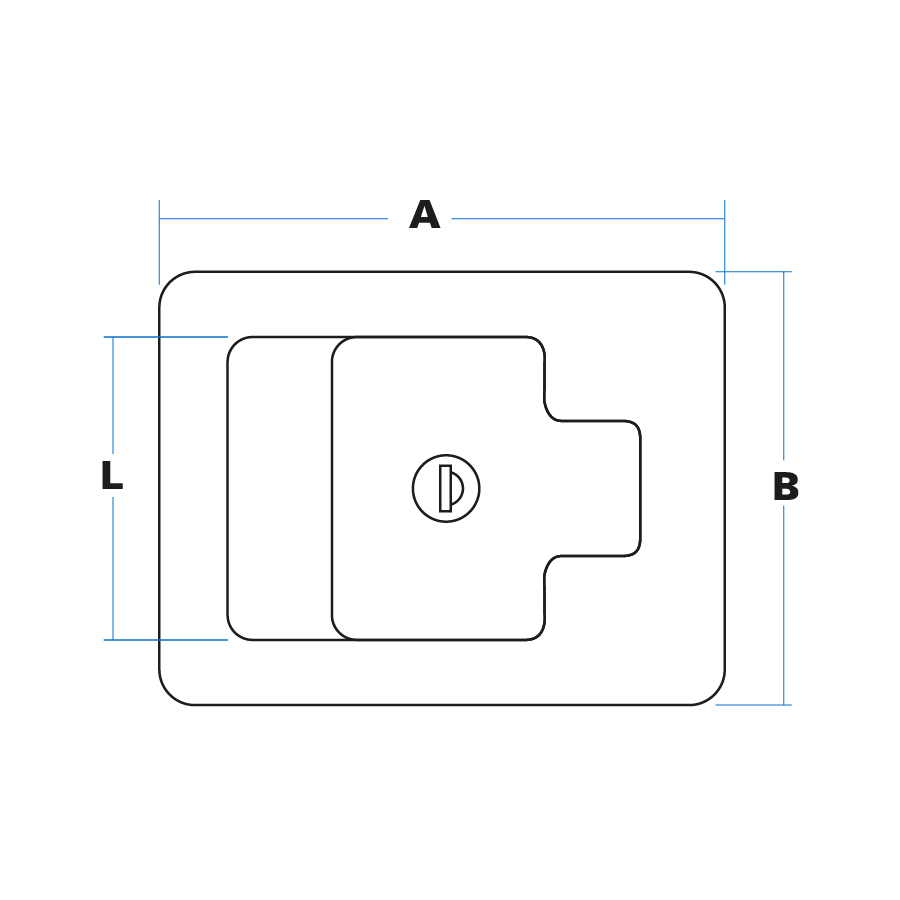

C1-Diagram 01

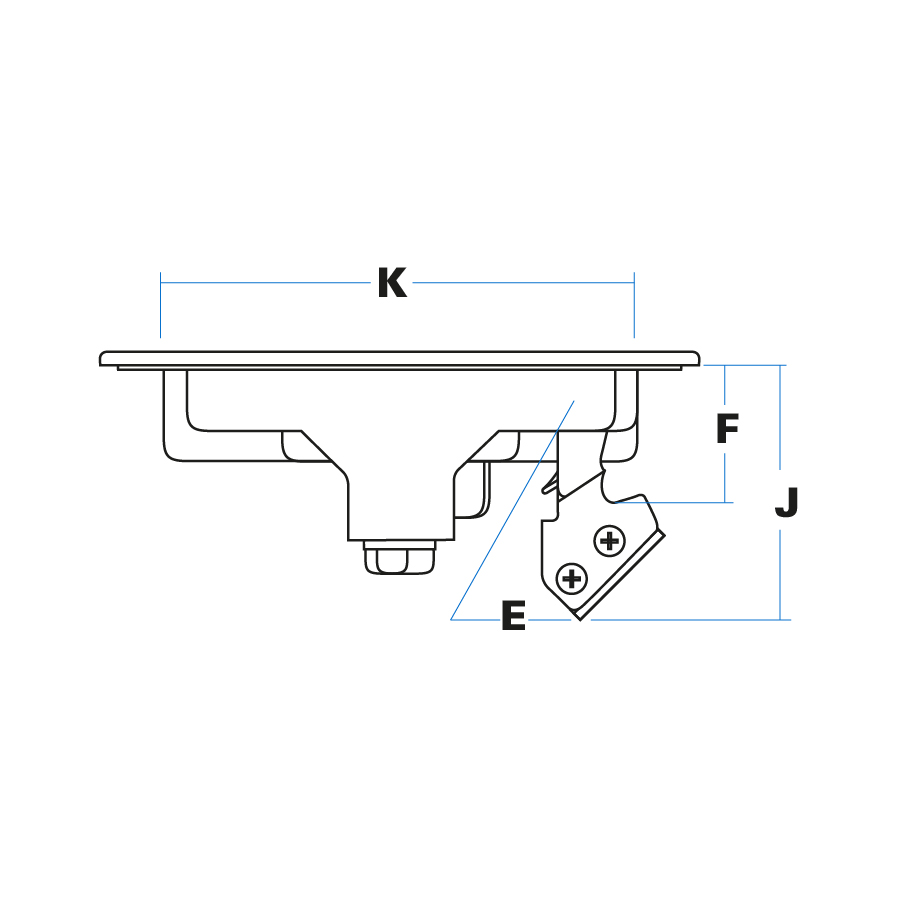

C1-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Case length 140 mm
B Case width 108 mm
E Max travel 30mm
F Hook penetration (standard) (special) 32 mm 50 mm
J Maximum depth 59 mm
K Recess length 111 mm
L Recess width 81 mm
  • Moulded case with integral gasket and no rear apertures prevents entry of water. Moulded ‘ramp’ on hook provides exceptionally smooth action.
  • As door closes the ramped face of hook meets the striker and is forced to engage. Once shut, spring action secures hook under striker loop.
  • Locking with key blocks movement of flap but hook is still free to operate and will slam shut.
  • Fixed with two M8 stainless bolts and steel ‘U’-bracket which clamps paddle against underside of panel.
  • Double-sided ‘FT’ keys with shuttered keyway, or optionally ‘FS’ keys.
  • Black, self-coloured, with lightly-textured finish.
  • Case & flap moulded in glass-filled nylon, steel components are zinc-plated for corrosion resistance.
  • A special extended ‘hook’ is available (dimension ‘F’ = 50mm) which offers greater depth of penetration (see illustration).
