‘Universal’ Budget Latch & Fittings

This simple ‘deadbolt’ latch has become an industry standard. Basic model is mild steel construction, with options in stainless steel or with moulded bolt. Two sizes of operating keys are available and diecast escutcheon covers can be fitted to conceal panel aperture.

Ordering Code

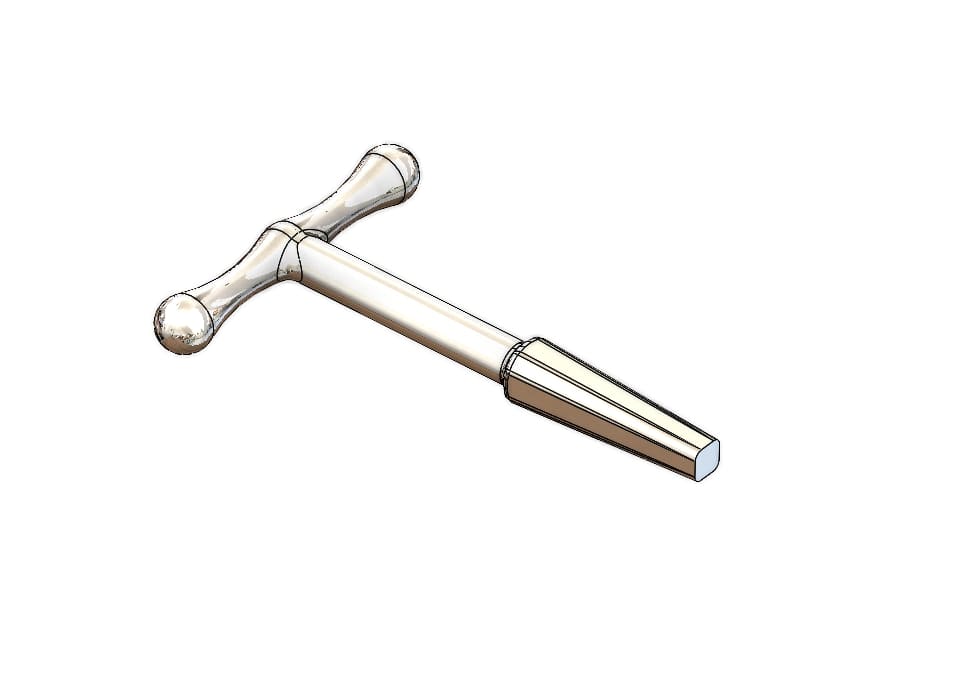

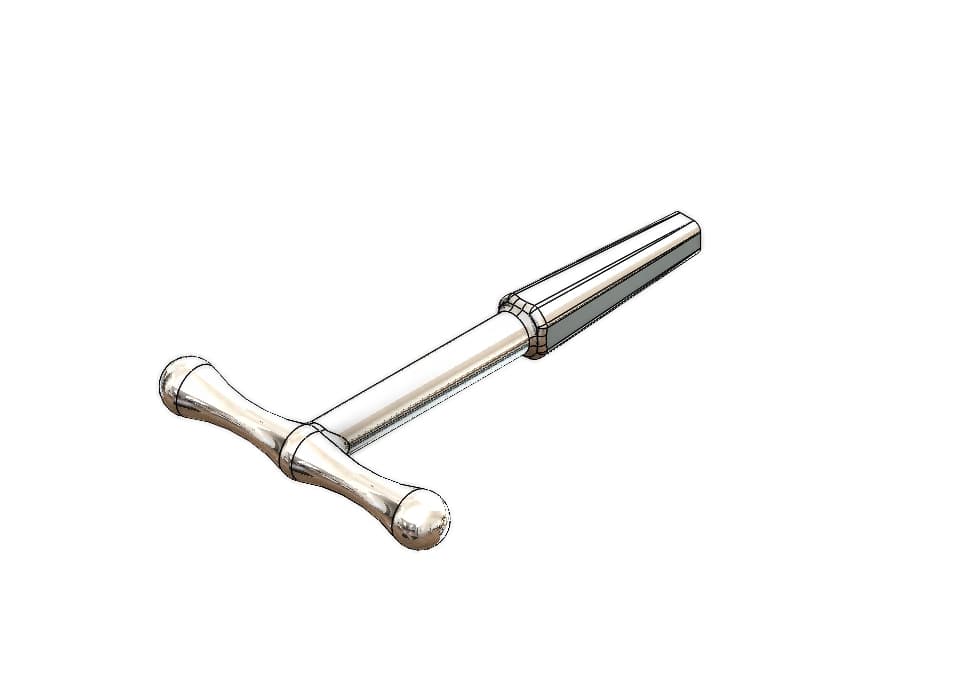

1/24596	‘T’ Key 90 mm length

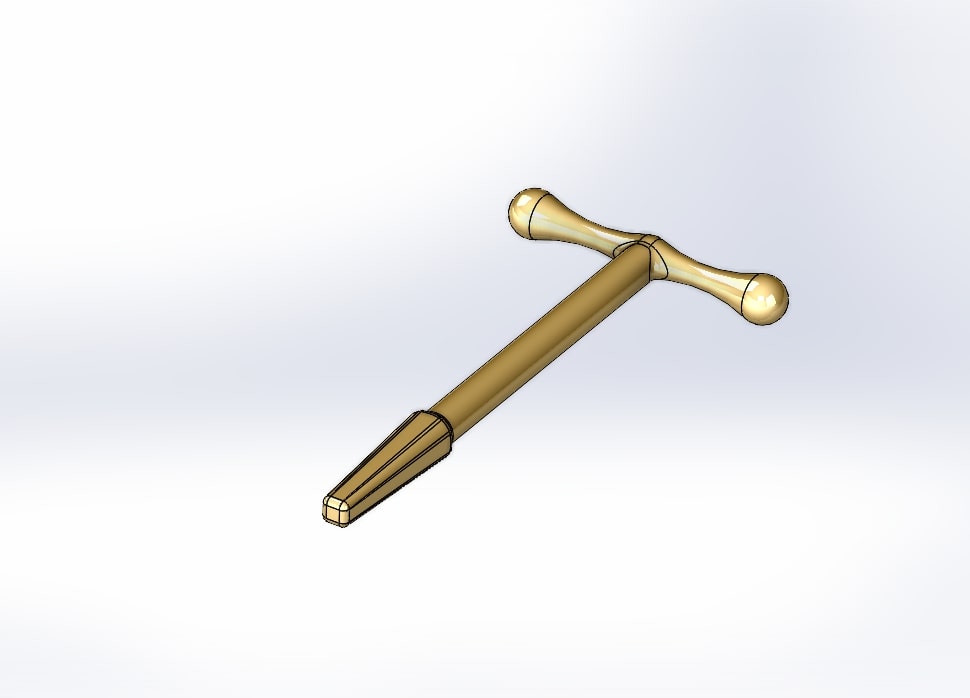

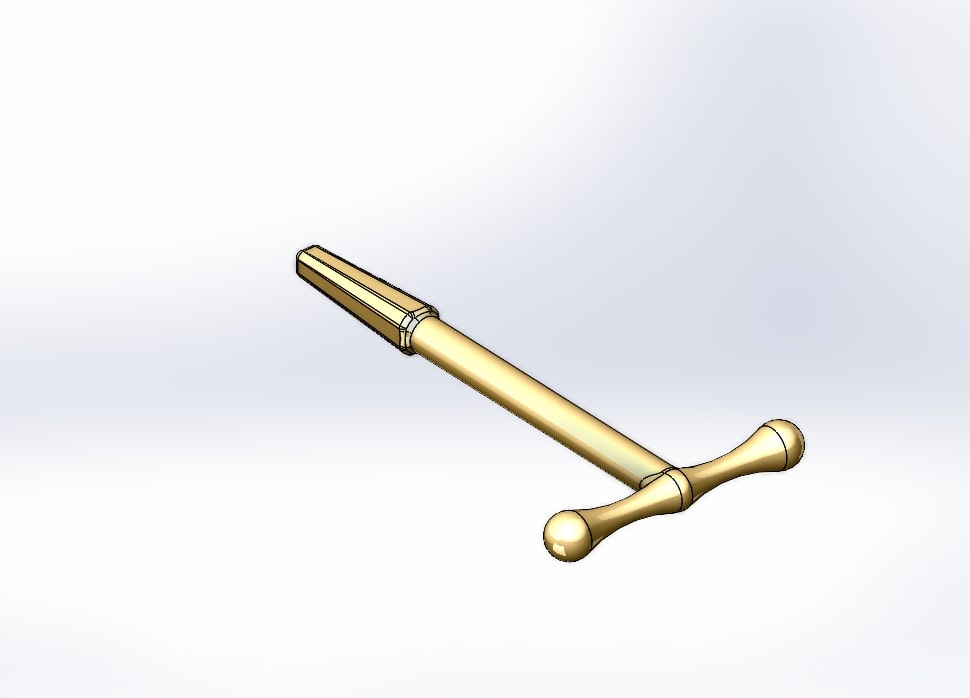

1/24597	‘T’ Key 125 mm length

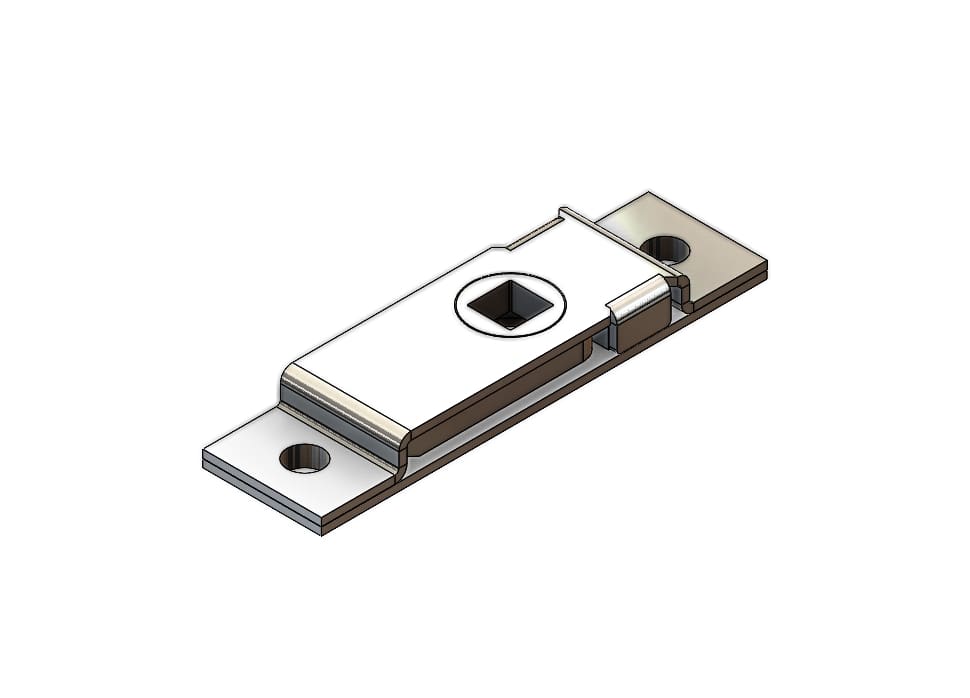

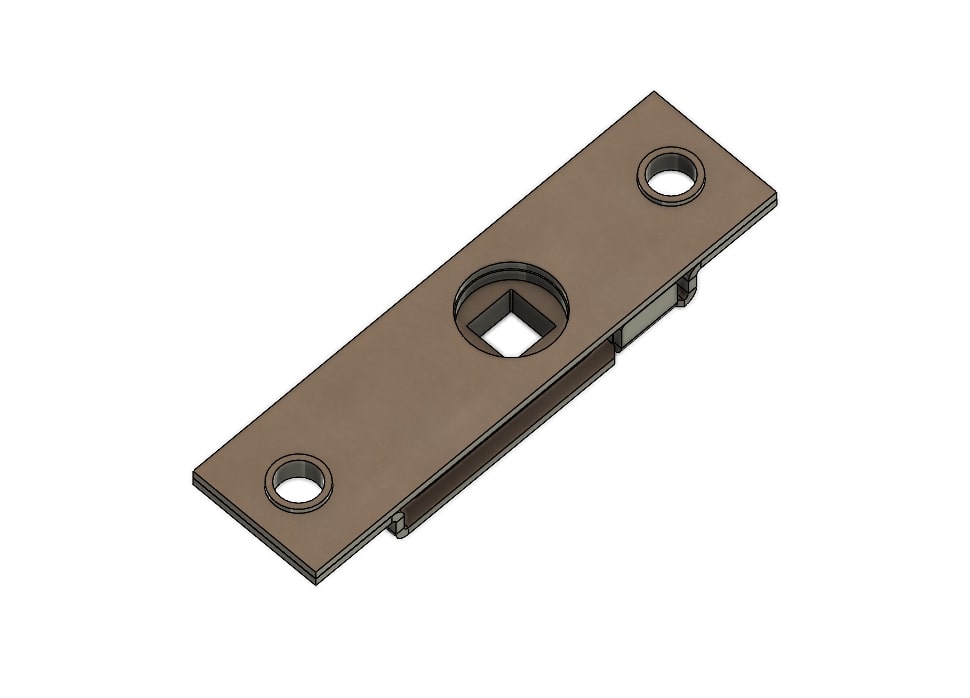

3/09656	Universal budget latch – steel

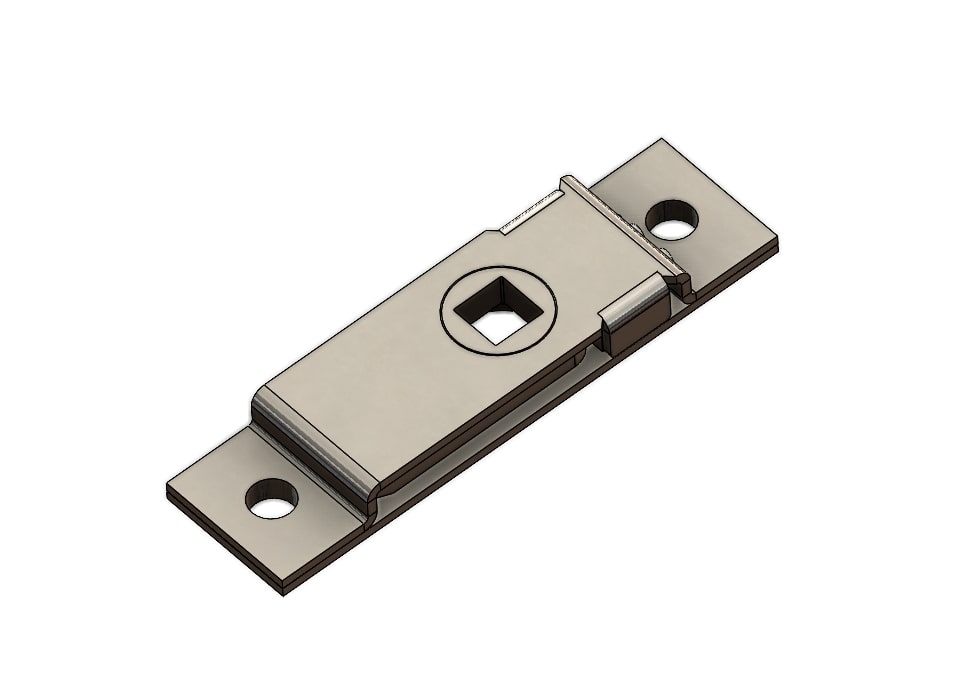

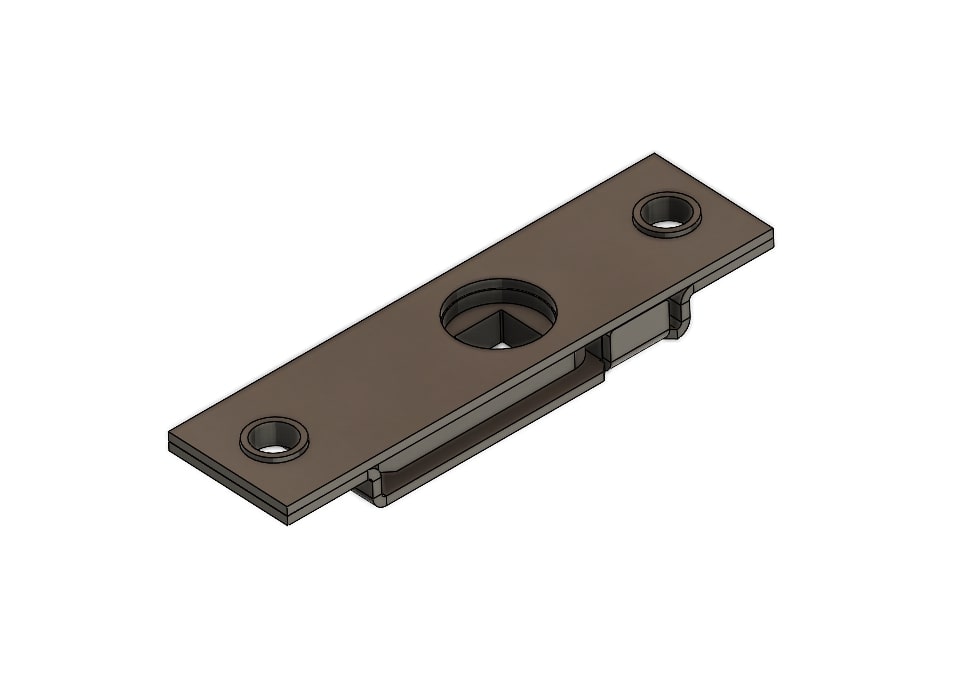

3/09656SS	Universal budget latch – stainless steel

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Hole Centres	66 mm
B	Case Width	22 mm
C	Bolt Protection	18 mm
D	Location	38 mm
E	Case Length	85 mm
F	Thickness	10 mm
H	Hole Size Diameter	7 mm

Simple ‘deadbolt’ latch operated by 8mm square follow-bush.
Non-handed design, with bolt able to travel 180˚ through case, but held positively in open and closed positions by concealed spring.
Bolts or rivets through fixing holes through top & bottom plates.
Zinc plated throughout, with mild steel models.
Moulded nylon bolt (black) as option with mild steel model. All-stainless latch for corrosion resistance (food industry, etc.).

T-Keys are in malleable iron, burnished & lacquered, and suit all 8mm square follow-bushes.
