‘Turnbutton’ Remote Action Lock Unit

A very low profile design with spring return, used to operate a latch or mechanism which is mounted remote from the lock itself. It has been widely used as a vehicle boot (trunk) and tailgate lock.
Download Our Section A Catalogue
5/00939
5/00939
5/00939
5/00939
9/00137SS
9/00137SS
9/00137SS
9/00137SS
9/00138
9/00138
9/00138
9/00138
9/00078
9/00078
9/00078
9/00078
9/01875
9/01875
9/01875
9/01875

Ordering Code

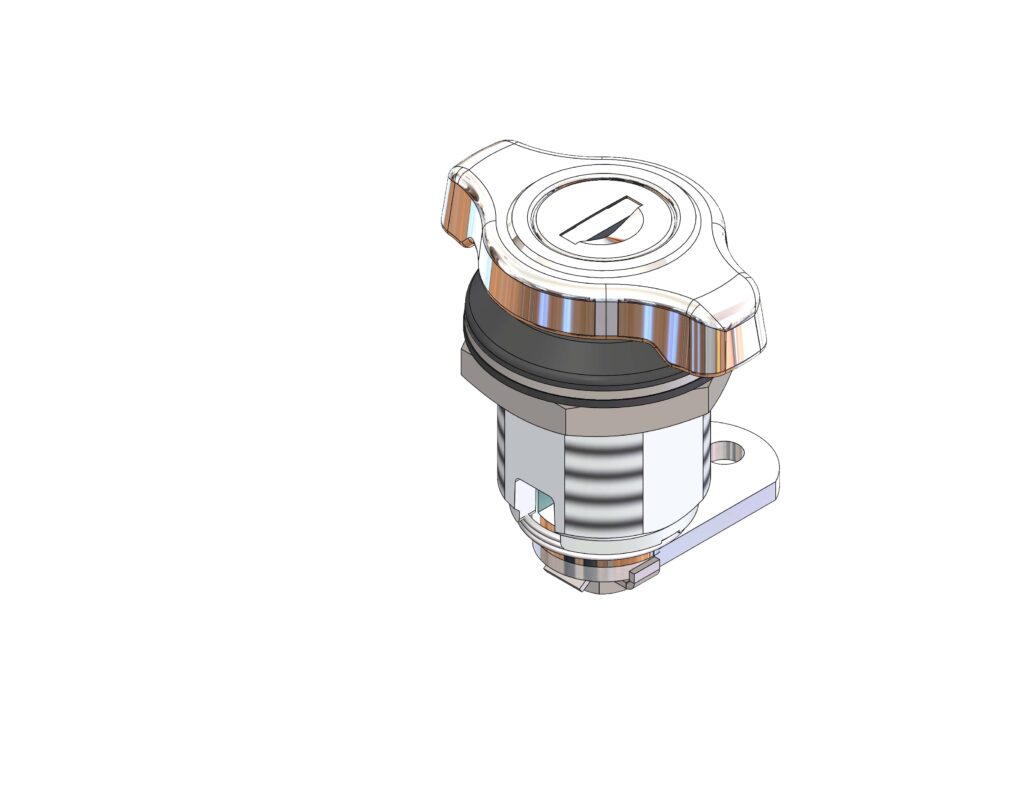

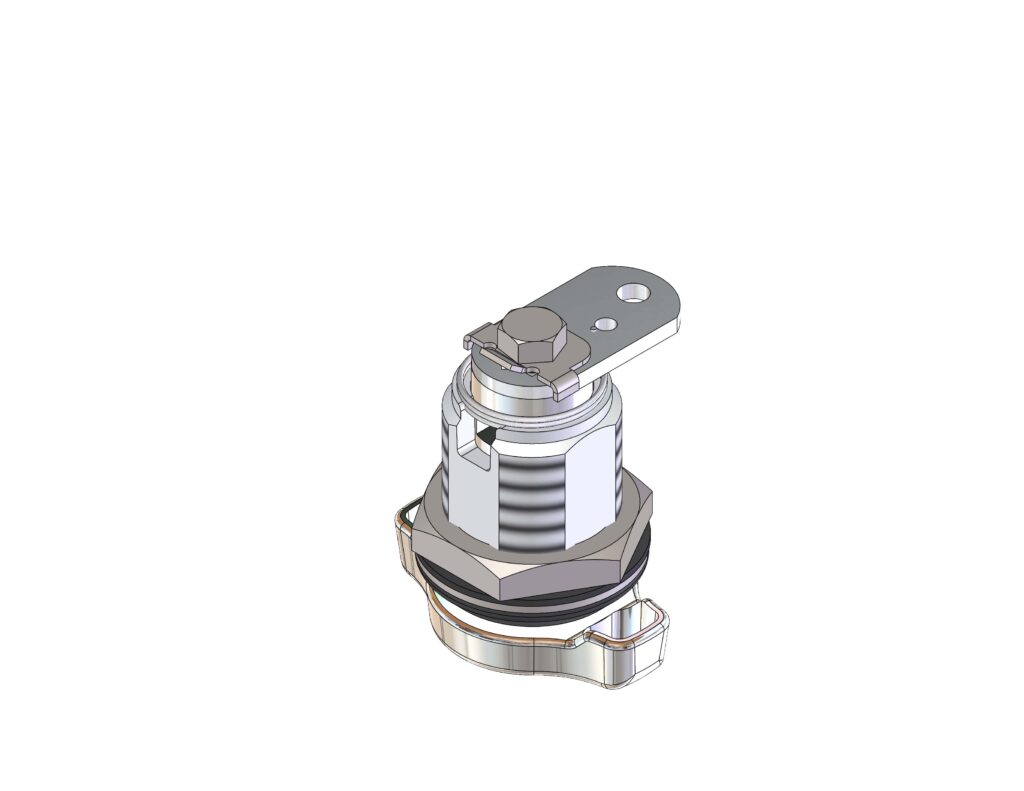

9/01875 Turnbutton, chrome, LH

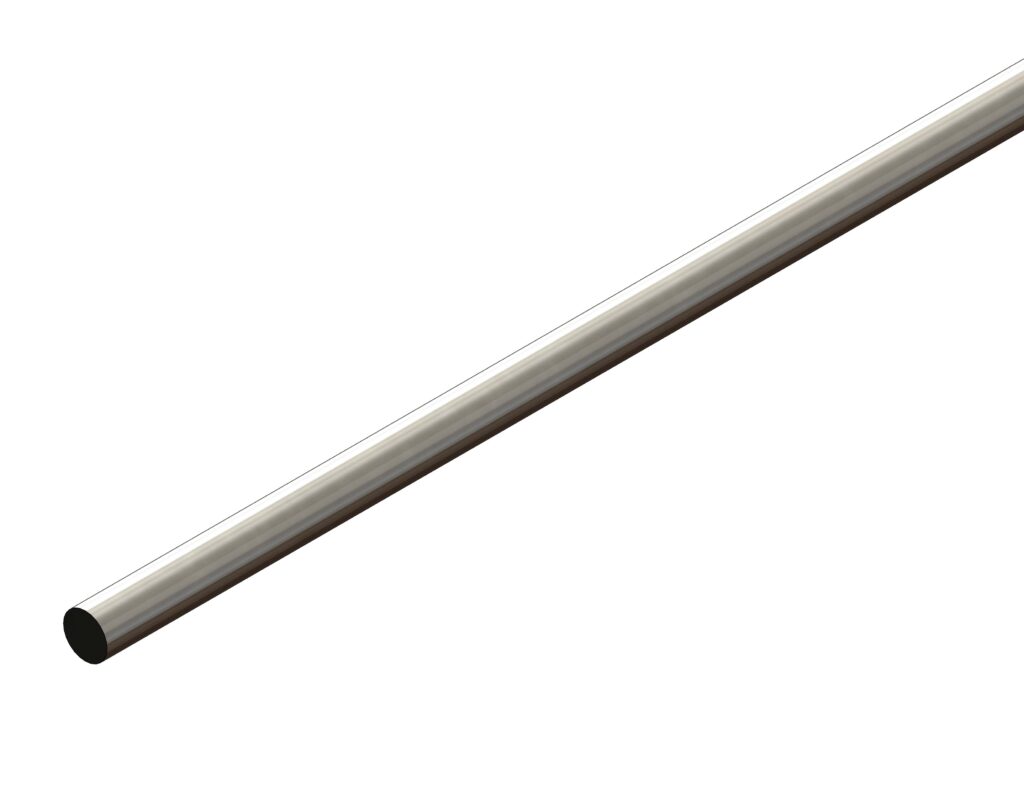

9/00078 Connecting link rod, 1-metre

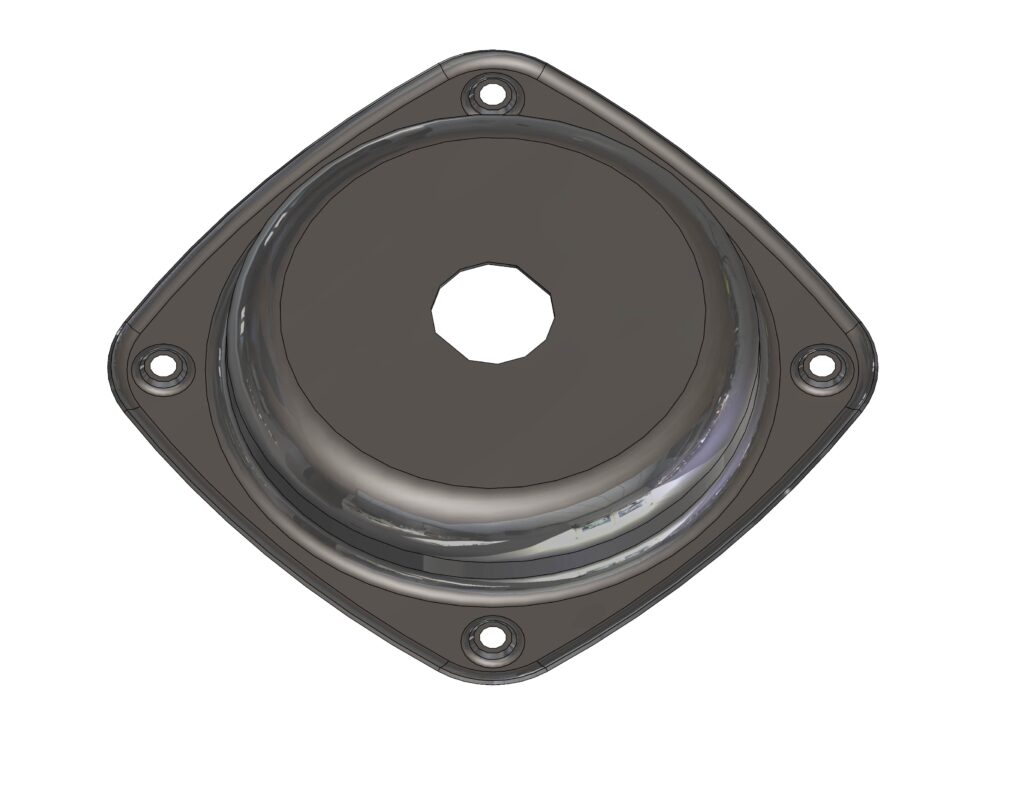

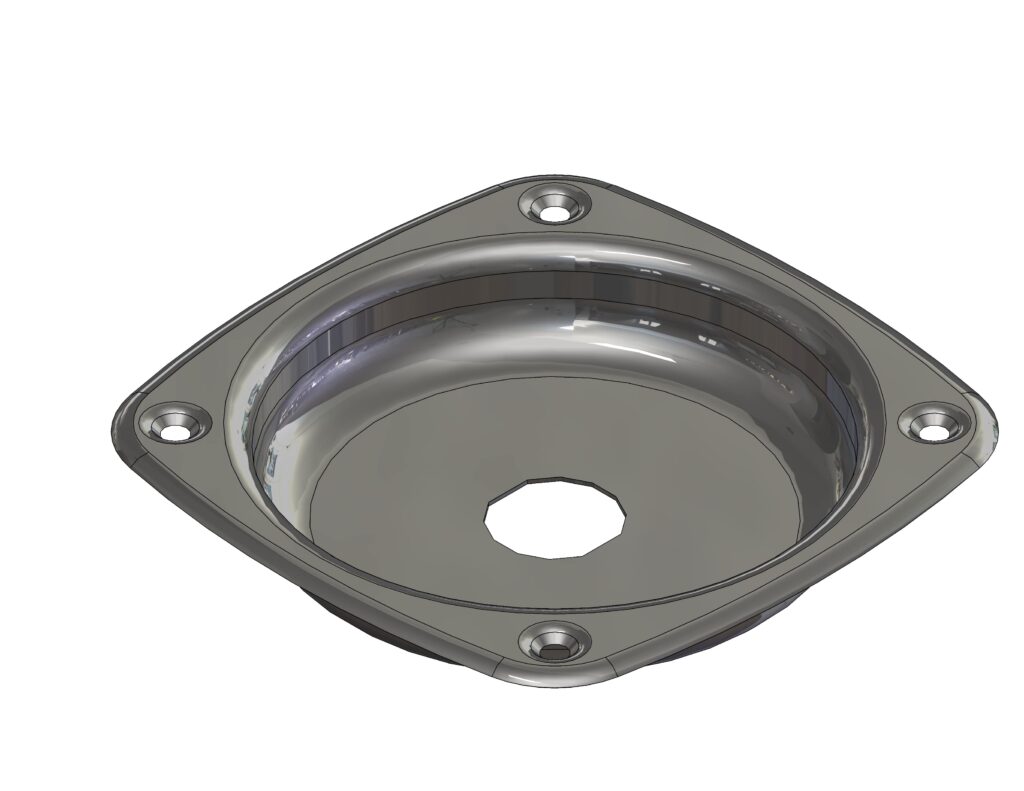

9/00138 Recess pan, black

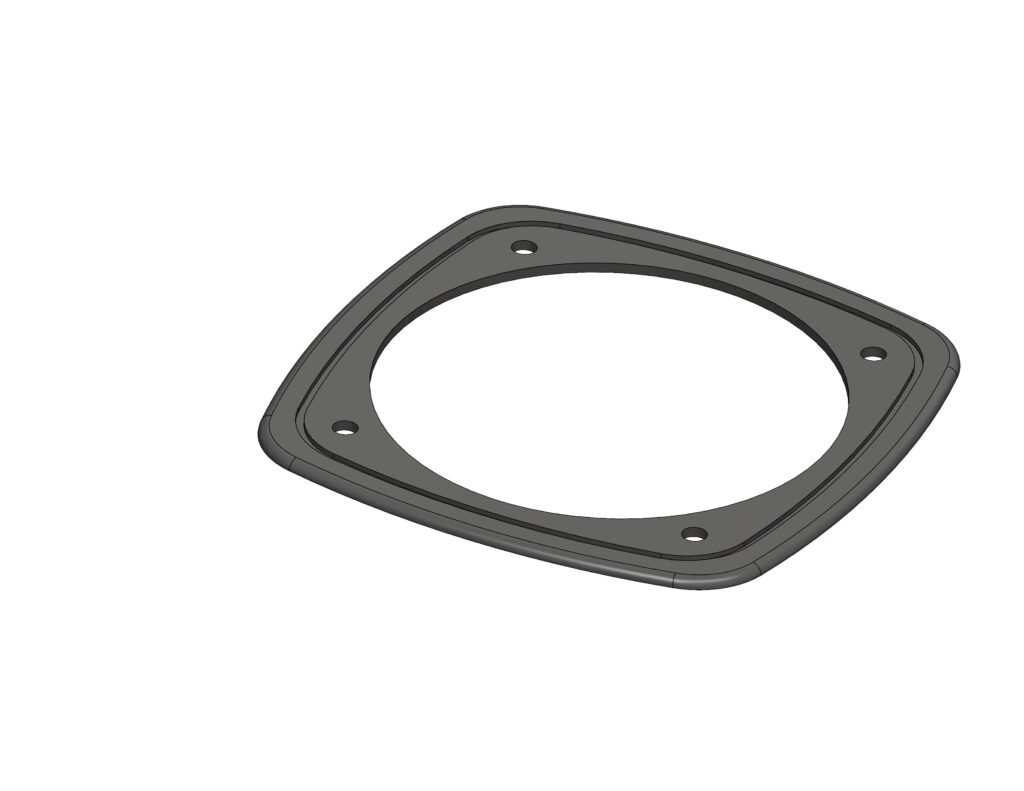

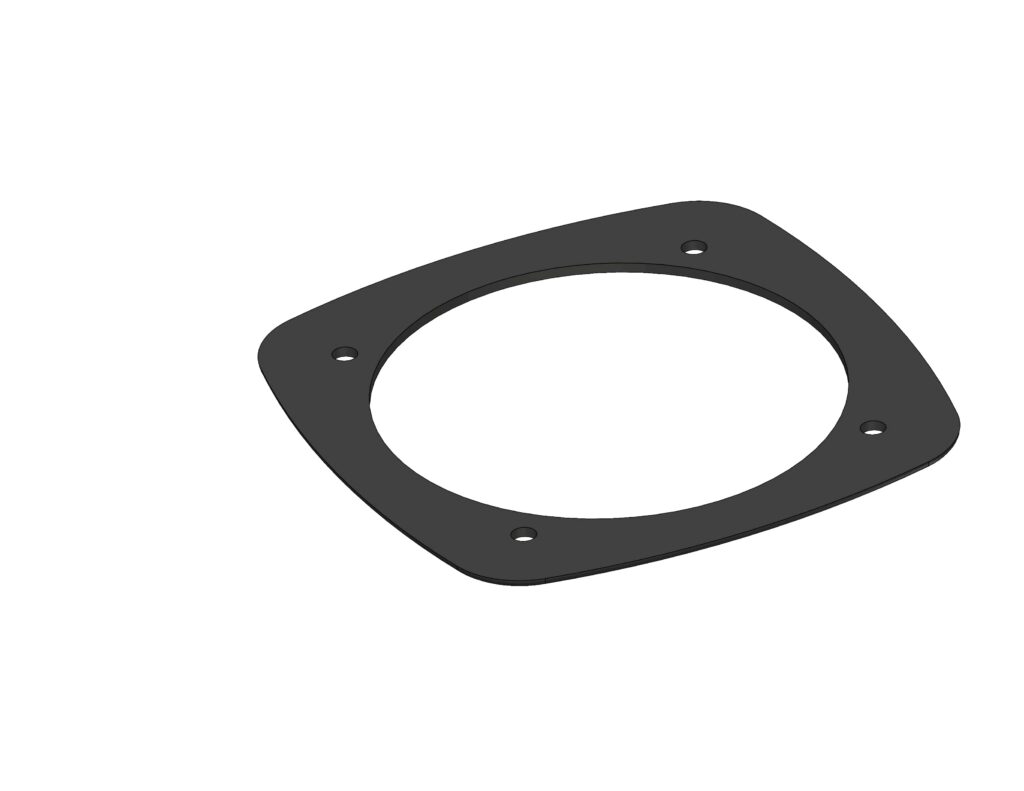

5/00939 Gasket for recess pan

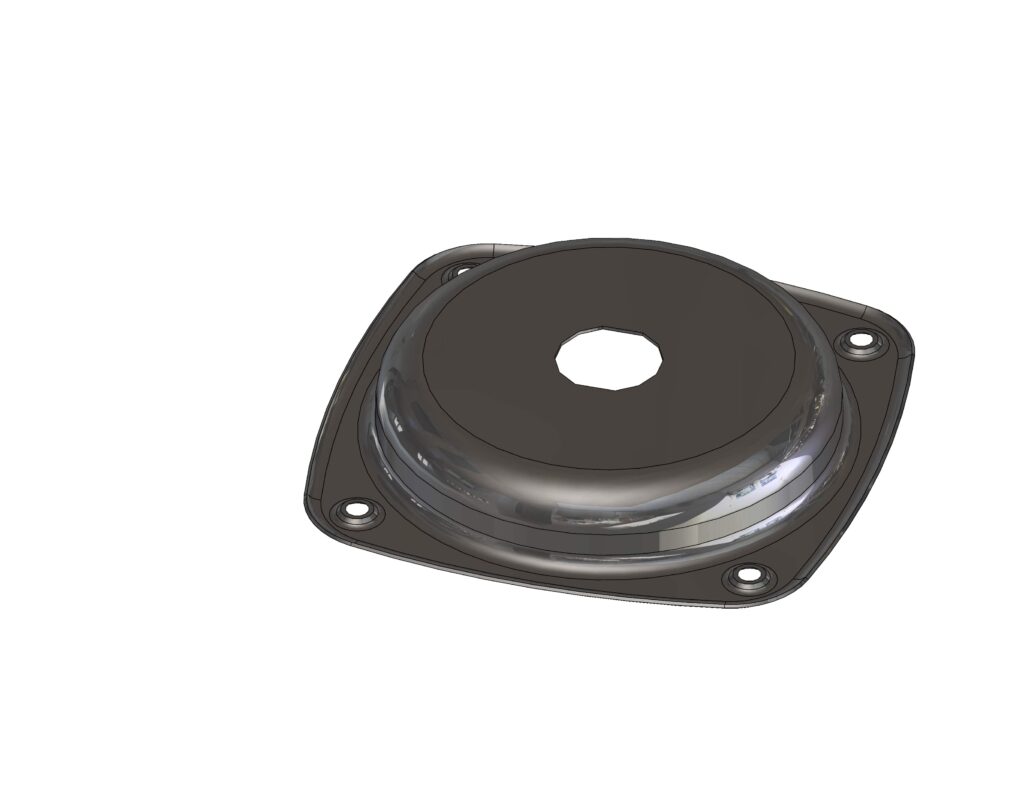

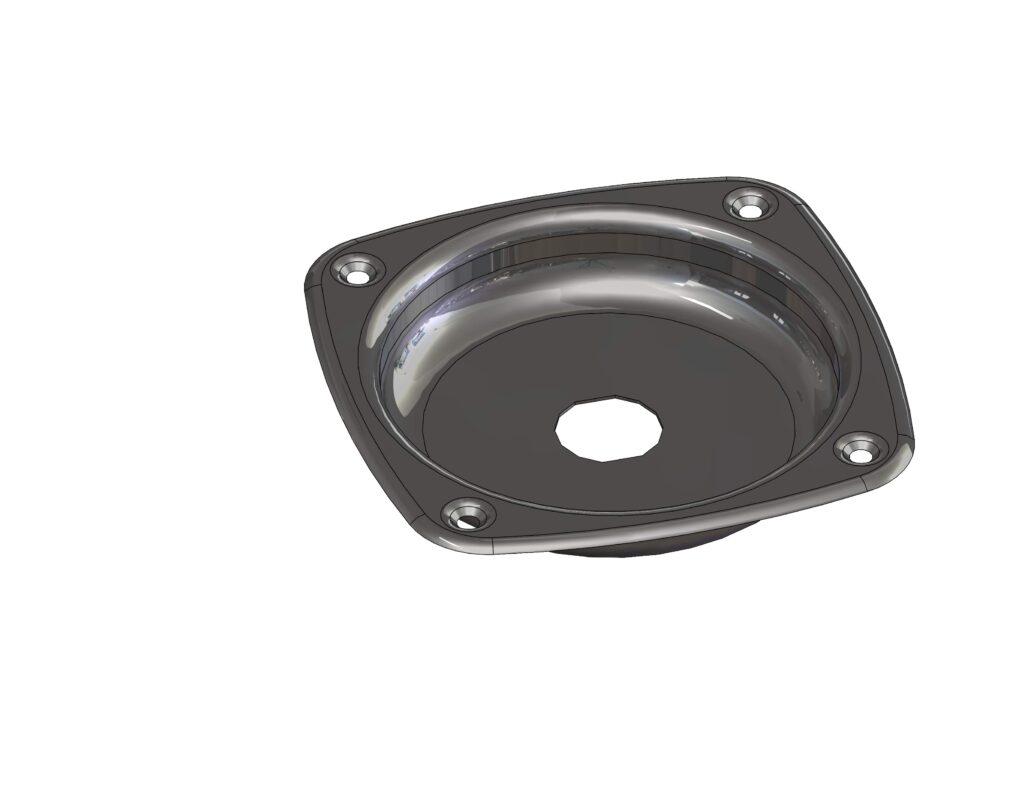

9/00137SS Stainless Steel Pan
A13-Diagram 01-100
A13-Diagram 02-100
A13-Diagram 03-100

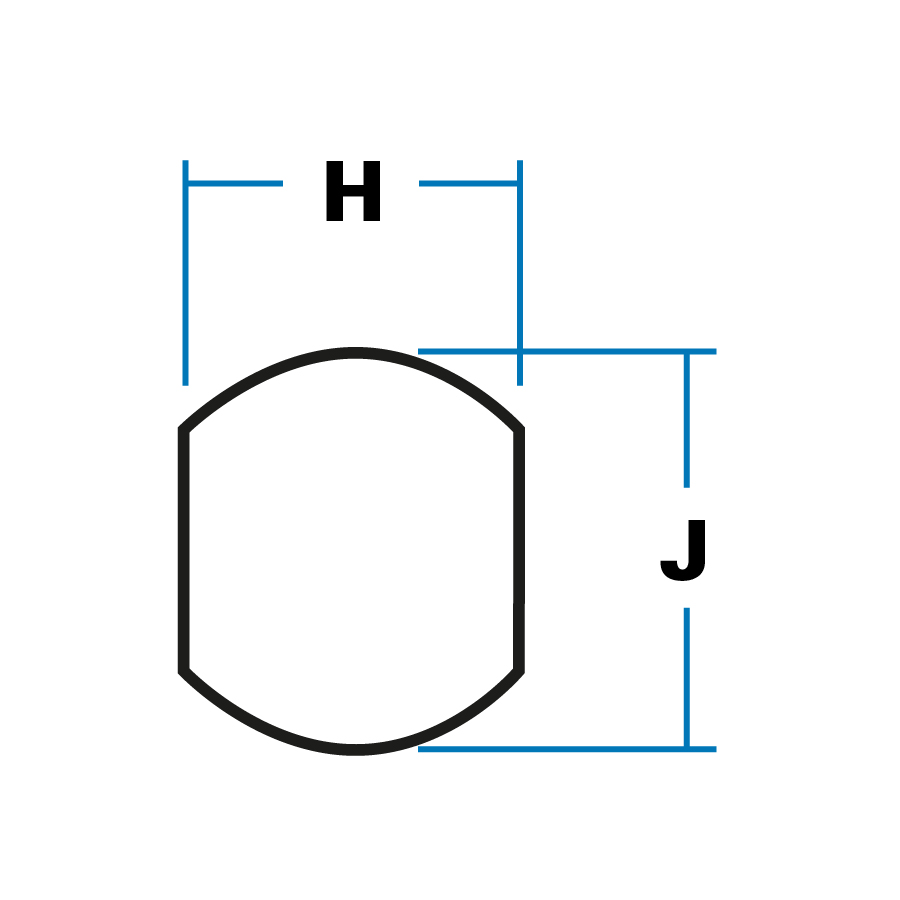

Panel-piercing detail This larger aperture also suits our ‘easy-fix’ range of ‘L’ & ‘T’ handles
A13-Diagram 04-100

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Face width 45 mm
B Body depth 37 mm
C Face height 14 mm
D Depth to drive plate 30 mm
E Height to hole 20 mm
F Hole size (dia) 4 mm
G Travel (max) 25 mm
H Piercing across flats 22 mm
J Piercing, diameter 24 mm
  • Turn lock through 90° LH to rotate drive plate and operate attached linkage. Spring returns turnbutton to horizontal position. Key turns through 180° to prevent movement and withdraws in both positions.
  • Insert from front into pierced aperture and fix with large hexagonal nut. Neoprene gasket and stainless spring washer provided.
  • 'FT’ keys as standard with ‘shuttered’ keyway. Optionally ‘FS’ or ‘DLP’ key types.
  • Bright chromium-plated or black powder-coated.
  • - Drive plate length/orientation
    - 2-way connecting plate
    - Can be used with our ‘claw’ and ‘rotary’ latches, or ‘intermediary’ unit, 1/29736.
