‘Turnbutton’ Low-Profile Lock Unit

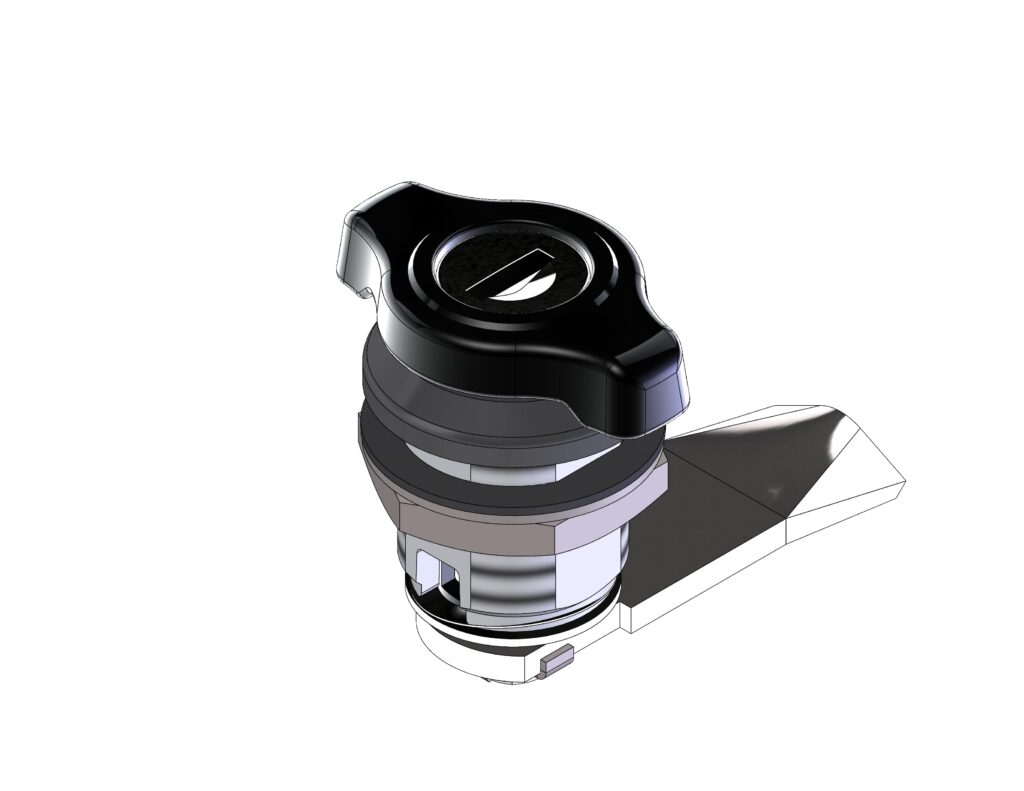

The ‘turnbutton’ lock is fitted with a direct-action operating bar, making it an extremely low-profile handle for securing doors or for driving rod mechanisms.
Download Our Section A Catalogue
9/01861B/01
9/01861B/01
9/01861B/01
9/01861B/01

Ordering Code

9/01861 Turnbutton, chrome, 90° LH
9/01861/01 As above, FT111 keys
9/01861B/01 Turnbutton, black, 90° LH, FT111 keys
A12-Diagram 04-100
90° LH Movement, Handles operate LH (clockwise) but lock in horizontal position only. Key does not withdraw in ‘open’ position.
A12-Diagram 01-100
A12-Diagram 02-100
A12-Diagram 03-100

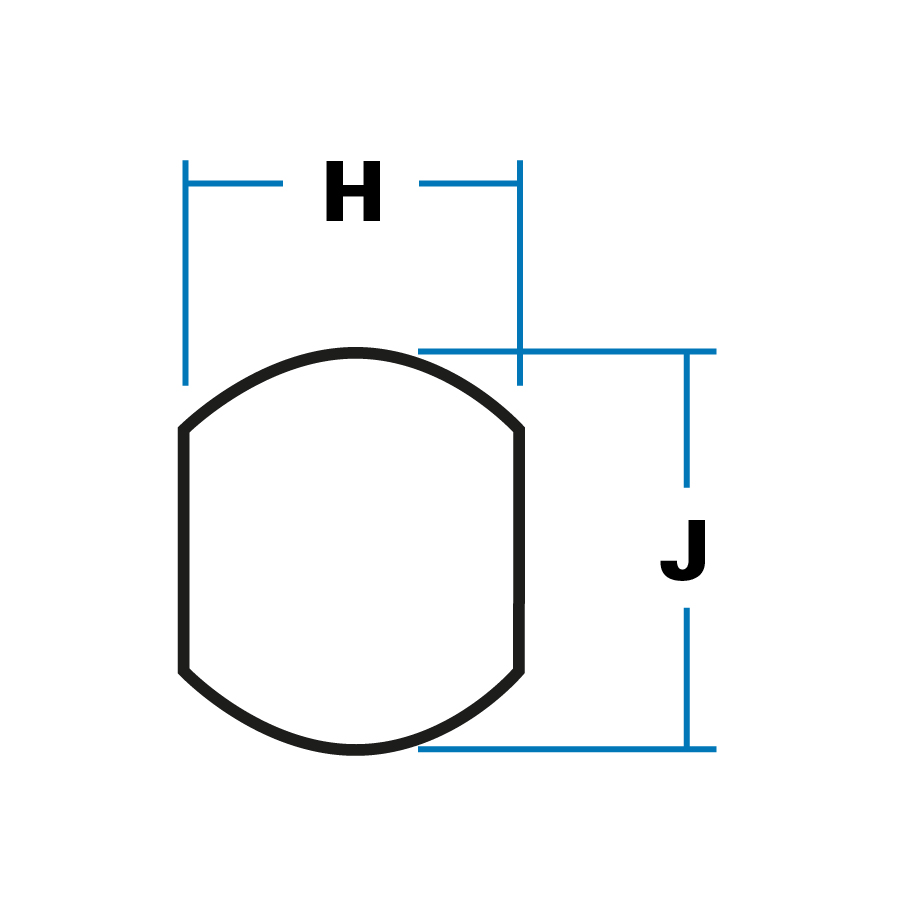

Panel-piercing detail This larger aperture also suits our ‘easy-fix’ range of ‘L’ & ‘T’ handles.

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Face width 45 mm
B Body depth 37 mm
C Face height 14 mm
D Depth to latch 30 mm
E Height of latch 48 mm
H Piercing across flats 22 mm
J Piercing, diameter 24 mm
Latch bar can be fitted at 90° intervals
  • Rotation is 90° LH. Key operates only when handle is horizontal, but key withdraws in both locked positions.
  • Insert from front into pierced aperture and fix with large hexagon nut. Neoprene gasket and stainless spring washer are provided.
  • ‘FT’ keys as standard with ‘shuttered’ keyway. Optionally ‘FS’ or ‘DLP’ key types.
  • Bright chromium-plated or black powder-coated.
  • - Cranked latch bars
    - 2/3-point bars & rods
    - Special key numbers or sets
