Traditional Locking Handle

Traditional Locking Handles have been fitted at various times to passenger cars, trucks, tractors, and to all types of ancillary equipment. Standard fixing centres 38mm (1.5 inch) and 44mm (1.75 inch), with alternative mounting escutcheons available, including concealed-fix options.

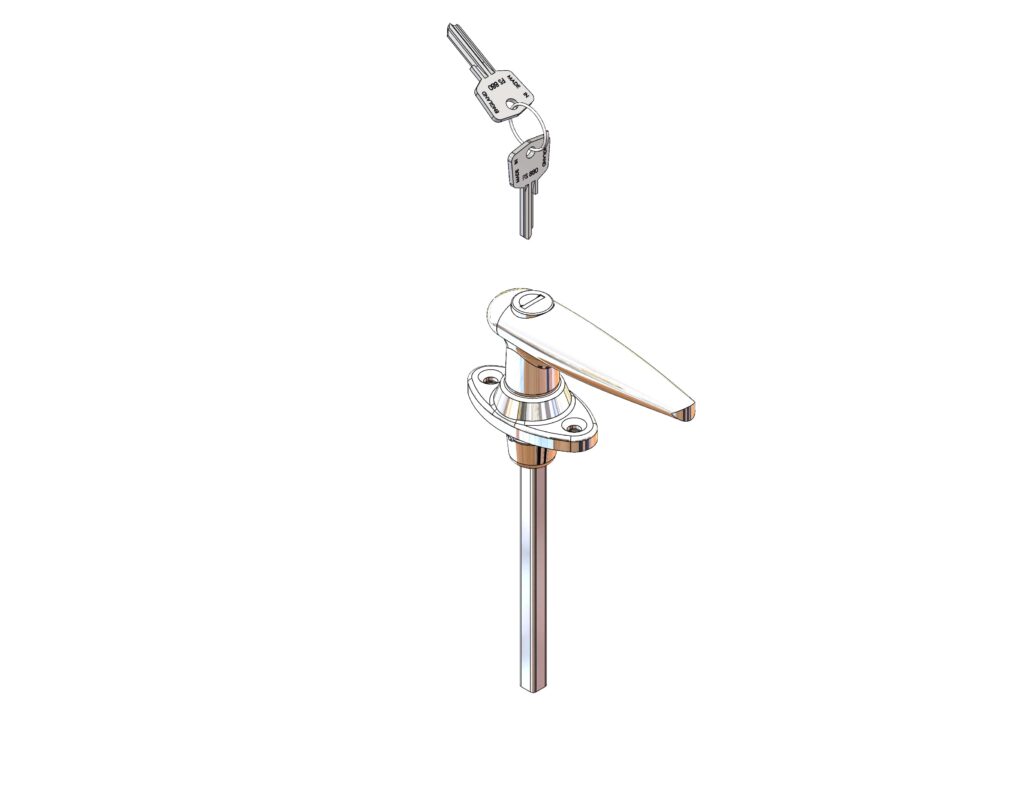

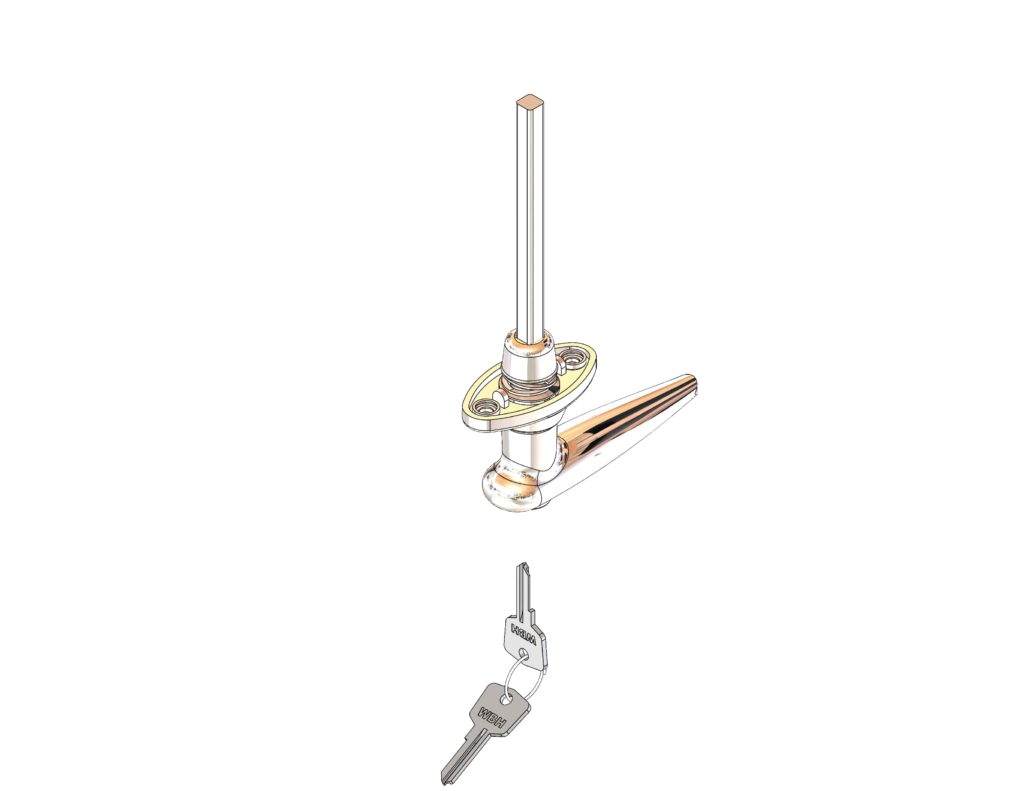

1/12950/01
1/12950/01
1/12950/01
1/12950/01

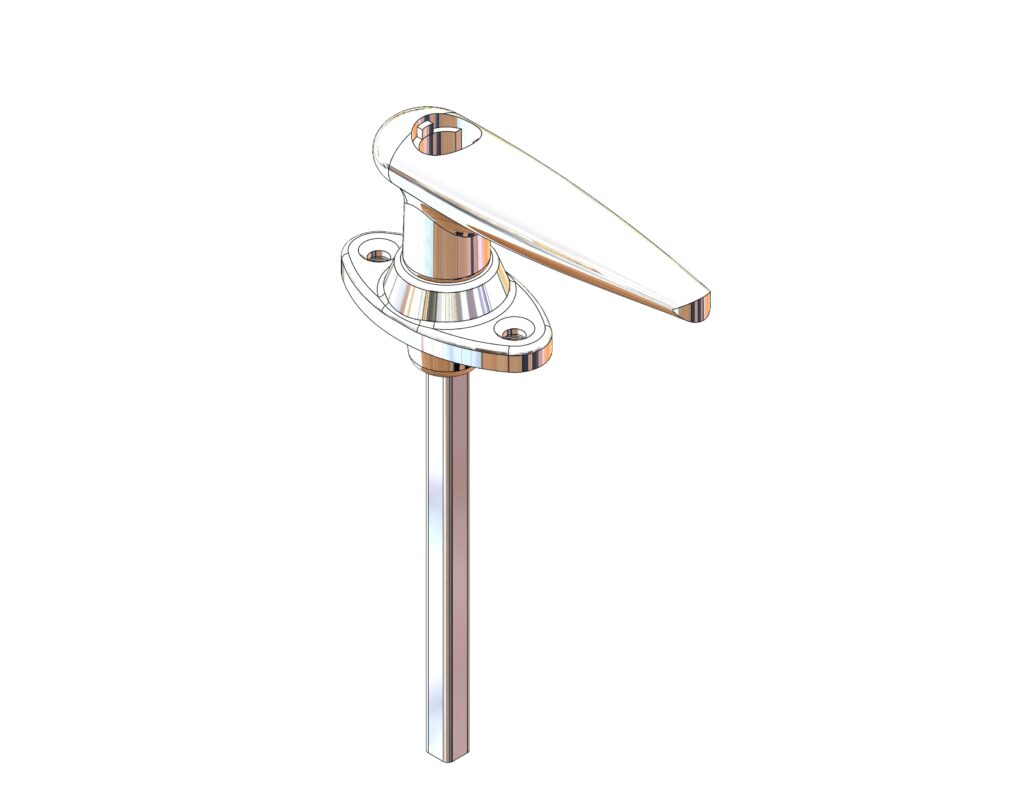

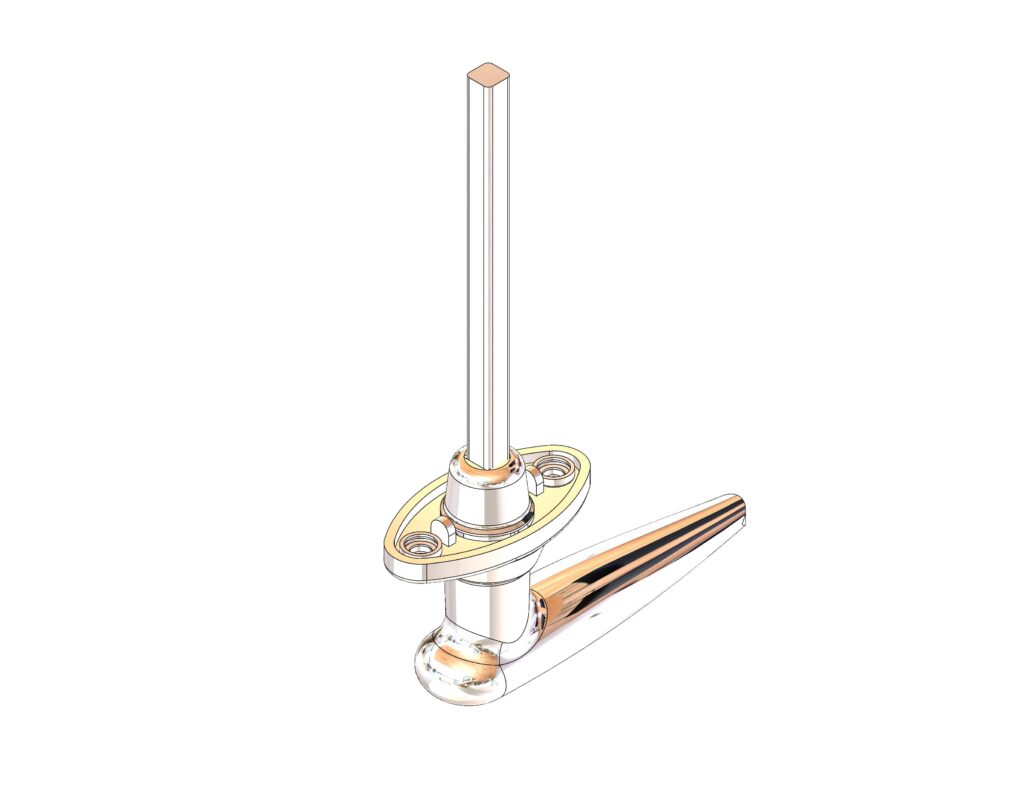

1/12950
1/12950
1/12950
1/12950

Ordering Code

1/12950 Locking handle, chrome (44mm)
1/12950/01 As above, FS880
Add suffix ‘B’ for black.

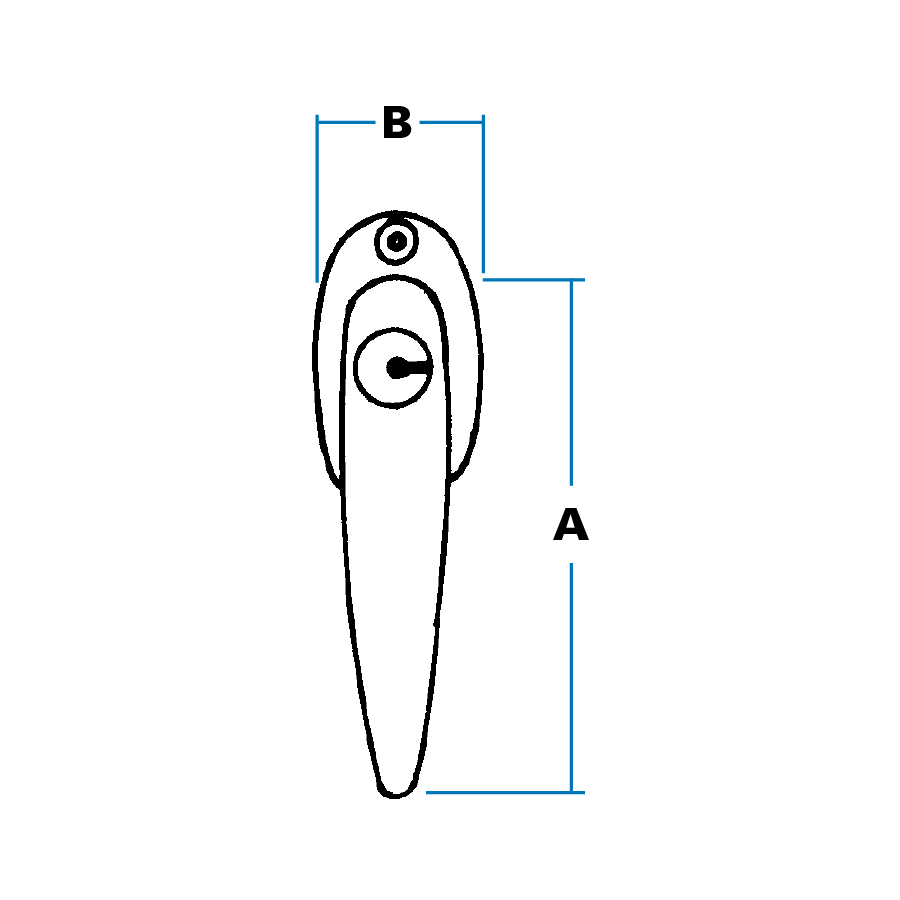

B18-Diagram 01

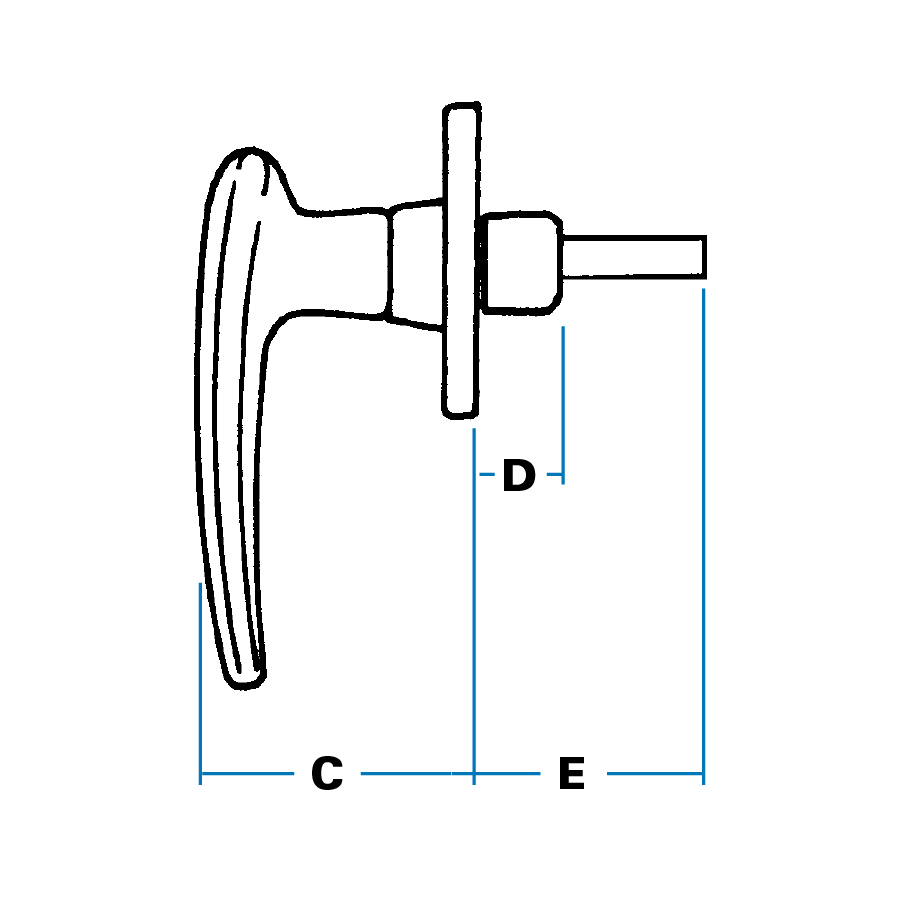

B18-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Handle length 105 mm
B Mounting width 32 mm
C Face height 50 mm
D Depth of handle boss 16 mm
E Shaft length 125 mm
Fixing centres at 38mm & 44mm, standard
  • Free rotation through 360°, locking at each 90° position.
  • Fix through countersunk holes or with studs on concealed-fixing versions. Neoprene gaskets provided.
  • FS’ keys only, with shuttered keyway.
  • Chromium plated or black powder-coated.
  • - Shaft lengths
    - Threaded shafts
    - Special key numbers/sets
    - ‘Customised’ keys
    - Alternative mounting escutcheons
