Traditional Handles – Classic Period Model

At one time immensely popular, these handles are now mostly used for restorations and reproductions of classic vehicles. Standard fixing centres are 44mm (1.75 inch) & 36mm (1.43 inch), with alternative mounting escutcheons available, including concealed-fix options.
1/12700
1/12700
1/12700
1/12700
1/12734
1/12734
1/12734
1/12734
1/12734/01
1/12734/01
1/12734/01
1/12734/01
1/15100
1/15100
1/15100
1/15100
1/15134
1/15134
1/15134
1/15134

Ordering Code

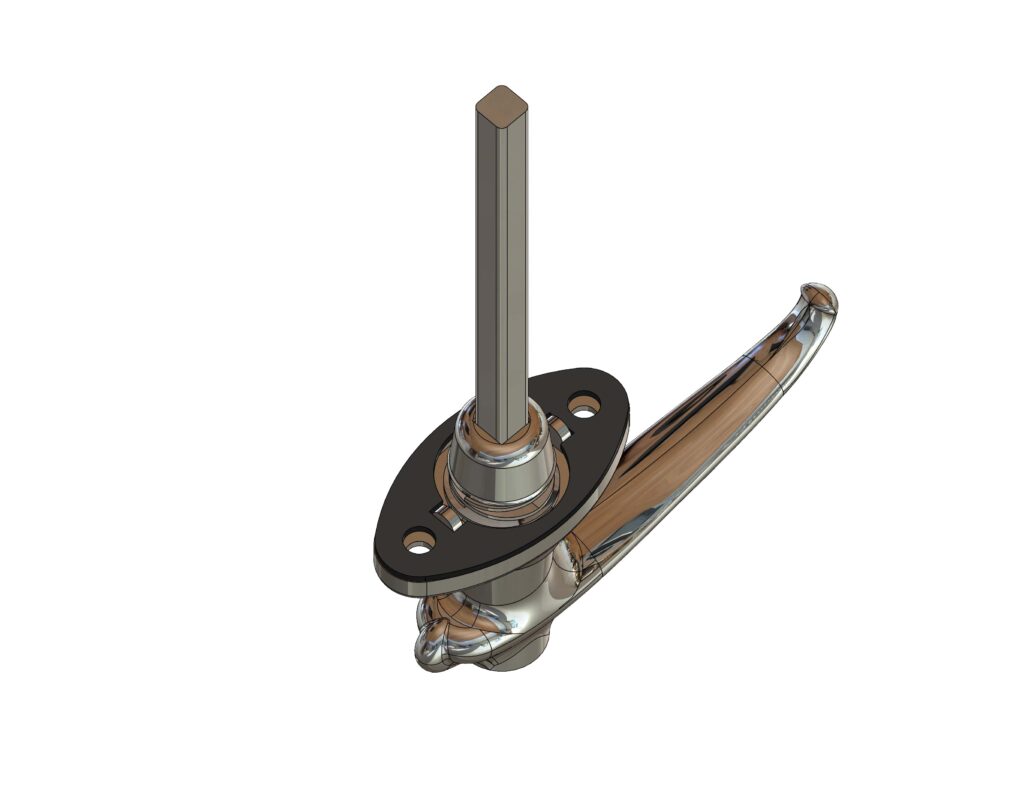

1/12734 ‘Fluted’ handle, locking, chrome(44 mm)

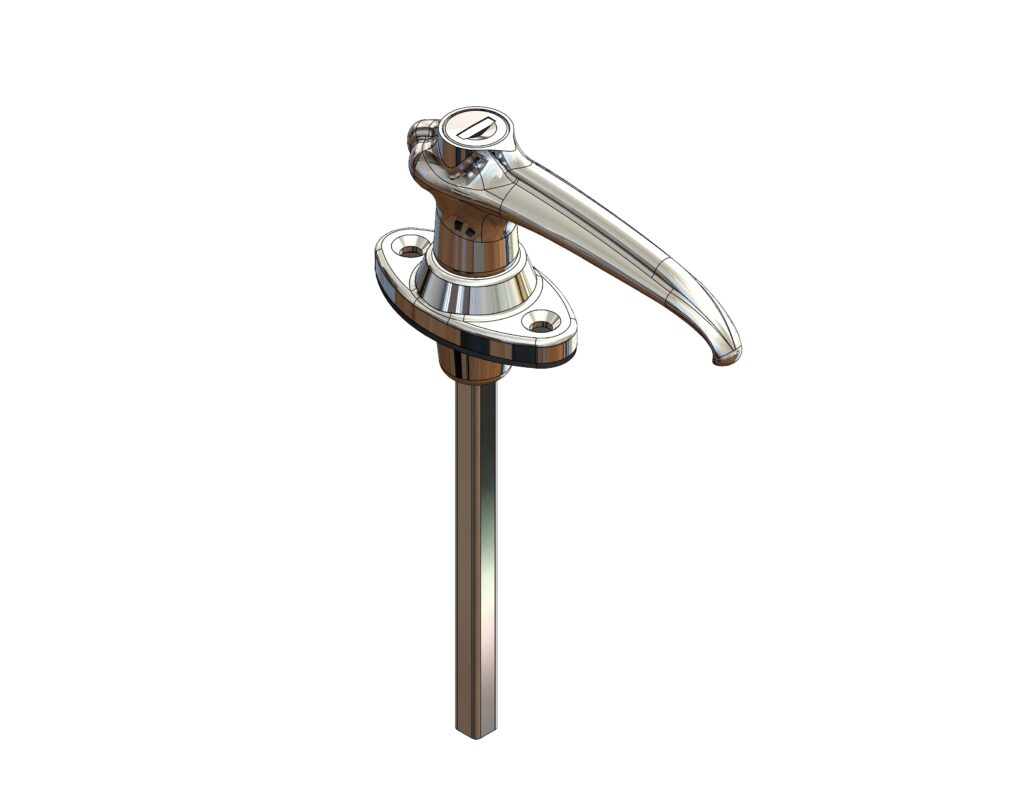

1/12734/01 As above, FS880
1/15134 ‘Fluted’ handle, non-locking,chrome (44 mm)
1/12700 ‘Fluted’ handle, locking, chrome(36 mm)

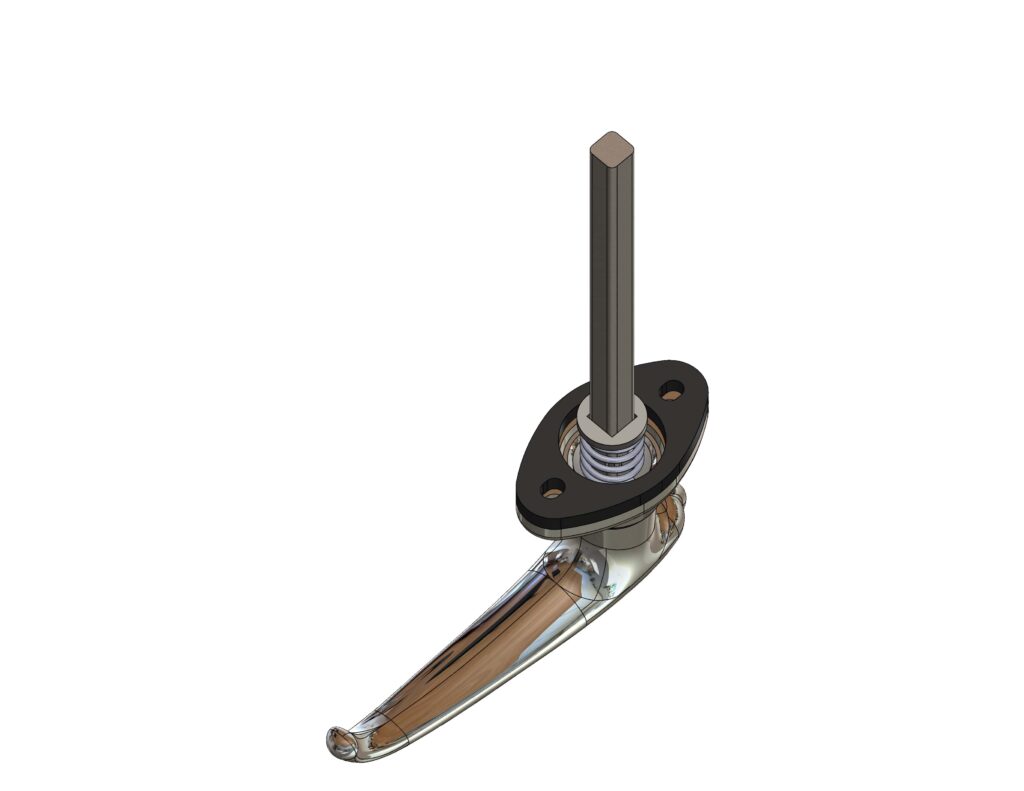

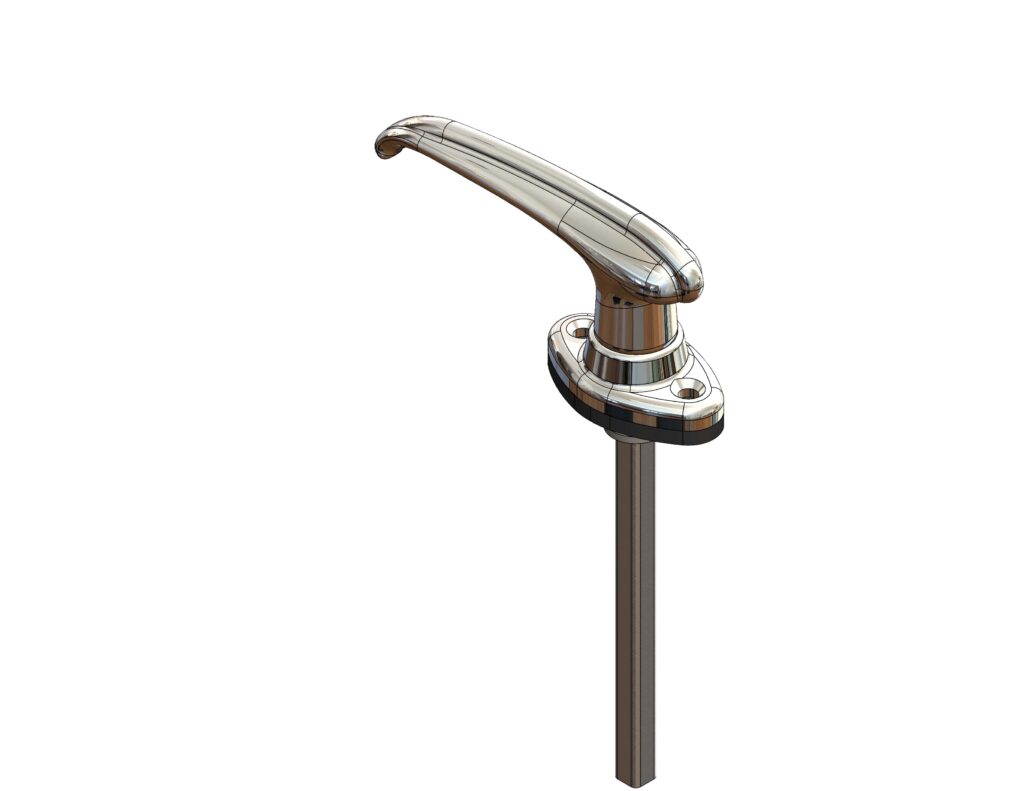

1/15100 ‘Fluted’ handle, non-locking,chrome (36 mm)
B20-Diagram 02
B20-Product 02 copy

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Handle length 100 mm
B Mounting width 32 mm
C Face height 51 mm
D Depth of handle boss 16 mm
E Shaft length 125 mm
Fixing centres at 44 mm & 36 mm, standard
  • Free rotation through 360°, locking at each 90° position.
  • Fix through countersunk holes or with studs on concealed-fixing versions. Neoprene gaskets provided.
  • ‘FS’ keys only, with ‘shuttered’ keyway.
  • Chromium plated or black powder-coated.
  • - Shaft lengths
    - Threaded shafts
    - Special key numbers/sets
    - Alternative mounting escutcheons
    - Concealed fixing at 36 mm & 40 mm centres
