Traditional Handles – ‘Arched’ & ‘Small-L’

Two other long-established designs, both have unusual lengths of ‘lever’ which make them suitable for special vehicle applications and for ‘kit’ and ‘replicars’. Standard models are as shown, with alternative mounting escutcheons available, including concealed-fix options.
1/14300
1/14300
1/14300
1/14300
1/14300/01
1/14300/01
1/14300/01
1/14300/01

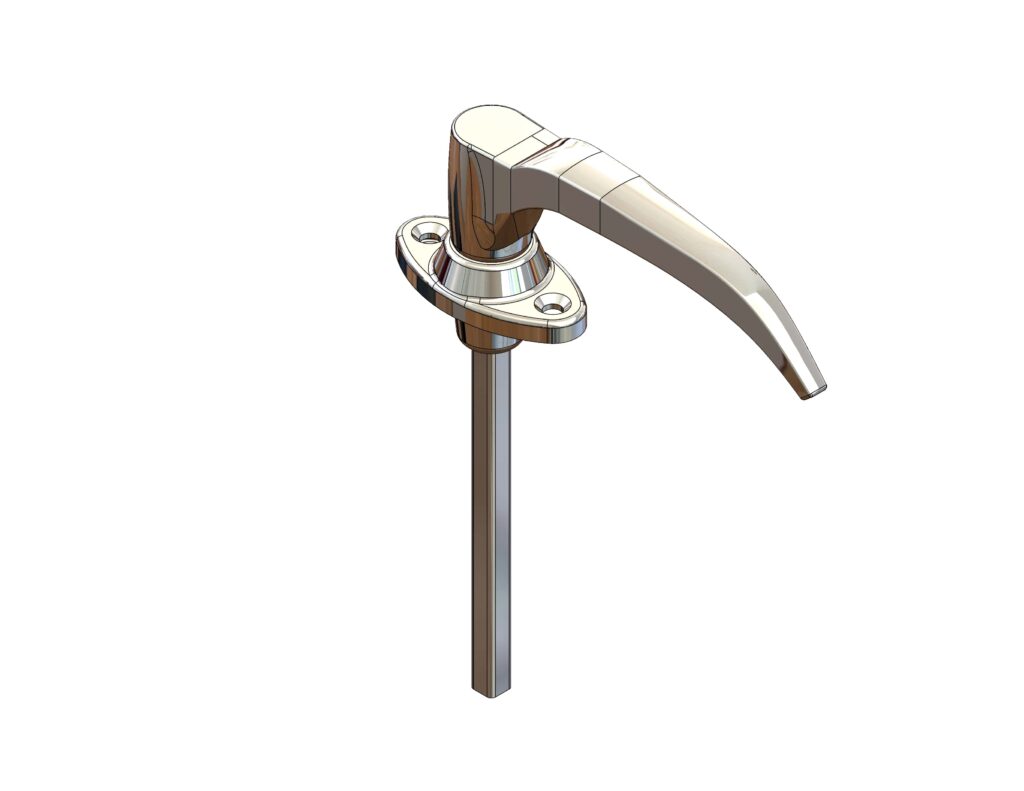

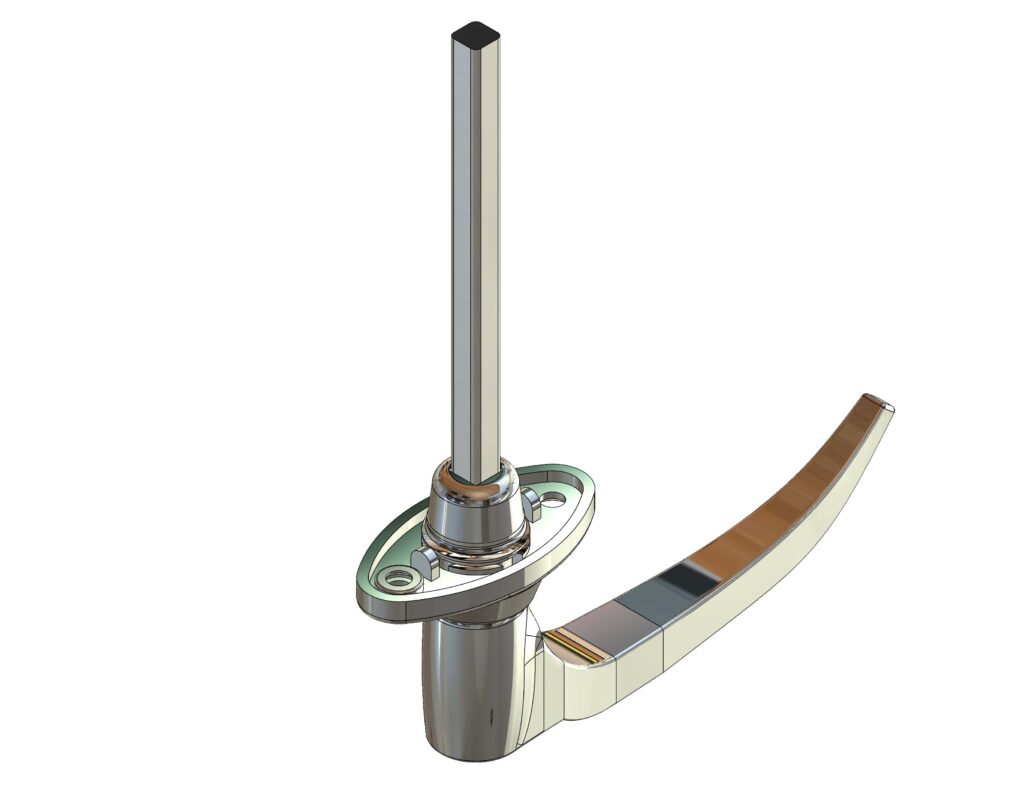

1/14600
1/14600
1/14600
1/14600
1/28902
1/28902
1/28902
1/28902

Ordering Code

1/14300 ‘Arched’ handle, locking, chrome(44mm)
1/14300/01 As above, FS880
1/14600 ‘Arched’ handle, non-locking,chrome (44mm)
1/28902 ‘Arched’ handle, locking, chrome(38mm)
B19-Diagram 01
B19-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Handle length 130 mm
B Mounting width 32 mm
C Face height 56 mm
D Depth of handle boss 16 mm
E Shaft length 125 mm
Fixing centres at 38mm & 44mm, standard
  • Free rotation through 360°, locking at each 90° position.
  • Fix through countersunk holes or with studs on concealed-fixing versions. Neoprene gaskets provided.
  • FS’ keys only, with shuttered keyway.
  • Chromium plated or black powder-coated.
  • - Shaft lengths
    - Threaded shafts
    - Special key numbers/sets
    - ‘Customised’ keys
    - Alternative mounting escutcheons
    - Concealed fixing at 36mm & 40mm centres
