Tool-Operated Compression Locks

A model intended for use with heavy gaskets and seals, so that when locked the latching bar is drawn up by 6mm and is held firmly in place. Water sealed, fully adjustable, and mounting to industry-standard 4-sided panel aperture. Smart diecast key with priovision for customer’s identity logo.
Download Our Section A Catalogue
9/00114
9/00114
9/00114
9/00114
9/00114B
9/00114B
9/00114B
9/00114B
9/00729
9/00729
9/00729
9/00729
9/00729B
9/00729B
9/00729B
9/00729B

Ordering Code

9/00114 Compression lock, chrome
9/00114B Compression lock, black

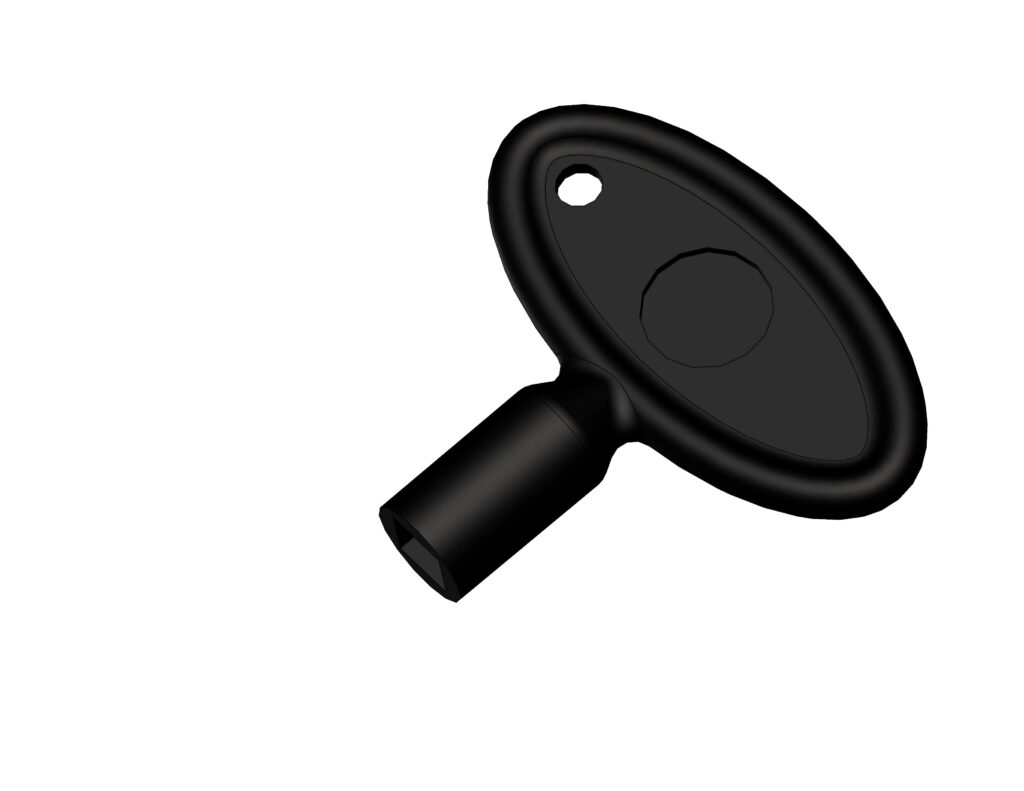

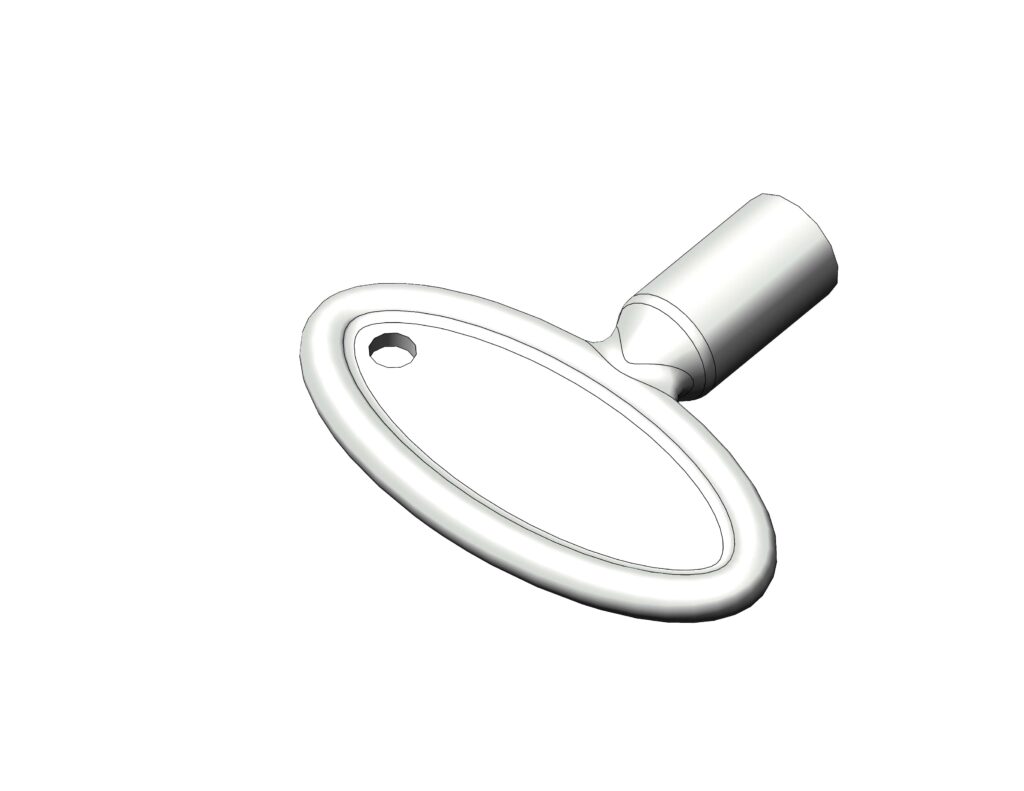

9/00729 Diecast key, plain

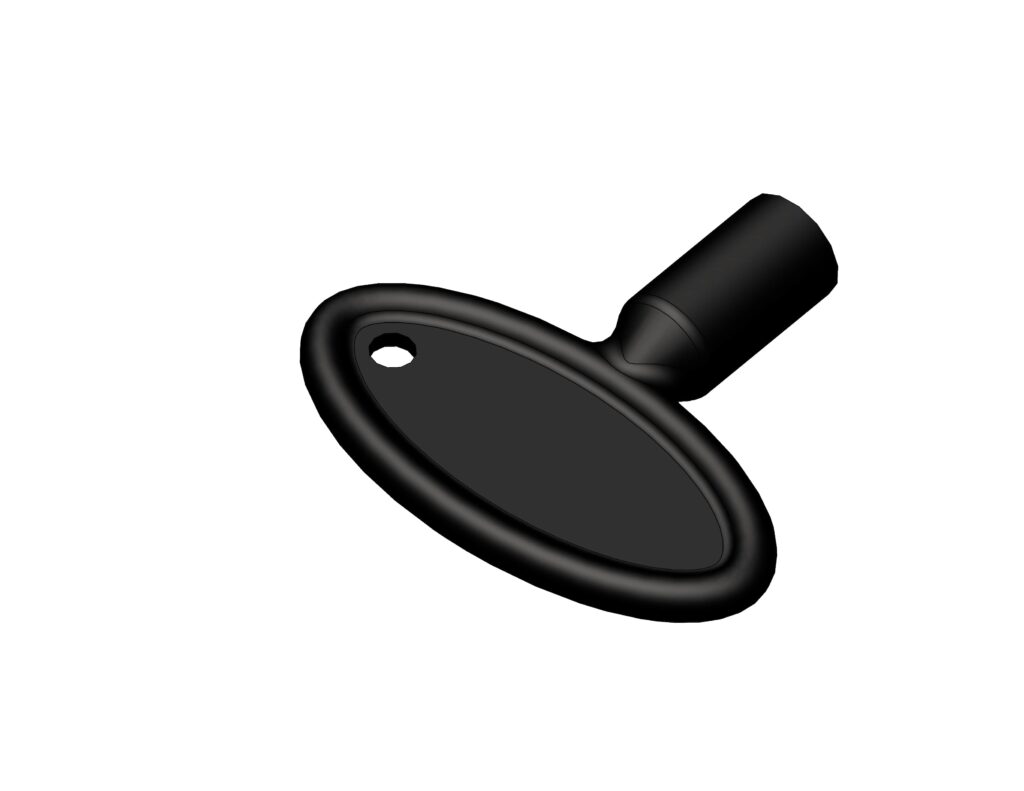

9/00729B Diecast Key black
A2-Diagram-05-100
A2-Diagram-03-100
Note : Dots and latch bar to line up when in compressed position
A2-Diagram-01-100
A2-Diagram-02-100
A2-Diagram-04-100

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

AHead Diameter29 mm
B Total Depth (locked) 65.5 mm
C Head projection 8 mm
D1 Depth to latch (min) 36 mm
D2 Depth to latch (max) 56.4 mm
E Body depth 32 mm
F Engagement 47.6 mm
G Body across flats (square) 18.8 mm
H Plug size 7 mm
I “Take-up” Depth 6 mm
  • Very positive engagement,
    water-resistant and adjustable.
  • Key operates plug, bringing latch into “closed” position and then drawing up against seal.
  • Latching bar is rotated 90 degrees only, then withdraws by 6mm. Adjustment of latch through 20mm.
  • Through industry-standard 4-sided aperture, secured by brass nut & stainless spring washer on threaded body. Latch bar secured by nut and locknut on end-spigot.
  • 7mm-square drive plug.
  • Black or chromium-plated. Zinc alloy (body) & steel (latch bar).
  • Other drive plugs (triangular, slotted, etc). Alternative latch bars.
  • WBH design covered by UK Patent Application 0224237.8.
