Support Stays ‘Star-Wheel’ Release

This range of extensible stays provides a simple, inexpensive and long-lasting method of supporting top-hinged doors and hatches. The ‘star-wheel’ design allows automatic release – useful where two stays are fitted on a very wide panel. Many options are available.
7/03098
7/03098
7/03098
7/03098
7/03099
7/03099
7/03099
7/03099

Ordering Code

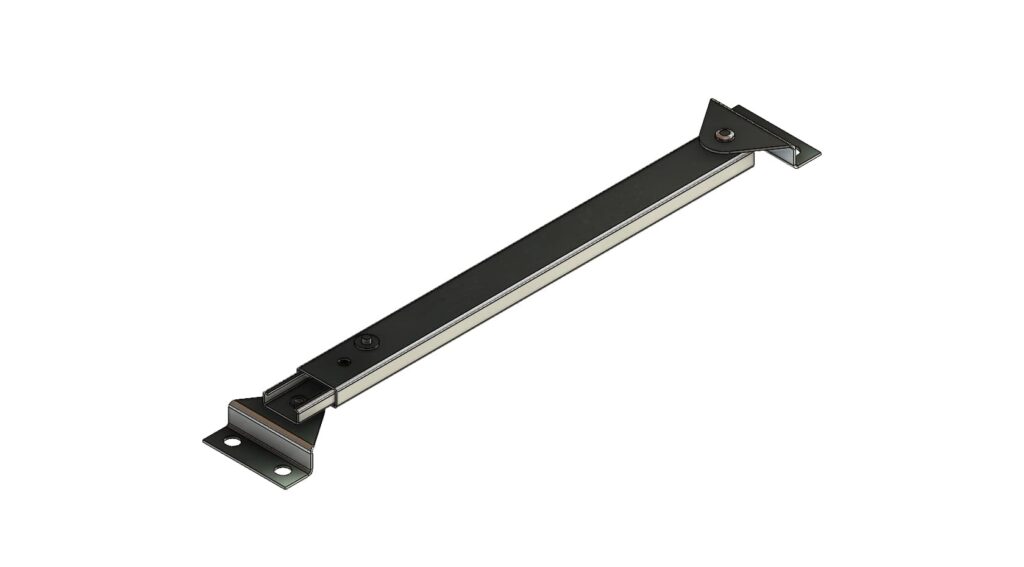

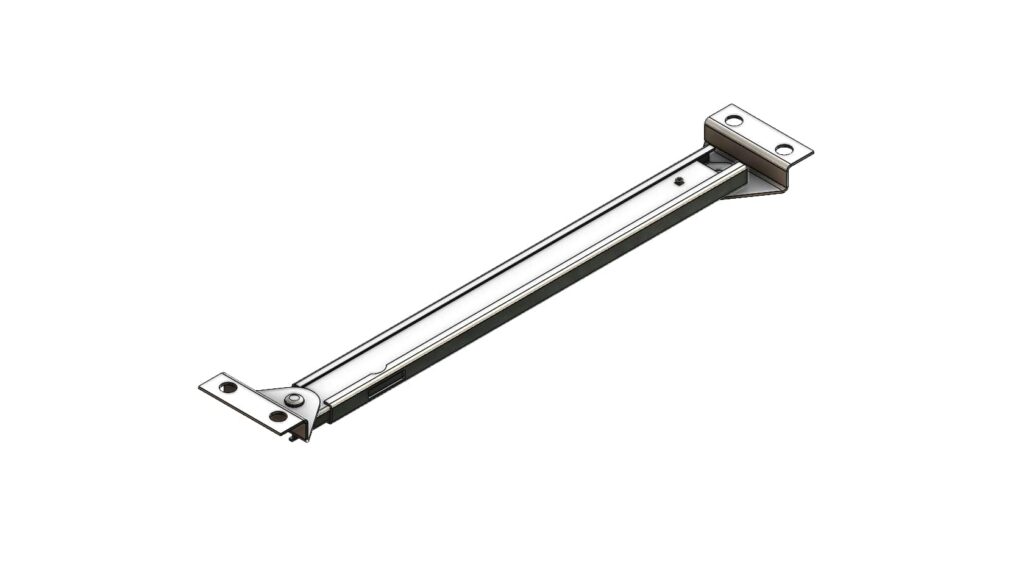

7/03098 Stay, 290/495 mm, 2 brackets

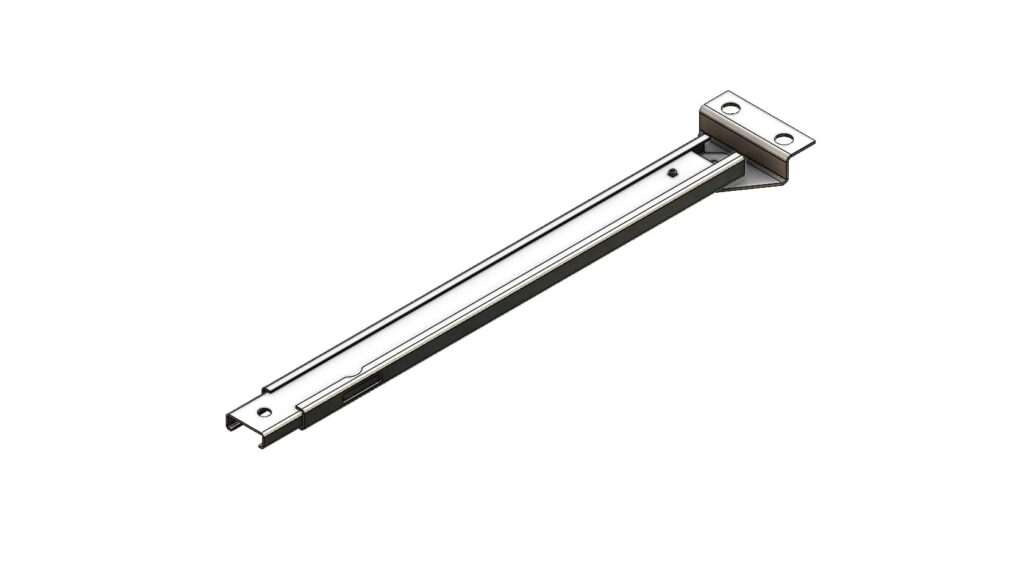

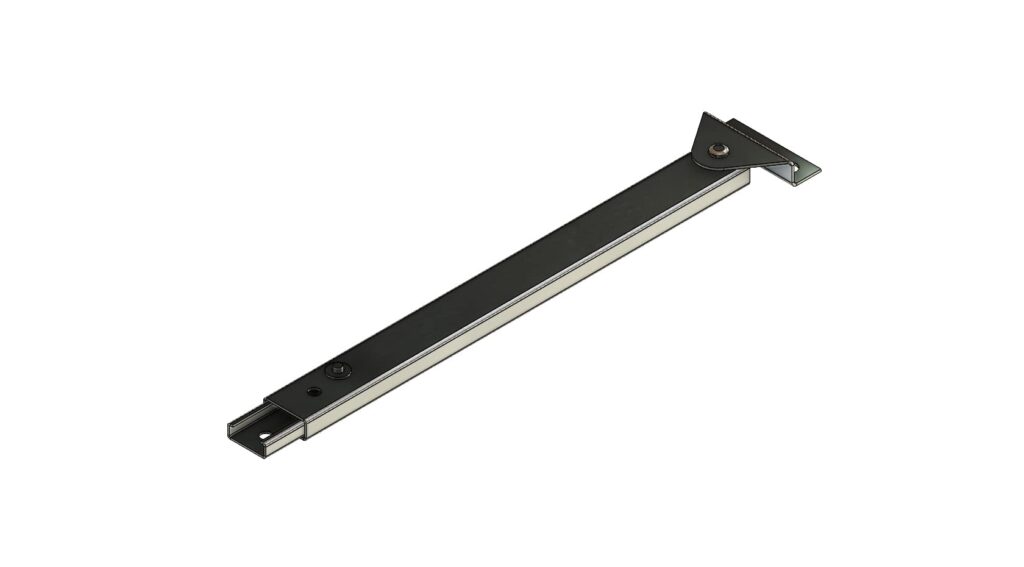

7/03099 Stay, 290/495 mm, bottom bracket only
E11-Diagram 01
E11-Product 02

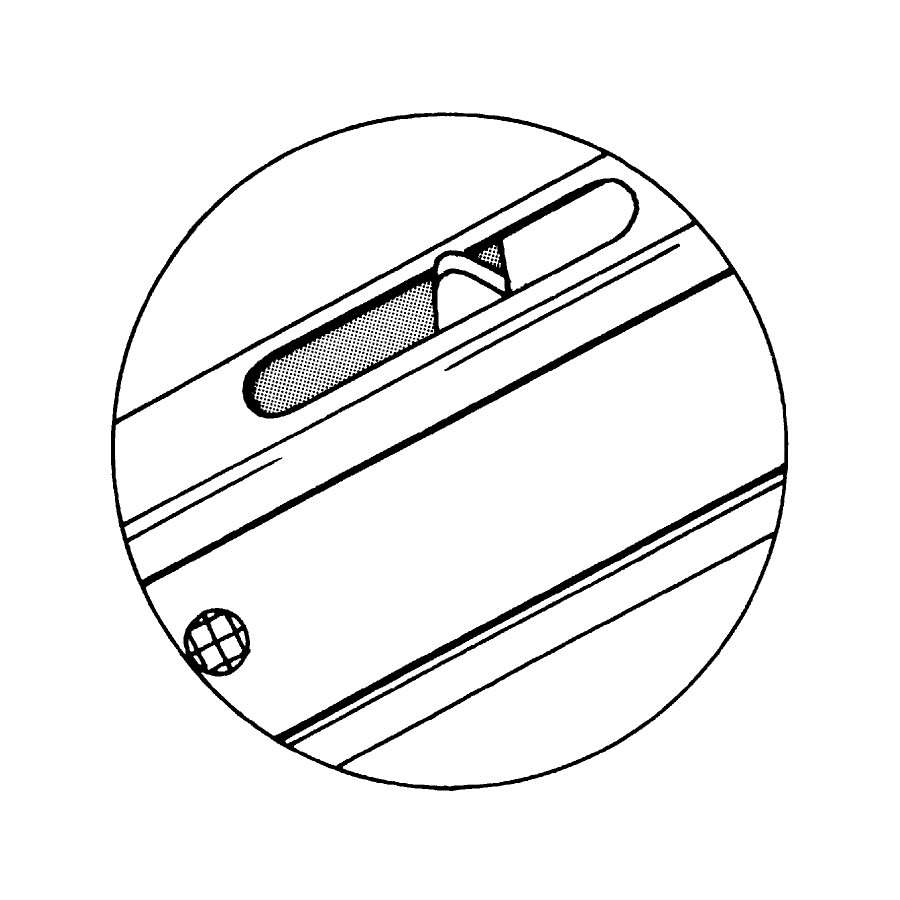

Detailed view of safety catch area

Specification

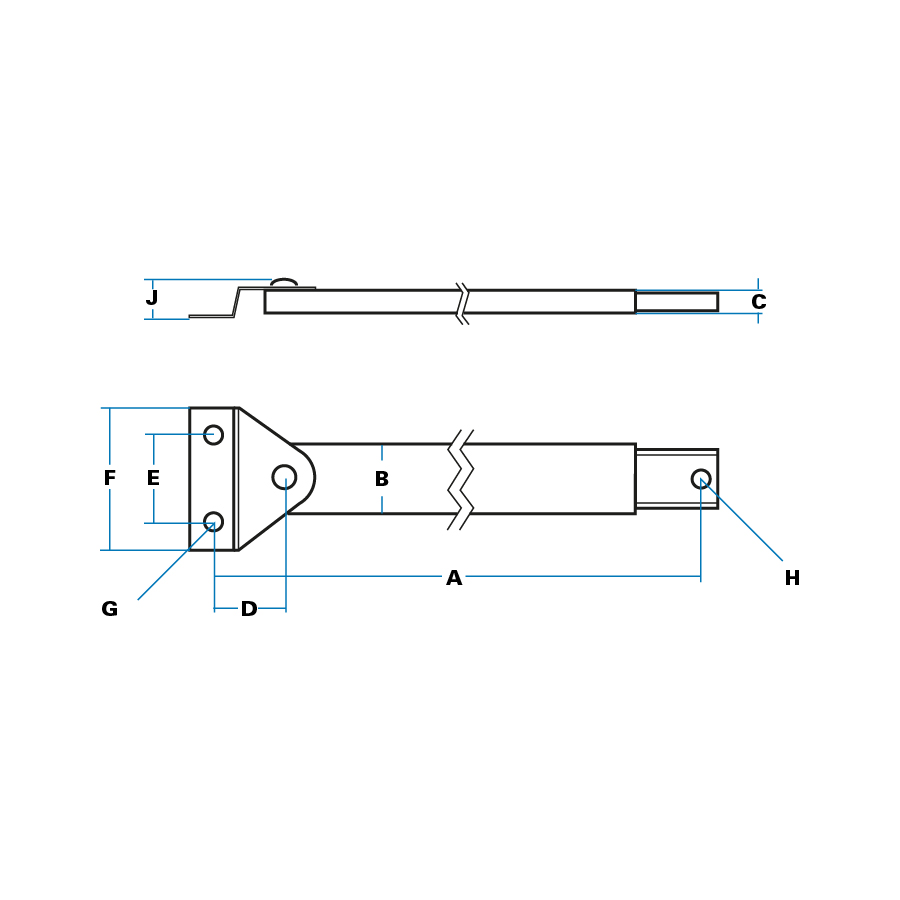

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length between centres, closed extended 290 mm 495 mm
B Max. Width (outer) 25 mm
C Max. Depth (outer) 12 mm
D Location (bottom) 28 mm
E Hole centres 35 mm
F Bracket width 57 mm
G Hole sizes (diameter) 9 mm
H Hole size (diameter) 6 mm
J Bracket height 14 mm
Note: Standard bracket shown is 7/03094
  • Stay extends as door is opened, and locks in the extended position. The safety catch must be depressed manually before it will close.
  • Clear zinc-plated. To special order, black zinc-plated
  • Standard brackets as illustrated for plant-on fitting
  • Mild steel throughout
