Steel ‘Paddles’ Hook-Latch Options

Many design options are available with 'paddle' latches. This page shows some of the special features available for hook-latch models.

Mild steel models, blind-mounting (& gasket)

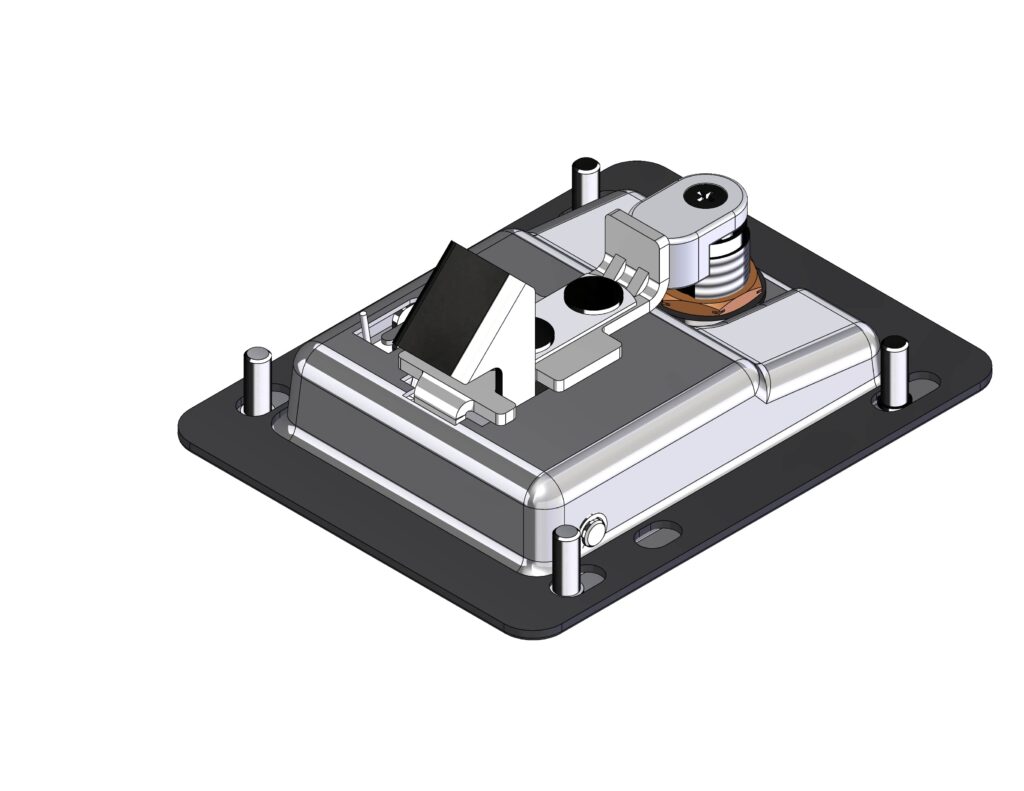

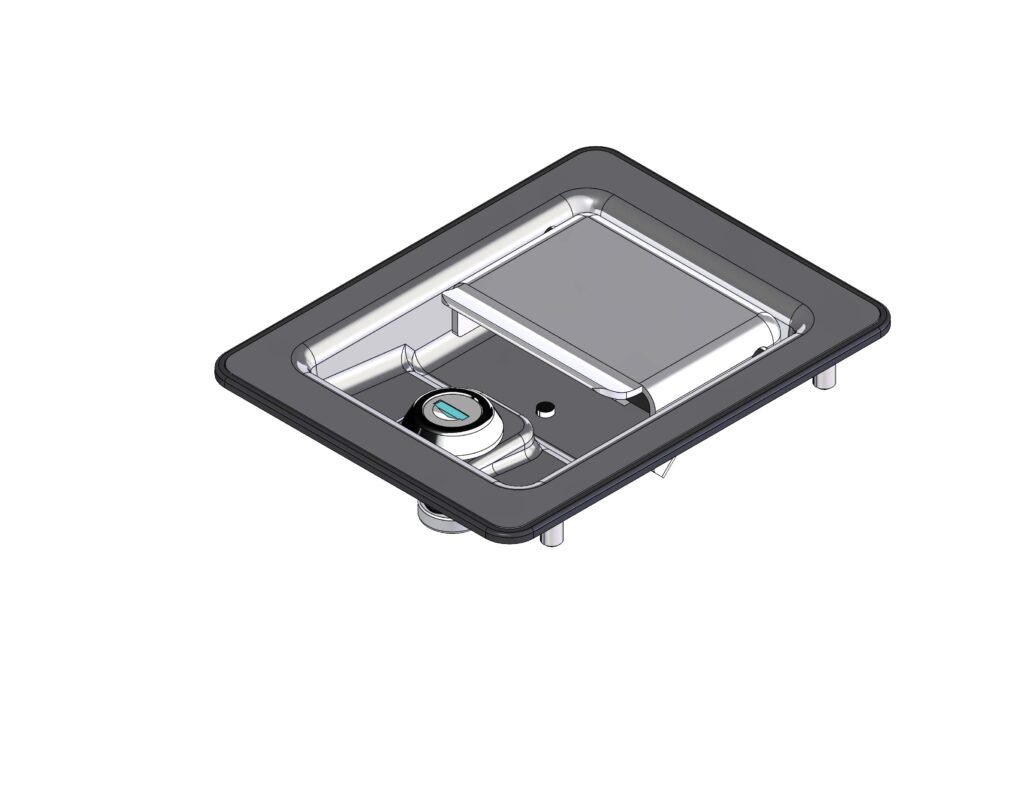

9/00462	Hook-latch paddle, locking

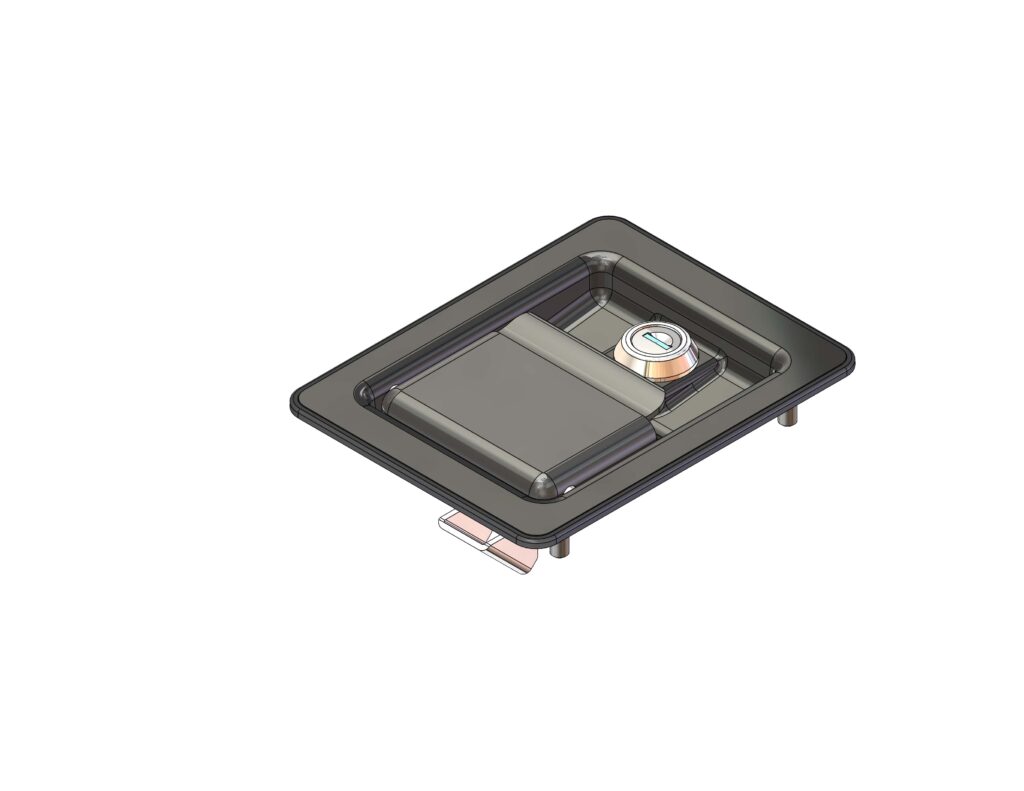

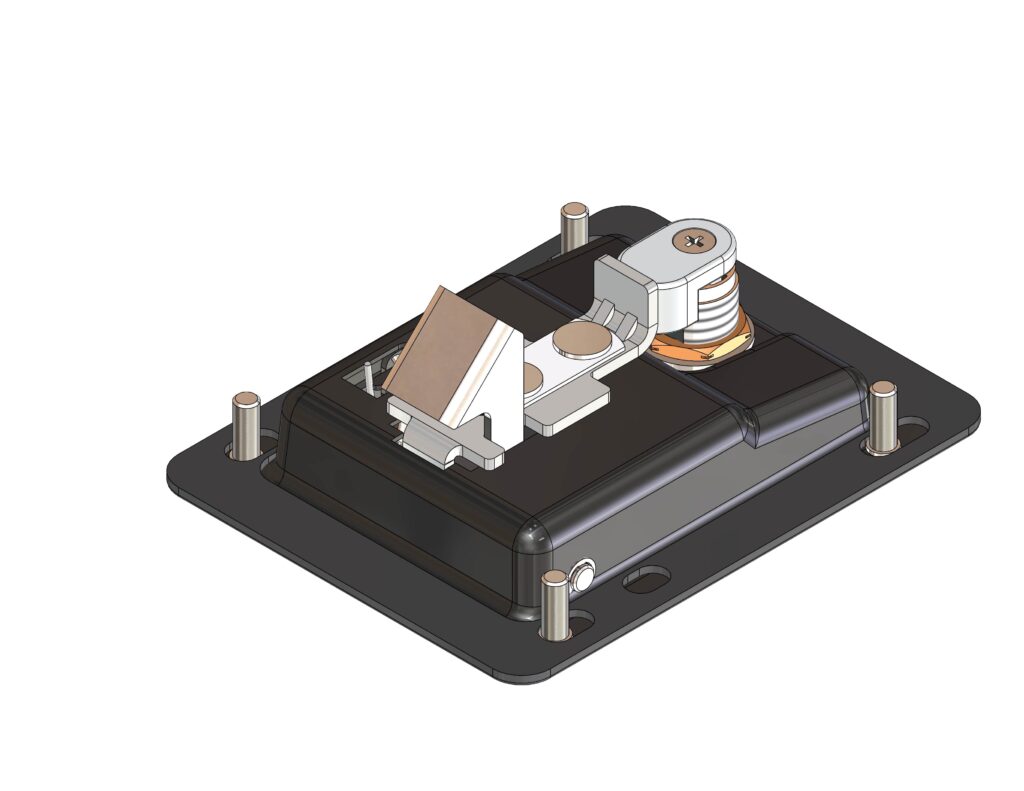

9/00462B	As above, black
9/00462/01	As 9/00462, FS880 standard keys

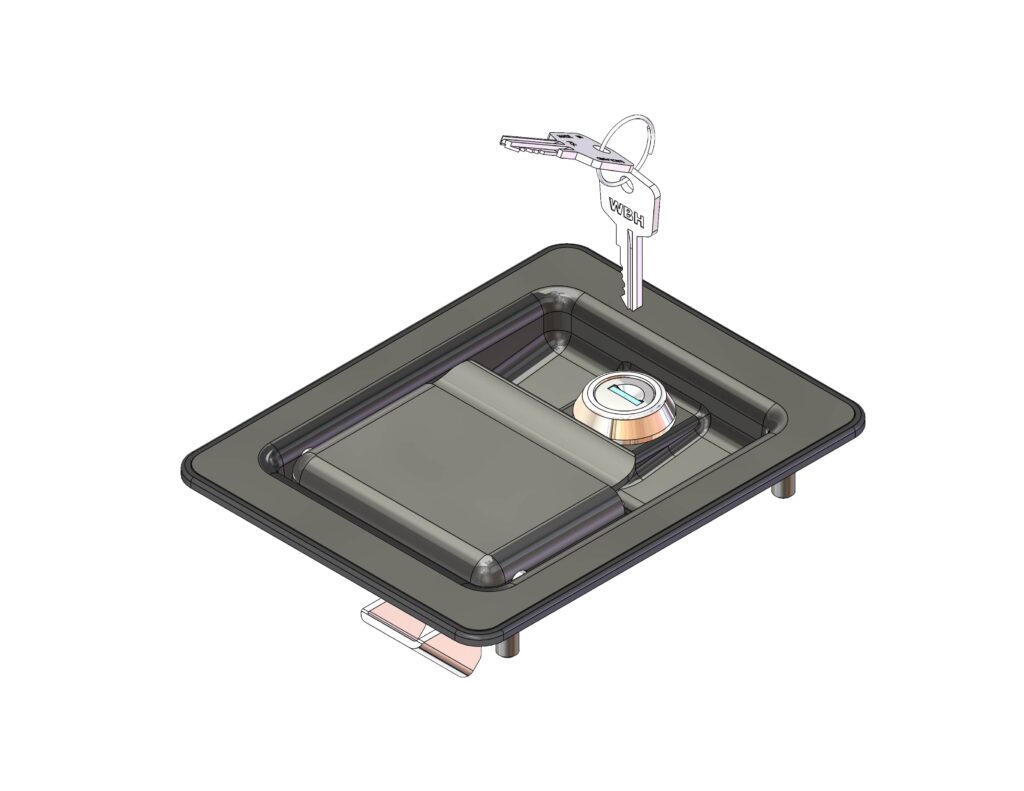

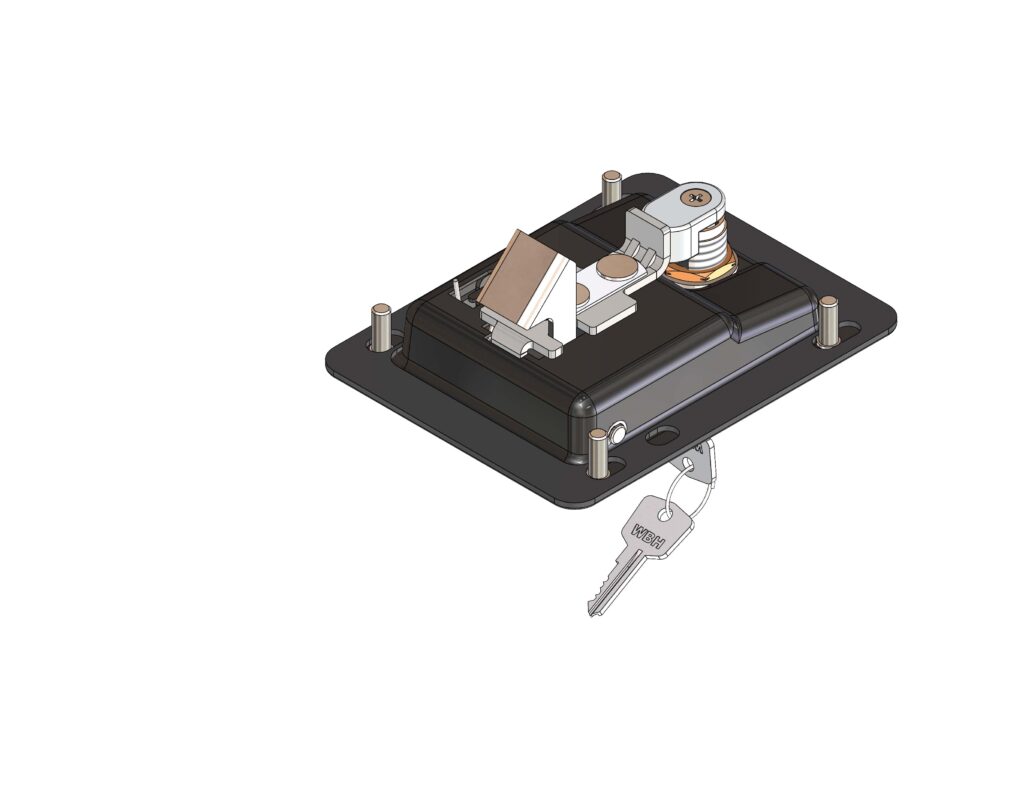

9/00462B/01	As above, black

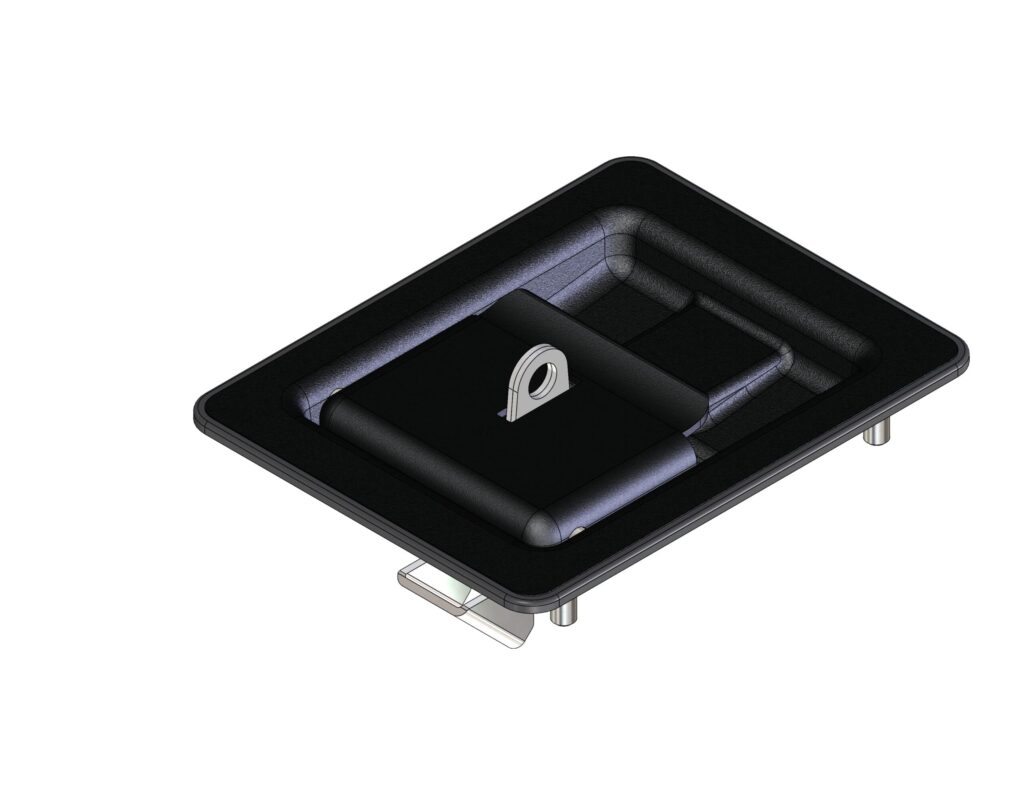

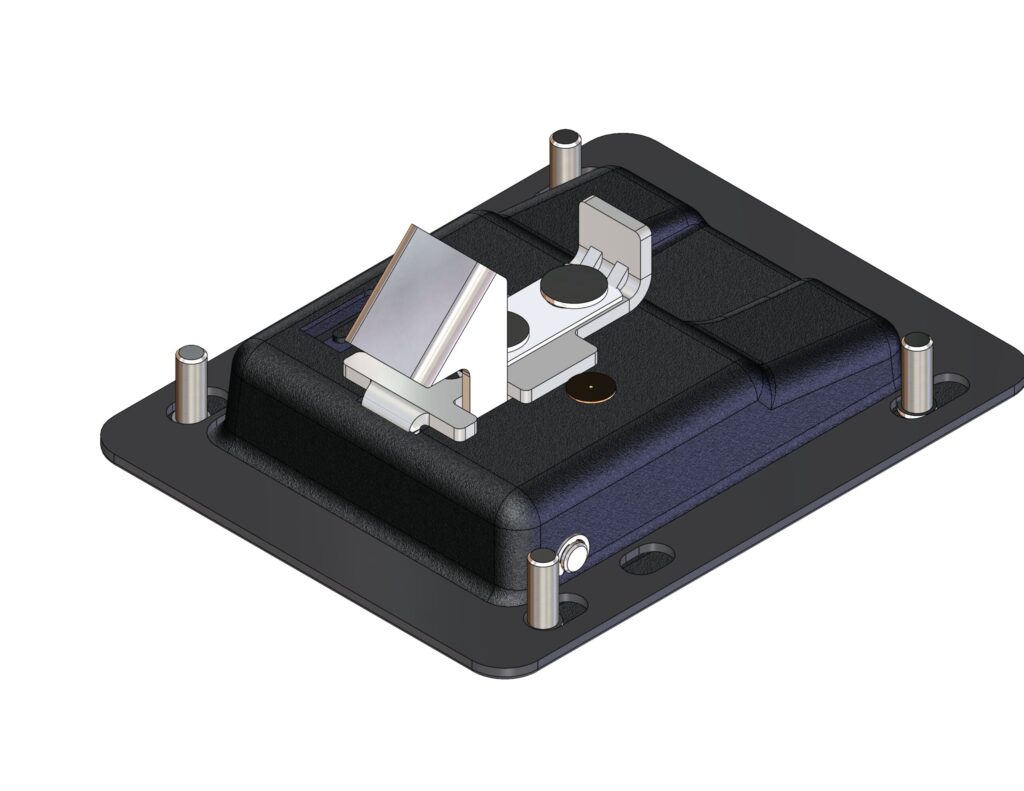

9/00463	Hook-latch paddle, non-locking

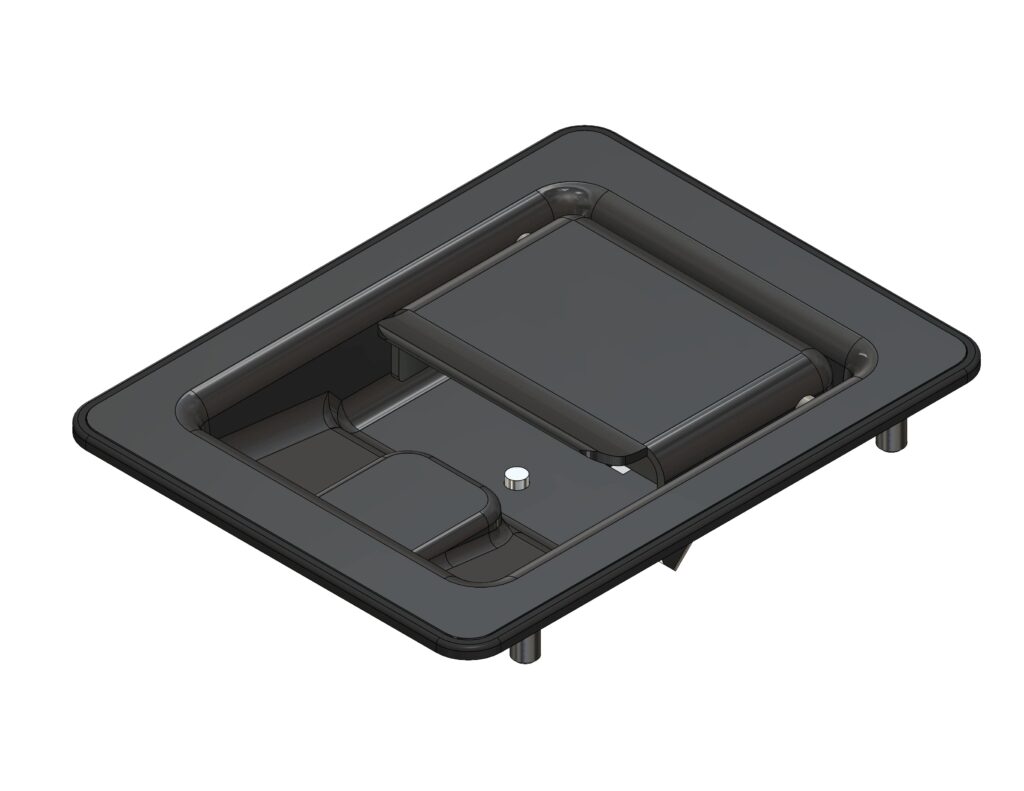

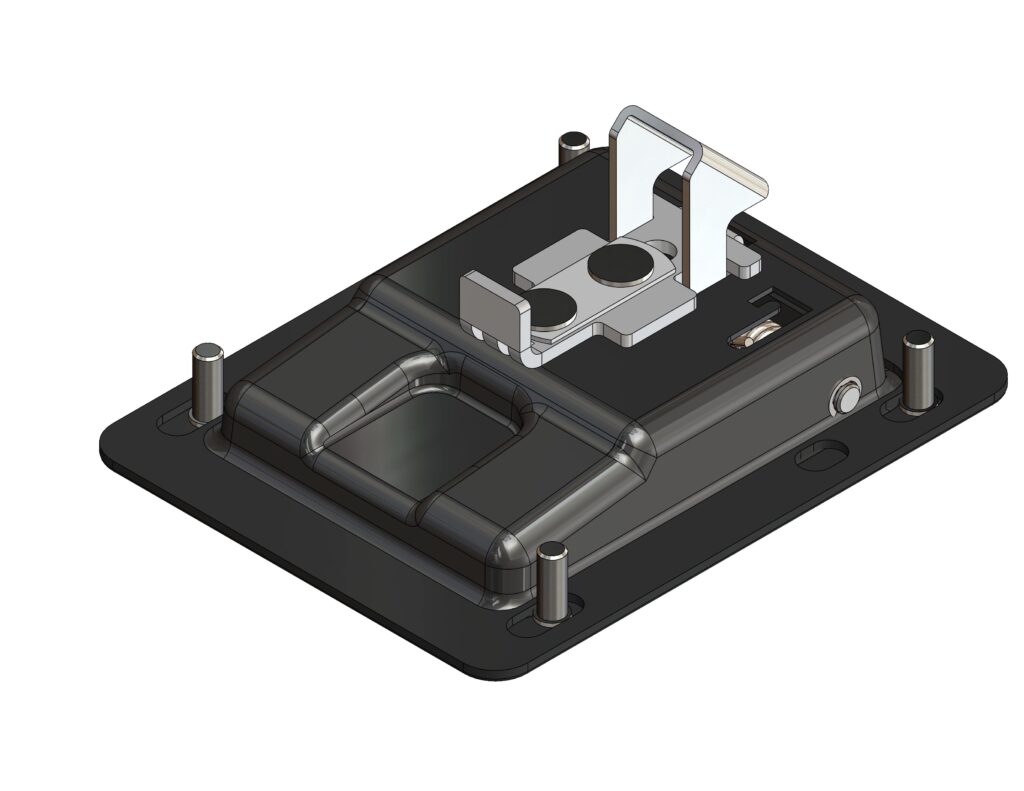

9/00463B	As above, black

Stainless models, blind-mounting (& gasket)

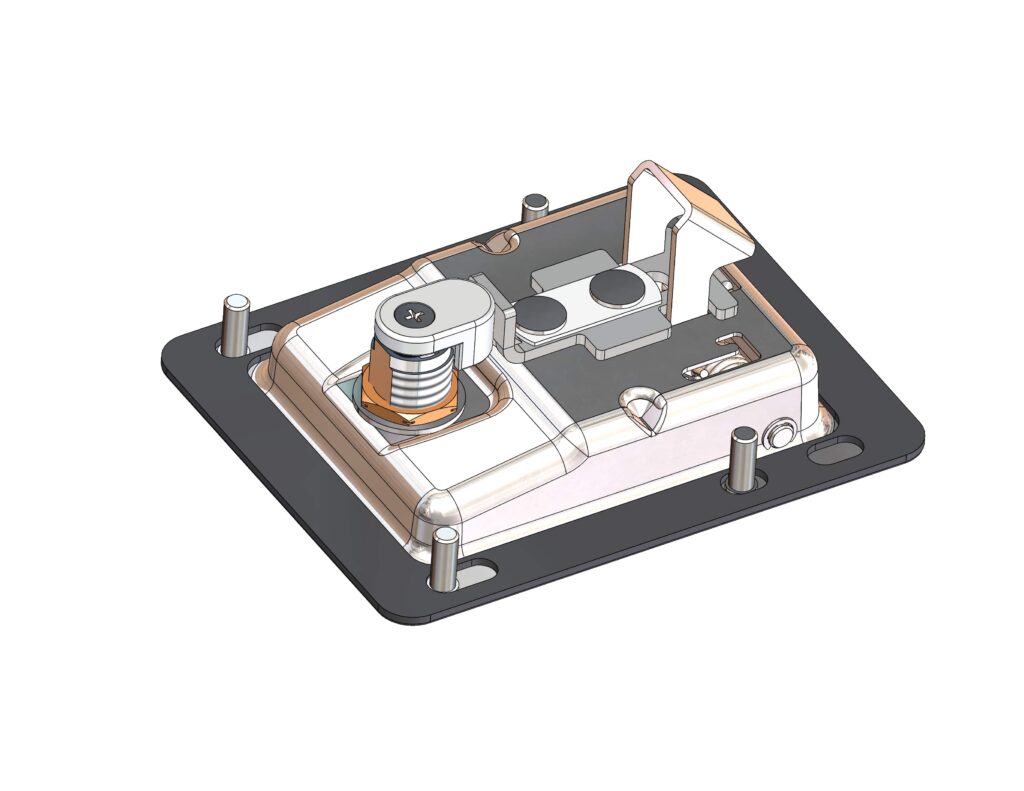

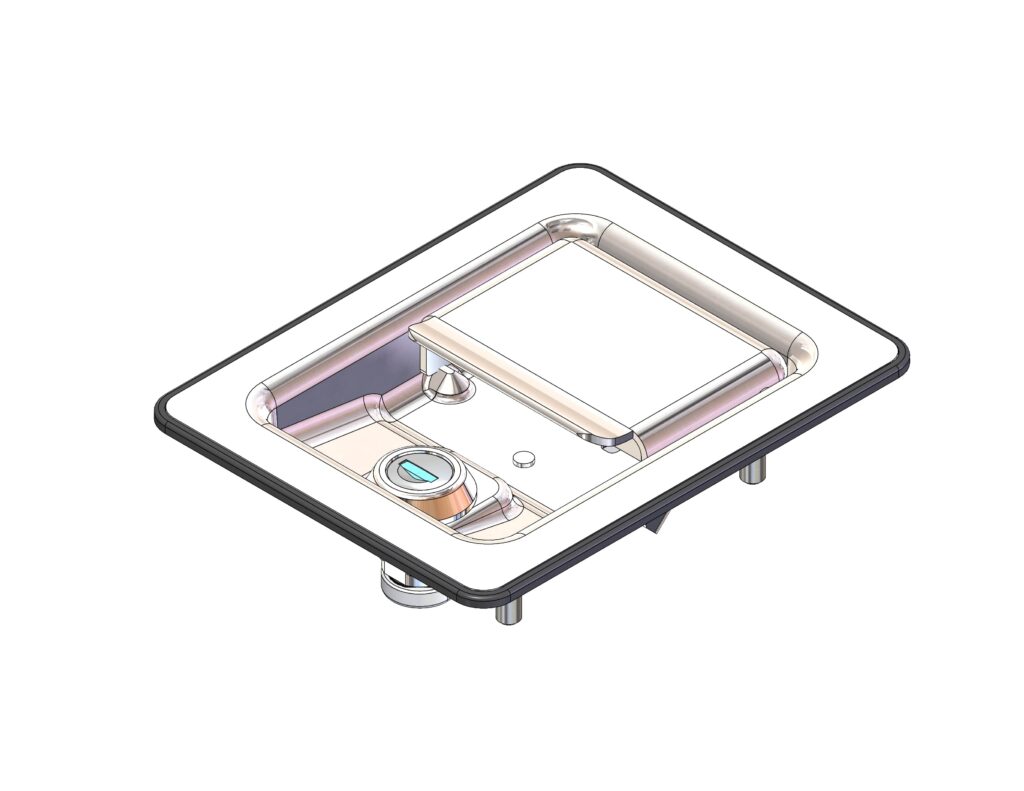

9/00472	Hook-latch paddle, locking

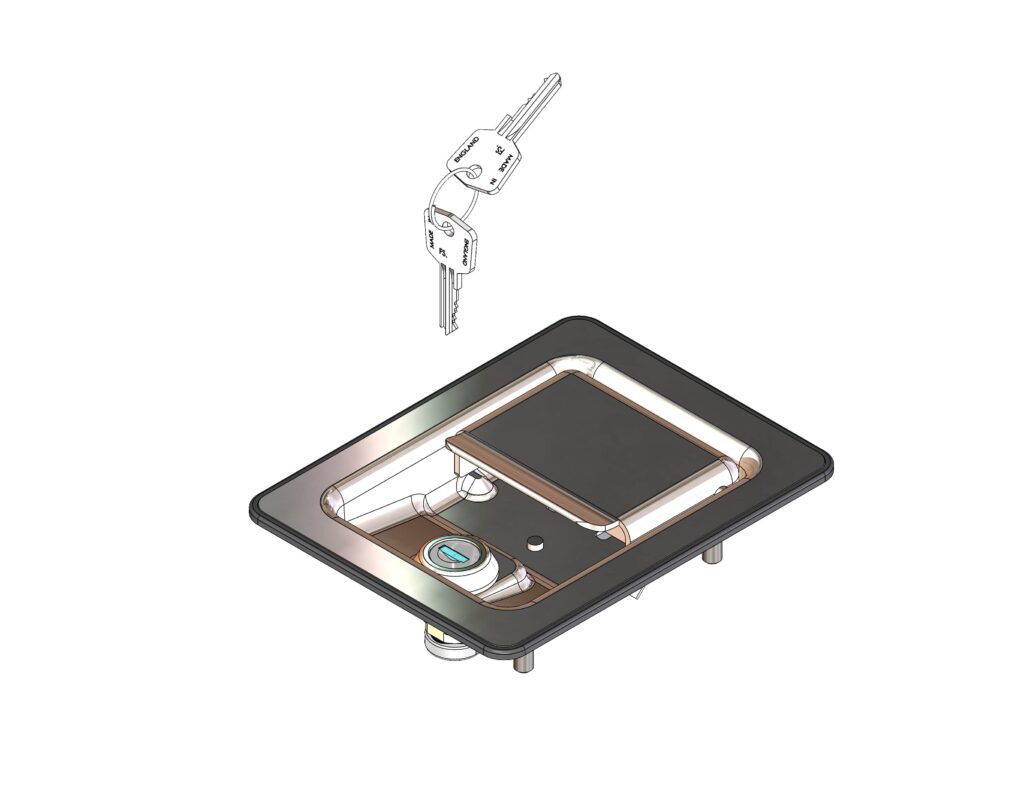

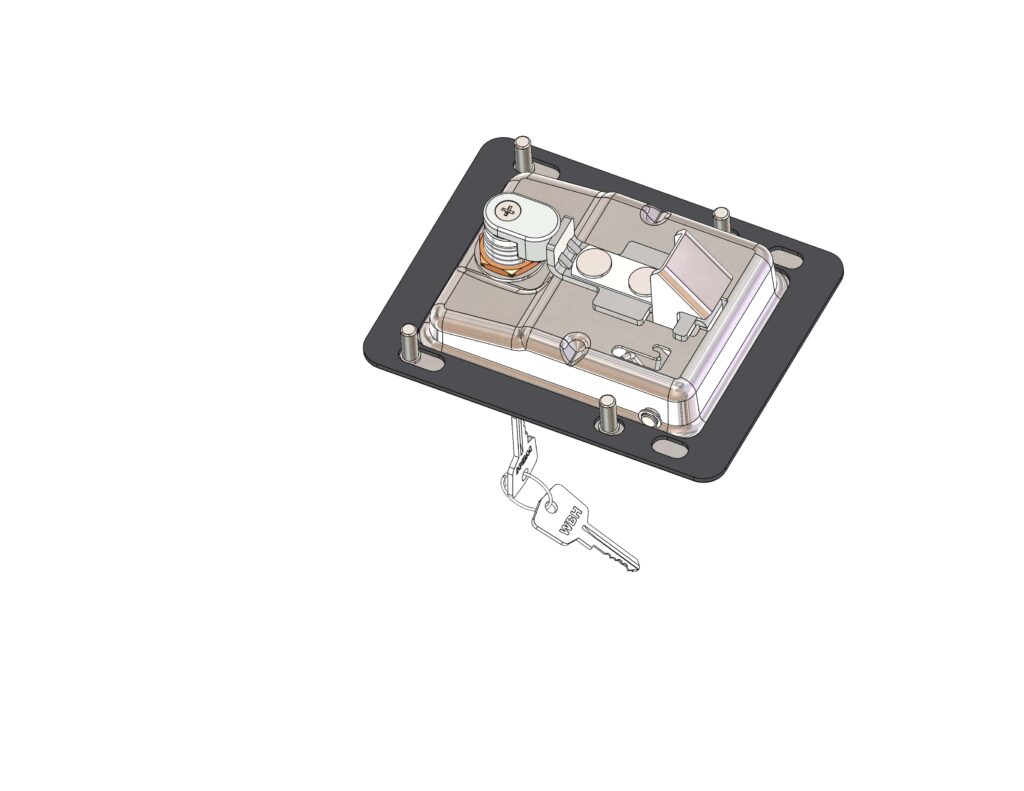

9/00472/01	As 9/00472, FS880 standard keys

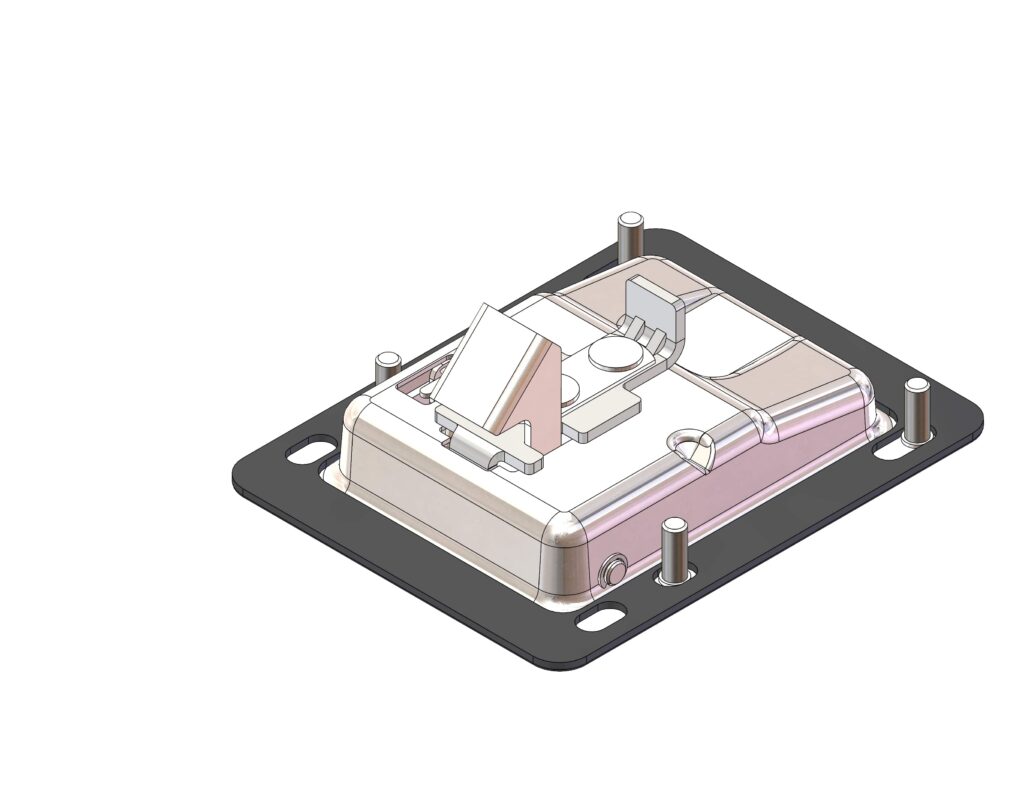

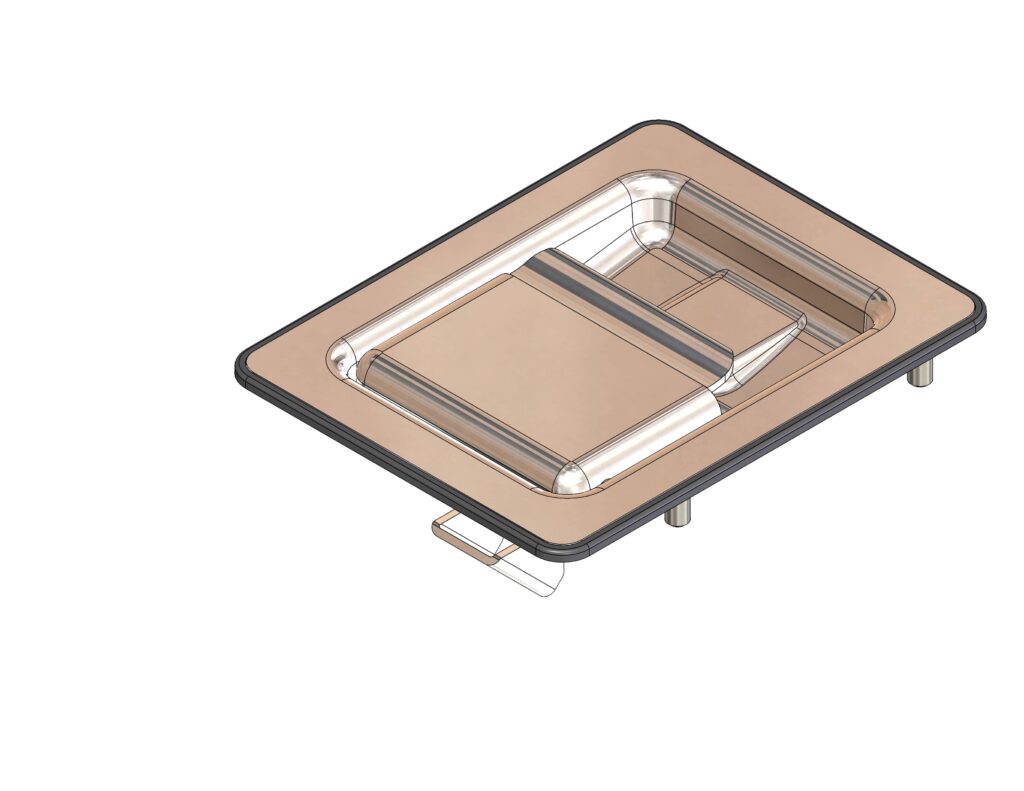

9/00473	Hook-latch paddle, non-locking

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

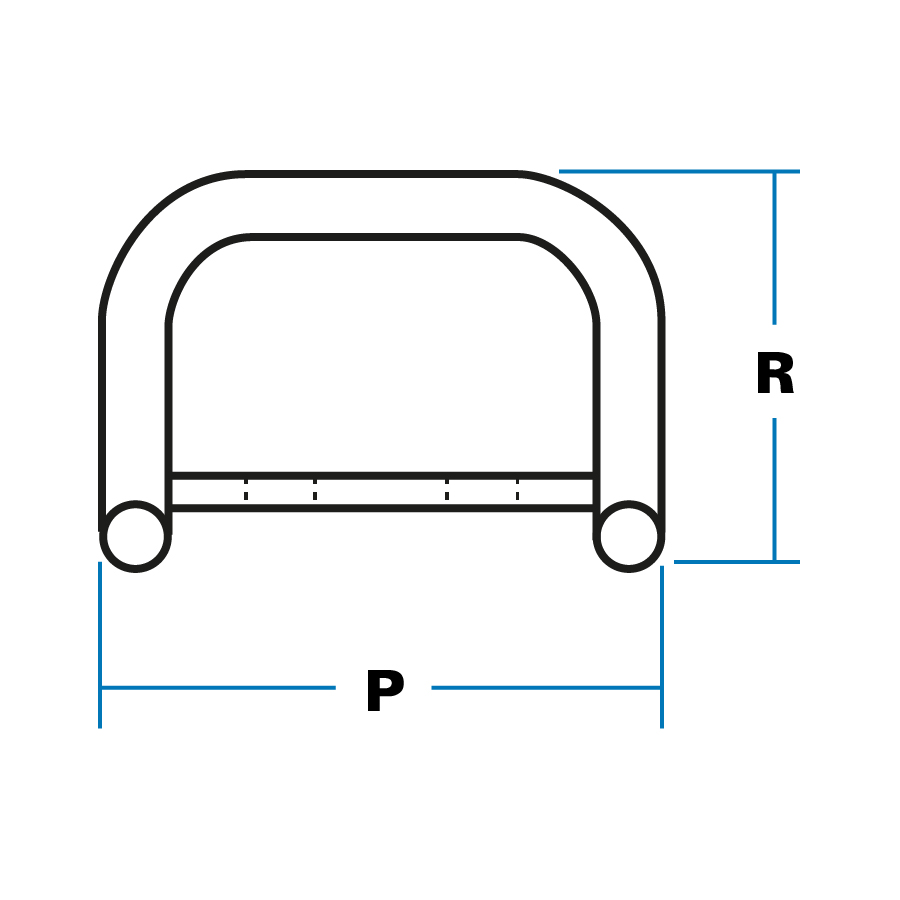

Striker made in 6mm diameter stainless rod, welded to stainless backplate. Alternatively it can be supplied without bend (M=80mm) as 9/00406/02.

Blind-mounting, with four studs (M6 x 15mm) welded on inside rim. Consult engineering drawing for position of studs (not same as pierced holes).
Alternative key types ('FT' double-sided keys), '92' series, etc. - Tool-operated plug (triangular, square-drive, etc) -Padlockable loop in flap.
Black powder-coated, or other colours as specified.
'Non-'Deadbolt' locking; with this option the paddle will slam even when key cylinder is locked. This is not the normal mode of operation.
Special 'Extended Hook', so that 'F' dimension = 50mm,for greater penetration below surface. Weathershield fitted to lock cylinder.
