Steel ‘Paddles’ Hook-Latch Models

This unique design replaces the conventional slam-bolt with a spring-loaded stainless steel ‘hook‘ that projects vertically from the back of the paddle case. This gives a much smoother action - doors close easily with gentle push, and do not ‘bounce back’. A striker (in stainless steel) ensures positive engagement which resists vibration.

Ordering Code

Mild steel models, with plain rim & gasket

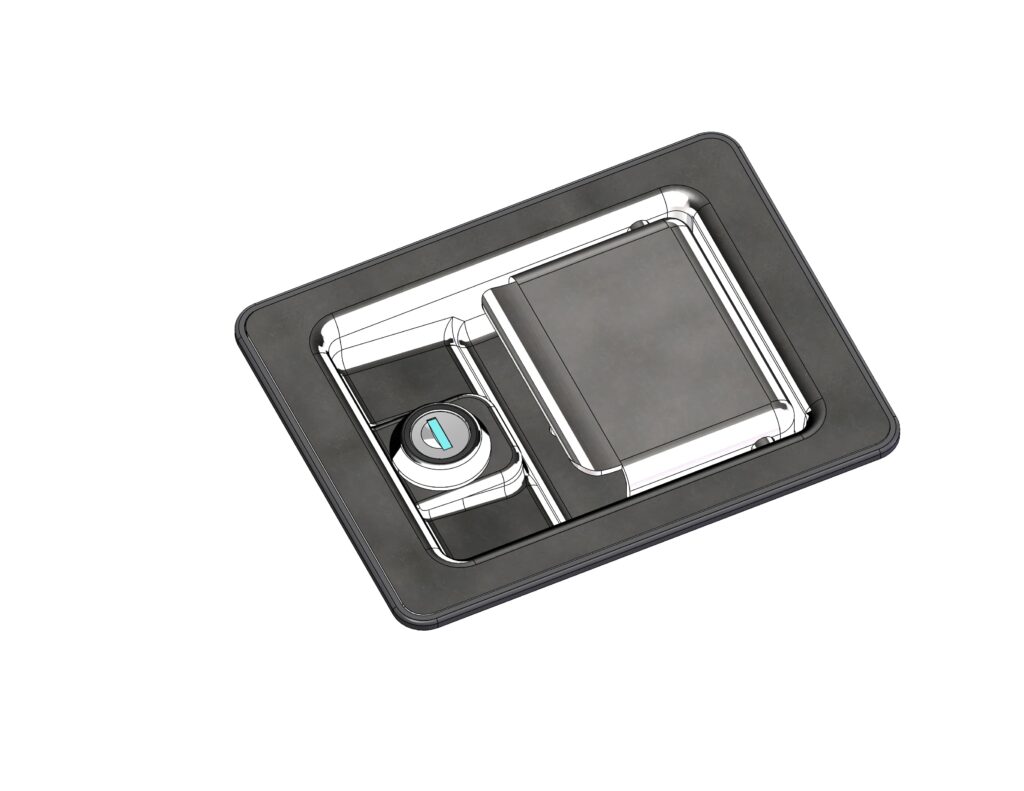

9/00440	Hook-latch paddle, locking

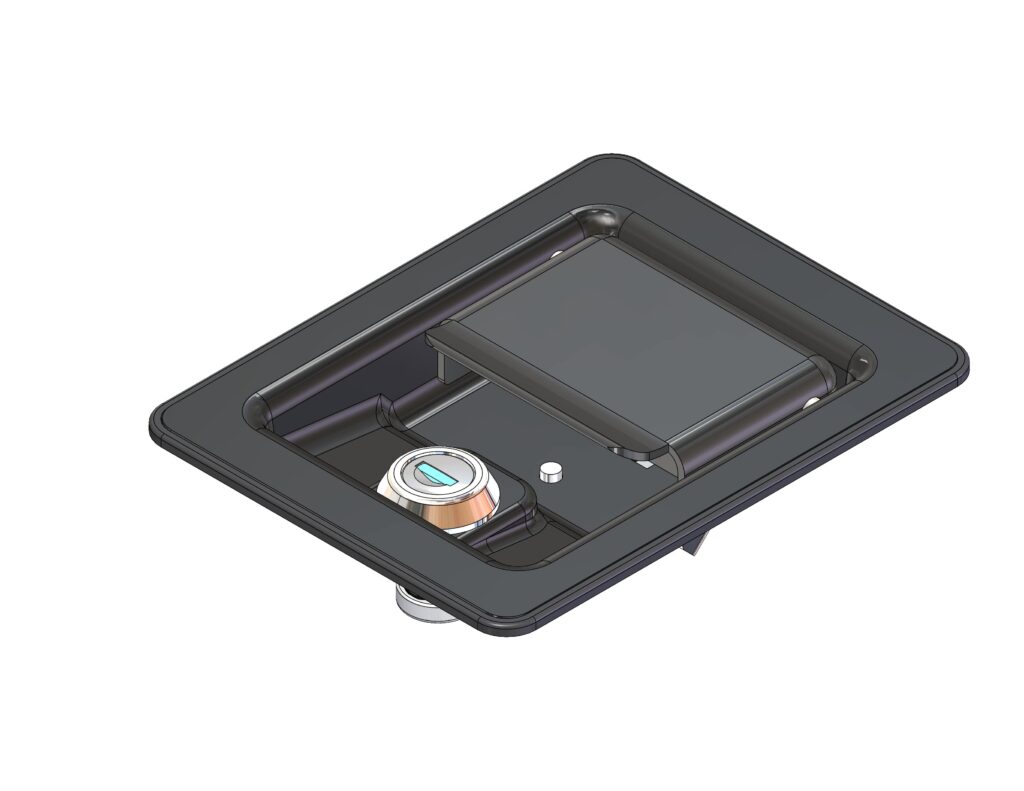

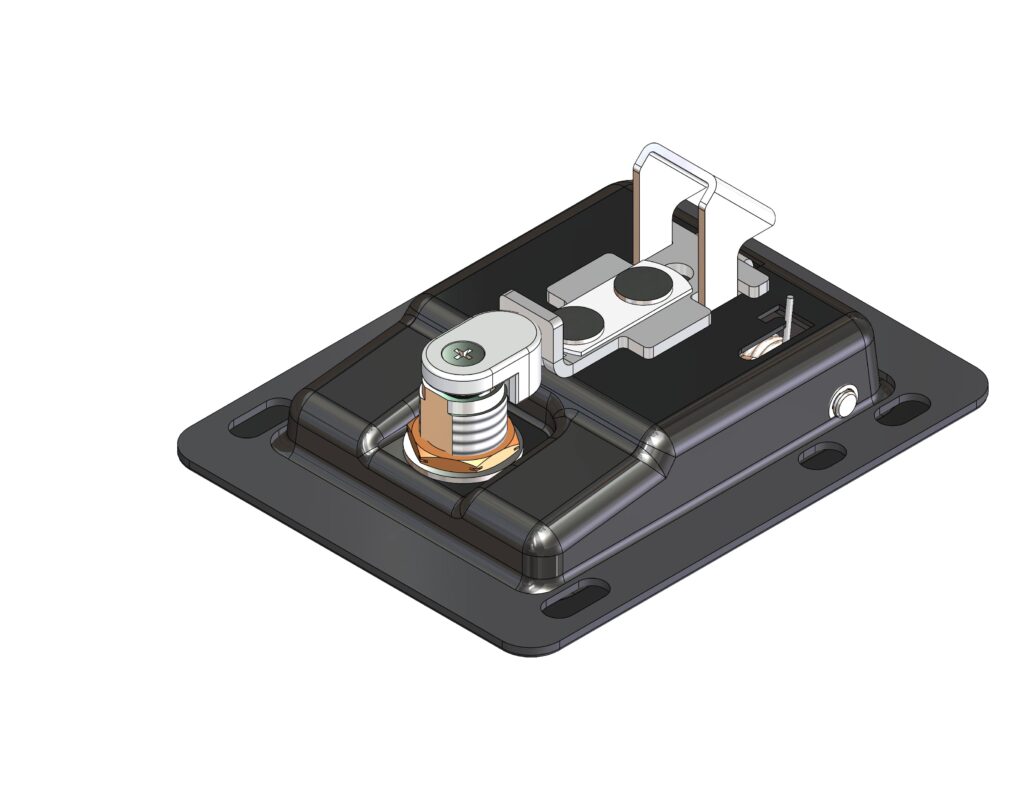

9/00440B	As above, black

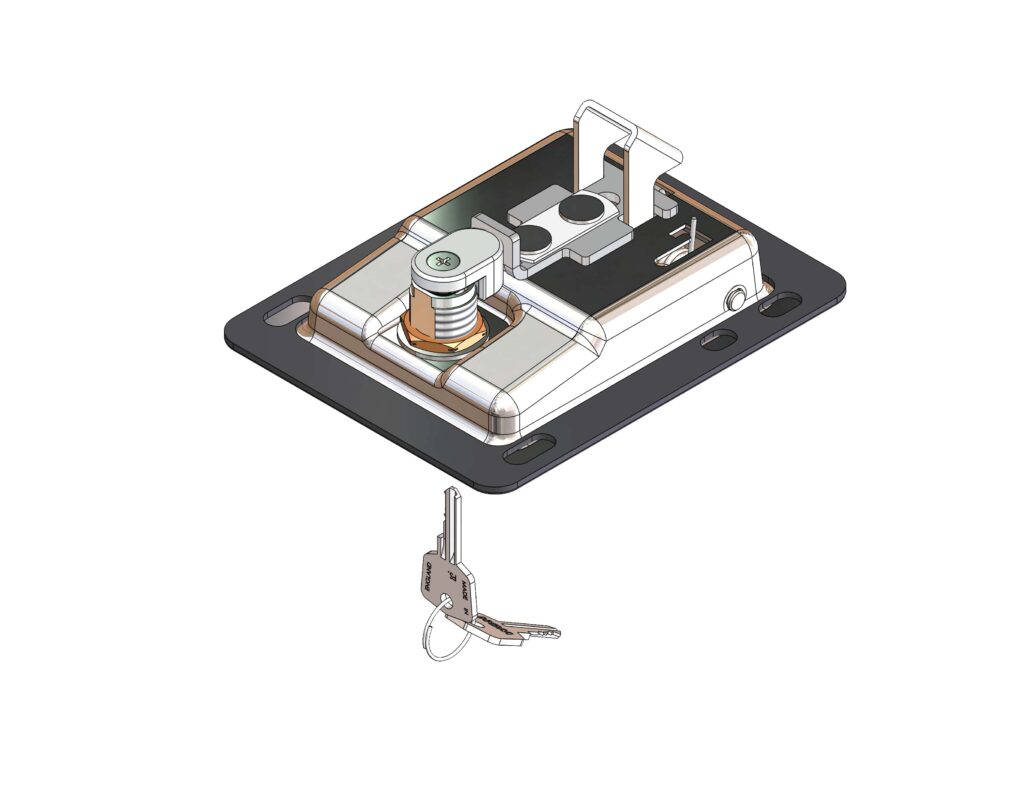

9/00440/01	As 9/00440,FS880 standard keys
9/00440B/01	As above, black

Stainless models with pierced rim (& gasket)
9/00448	Hook-latch paddle, locking

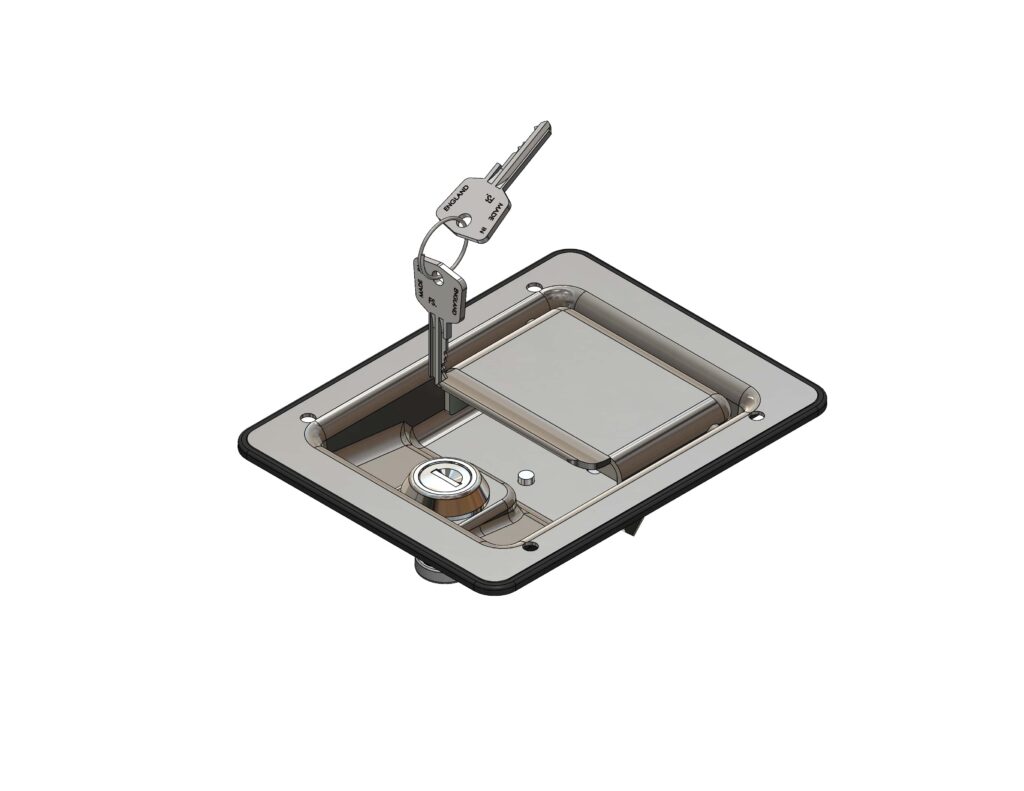

9/00448/01	As 9/00448,FS880 standard keys

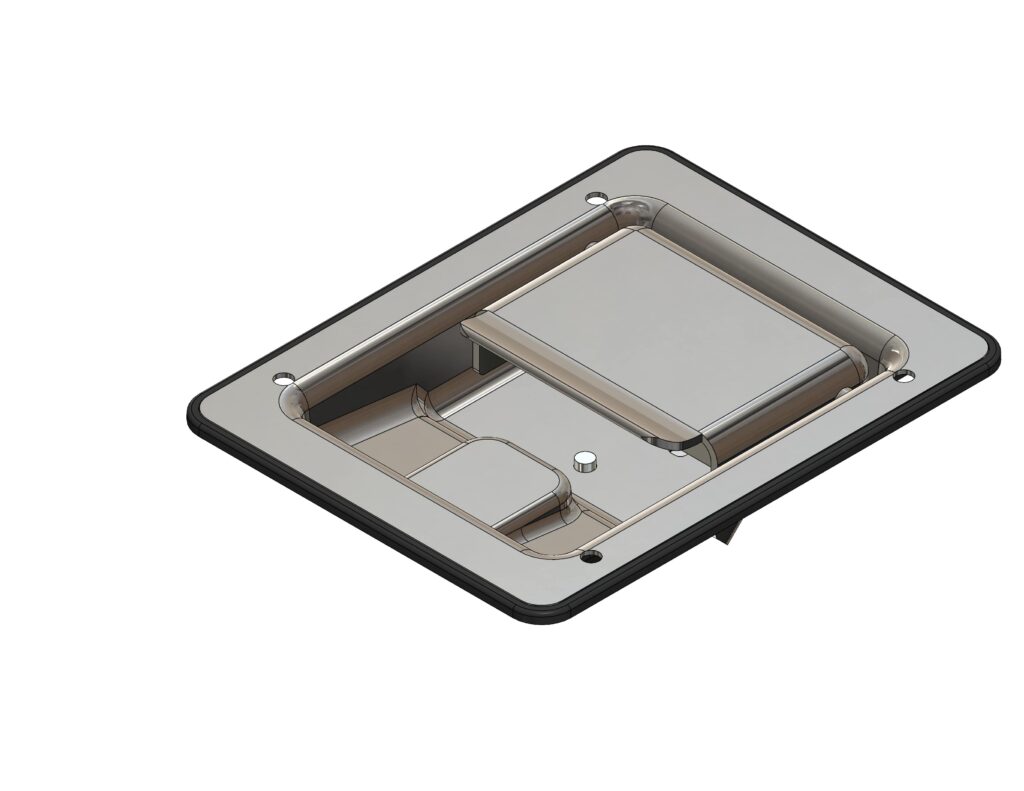

9/00449	Hook-latch paddle, non-locking

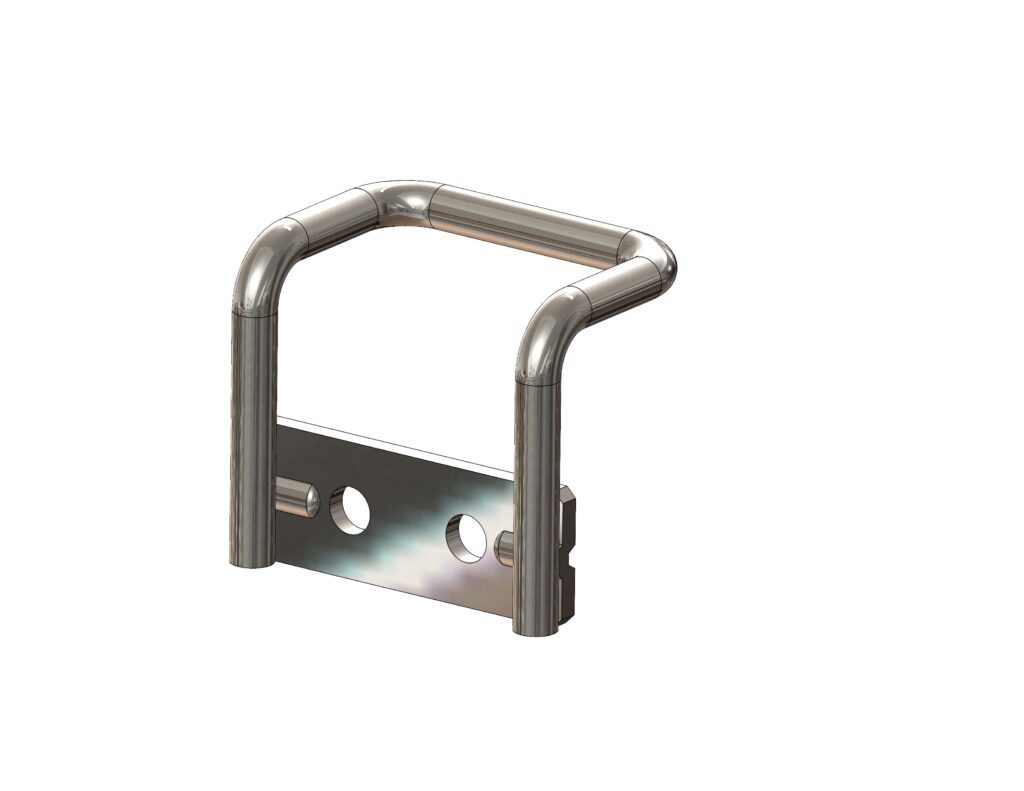

9/00406	Loop striker (stainless steel)

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Case length	140 mm
B	Case width	108 mm
C	Hole centres	95 mm
D	Hole centres	94 mm
E	Max travel	16 mm
F	Hook penetration	32 mm
G	Hook engagement	12 mm
H	Hole sizes (dia)	5 mm
J	Maximum depth	56 mm
K	Recess length	105 mm
L	Recess width	76 mm

As door closes, the ramped face of the hook meets striker and is forced laterally (E). Once closed the spring action secures hook under striker loop.
This model normally has ‘deadbolt’ action. When key cylinder is locked, both flap and hook are held rigid. Paddles therefore will not slam in locked condition.
Stainless models have pierced rim as shown, with moulded gasket. Mild steel models normally have plain rim (for welded-on mounting).
‘FS’ keys as standard with shuttered keyway. Optionally ‘FT’, ‘92’ or ‘DLP’, key types. Non-locking models available.
Polished stainless steel or mild steel, clear zinc-plated. Optionally, black powder-coated finish.
With stainless models, case & flap in Grade 304, all other components made in CR4, zinc plated. ‘Hook” is in stainless steel as standard.
