Smaller-Size Diecast ‘Paddle’ Handle Series

The smallest models in our ‘paddle’ range, with smooth, blended lines made possible by diecast construction.

Textured finish and invisible fixing make this design most suitable when good visual appearance is paramount.

Ordering Code

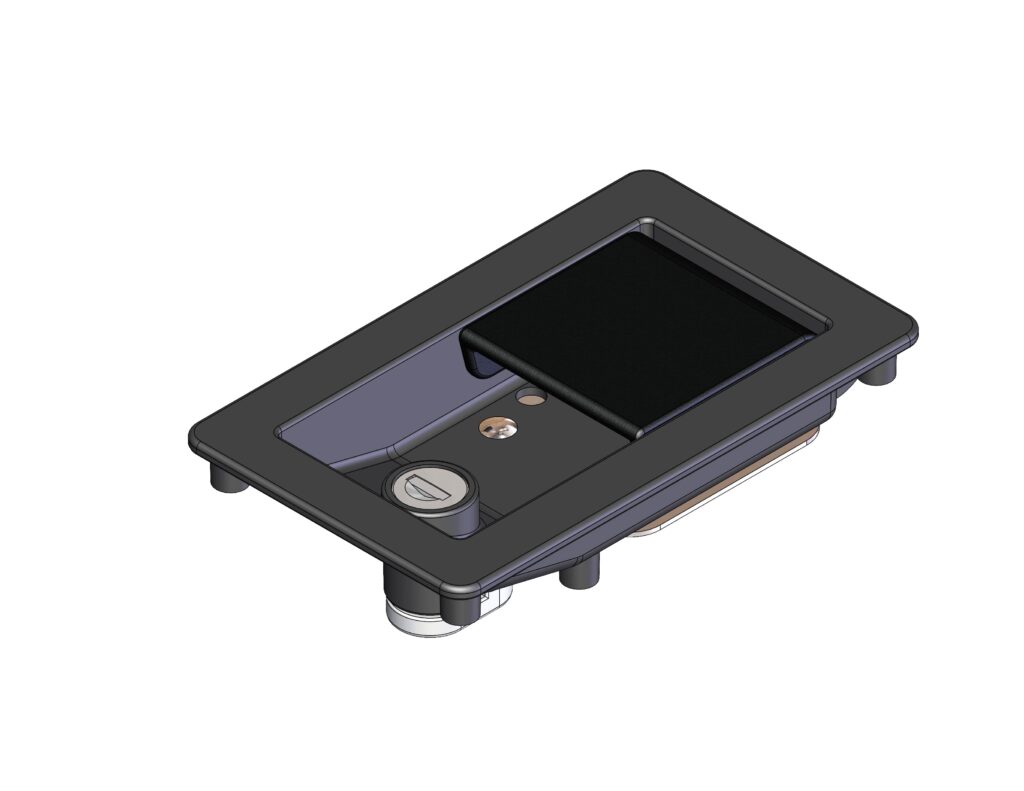

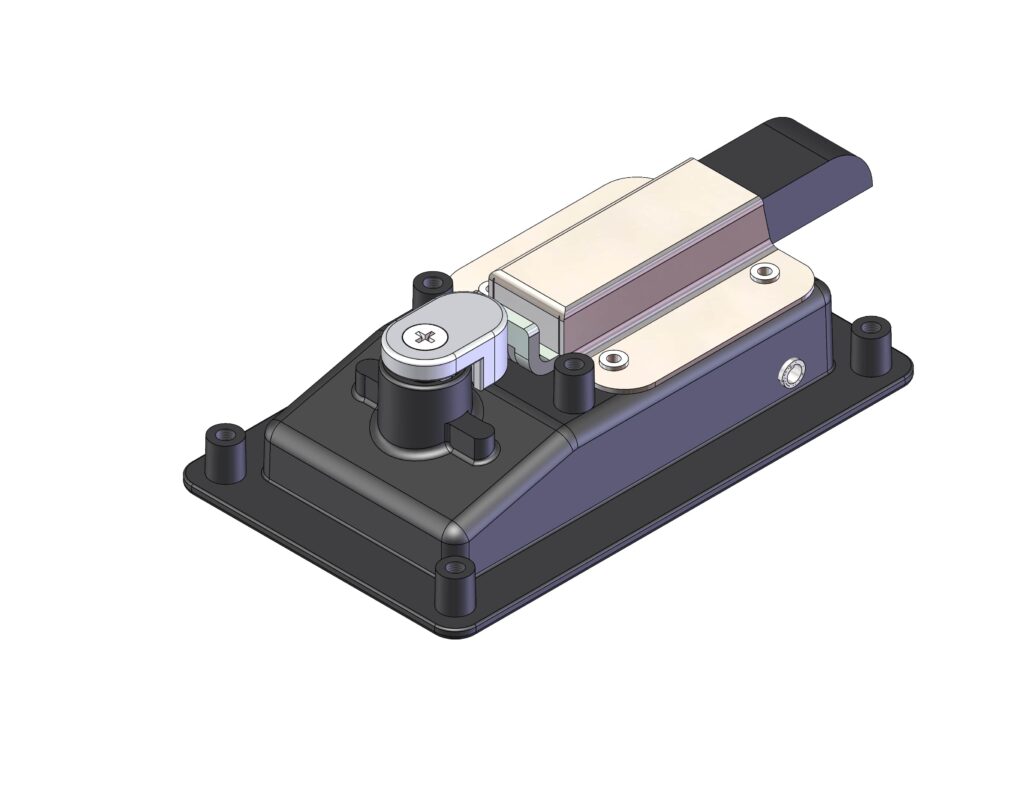

9/00450 Diecast paddle, black, slam-bolt

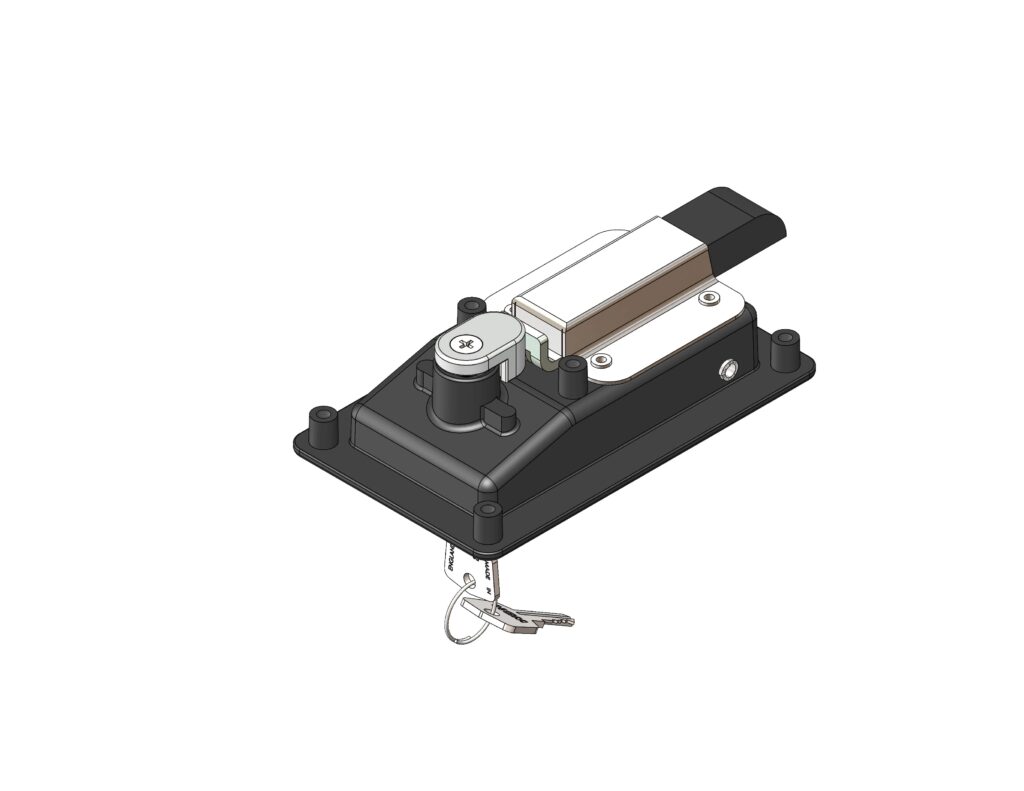

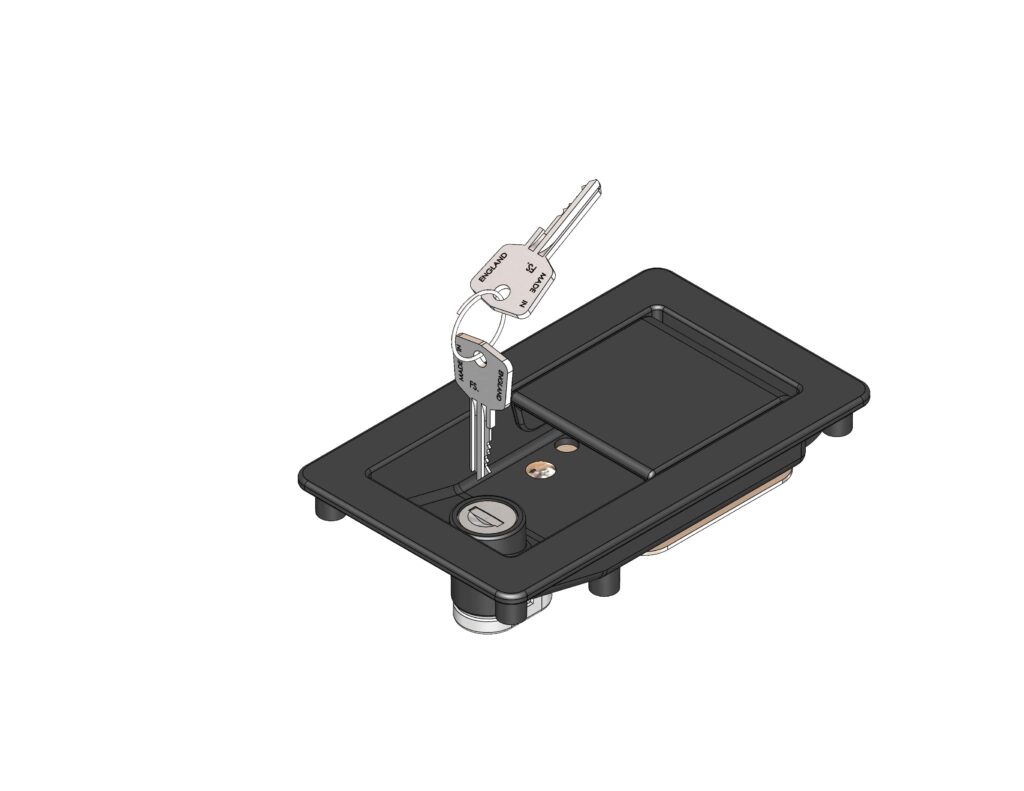

9/00450/01	As above, FS 880

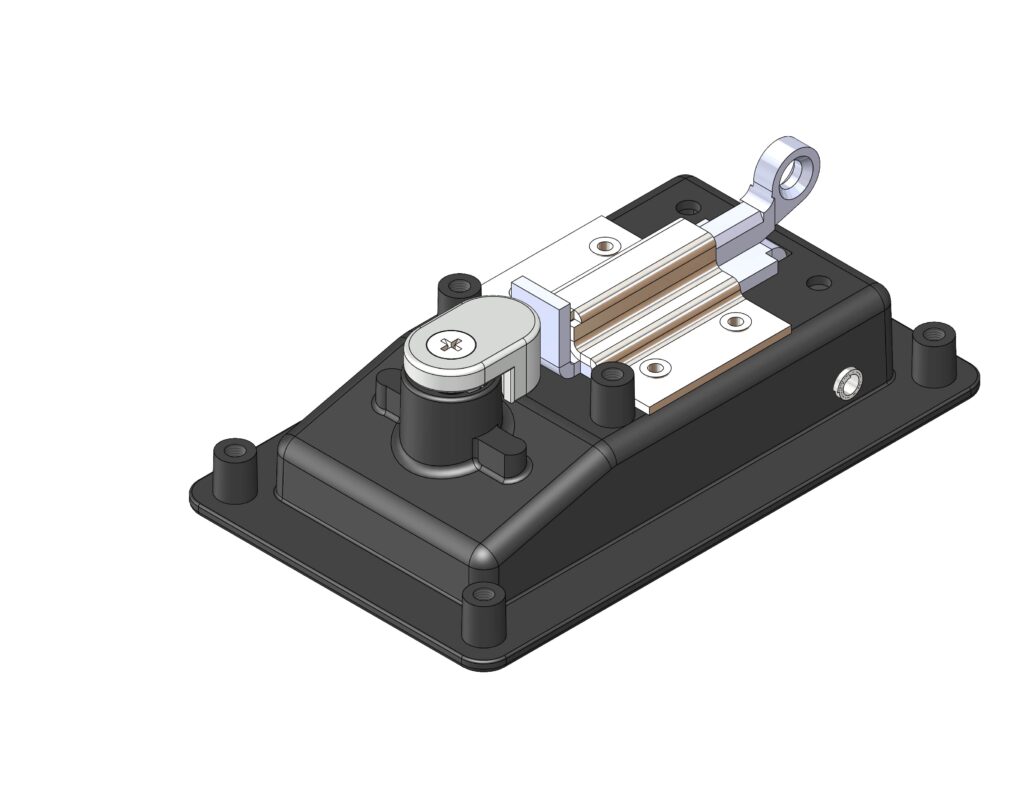

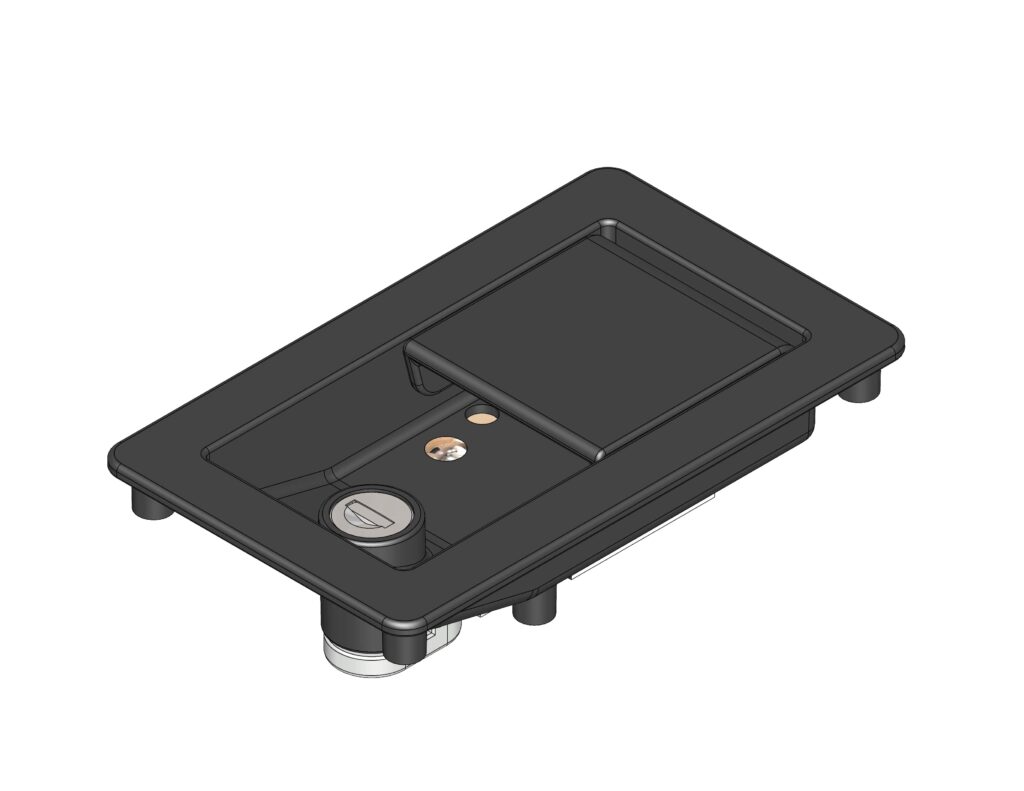

9/00453	Diecast paddle, black, remote operation

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Case length	136 mm
B	Case width	82 mm
C	Hole centres	120 mm
D	Hole centres	66 mm
E	Bolt projection	28 mm
F	Bolt depth	20 mm
G	Bolt width	19 mm
H	Holes tapped	10-32 UNF x 8 mm
J	Maximum depth	35 mm

Slam bolt withdraws by 10 mm, max.

Blended lines, concealed fixing, textured finish and “no rattle” operation, with solid, machined steel slam bolt.
Locking with key blocks movement of flap but slam bolt is still free to operate and can be opened from inside if release knob is fitted. Non-handed.
Concealed-fixing from beneath into four tapped bosses on handle rim.
‘FS’ keys as standard with shuttered keyway. Optionally ‘FT’ ‘92’ or ‘DLP’ key types.
Black powder coated with textured finish. Stainless bolt case and slide.
