Small ‘T’ Handles With ‘Easy-Fix’ Mounting

Very neat useful handles with circular ‘easy-fix’ escutcheon that are mounted through a standard pierced aperture. Lock cylinders are “shuttered” for weather-resistance, and handle can be water-sealed. Non-locking models available.

Ordering Code

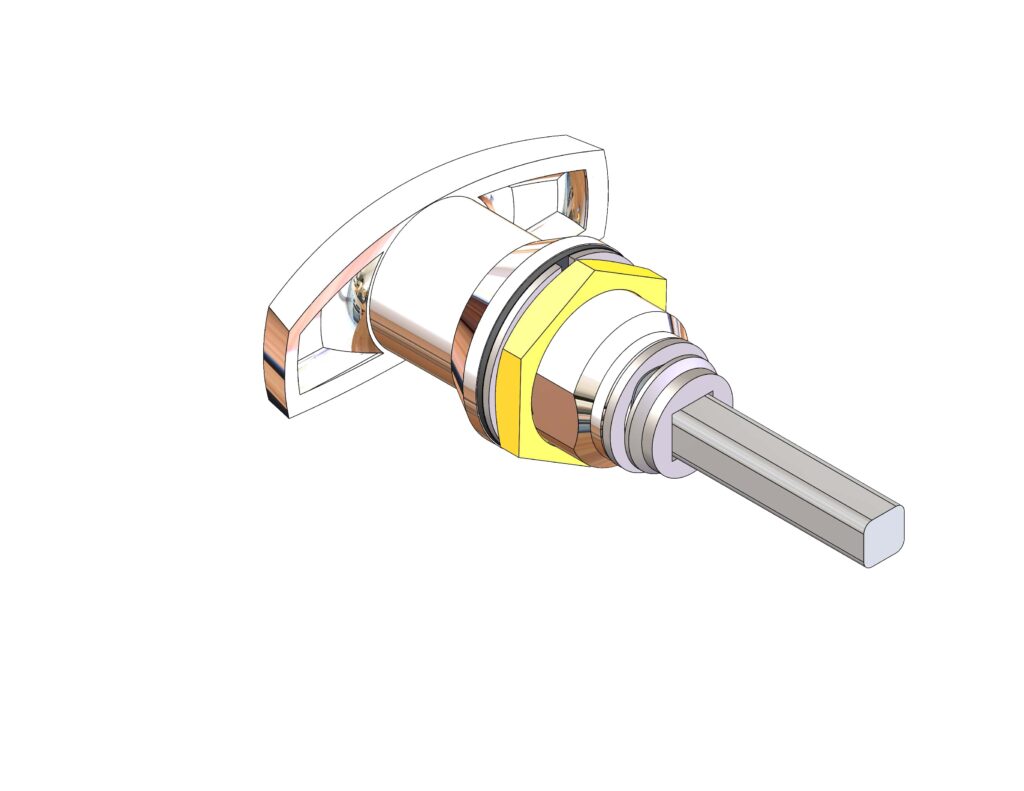

9/00975	Small ‘T’, locking, chrome

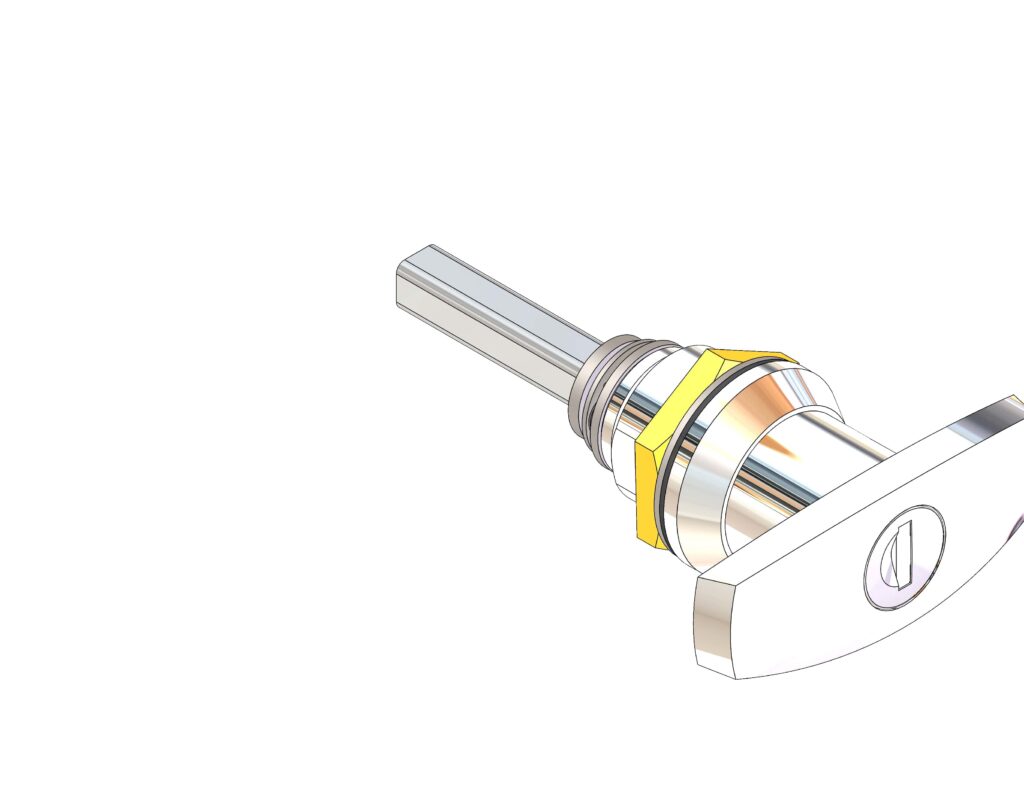

9/00975/01	As above, FS 880 keys
9/00975B	Small ‘T’, locking, black
9/00975B/01	As above, FS 880
9/00976	Small ‘T’, non-locking, chrome

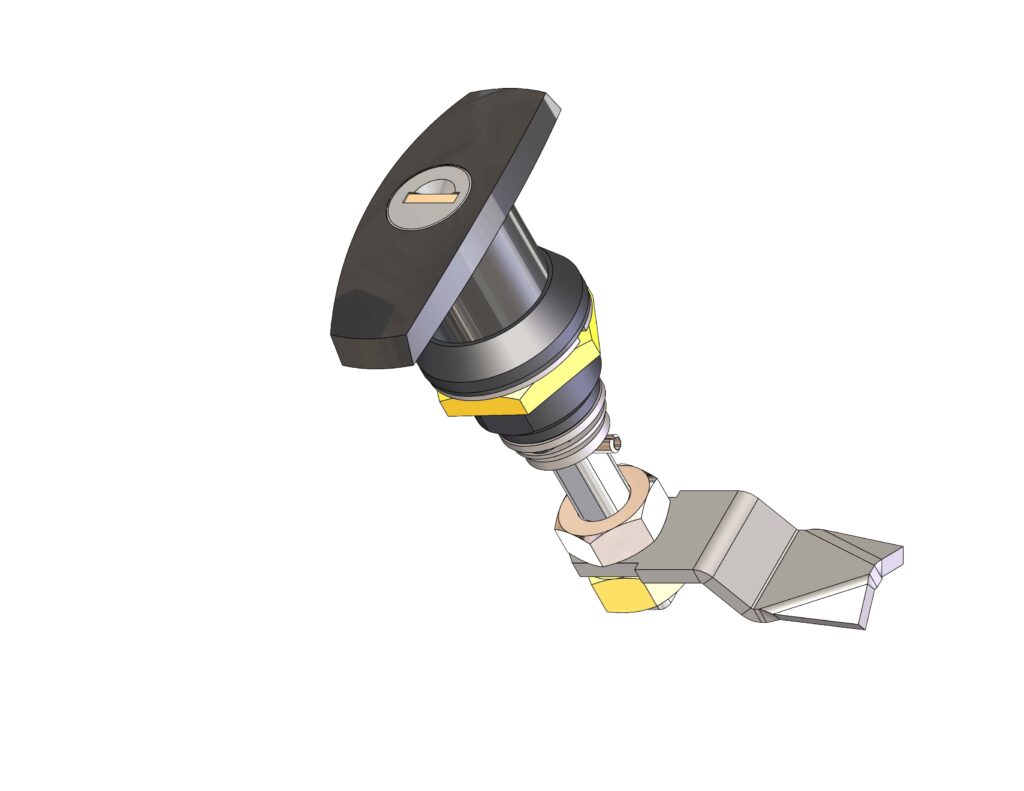

9/00976B/01	Small ‘T’, non-locking, black

B1-Diagram 03 — Handles operate through 180° as standard (non-handed), locking in two positions. To special order, rotation can be limited to 90° LH (clockwise) or 90° RH (anticlockwise), when handle will only lock in the rest position. Illustration shows handle with ‘flats’ vertical on escutcheon.

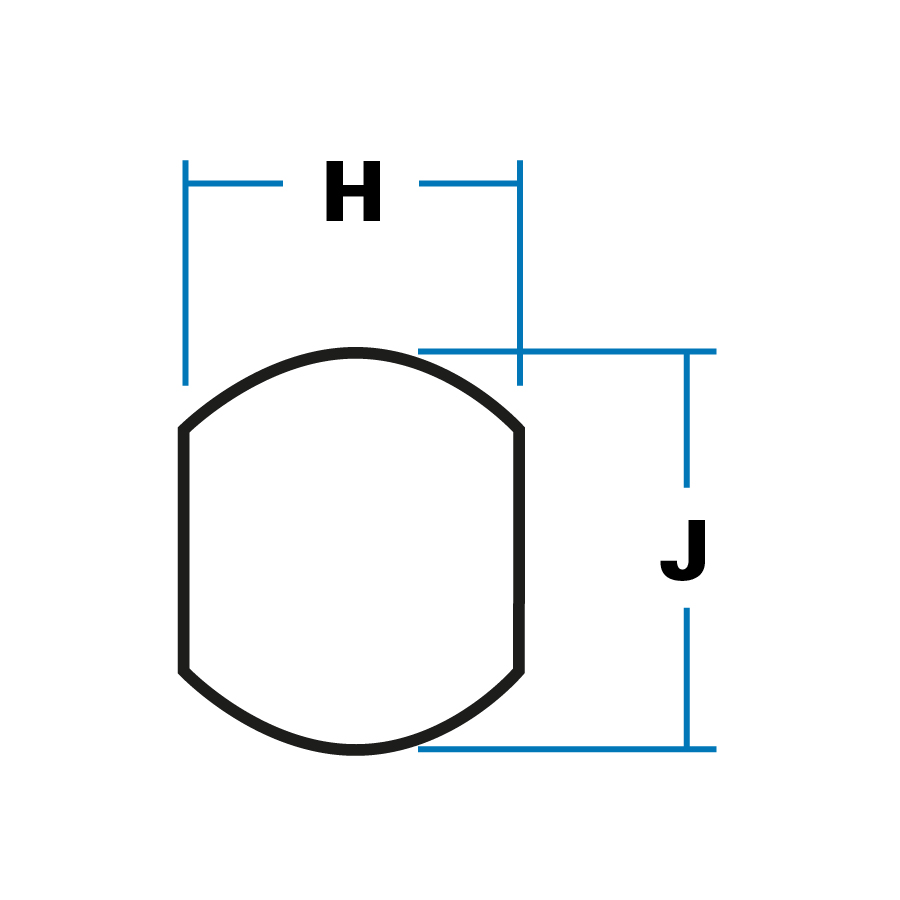

B1-Diagram 04 — **Panel-piercing detail** - This larger aperture also suits our other ‘easy-fix’ handles, ‘Turnbutton’ and ‘Compact’ models.

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Handle length	65 mm
B	Face width	30 mm
C	Face height	30 mm
D	Body depth	26 mm
E	Total projection (shaft length)	63 mm
F	Depth of thread	15 mm
H	Piercing across flats	22 mm
J	Piercing, diameter	24 mm

180° as standard, rotation can be limited to 90°, LH/RH when required.
Mount through panel piercing against ‘flats’ on escutcheon, and secure with large brass nut. Neoprene gasket and stainless spring spacing washer are provided.
‘FS’ keys as standard with ‘shuttered’ keyway optionally ‘FT’ or ‘DLP’ key types.
Chromium plated or black powder coated.
- Shaft lengths
- Threaded shafts (M10)
- Special key numbers/sets
- 90° LH/RH rotation
