Side-Action Slam Latches

Standard end latches with side-cut machined steel bolts at 45°angle, making them suitable for roller shutters or drop-down hatches. Adjustable bolt-pull allows projection to be varied, with ‘quick-fit’ attachment point for use with 2-way mechanisms.
9/01455
9/01455
9/01455
9/01455
9/01456
9/01456
9/01456
9/01456
3/12497
3/12497
3/12497
3/12497

Ordering Code

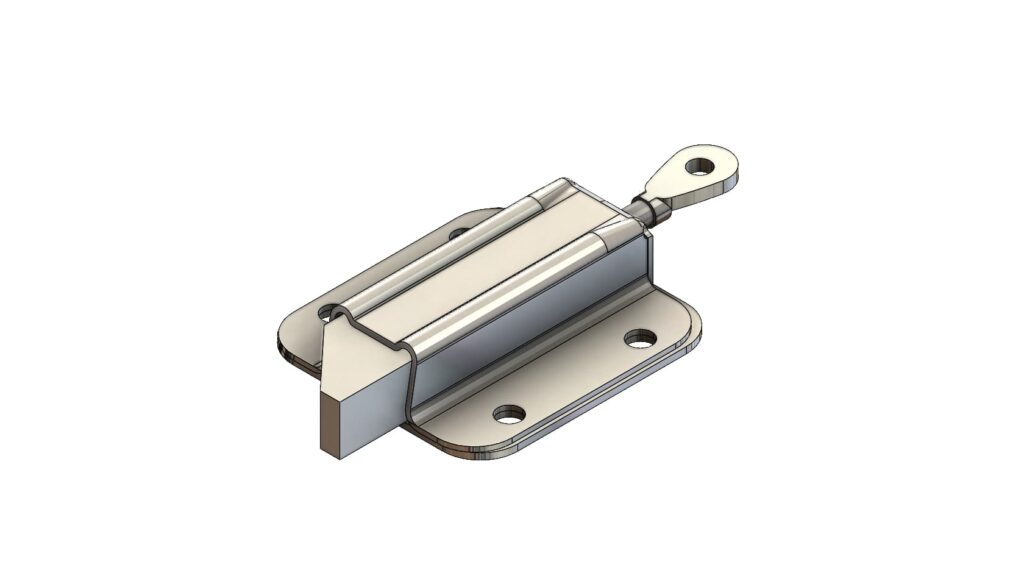

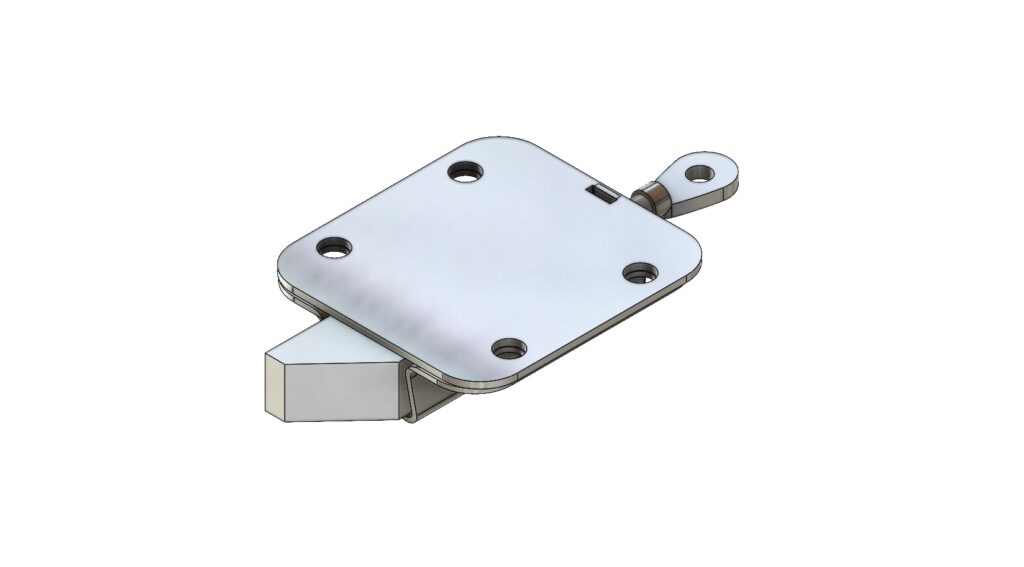

9/01455 Side-action latch LH

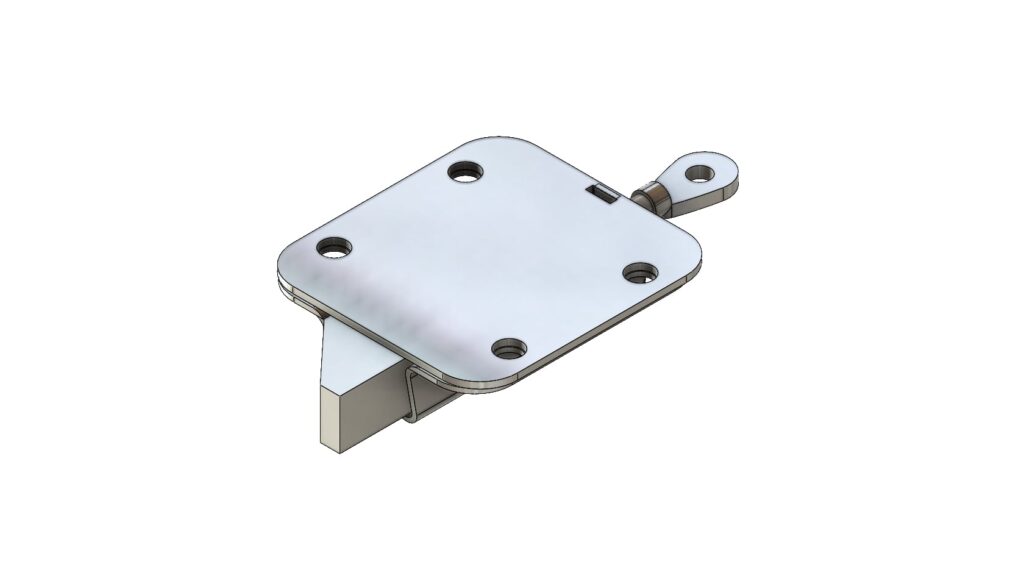

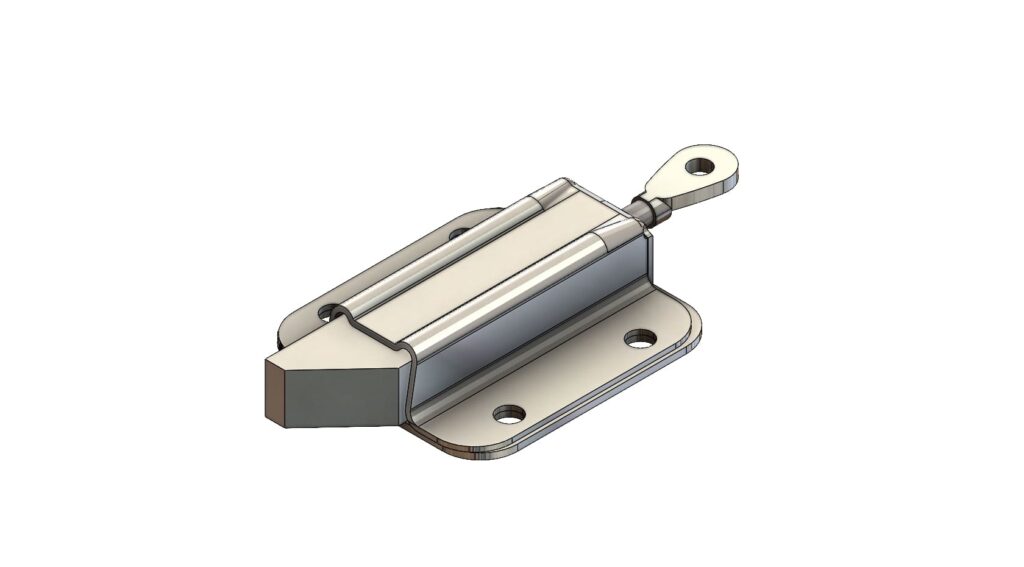

9/01456 Side-action latch RH

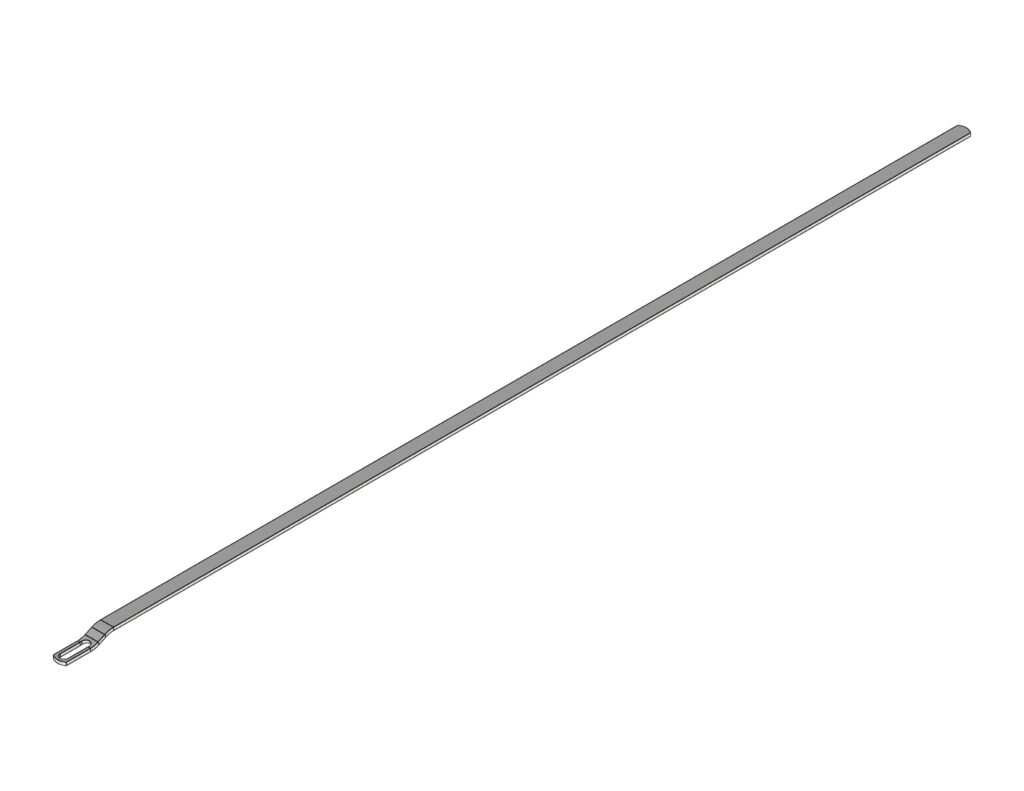

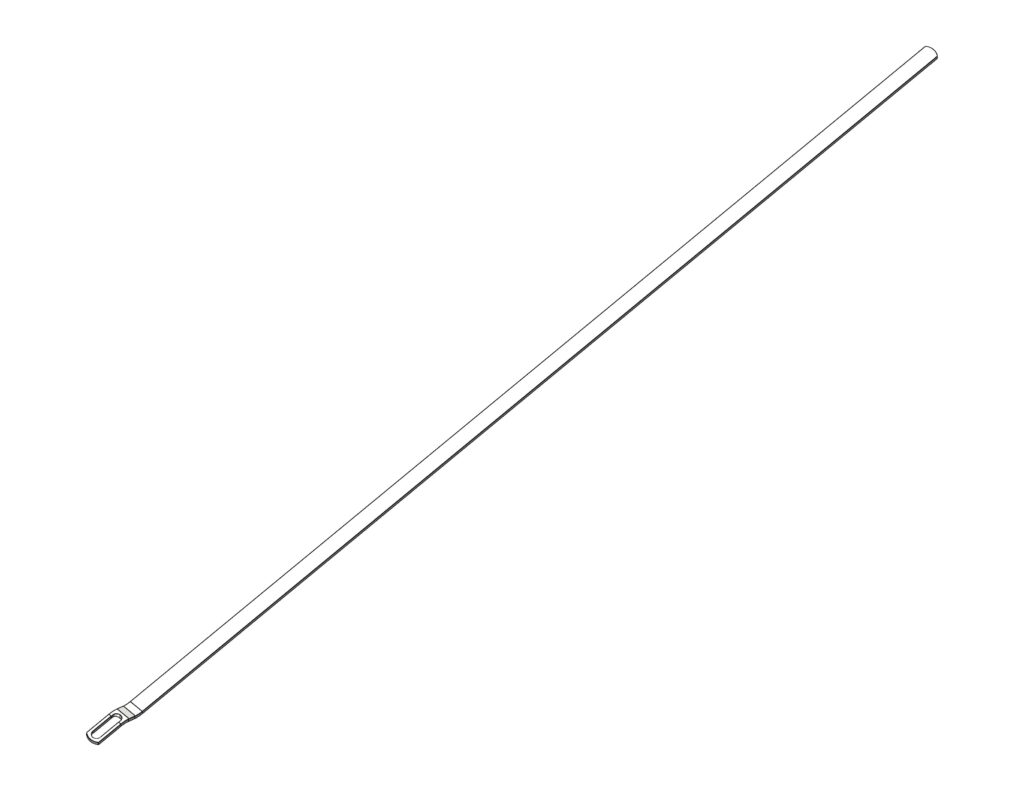

3/12497 Slotted bar, 915mm

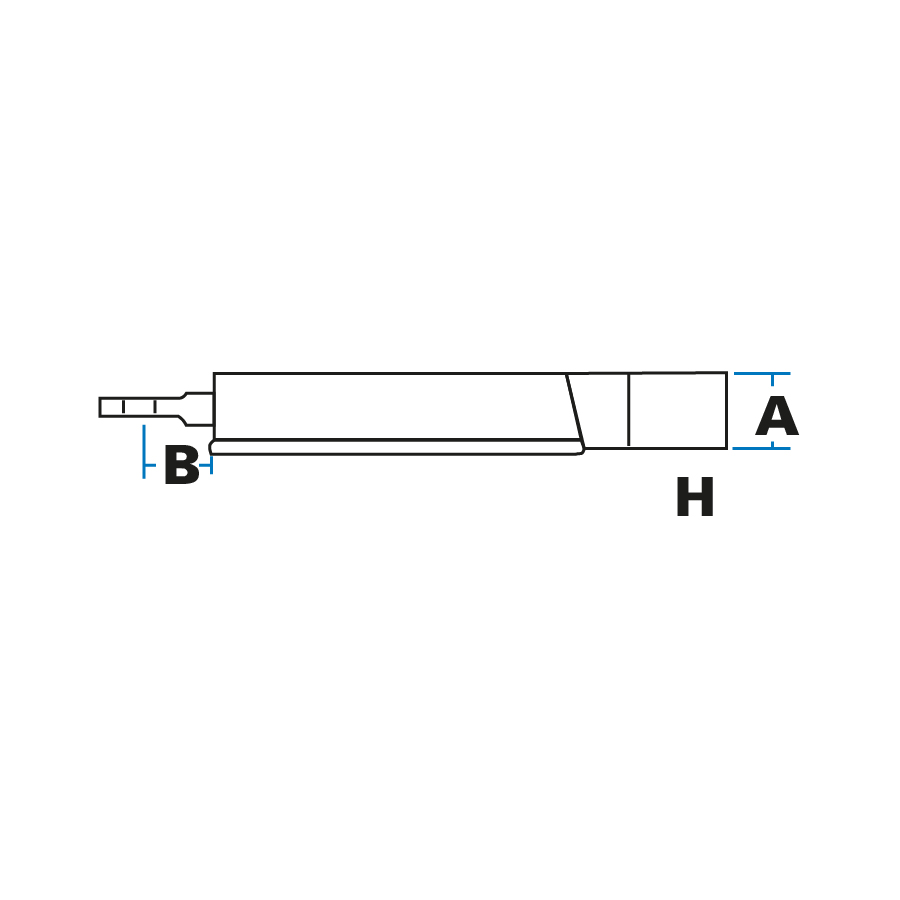

D10-Diagram 01
D10-Diagram 01_1

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Bolt thickness 13 mm
B Bolt pull 13 mm
C Width 57 mm
D Bolt width 19 mm
E Body length 62 mm
F Hole centres 44,5 mm
G Hole centres 33 mm
H Hole Diameter Ø 5.5 mm
J Hole Diameter Ø 5.0 mm
Bolt projection variable, 17-25 mm. Minimum load 5 kg for full bolt travel. Mild steel model made CR4. Stainless models in grade 304 with stainlessbolt-pull, bolt and spring.
  • Mount on door moving vertically downwards, latch slams against a ramped striker plate.
  • Bolt retracts 13mm into case, either by slam-action or by withdrawing bolt-pull.
  • Four holes, 5.5mm dia, through both thicknesses of material. A packing plate is available (3/22384).
  • Zinc-plated finish on mild steel models.
  • Bolt spring pressure is 6kg (14lbs).
