‘Series 400’ Anti-Burst Latches

The exceptionally neat and compact design of the ‘Series 400‘ makes it suitable for confined spaces and thin doors. It provides 2-stage anti-burst latching, with mounting through the pivot points for great strength.

Ordering Code

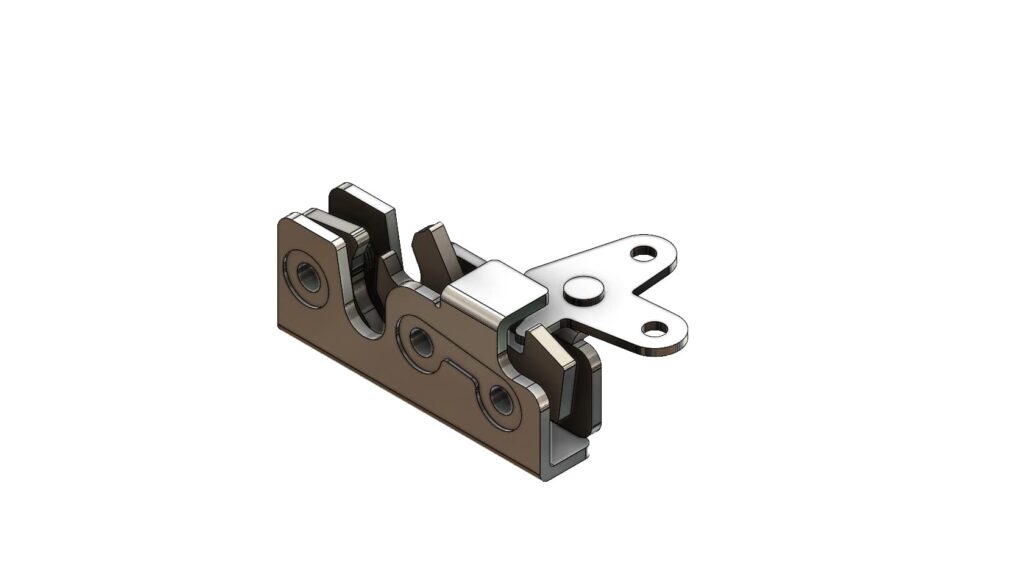

9/00423	Rotary latch, LH

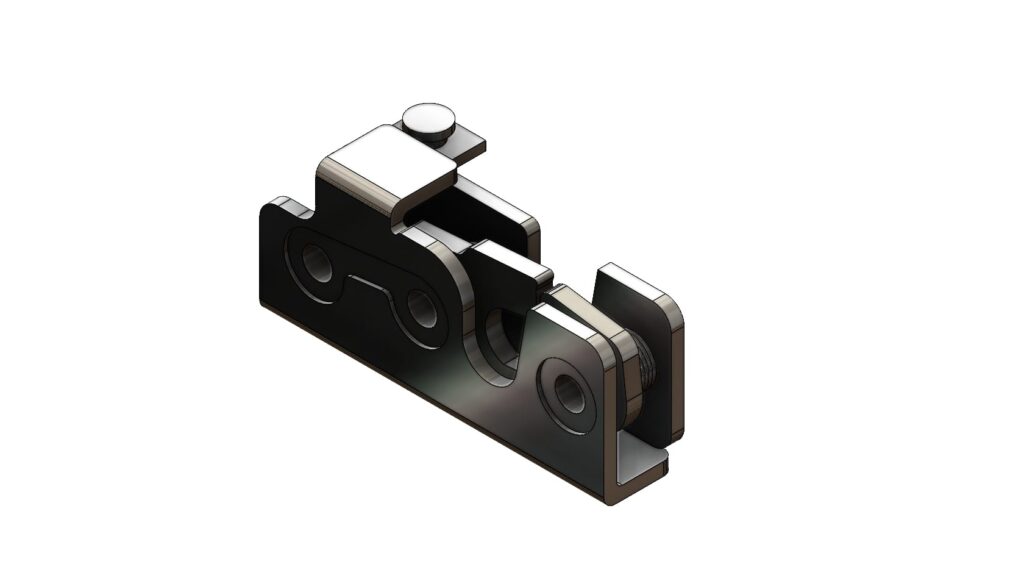

9/00424	Rotary latch, RH

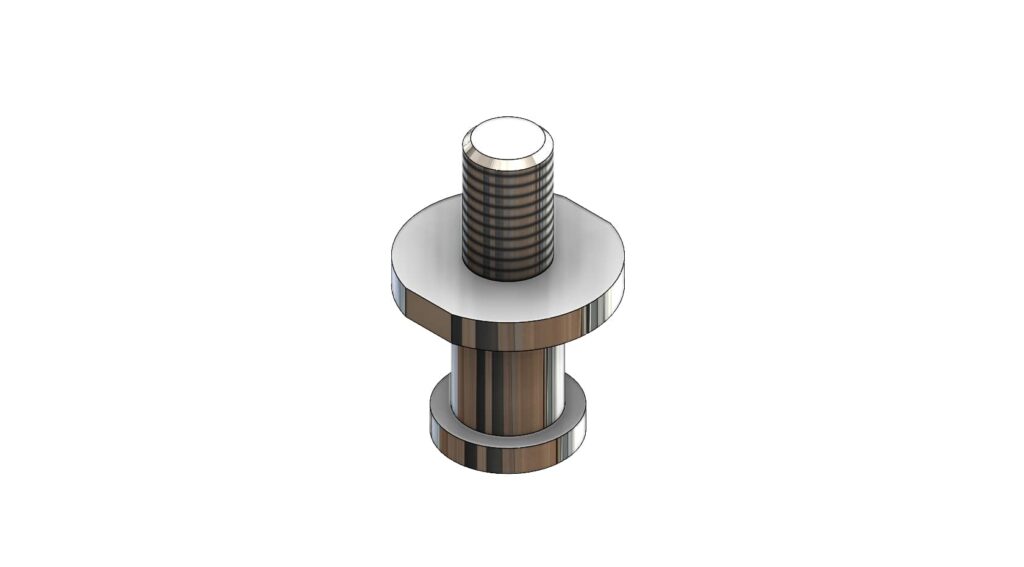

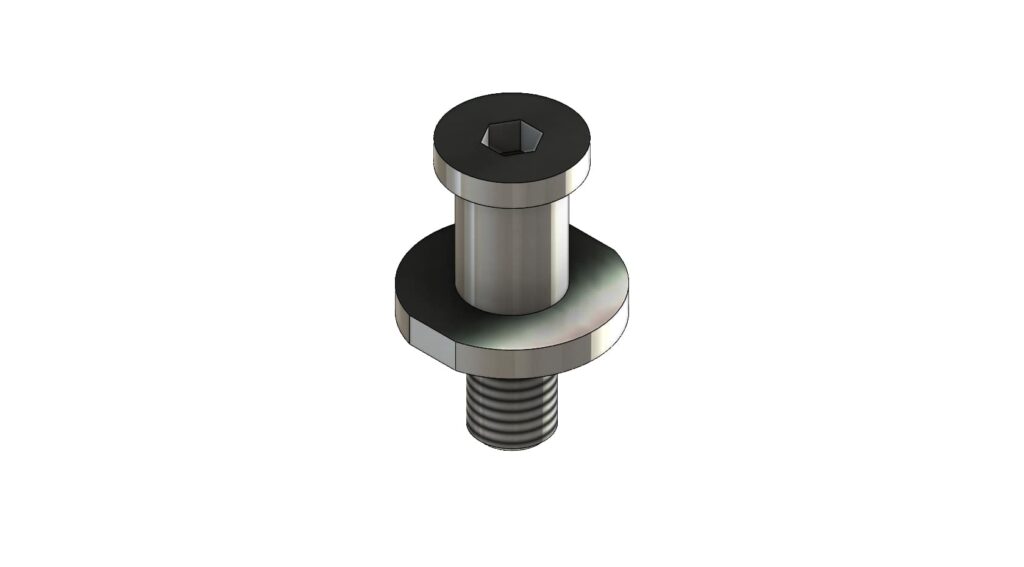

9/00425	Striker pin, (not handed)

D18-Diagram 01 — Application of series 400 latches - see ‘Flap Handles’

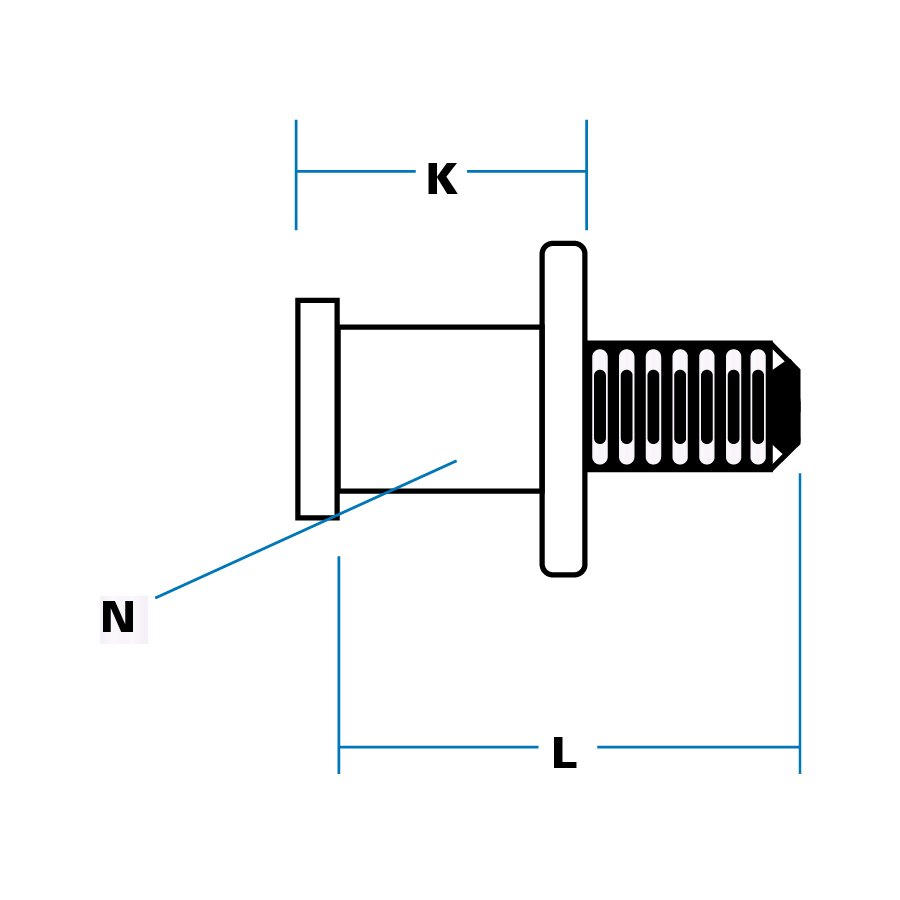

D18-Diagram 05 — Striker pin head 8mm hex x 4mm deep LOCK Thread form 14 UNC Class 2A

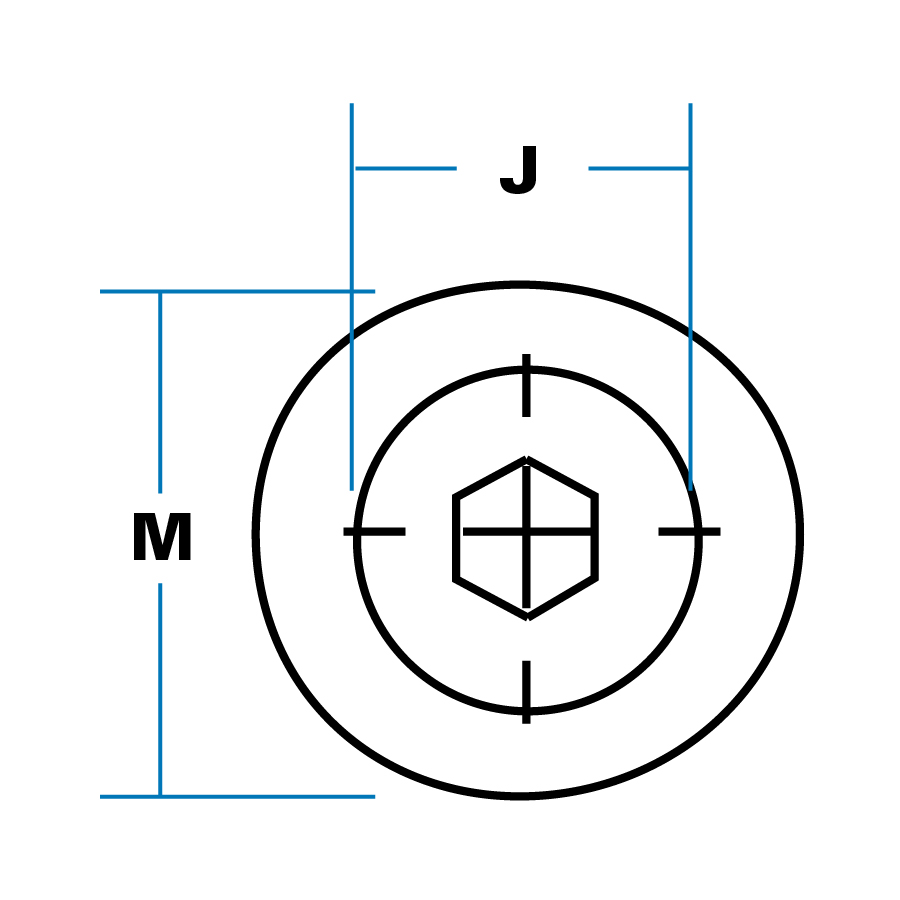

D18-Diagram 06 — Striker pin head 8mm hex x 4mm deep LOCK Thread form 14 UNC Class 2A

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

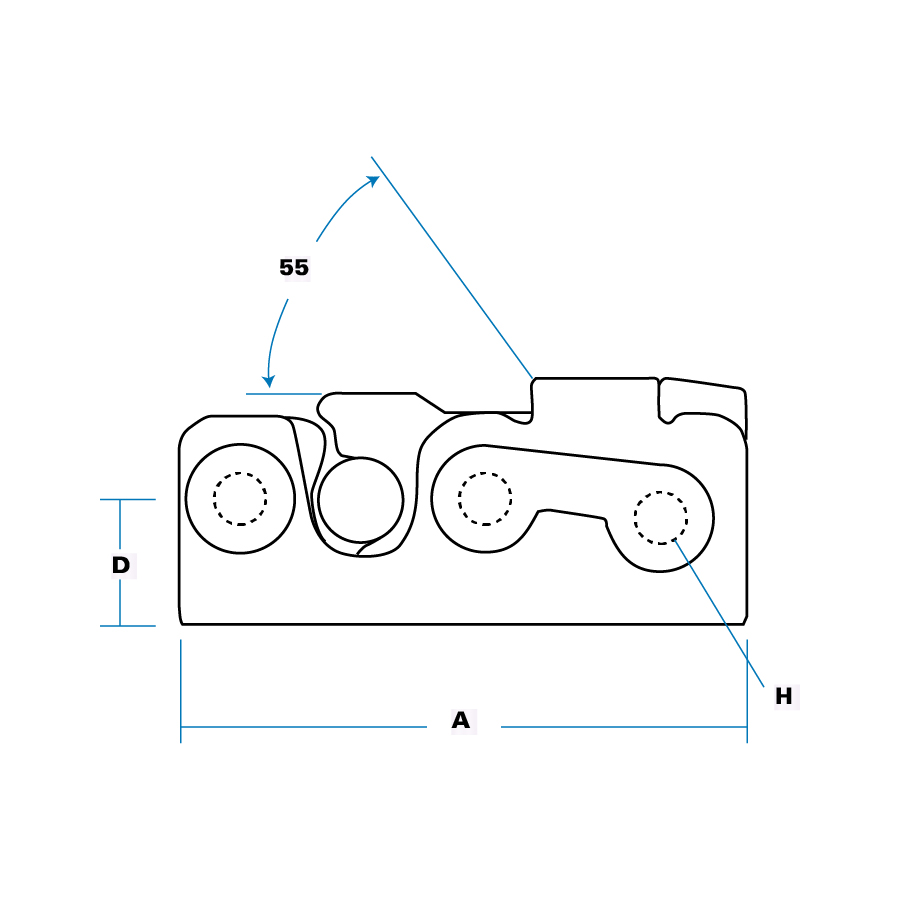

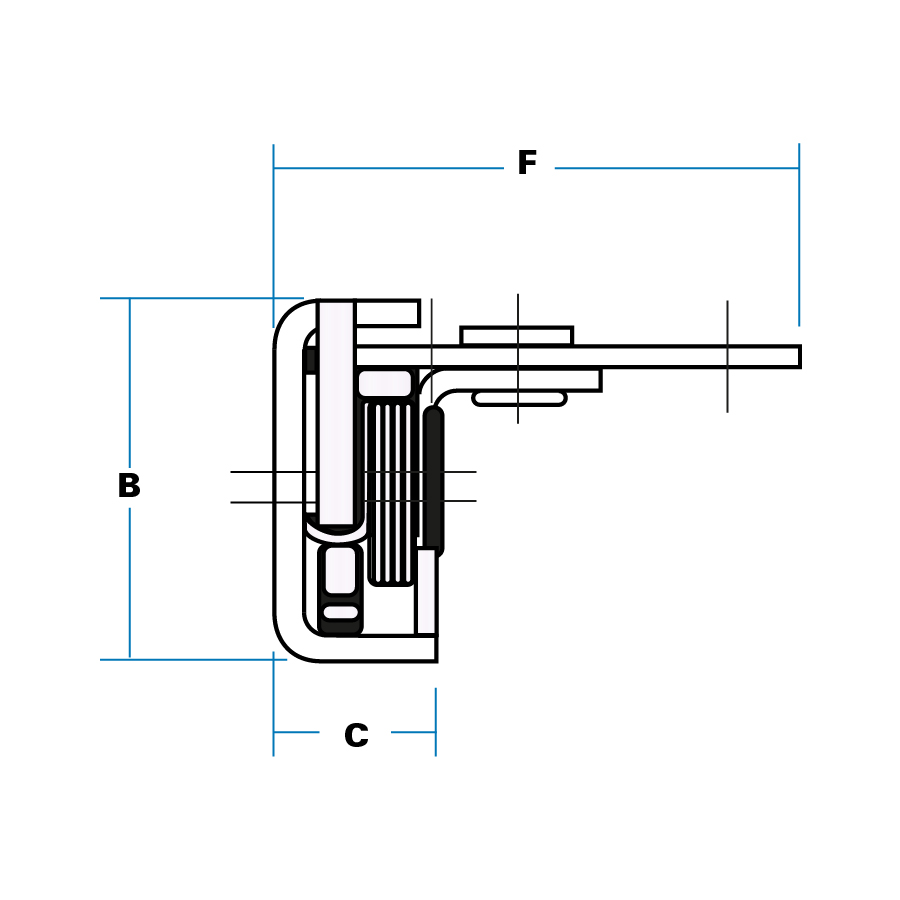

A	Case length	92 mm
B	Case width	40 mm
C	Case depth	20 mm
D	Location	21 mm
E	Pivot to hole	21 mm
F	Location	59 mm
G	Acuator hole (dia)	6.5 mm
H	Mounting hole (dia)	8.0 mm
J	Pin head diameter	19 mm
K	Surface projection	26 mm
L	Total pin length	44 mm
M	Washer diameter	30 mm
N	Striker pin diameter	14 mm

Slam-action against striker pin. Both ‘hands’ available as illustrated.
Claw engages pin with 2-stage action, and is released by pull as shown on 2-lobe actuator arm.
Plant-on to edge of door, fixing through body of latch with cut-out for actuator arm.
Clear zinc-plated throughout.
Alternative actuator arms to special order.
Use with ‘remote action’ handles, turnbuttons, wire and rod linkages, etc.
Anti-burst properties
When rig-tested these latches can achieve values in excess of 8.9 KN* transverse load in fully-latched condition. However vehicle builders are responsible for evaluating performance in their own particular application and for ensuring that appropriate legislation is satisfied. SAE & ECE II Specification
