Semi-Flush Recess Latch with Full Water-Sealing

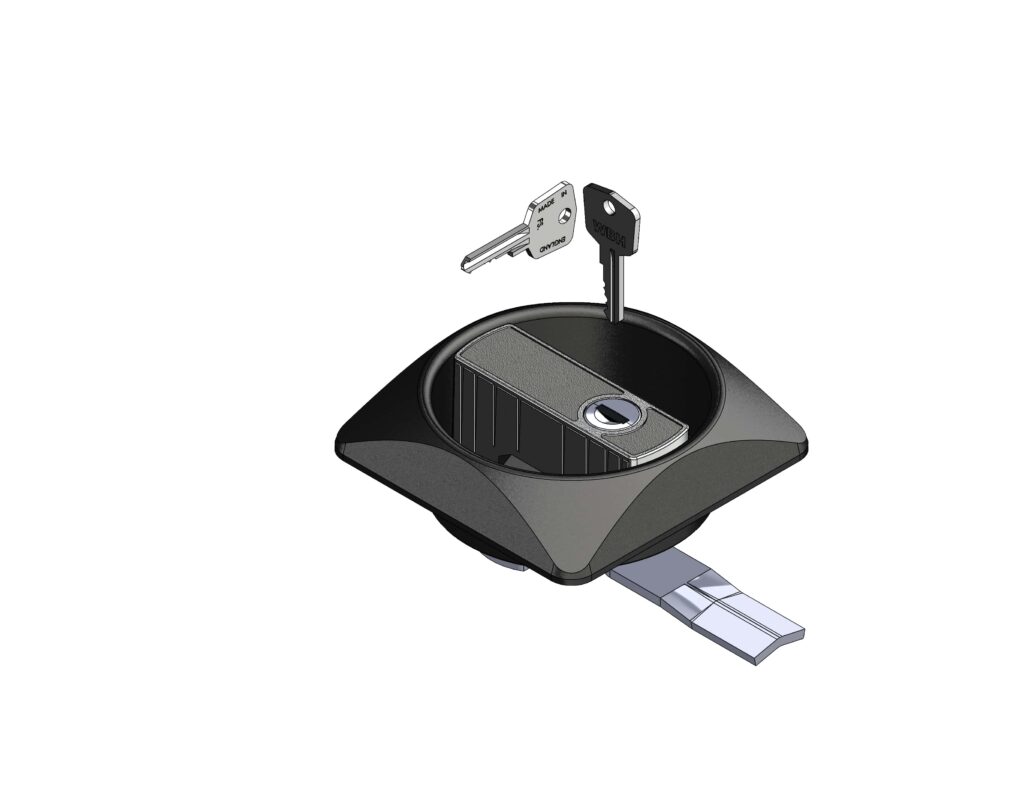

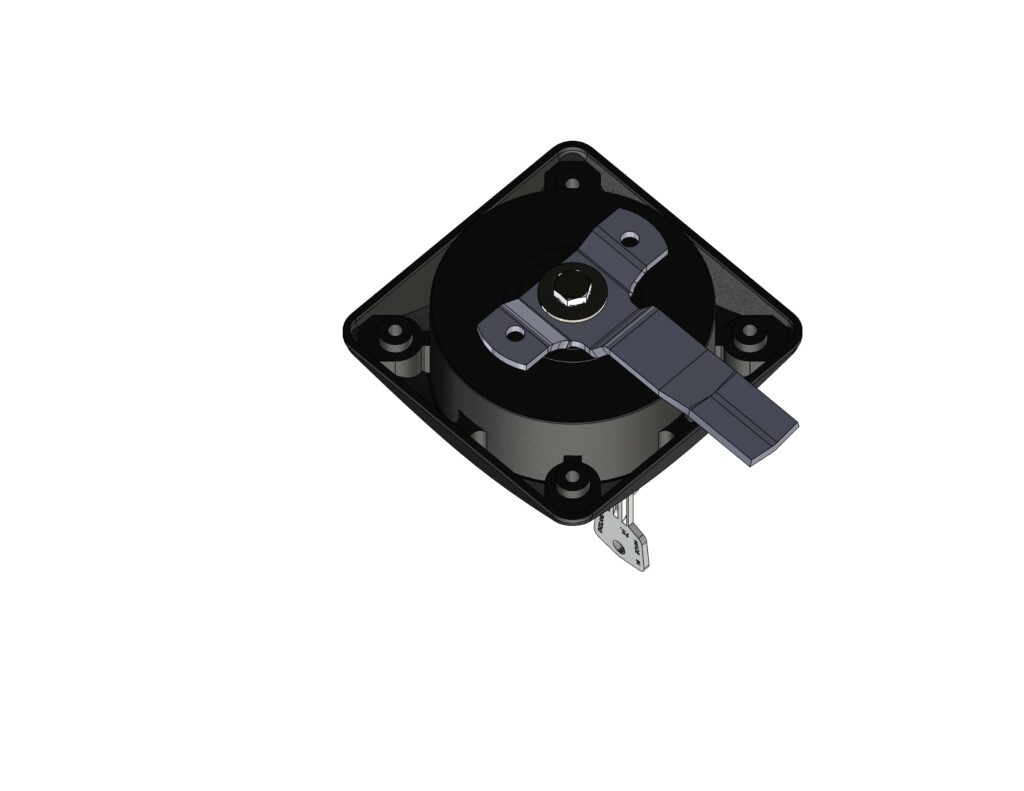

Robust, one-piece latch, very easily fitted. Looks good on machinery enclosures, cabinets and inspection panels, providing highly cost-effective alternative to plant-on handles or other flush-latch systems.
9/01840/01
9/01840/01
9/01840/01
9/01840/01

Ordering Code

9/01840 Semi-flush recess latch
9/01840/1 As above, FS 880 standard keys
C20-Diagram 01
C20-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Case length / breadth 98 mm
B Height 20 mm
C Max depth 22.5 mm
D Recess diameter 82 mm
E Hole centres 72 mm
F Engagement 82 mm
G Latch bar width 20 mm
H Hole sizes M5 x 10 mm
  • Low profile, deep recess for finger-tip action, water-sealed, with concealed fixing. Latch bar accepts rods for 3-way action.
  • Handle operates latch bar with cam-form allowing 4mm take-up against seals.
  • Rotation 90 degrees. latch bar can be fixed in-line or at 90 degrees to handle. Totally symmetrical, non-handed.
  • Fits through 83mm diameter aperture. Secured by screws into 4-off tapped bosses.
  • “FS” keys only, with shuttered keyway. Non-locking version available.
  • Black powder-coated, with bright chromium-plated handle as standard; alternatively, all black.
  • Zinc diecast handle & base, steel latch bar, zinc plated, Nitrile seal.
  • Alternative latch bars as required.
