Semi-Flush Pull Handle

This is an attractive, self-contained ‘automotive’-style handle and recess ‘dish’ which is ideal for specialist vehicle applications. The handle lifts to operate an actuating lever, normally connected by wire-link to a remote latch, and the unit is easily fitted into a simple panel cut-out.

Ordering Code

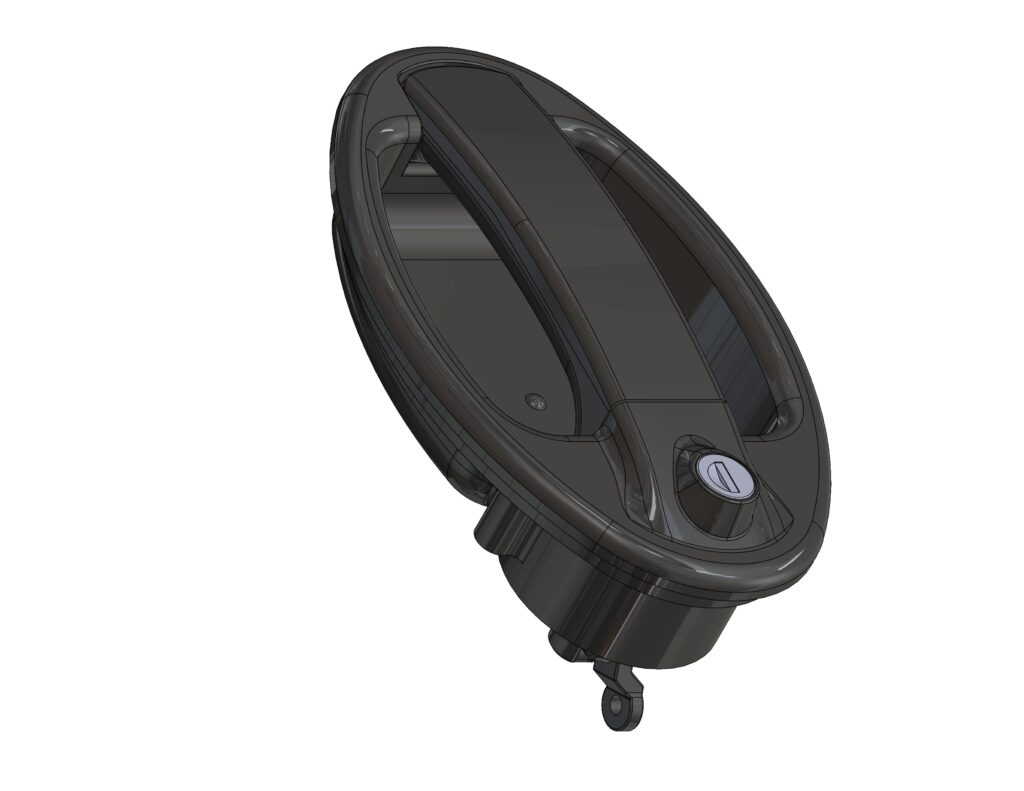

9/00593	Semi-flush handle, ‘FT’ locking

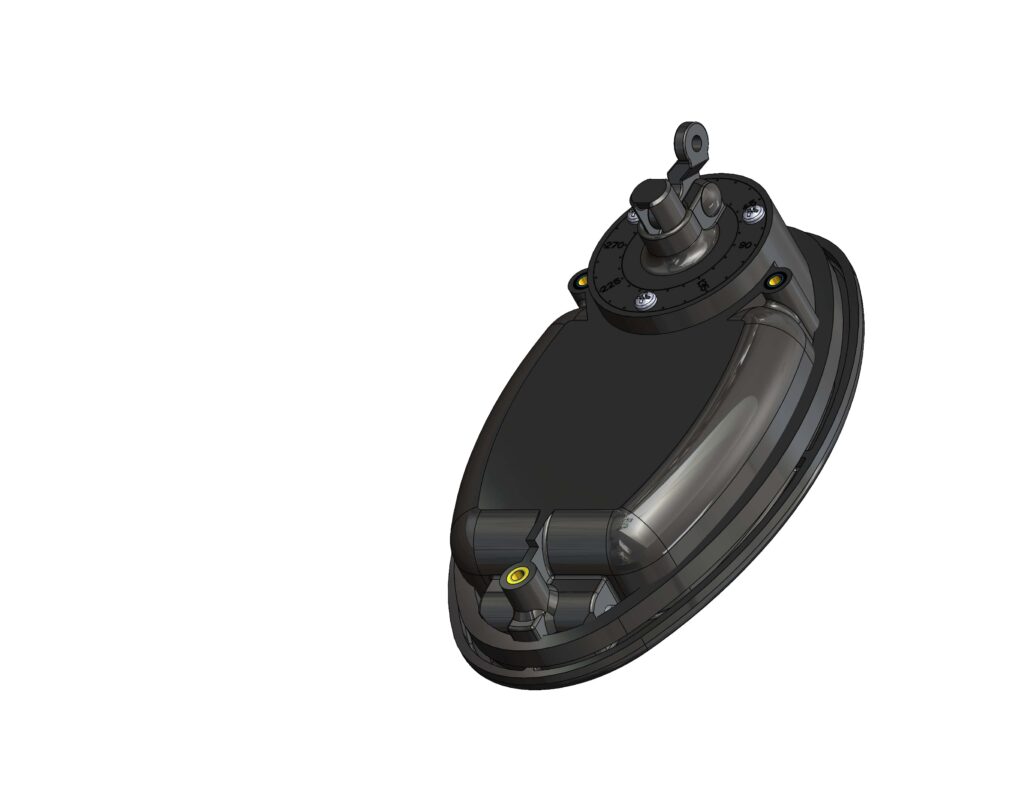

9/00593/01	As above, ‘FT 111’ keys

Note: Actuator arm can be rotated through 360º Panel cut-out; ellipse 174 x 104 mm Request drawing of panel-piercing if required.

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Case length	190 mm
B	Case width	120 mm
C	Fixing centres	70 mm
D	Fixing centres	122 mm
E	Location	48 mm
F	Max. height (closed)	20 mm
G	Max depth (body)	35 mm
H	Hole sizes	M5 x 10 mm
J	Depth to actuator	63 mm
K	Travel of actuator	15 mm

Note: Actuator arm can be rotated through 360º Panel cut-out; ellipse 174 x 104 mm Request drawing of panel-piercing if required.

Smart, strong, and weather-resistant, with attractive finish in self-coloured (black) composite material.
Handle stem pulls out to 30mm (max), but both ends are always secured within base. Key turns 180° to block operation.
Insert from front into panel cut-out, secure into three threaded bosses. A foam gasket is supplied.
‘FT’ keys only, non-locking model available.
Black, self-coloured, with fine-textured finish.
Moulded in Nylon-6 throughout.
Series 400 latch or similar.
