Rotary Ventilator with Inside Grille & Adaptor

This rotary ventilator is better-looking and up to 25% more efficient in removing stale air from within a vehicle. We have now created an inside adaptor-ring, allowing neat and easy installation of an inside grille. Concealing all fixing screws and making the ventilator entirely suitable for mini-buses and other ‘prestige’ applications.

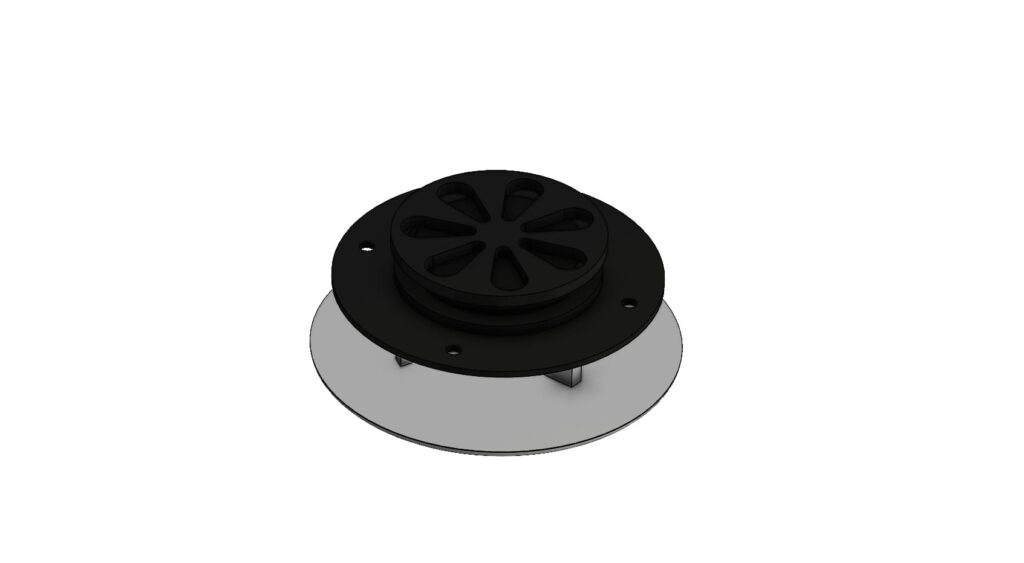

9/01855
9/01855
9/01855
9/01855

Ordering Code

9/01850 Ventilator only, black
9/01851 Ventilator only, white
9/01855 Adaptor & grille, black

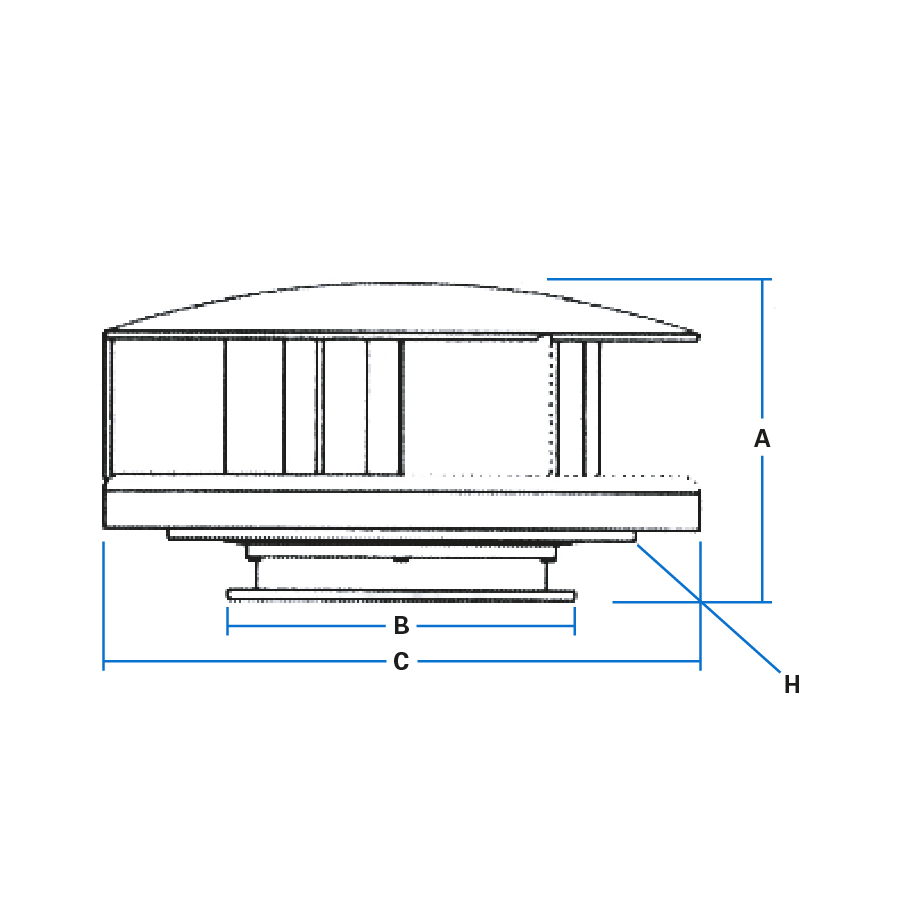

H7-Diagram 01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Height (maxium) 120 mm
B Base diameter 140 mm
C Scoop diameter 240 mm
D Grille outer diameter 160 mm
E Depth of adaptor/grille 30 mm
F Hole centres (across base) 124 mm
F Hole sizes (dia) 5 mm, c/s 8 mm
Weight of unit – 660 grams (1.5lb)
  • Construction prevents entry of rain, dust, and down-draughts. Air-scoop revolves on two steel bearings and will catch breeze even in stationary (exterior) locations. Quiet in operation with excellent rate of air-movement.
  • Rotary scoop drives extraction fan, sucking air from inside vehicle compartment.
  • Ventilator in black or white self-colour, adaptor & grille in black only.
  • Four stainless screws/nuts provided & clips for inside grille.
  • Black self-colour moulded ventilator as standard (white & grey as options). White base, and white moulded grille.
  • Moulded in ABS with two steel bearings and stainless steel centre-shift.
