Recess ‘T’ Handles With ‘Easy-Fix’ Mounting

An extremely useful set that allows our large ‘T’ handle to be mounted so that the “arms” of the handle do not project above the surface of a panel. The steel recess pan is normally black powder-coated, with moulded gasket. Locking & non-locking models, supplied as boxed sets.
9/00186SS
9/00186SS
9/00186SS
9/00186SS
9/00186
9/00186
9/00186
9/00186
9/00185SS
9/00185SS
9/00185SS
9/00185SS
9/00185
9/00185
9/00185
9/00185
9/00184SS
9/00184SS
9/00184SS
9/00184SS
9/00184
9/00184
9/00184
9/00184

Ordering Code

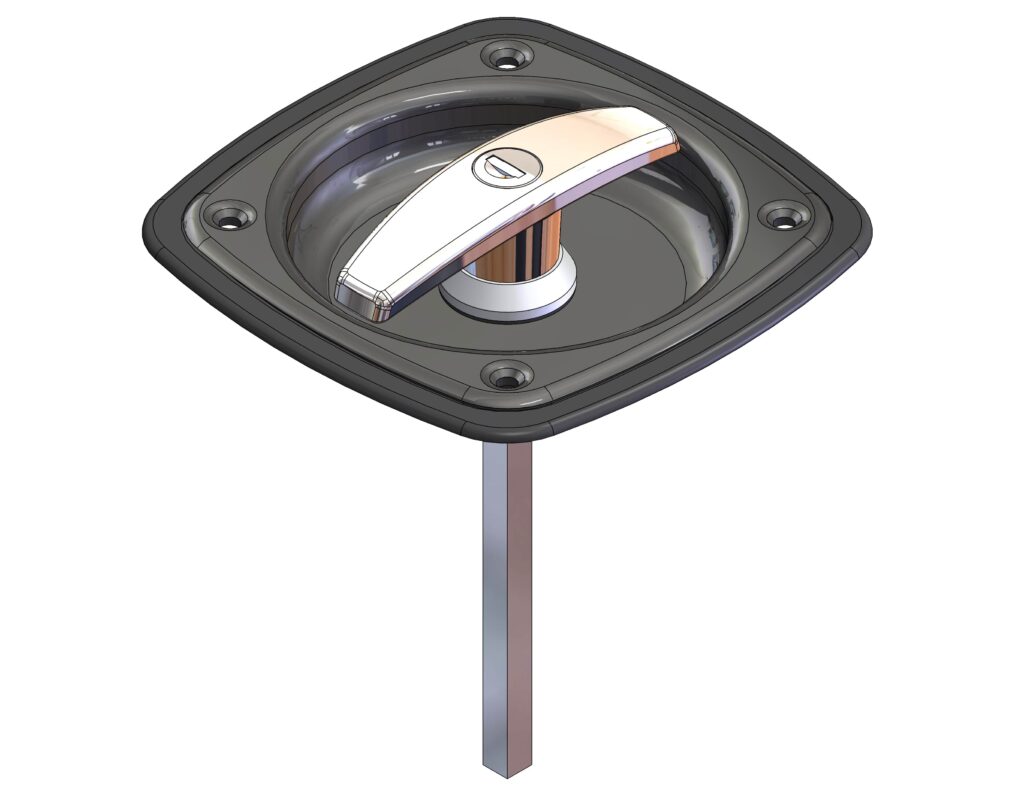

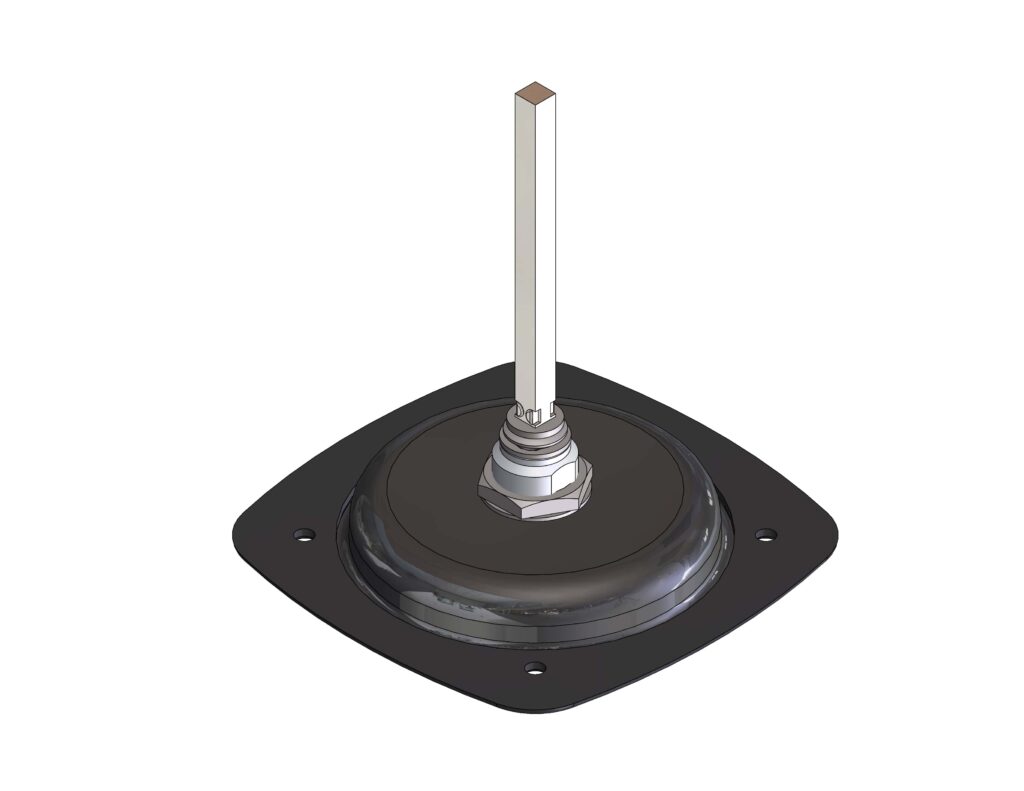

9/00184 Recess ‘T’ set, locking

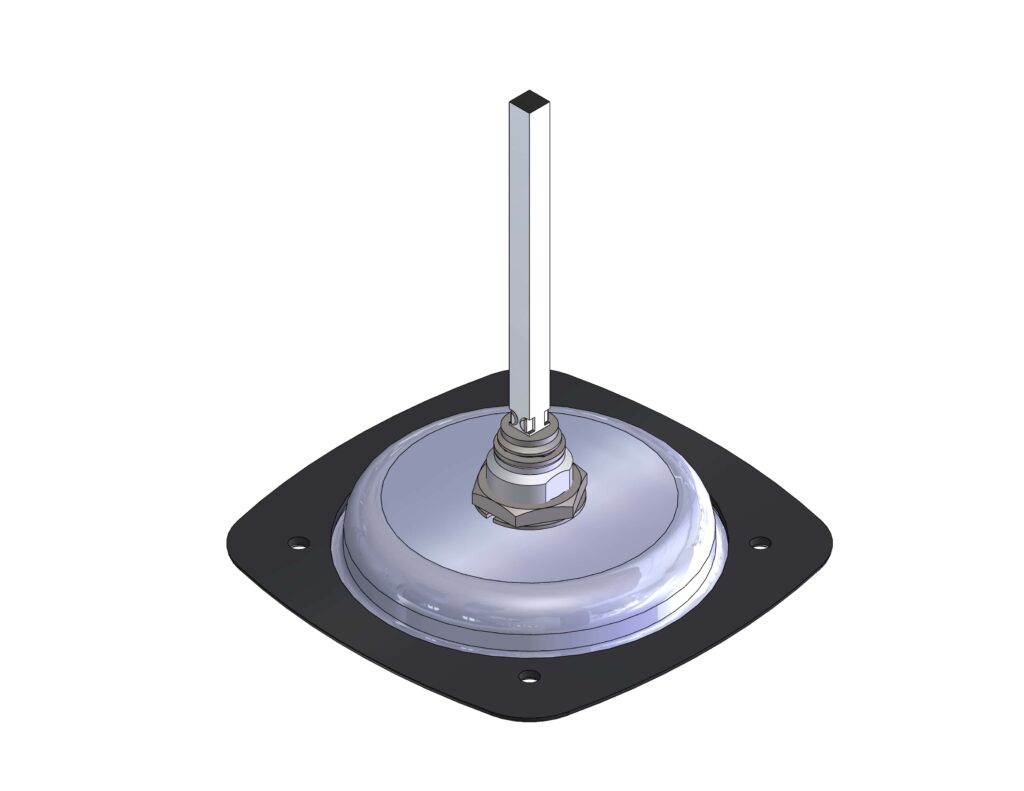

9/00184SS As above, stainless pan

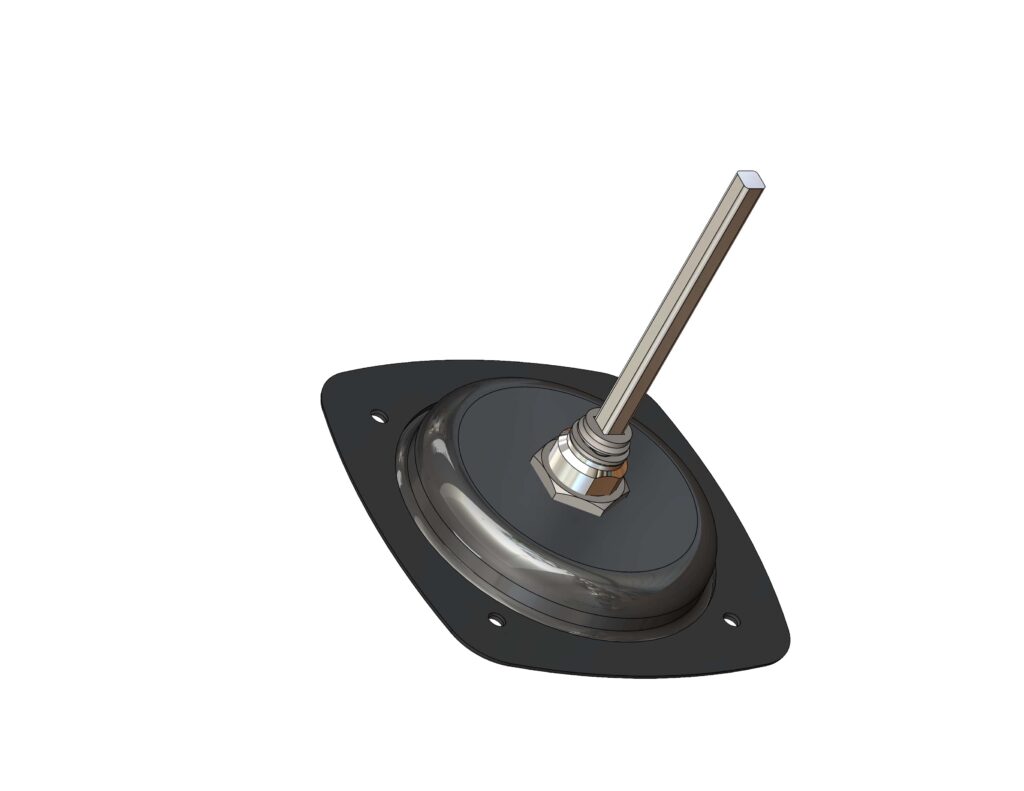

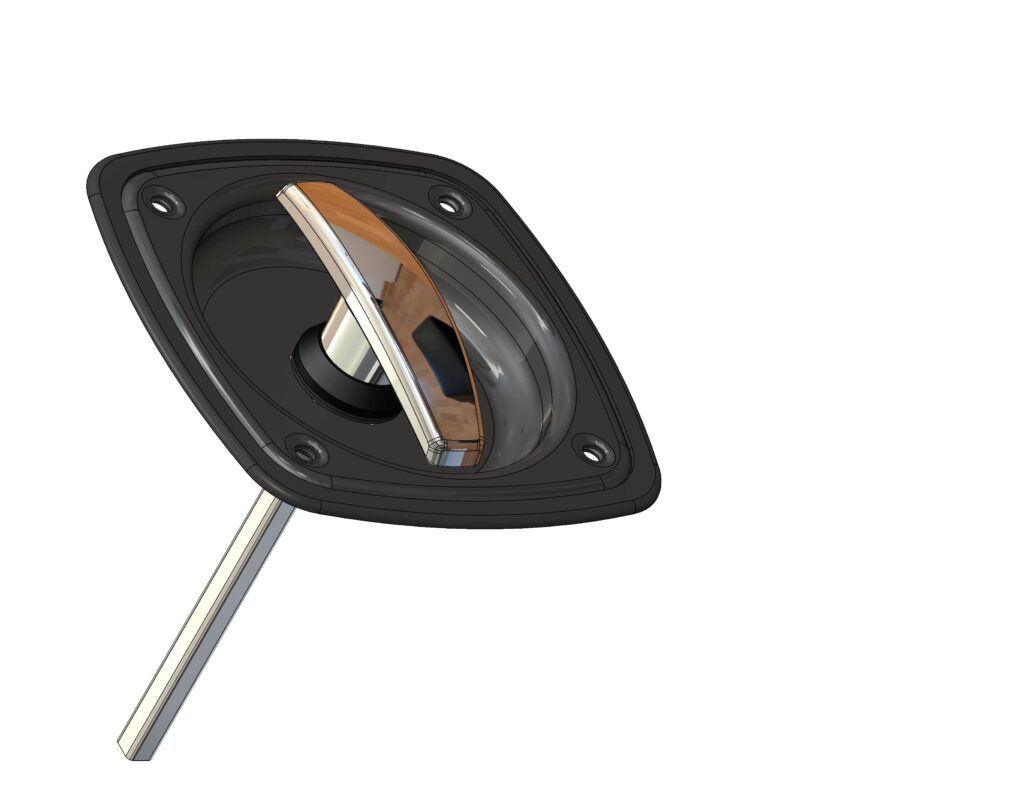

9/00185 Recess ‘T’ set, non-locking

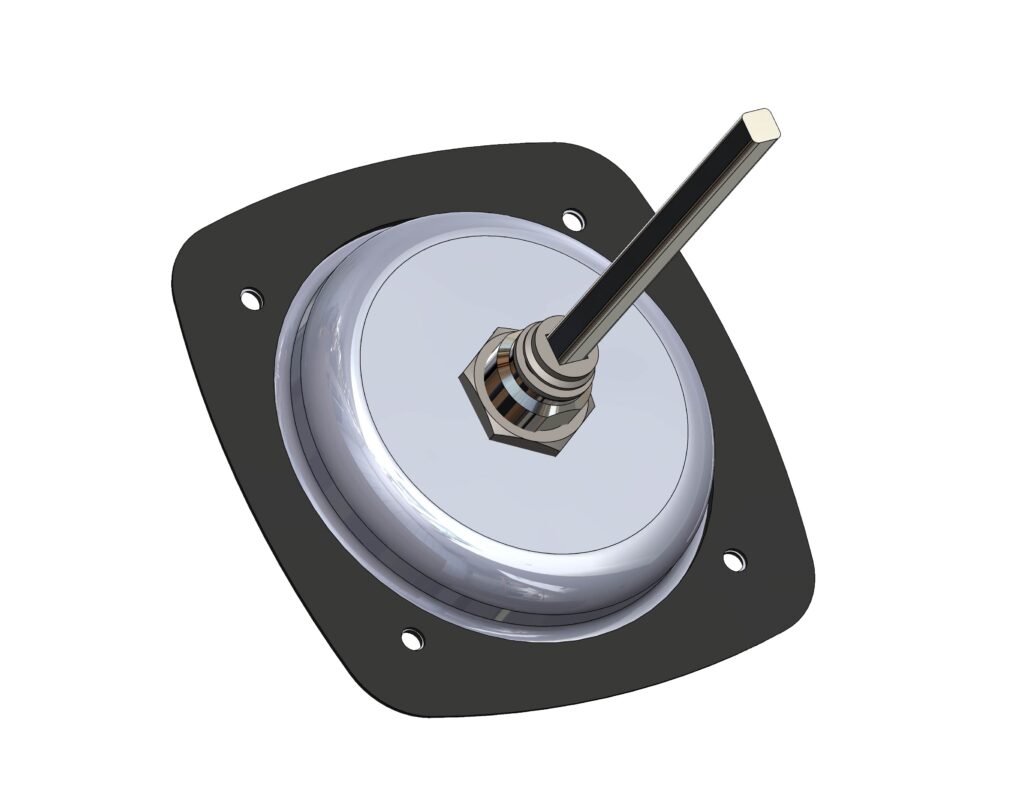

9/00185SS As above, stainless pan

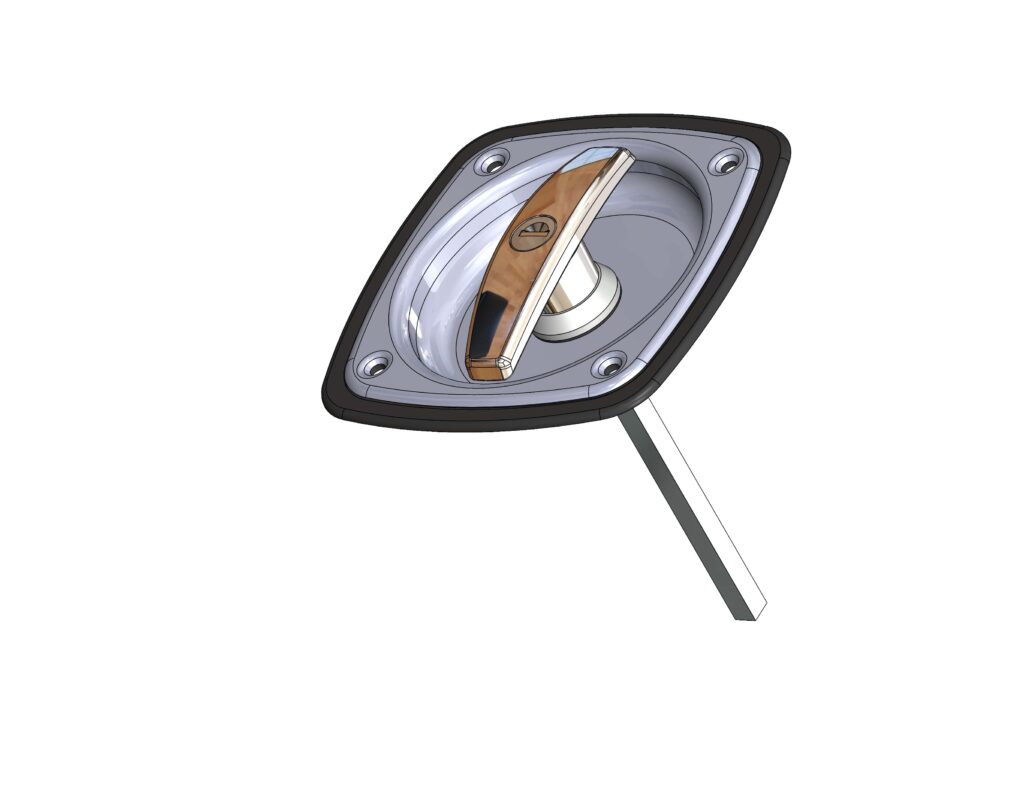

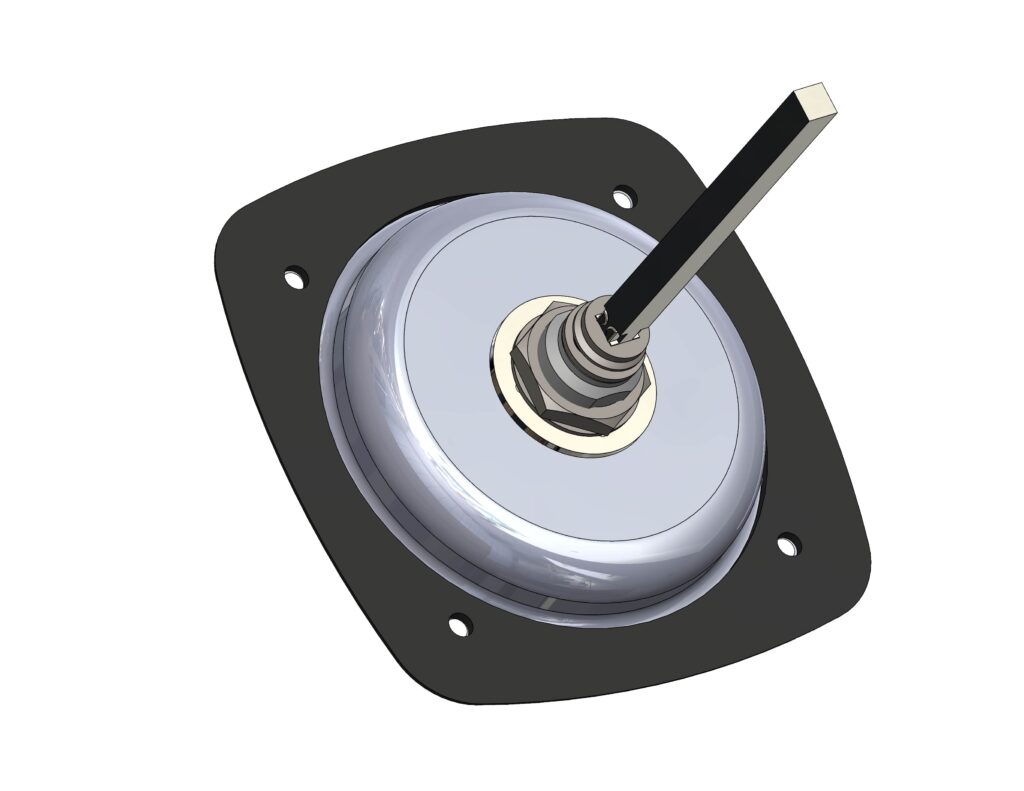

9/00186 Recess ‘T’ set, FS 880 - Black pan chrome handle

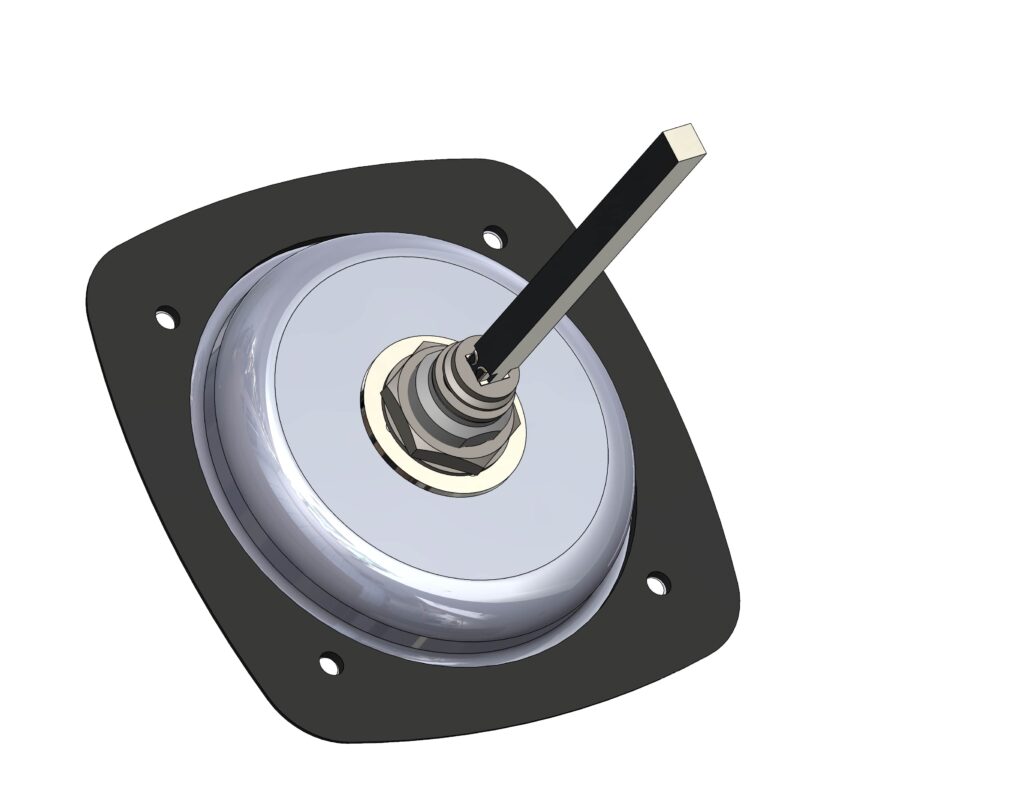

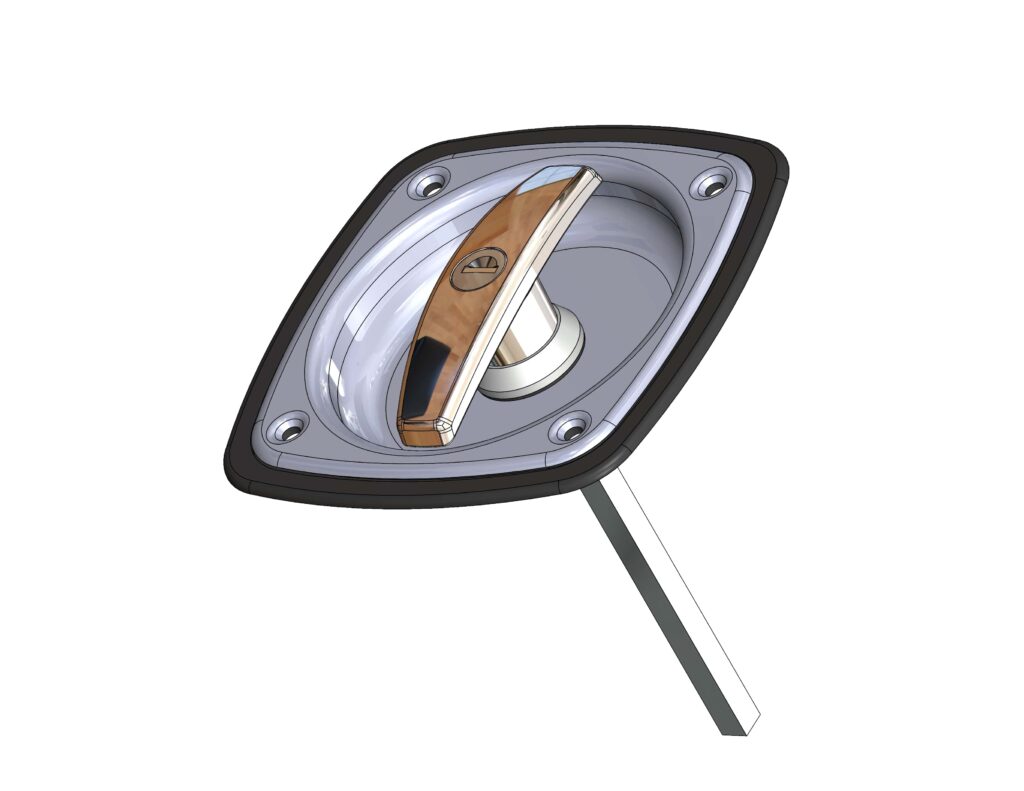

9/00186SS As above, stainless pan
9/00138 Recess pan only, black
5/00939 Moulded gasket only, black
9/00137SS Stainless steel recess pan only
B3-Diagram 01
B3-Diagram 02
B3-Diagram 03
Handles operate through 180° as standard (non-handed), locking in two positions. To special order, rotation can be limited to 90° LH (clockwise) or 90° RH (anticlockwise), when handle will only lock in the rest position. Illustration shows handle with ‘flats’ vertical on escutcheon.
B3-Diagram 04
Moulded Seal - The edge of the recess pan is embossed, to seat into corresponding groove in moulded seal.

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Pan total width 125 mm
B Pan depth 15 mm
C Face height 15 mm
D Depth of fixing 27 mm
E Total projection (shaft length) 145mm
F Fixing detail (dia) 32 mm
G Hole centres 90 mm
H Hole sizes (dia) 4.75 mm, c/s 9 mm
J Pan external diameter 105 mm
  • 180° as standard, locking in two positions. Rotation can be limited to 90°, LH/RH, or 360° free-movement.
  • Fix pan in circular aperture, mount handle through centre piercing against ‘flats’ on escutcheon and secure with large brass nut. Neoprene gasket and stainless spring spacing washer are provided.
  • ‘FS’ keys as standard with ‘shuttered’ keyway optionally ‘FT’ or ‘DLP’ key types.
  • Handles are bright chromium plated, with black powder-coated pan. Optionally, pan can be polished stainless steel (Grade 304).
  • - Shaft lengths
    - Threaded shafts (M10)
    - Special key numbers/sets
    - 90° LH/RH rotation
    - All-black handle/pan
  • Max recommended torque in pan,
    16Nm (12lb.ft) - steel,
    22Nm (16lb.ft) - stainless.
