Raised-Profile Hinges – in Stainless Steel

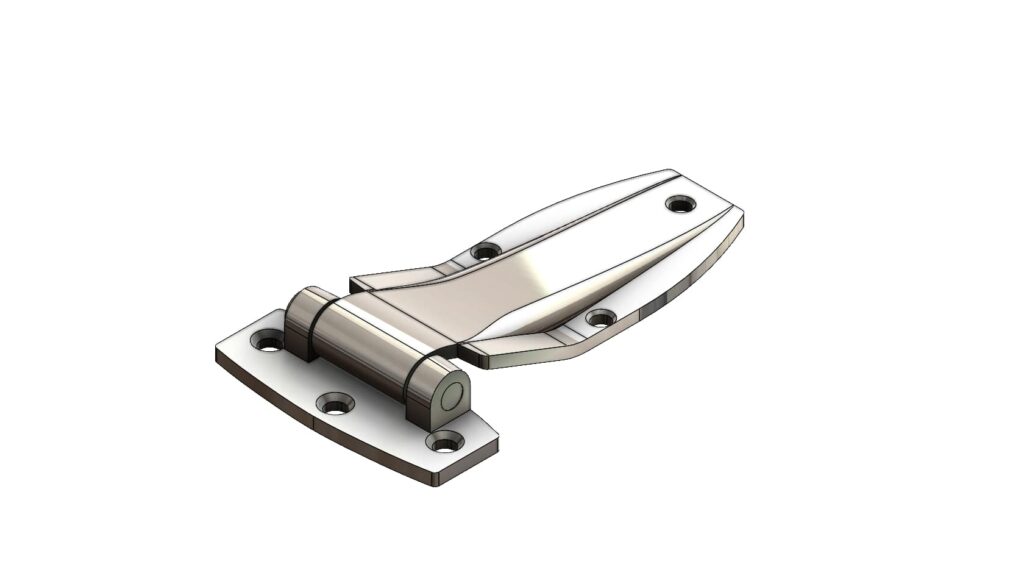

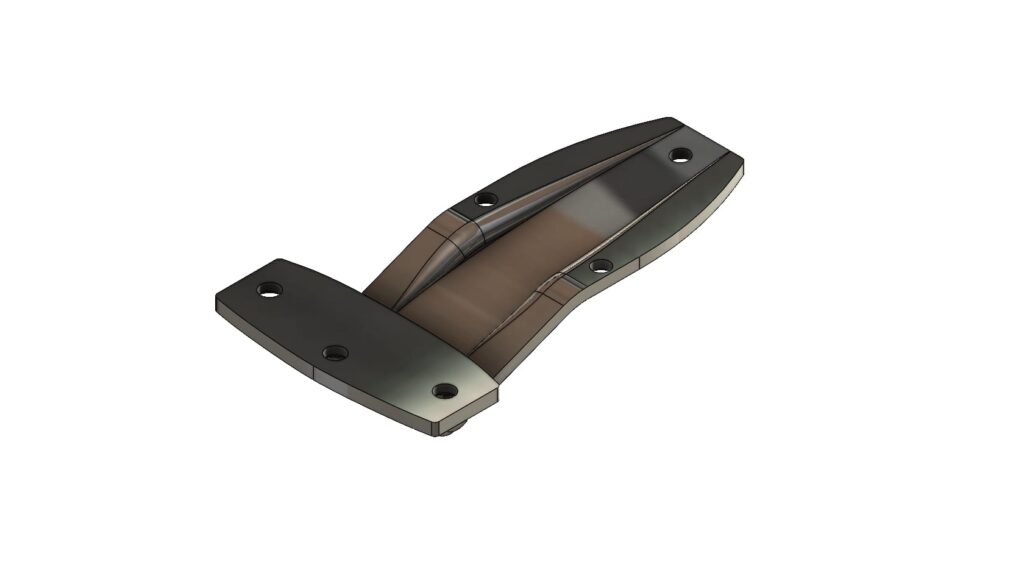

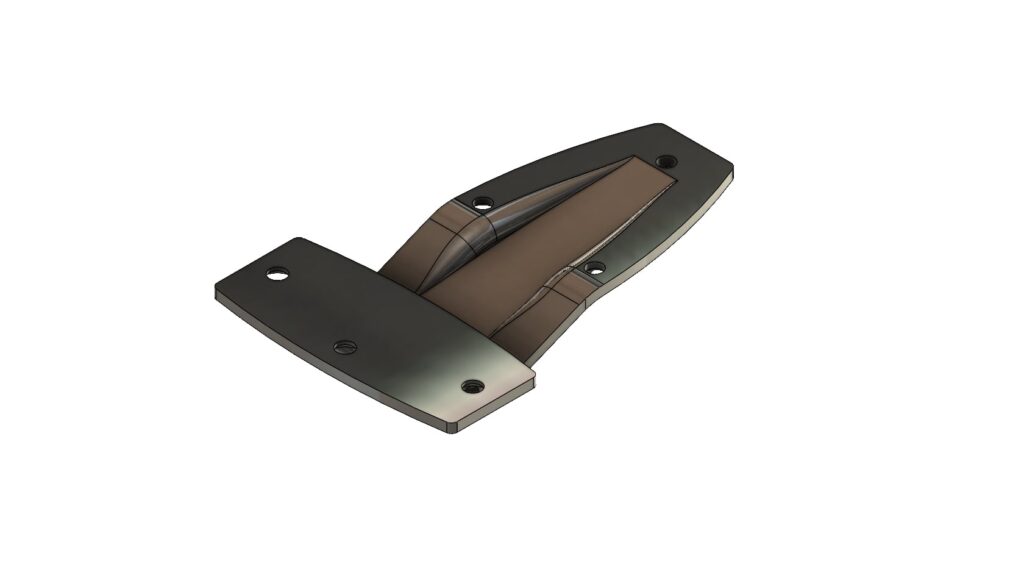

In this design the hinge pin is raised above the surface to allow clear opening of doors. The hinge leaf is shaped accordingly, giving additional strength and good appearance. ‘Handed’ only by direction of fitted pin, and available in two sizes as shown.
9/01780
9/01780
9/01780
9/01780
9/01781
9/01781
9/01781
9/01781
9/01782
9/01782
9/01782
9/01782

Ordering Code

9/01780 Stainless profile hinge, 120 mm, RH
9/01781 Stainless profile hinge, 120 mm, LH
9/01782 Stainless profile hinge, 80 mm, RH
F9-Diagram 01
F9-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

80 mm 120 mm
A Width 64 mm 82 mm
B location 20 mm 25 mm
C Length 80 mm 120 mm
D Height 15 mm 20 mm
E Max. Width 40 mm 50 mm
F Base centres 28 mm 32 mm
G Location 52 mm 64 mm
H Hole sizes(dia) 4 mm 6 mm
J Location 9 mm 12 mm
K Thickness 2.5 mm 4.0 mm
L Pin diameter 6 mm 8 mm
  • Hinges open fully forward to 180°.
  • Plant-on, and secured through countersunk holes in leaf butt. Hinge pin is removable.
  • Stainless steel in Grade 304 with stainless pin and bearing washers.
