‘Panic Button’ Emergency – Stop-Switch & Recess Pan

A neat self-contained and cost-effective unit which allows an engine or power-supply to be shut-down immediately. It comprises a red ‘panic button’ and contact block, which is easily assembled into a stainless steel recessed pan. Applications include power generators, compressors and public service vehicles where safety considerations apply.
9/01433
9/01433
9/01433
9/01433
9/01463
9/01463
9/01463
9/01463

Ordering Code

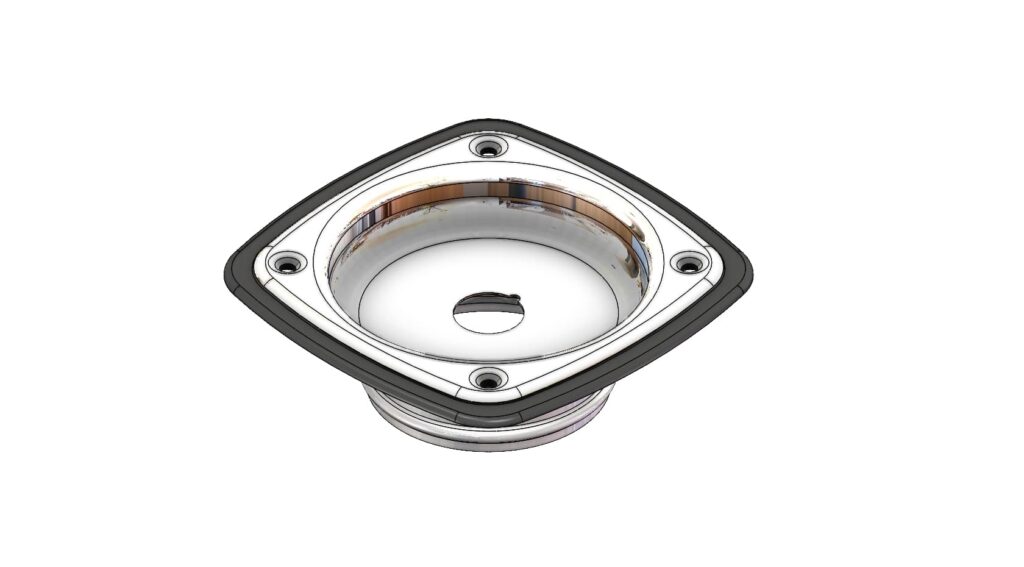

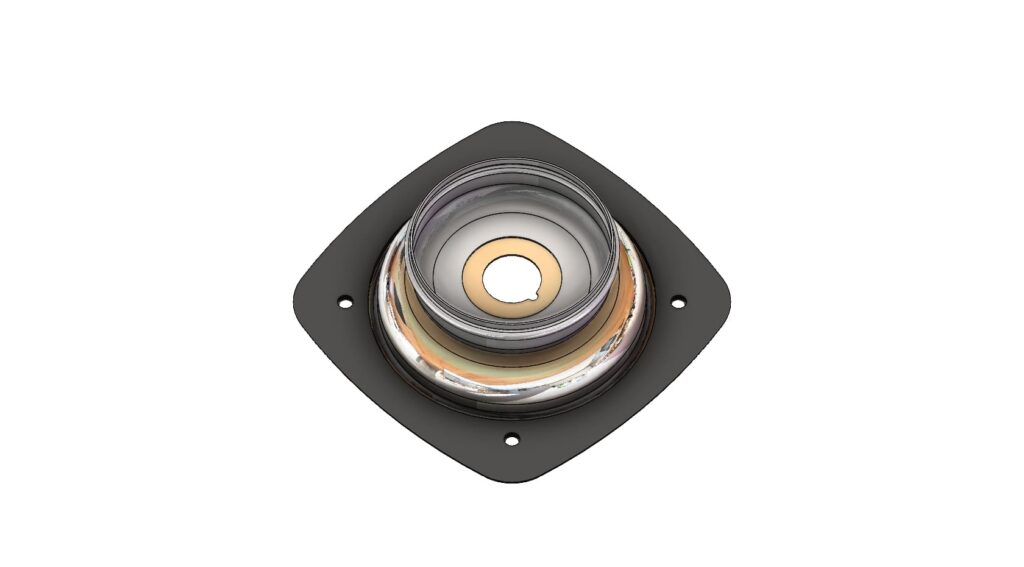

9/01433 Emergency-stop pan & gasket

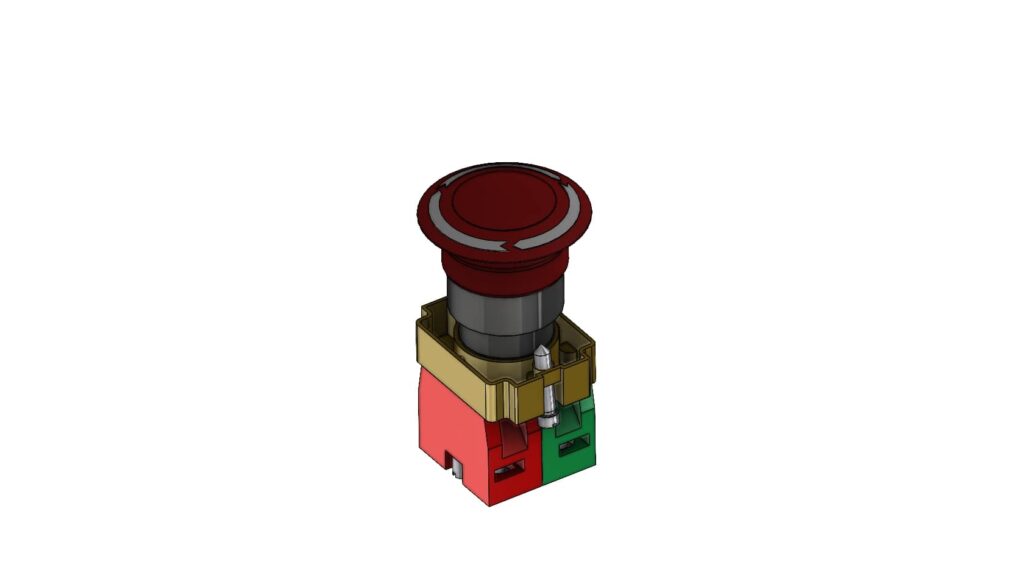

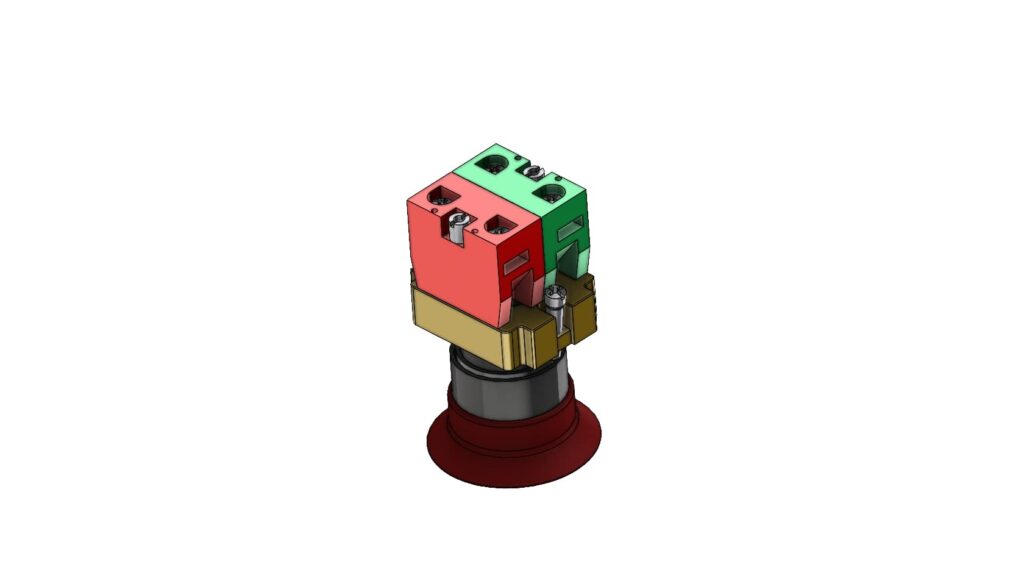

9/01463 Emergency-stop switch & contact block
H6-Diagram 01
Illustration shows switch and pan in assembled condition (without gasket for clarity).
H6-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Pan total width 125 mm
B Hole centres 90 mm
C Projection, button 13 mm
D Total depth of pan 43 mm
E Projection, contactor 16 mm
F Diameter, ‘cup’ 80 mm
H Hole sizes (dia) 4.75 mm, c/s 9 mm
  • Highly visible button within bright-polished pan, with welded rear ‘cup’ for attachment of water-resistant cover, and moulded gasket..
  • Punch button to close switch and stop power-supply. Turn button to release.
  • Insert button from front, through pan and into contact block, and turn 90° to engage. Then tighten two screws provided to secure block against rear of pan.
  • Bright-polished stainless steel pan with moulded gasket. Zinc-plated switch with red moulded button. Pan also available in black.
  • Switch is tested for make-&-break to 6 amps, at 415 V. AC. It is suitable for 12-240 volts AC/DC, with thermal current rating of 10 amps. Conforms to IS.13947/5I, from -25°C to +70°C.
