Padlockable Handles In Stainless Steel

Corrosion can be a major concern in some environments, such as marine industries or food processing plants, where these all-stainless handles will be very useful. The padlockable loop enables doors to be secured, with visible evidence that locking has taken place.

Ordering Code

9/00400

Padlockable handle, stainless steel,open-fixing

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

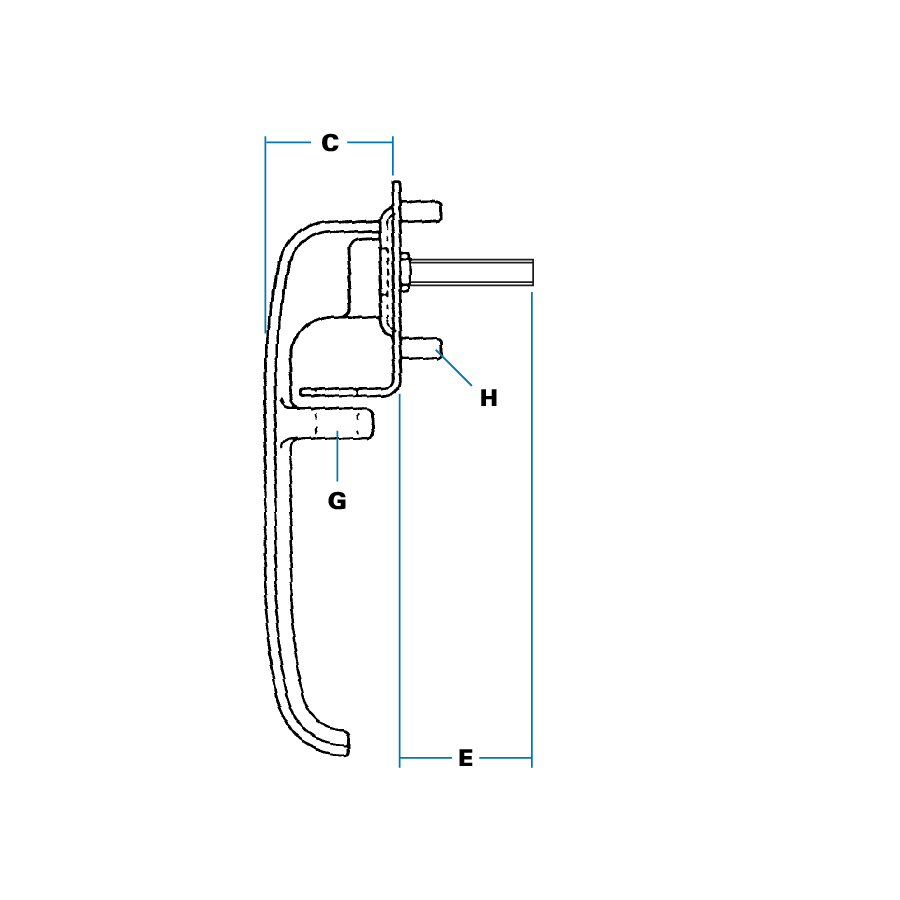

A	Handle length	152 mm
B	Mounting width	54 mm
C	Face height	42 mm
D	Hole centres	38 mm
E	Shaft length	82 mm
F	Hole centres	48 mm
G	Padlock loop (dia)	12 mm
H	Holes sizes (dia). Studs 13mm, 6mm x 20 UNC	5.5 mm

Fully plant-on with open fixing, bright polished 300 series stainless steel throughout. ‘O’-ring & gasket with concealed-fix models.
Free-rotation through 360°.
Bright polished on exterior surfaces.
Handles constructed in 300 series stainless steel throughout.
- Threaded shaft
