‘Oval’ Paddles Slam-Bolt Models

Our ‘Oval’ paddles have superb appearance and are quick and easy to install. Made in tough, self-colour moulded materials for corrosion resistance, they are flush-fitting and have no visible mounting points.

These are slam-action models using a machine-cut solid bolt in mild steel. They are used in applications where the door aperture must be completely unobstructed, and the bolt engages against the doorframe, or with a suitable striker.

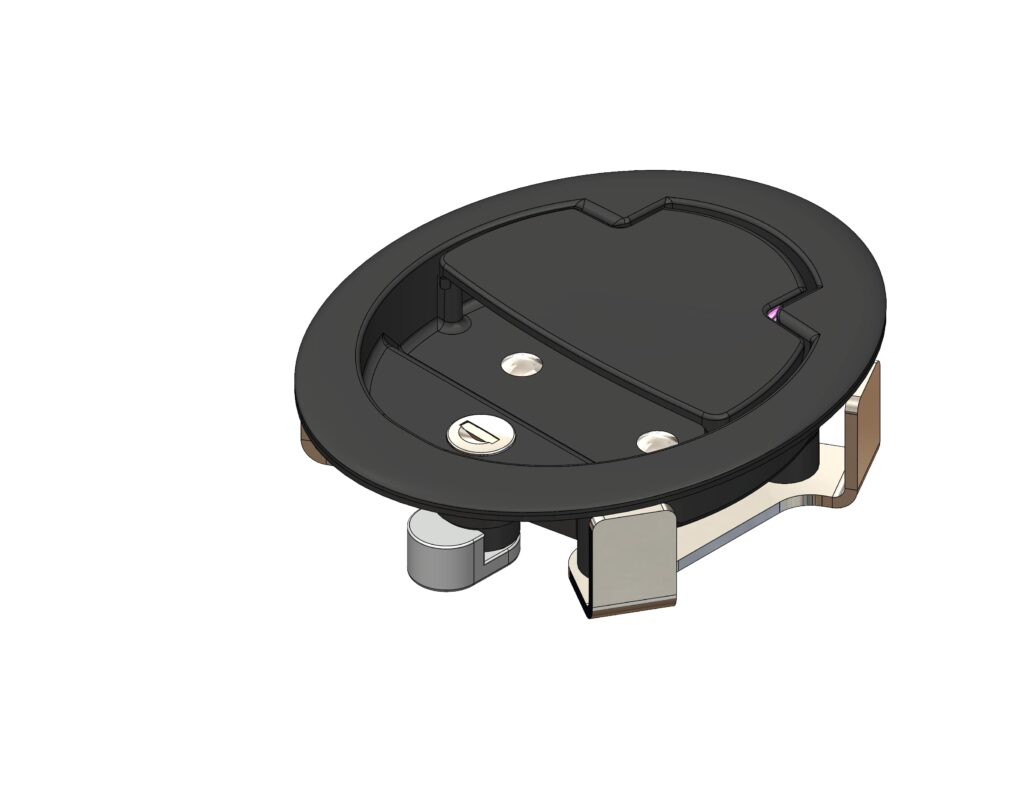

9/03419

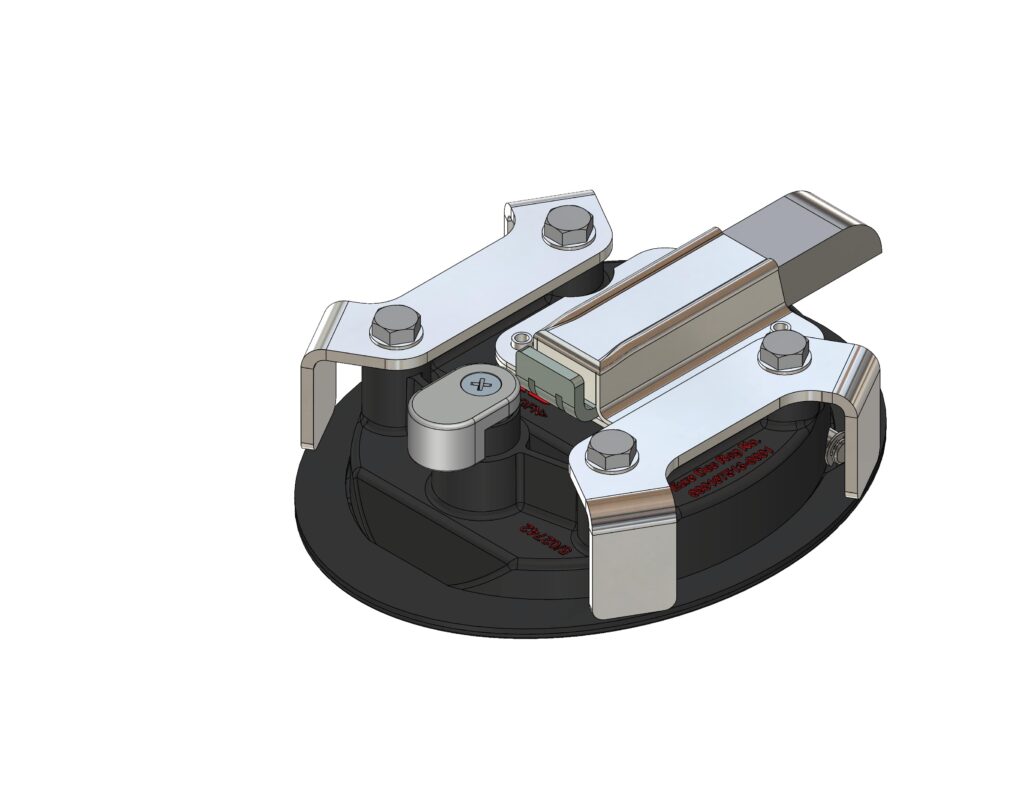

9/03419
9/03419
9/03419

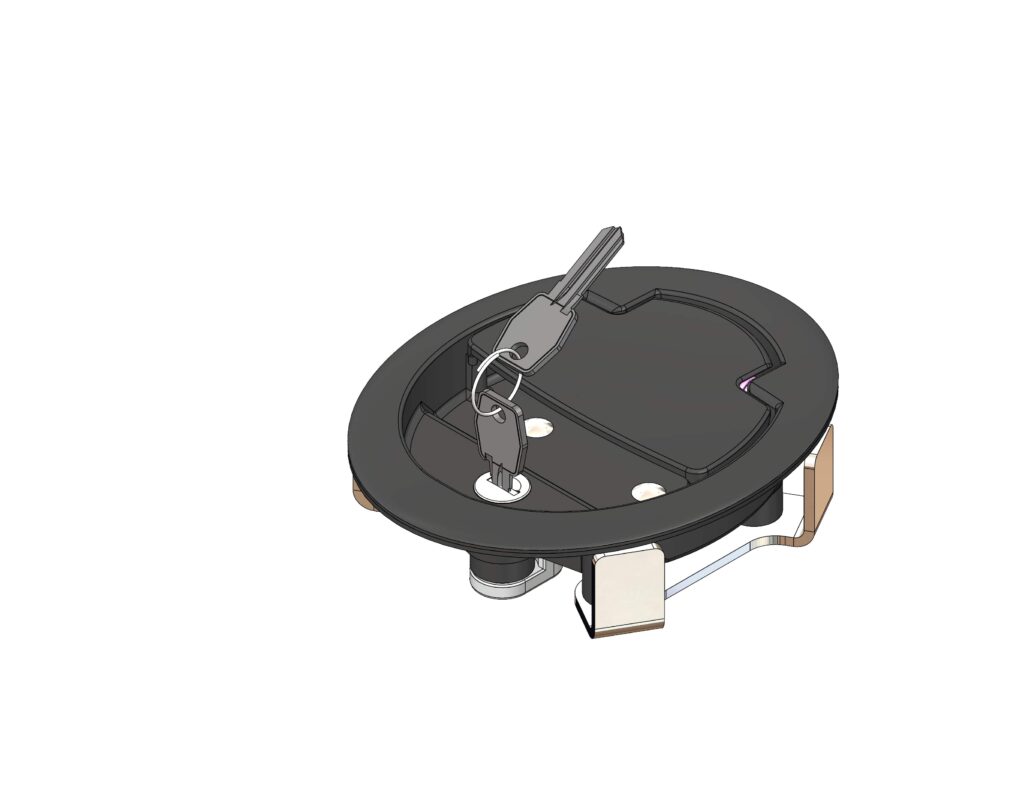

9/03419/01

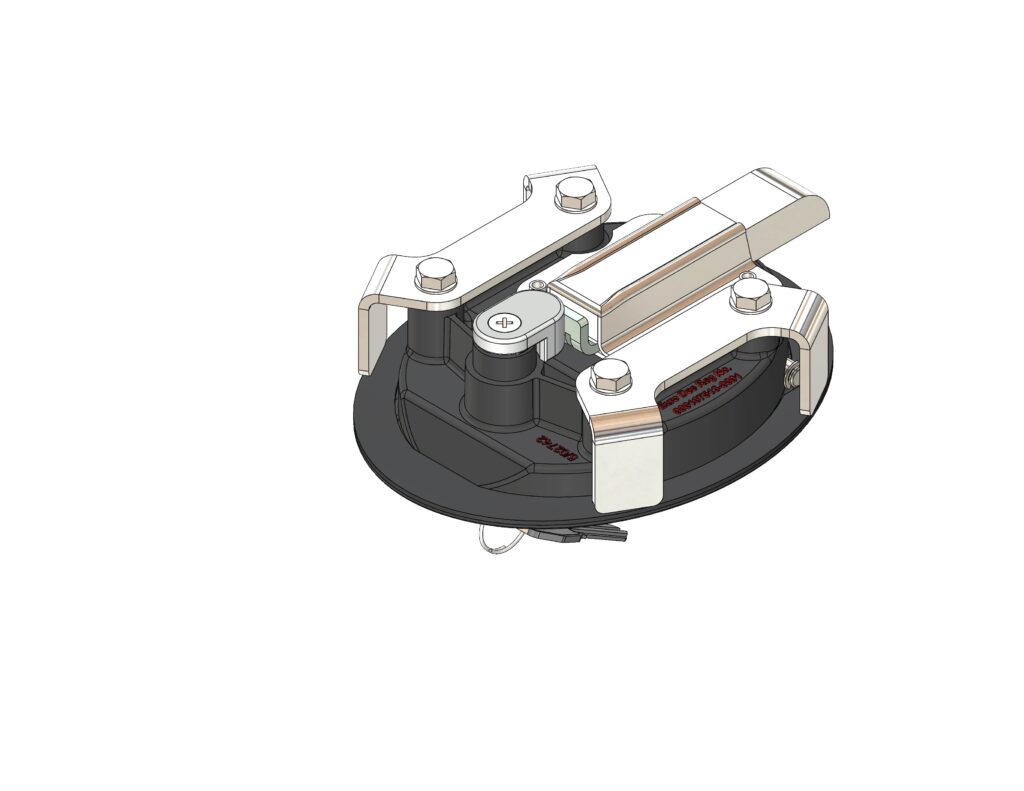

9/03419/01
9/03419/01
9/03419/01

Ordering Code

9/03419 Oval paddle, slam-bolt, locking
9/03419/01 As above, standard keys FT111

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A
Case length
 150 mm
B Case width 120 mm
C Fixing centres 56 mm
D Fixing centres 70 mm
E Bolt width 19 mm
F Bolt penetration 21 mm
G Bolt projection (max) 26 mm
H Hole sizes M6 x 10 mm
J Maximum depth 40 mm
K Recess length 120 mm
L Recess width 100 mm
  • Slam-action against door edge, released by lifting flap.
  • Locking with key blocks movement of flap, but bolt is free to operate and will slam shut. It can still be opened from inside (when interior-release knob is fitted).
  • Unit fits through aperture, is clamped against panel by two shaped brackets, and secured by bolts into four threaded bosses. Gasket provided.
  • Double-sided ‘FT’ keys with shuttered keyway, or optionally ‘FS’ keys.
  • Black, self-coloured, with lightly-textured finish.
  • Case & flap in glass-filled nylon, bolt case & slide in stainless steel, mild steel slam bolt is zinc plated for corrosion resistance.
  • - Alternative slam bolts.
    - Inside-release knob
    - Special key numbers and sets.
