Moulded Weatherproof Mini Claw Latch

A claw version of the mini weatherproof paddle. light weight and acoustically quiet. Flush fitting and no visible mounting points. Comes supplied with a ‘U’ fixing bracket for a quick installation. IP65 rated, short & long reach hook available. 30% glass filled nylon. UV stable.
9/05401
9/05401
9/05401
9/05401

Ordering Code

9/05401 Moulded Weatherproof Mini Claw Latch
C-05401-Diagram 01

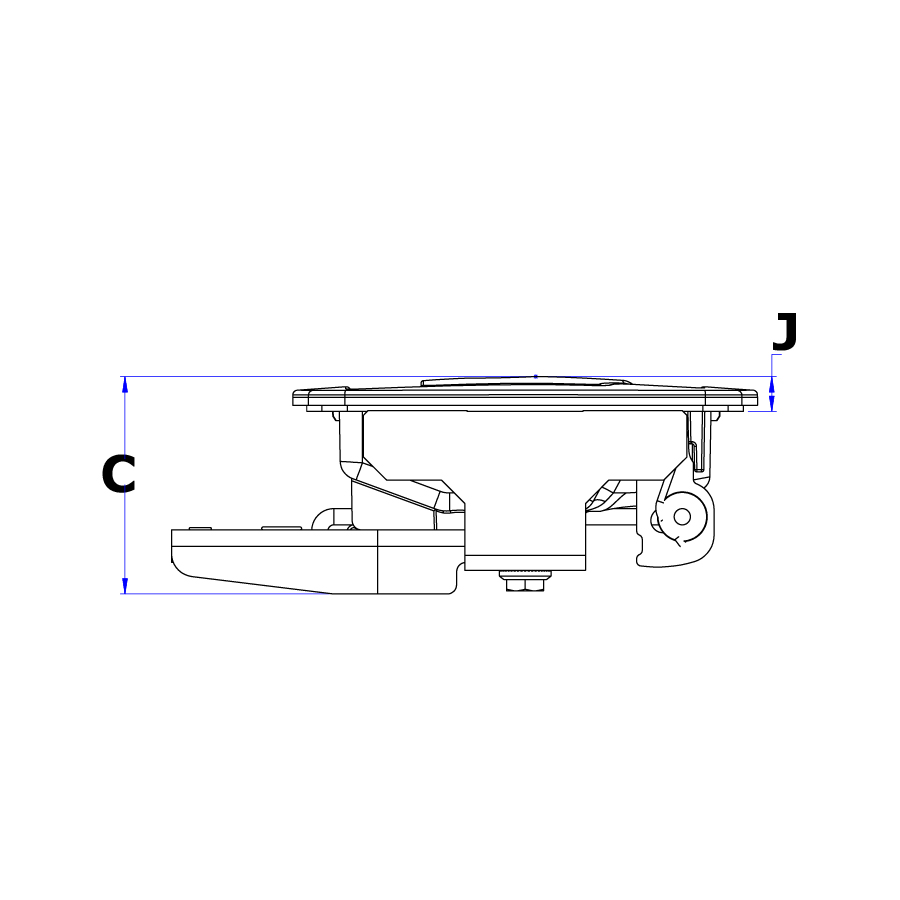

C-05401-Diagram 02
C-05401-Diagram 03

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 126mm
B Width 80mm
C Height 47mm
D Handle Centre to Claw Centre 60mm
E Handle Width 48mm
F Cutout Length 87mm
G Striker Hook Pin Max Diameter 13mm
I Cutout Width 67mm
J Face Height 6.5mm
  • Weatherproof, easy to fit. Fitted neoprene seal.
  • 30° Handle Raise.
  • U-Clamp from Behind, Round-Cornered Square Cut-out = 87 x 67mm.
  • Black (Self-Coloured) with Fine Textured Finish.
  • PA6 Nylon with 30% Glass-Fill Strengthening, UV Stabilised + Zinc Plated CR4 Steel Brackets.
