Moulded Steel-Cored Handles

Moulded in resilient elastomer around steel cores, these handles have been designed for those applications where great strength is required, but still offering good appearance and 'user-friendly' characteristics.
9/00404
9/00404
9/00404
9/00404

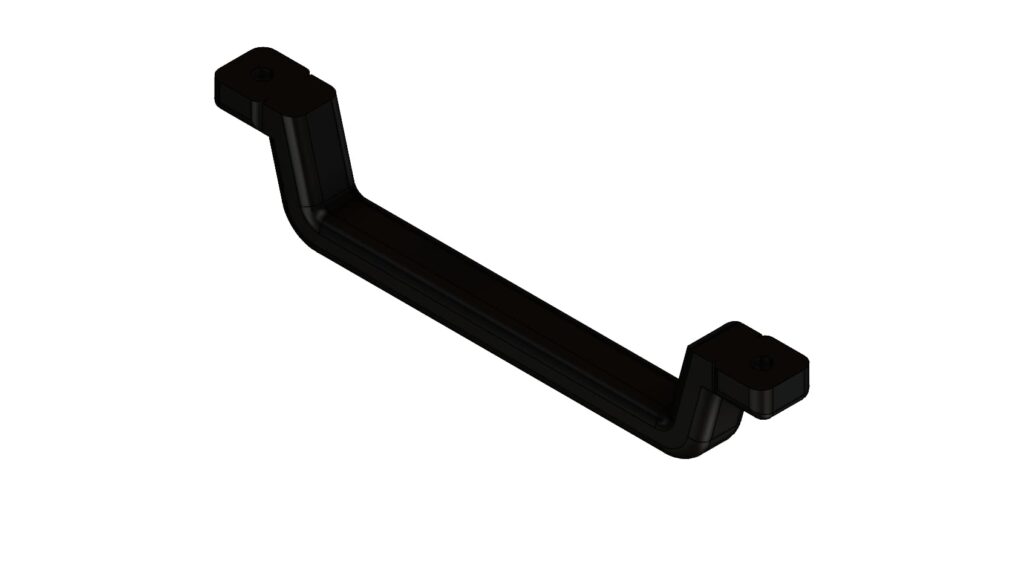

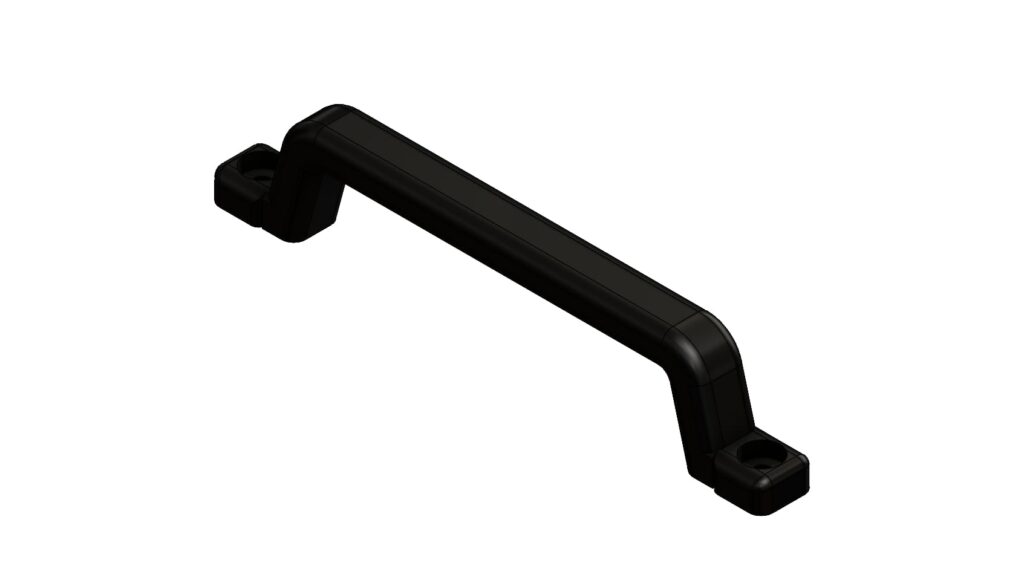

9/00405
9/00405
9/00405
9/00405

Ordering Code

9/00404 Moulded, steel-cored grab handle 190mm
9/00405 Moulded, steel-cored grab handle 280mm
After fixing it is recommended that cover plugs are permanently retained with a suitable adhesive. Textured plugs are available under following references 9/00404-MP00444 (15mm dia). 9/00405-MP00445 (18mm dia).

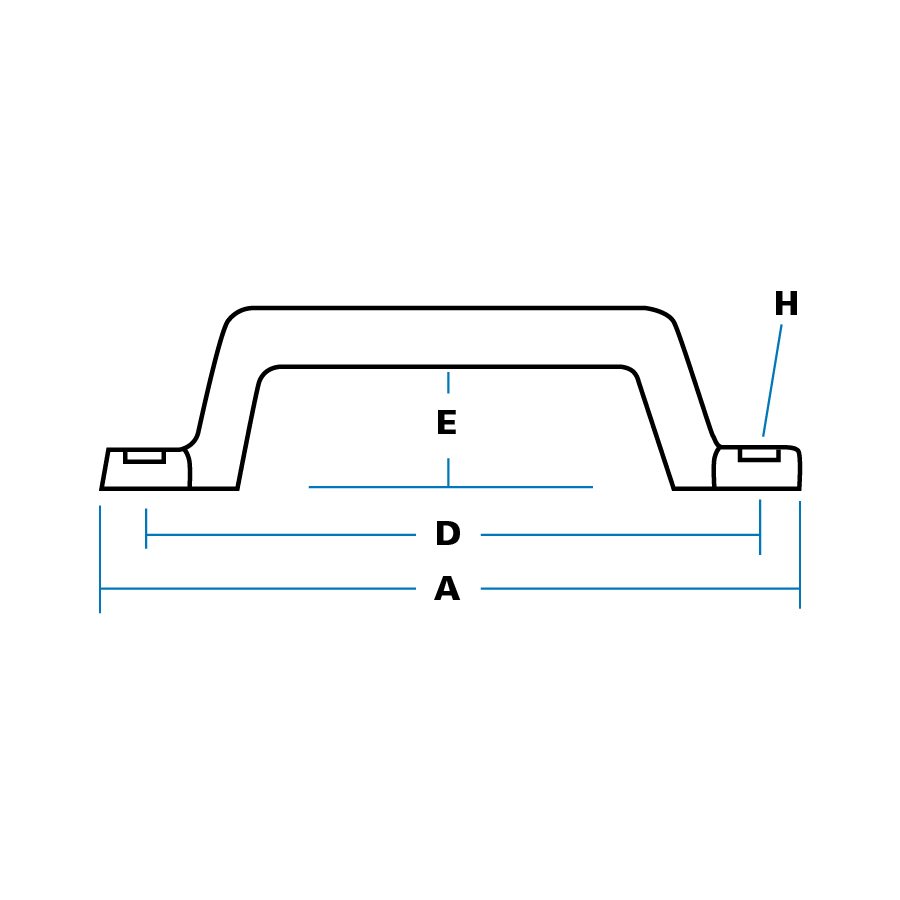

G6-Diagram 01

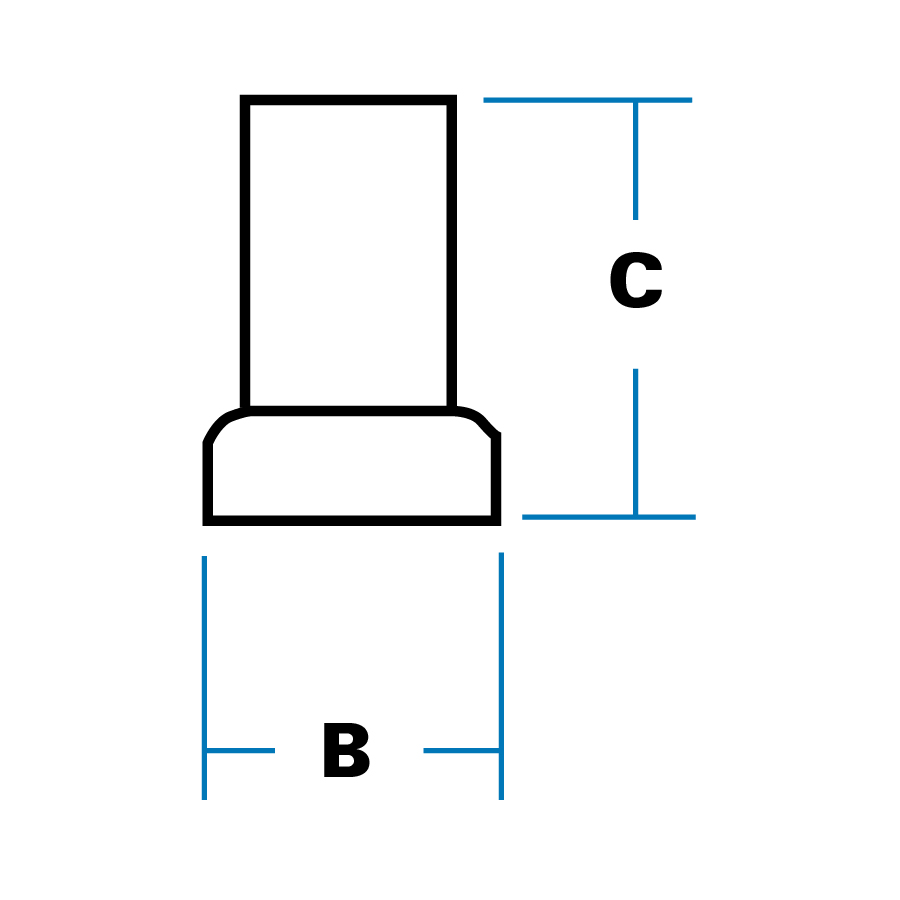

G6-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

9/00404 9/00405
A Body Length 190 mm 280 mm
B Body Width 28 mm 28 mm
C Body Height 50 mm 55 mm
D Hole centres 157 mm 253 mm
E Under grip 32 mm 37 mm
H Hole sizes (diameter) within 15 mm dia recess 8 mm 8 mm
  • Semi-rigid surface, no hard edges, with plugs to coceal fixings.
  • Self-colour black with gloss, textured finish.
  • Fixing by bolting through holes in steel core.
  • Moulded in thermoplastic elastomer around steel core.
  • LOAD TESTING:
    Tests carried out by an independent proof house gave following results (at 15°C) before destruction.
    Parallel to fixing:
    9/00404, max load 19.47KN (1.99 tonnes)
    9/00405, max load 12.83KN (1.30 tonnes)
  • Vertical to fixing:
    9/00404, max load 13.67KN (1.39 tonnes)
    9/00405, max load 12.03KN (1.23 tonnes)
    With Ultimate strength over 1 tonne we recommend a safe working load of 500Kg (1100lbs) max.
