Moulded Shaped Weatherproof Paddle

These paddles are weatherproof, light weight and acoustically quiet. Flush fitting and no visible mounting points. Comes supplied with a ‘U’ fixing bracket for a quick installation. IP65 rated, short & long reach hook available. 30% glass filled nylon. UV stable.

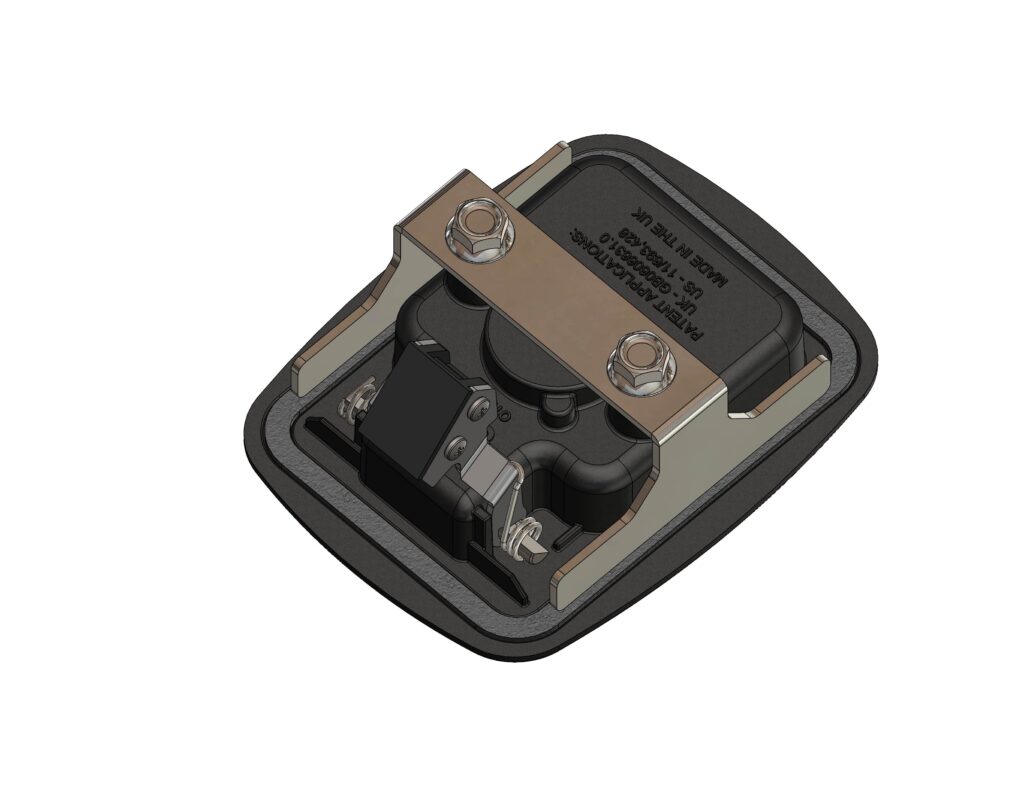

9/05450

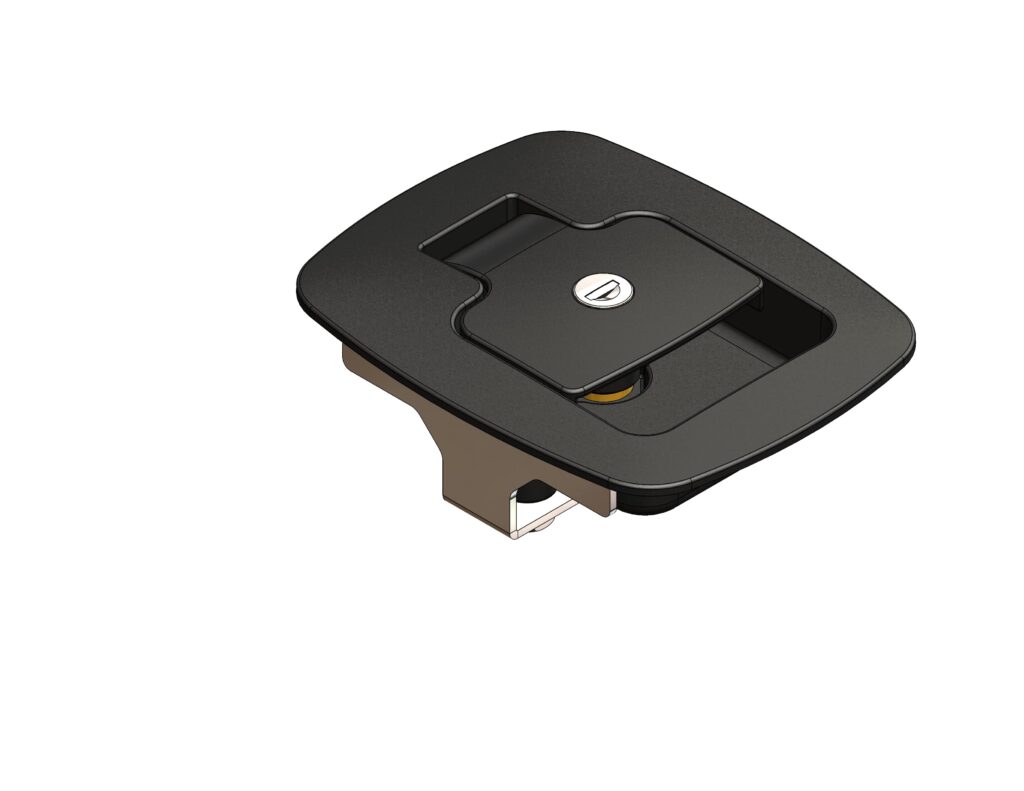

9/05450
9/05450
9/05450

Ordering Code

9/05450 Moulded Shaped Weatherproof Paddle

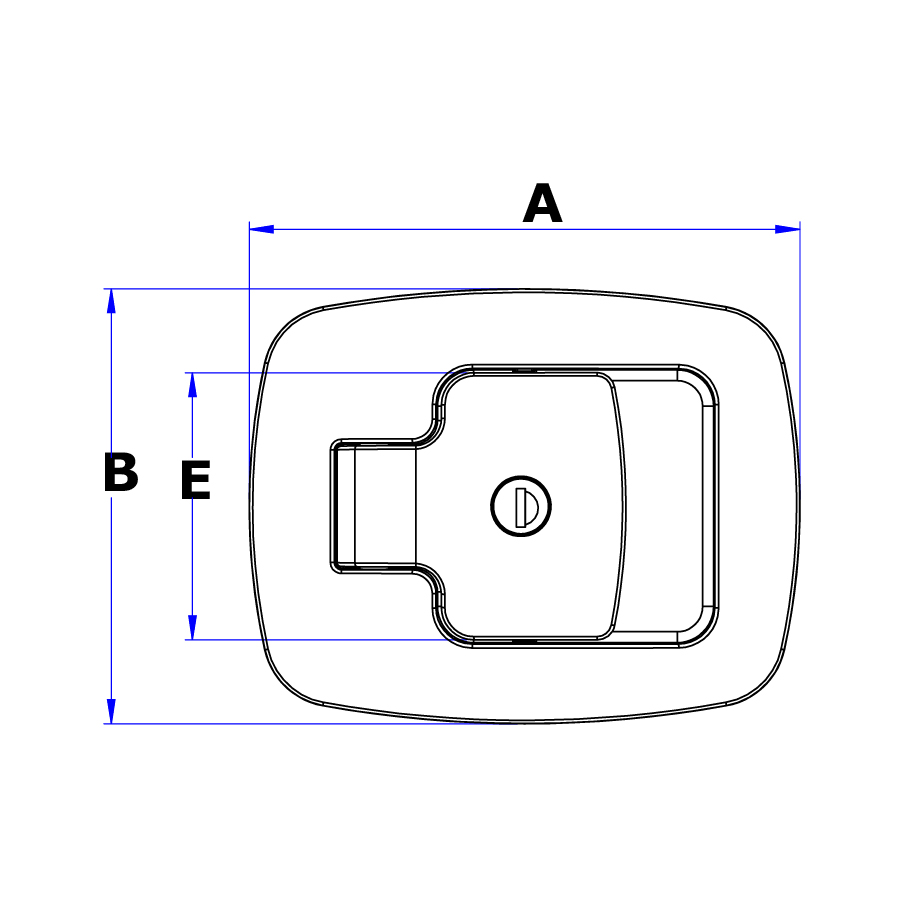

C-05450-Diagram 01

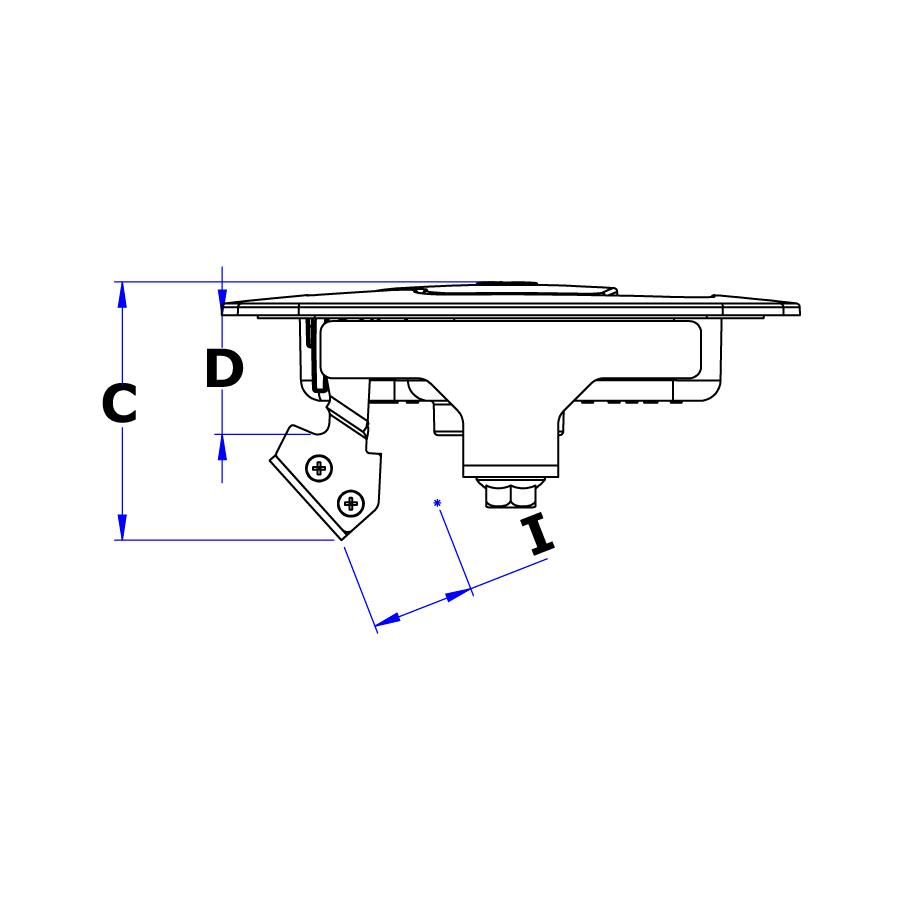

C-05450-Diagram 02

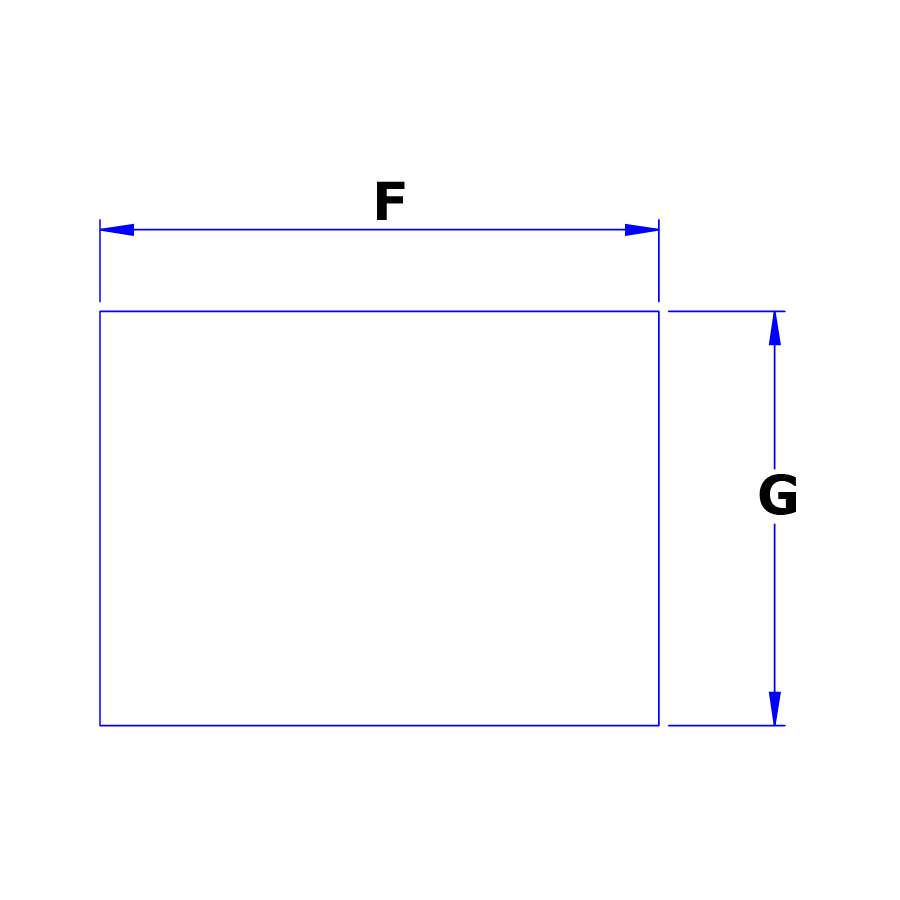

C-05450-Diagram 03

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 152mm
B Width 120mm
C Height 68mm
D Hook Pen - Std 32mm
E Handle Width 74mm
F Recess Length 111mm
G Recess Width 81mm
I Max Travel 27mm
  • Weatherproof, easy to fit. Fitted neoprene seal.
  • 30° Handle Raise.
  • U-Clamp from Behind, Square Cut-out = 112 x 83mm.
  • Black (Self-Coloured) with Fine Textured Finish.
  • PA6 Nylon with 30% Glass-Fill Strengthening, UV Stabilised + Zinc Plated CR4 Steel Brackets.
