Moulded Over-Centre Catch

This is a smart panel-fastener ('draw latch'), made completely in tough, self-colour moulded material (glass-filled nylon) to eliminate any possibility of corrosion. A simple finger-loop provides positive lock-down engagement, which can be replaced by a padlock if desired.

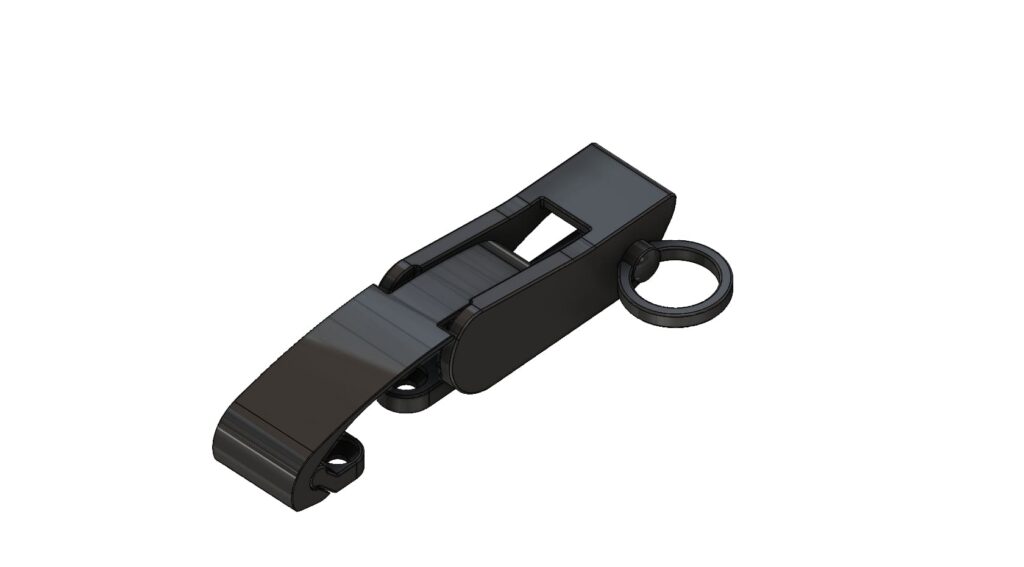

9/00984

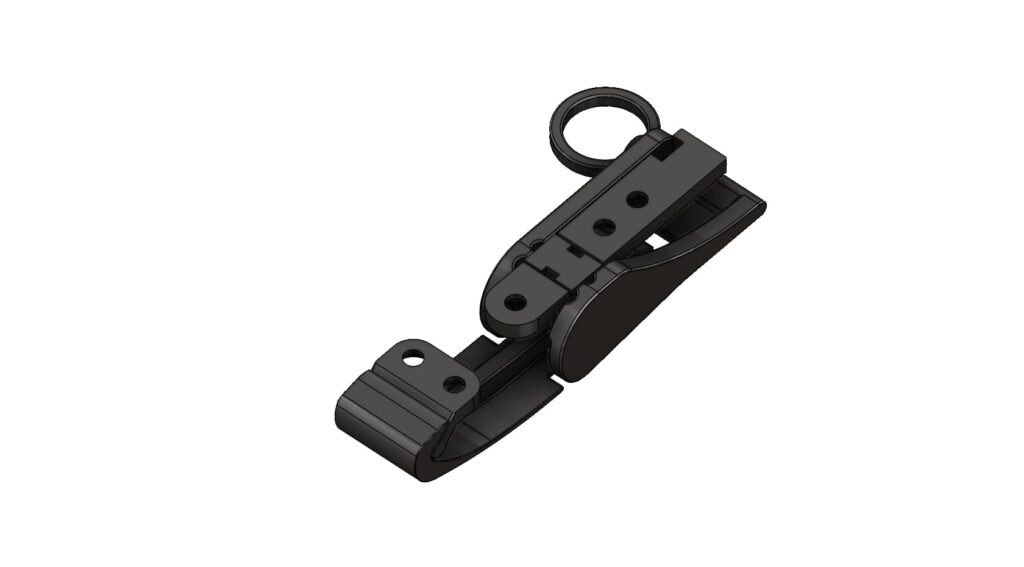

9/00984
9/00984
9/00984

Ordering Code

9/00984 Moulded over-centre catch & striker assembly

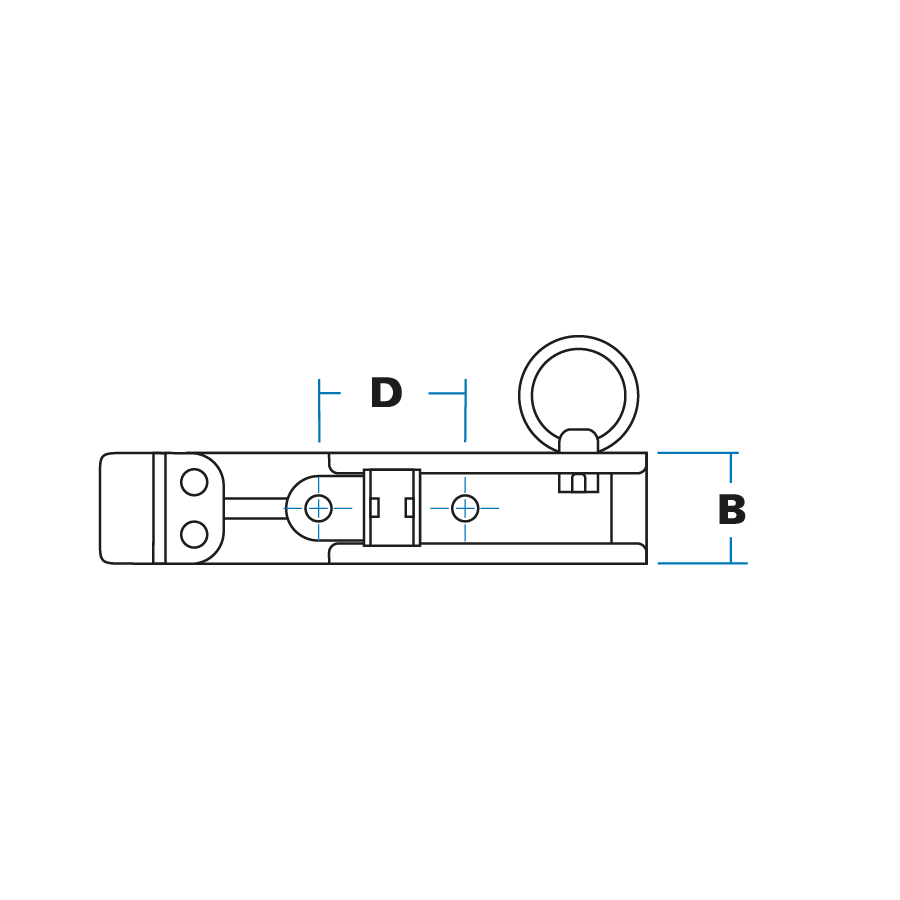

D28-Diagram 01

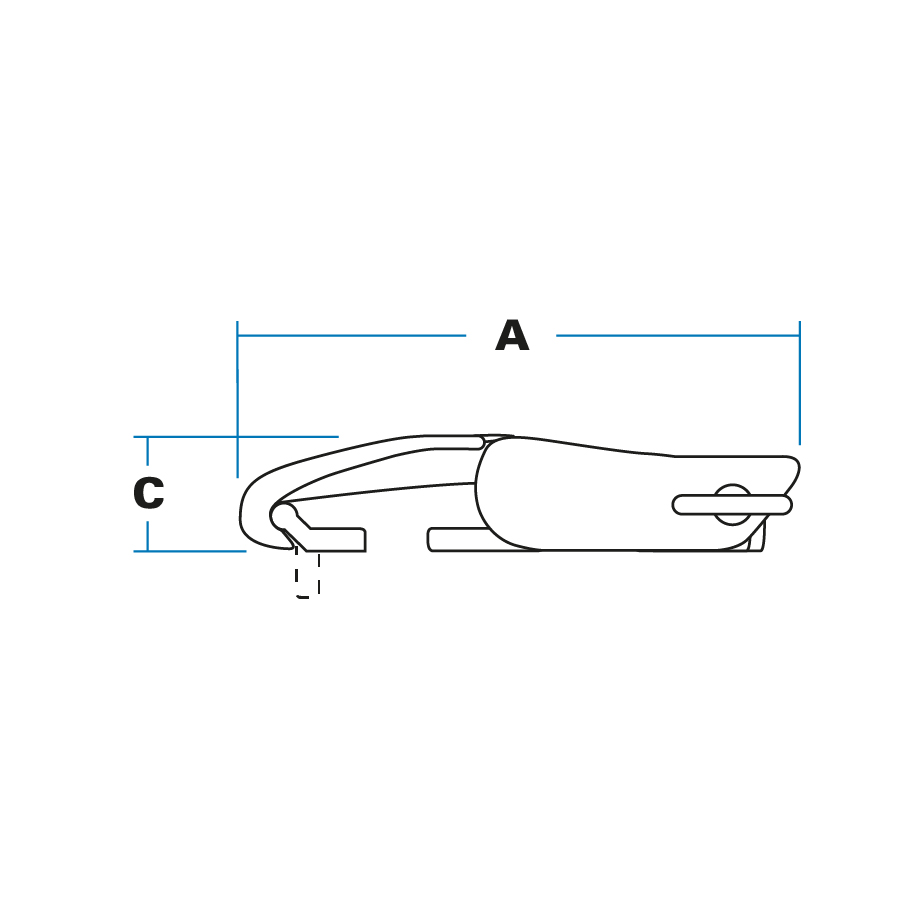

D28-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 125 mm
B Width 25 mm
C Height (max) 26 mm
D Hole cetres (base) 33.4 mm
E Hole sizes 5 mm c/s 8 mm
F Max ‘draw’ 20 mm
  • The reinforced 'hook' is brought over the striker plate, and the centre section is pressed down to achieve over-centre action.Maximum 'draw' is 20mm. The press-fit finger-loop secures centre to base-plate.
  • Fully plant-on, secured by bolts or rivets to panel surfaces.
  • Black self-colour with lightly textured finish.
