Moulded ‘Budget’ Latch

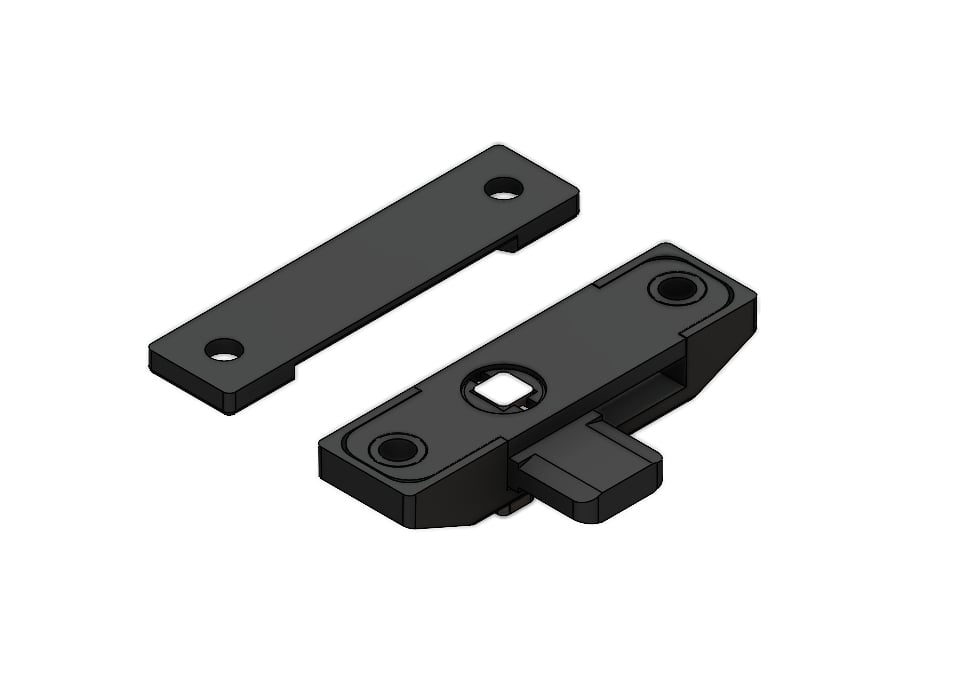

An ingenious design that replicates the function of our ‘Universal’ budget latch, but which takes full advantage of the properties of moulded materials. It is tough, lightweight, non-magnetic, self-lubricating, and totally corrosion-resistant. A special version is supplied with 8mm steel shaft, which can be fitted to either face (9/01957). This is normally used with moulded handle, 5/01664.
9/01956
9/01956
9/01956
9/01956
9/01957
9/01957
9/01957
9/01957

Ordering Code

9/01956 Moulded budget latch & striker
9/01957 As above, c/w shaft & pin

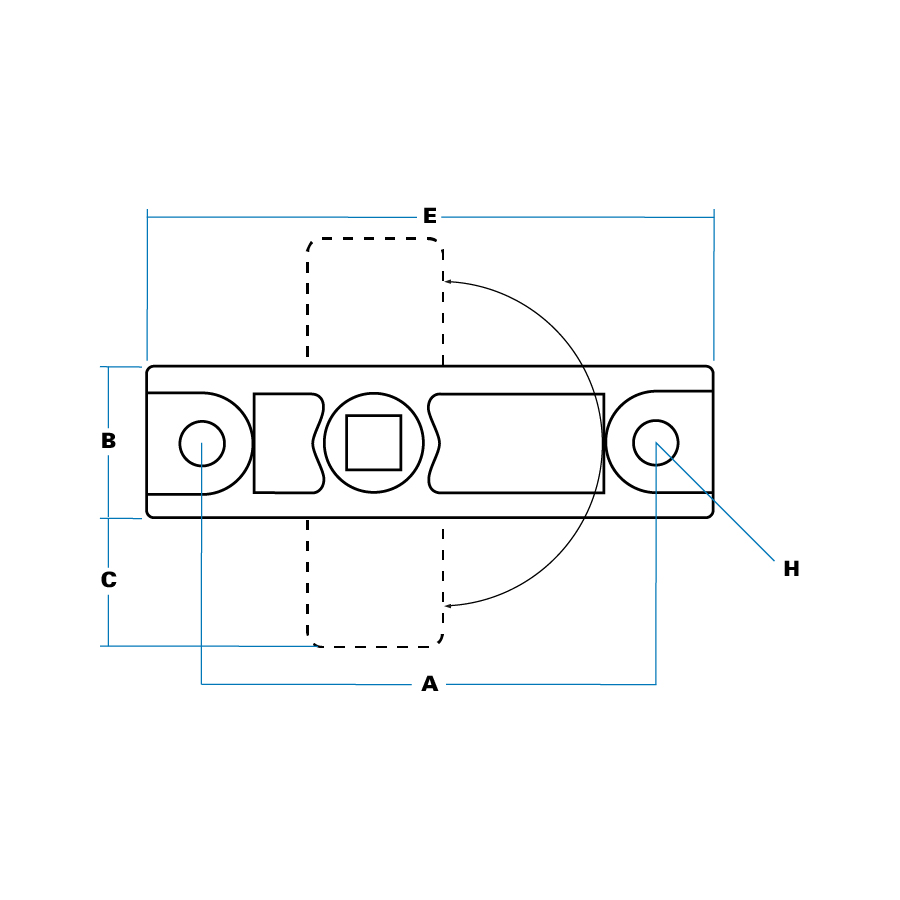

D1-Diagram 01

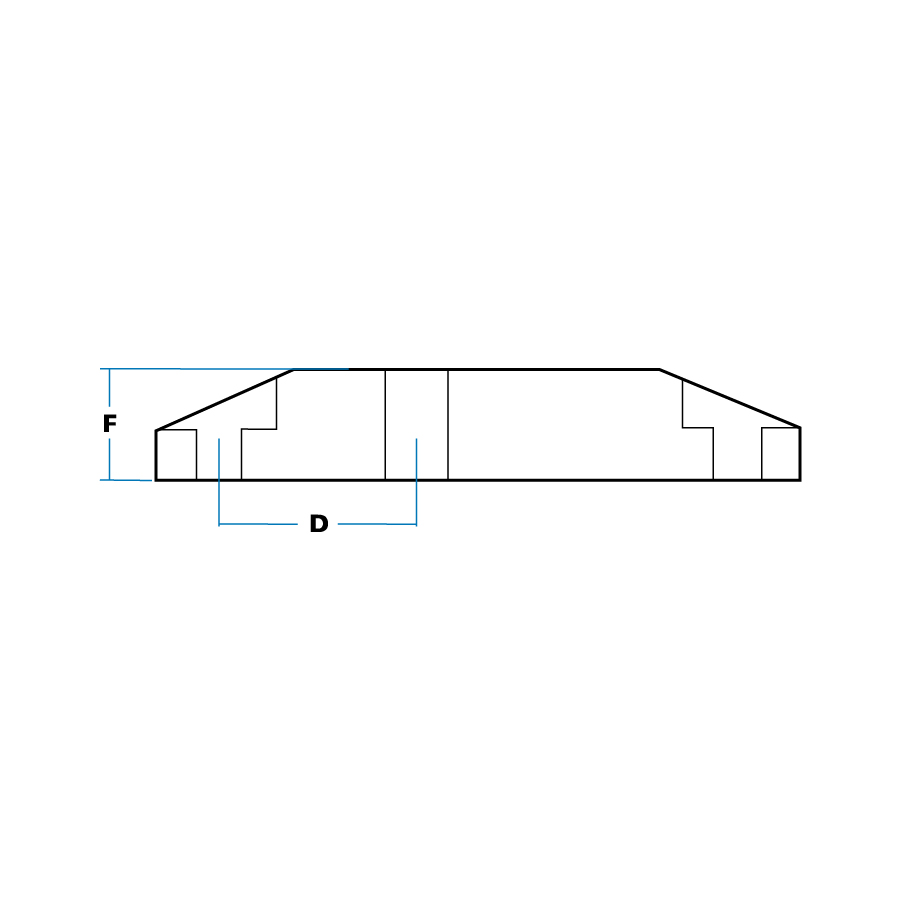

D1-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Hole Centres 66 mm
B Case Width 22 mm
C Bolt Projection 19 mm
D Location 33 mm
E Case Length 83 mm
F Thickness 14 mm
H Hole Size (diameter) Ø 7 mm
J Shaft (when supplied) 10 mm
  • Simple ‘deadbolt’ latch, operated by 8mm square or by slot in top & bottom faces, against ramped striker.
  • Non-handed design, with bolt able to travel 180° through case but held positively in open and closed positions by concealed spring.
  • Bolts or rivets through fixing holes in recessed areas. Use large-headed fasteners (to 12mm dia.) for security.
  • Self-colour black with attractive textured finish.
  • Moulded throughout in acetal copolymer for maximum strength/wear resistance.
  • Progressive load tests were carried out by an independent proof house, and as a comparison on steel model (3/09656).
    Moulded latches operated without distortion until loading of 0.63KN
    (70Kg). Steel latches became progressively distorted and failed at around 1.5KN (165Kg).
    Note: These latches are not recommended for applications involving impact loading.
