‘Miniature’ Support Stays ‘Star-Wheel’ Release

These miniaturised versions of our standard stays use a section width of 9 mm x 19 mm, making them less obtrusive and suitable for smaller installations. The ‘star-wheel’ design allows automatic release – useful where two stays are fitted.

Applications include electrical cabinets, instrument cases, inspection windows and ski-boxes. Many options are available.

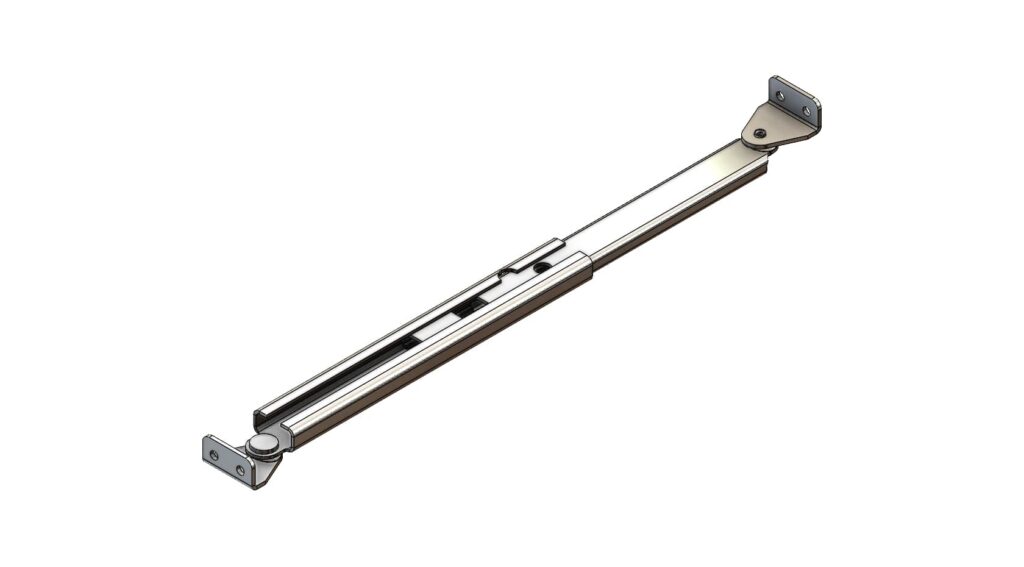

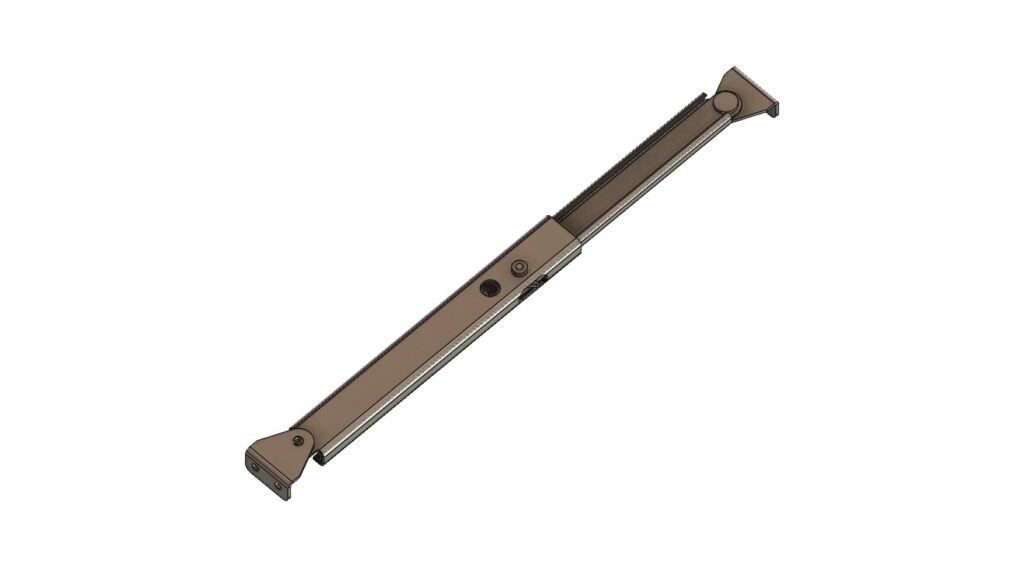

7/25122
7/25122
7/25122
7/25122

Ordering Code

7/25122 ‘Miniature’ stay, 2 brackets
E13-Diagram 01
E13-Product 02

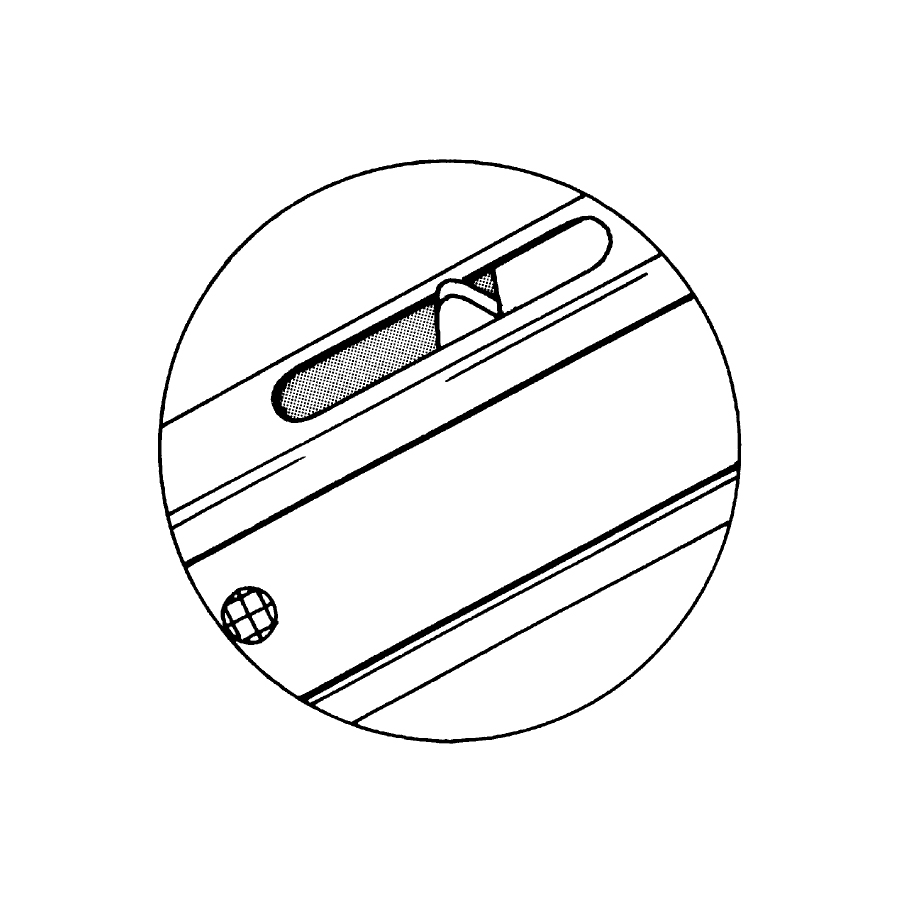

Detailed view of ‘star wheel’ area.

Specification

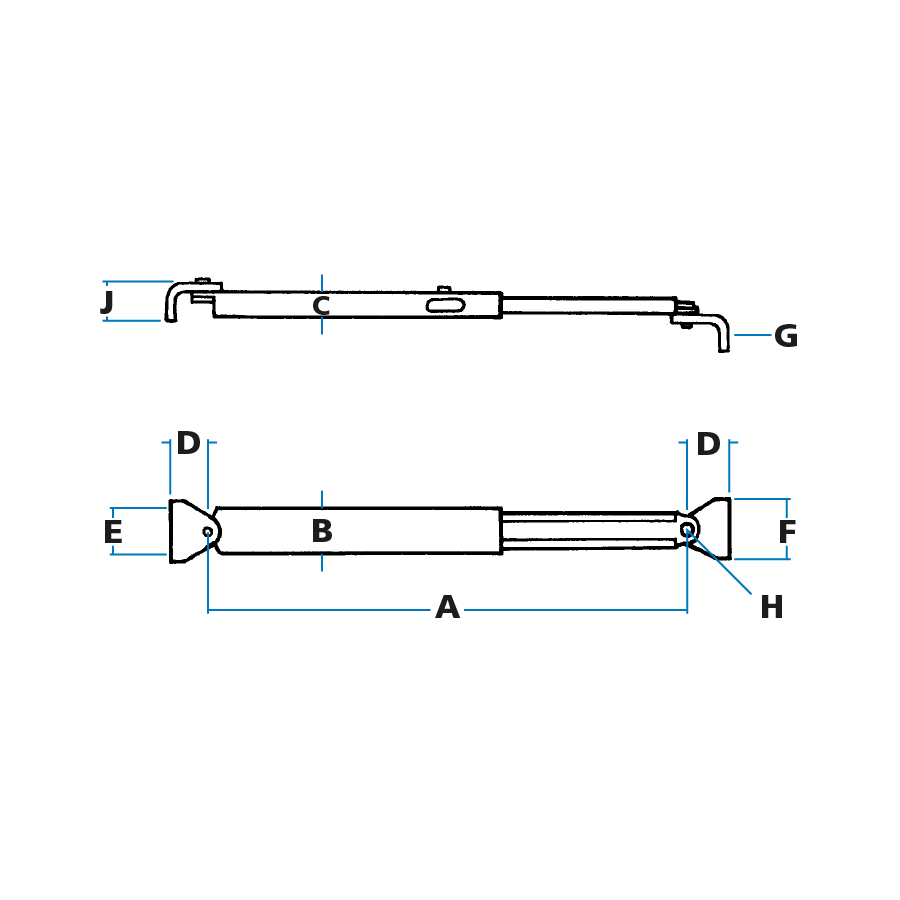

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length between centres, closed extended 152 mm 239 mm
B Max width (outer) 19 mm
C Max depth (outer) 9 mm
D Location 16 mm
E Hole centres 13 mm
F Bracket width 24 mm
G Hole sizes (diameter) 3.5 mm
H Hole sizes (7/26596) dia. 10 mm
J Bracket height 13 mm
Note: Standard bracket shown is 7/25135
  • Stay extends as door is opened, and locks in the extended position. It is automatically released by a further slight extension, allowing unit to be closed
  • Standard brackets (7/25135) as illustrated for plant-on fitting
  • Mild steel throughout
