‘Mini’ Slam Latches

Originally developed for the 1961 ‘Mini’ car, these latches are still the neatest and most compact models available. Normally used with our exterior locking handles, the latches can be slammed shut without damage, even when the handle (or safety catch) is in ‘locked’ position. Suitable for auxiliary compartment doors and off-road vehicles.

Ordering Code

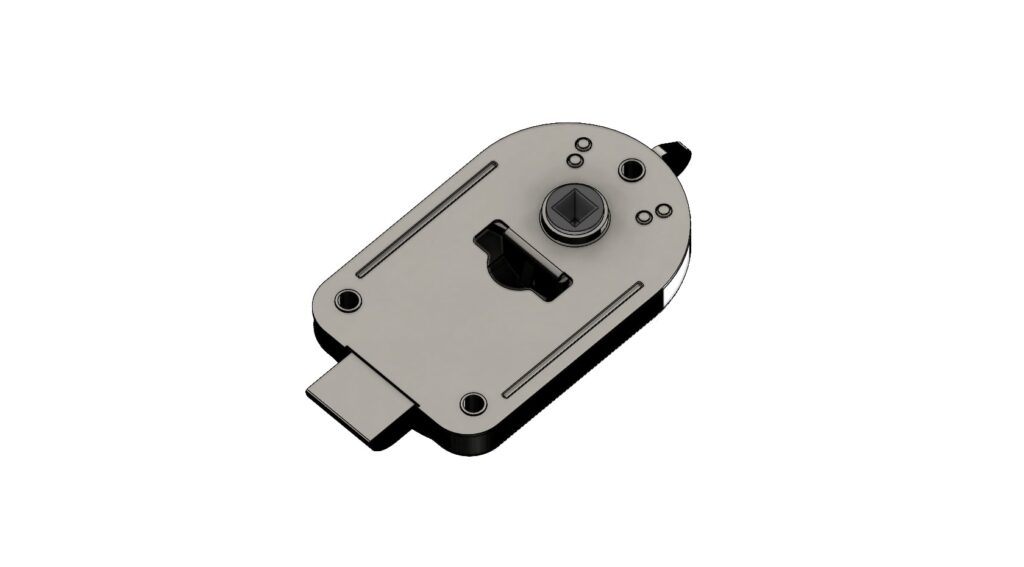

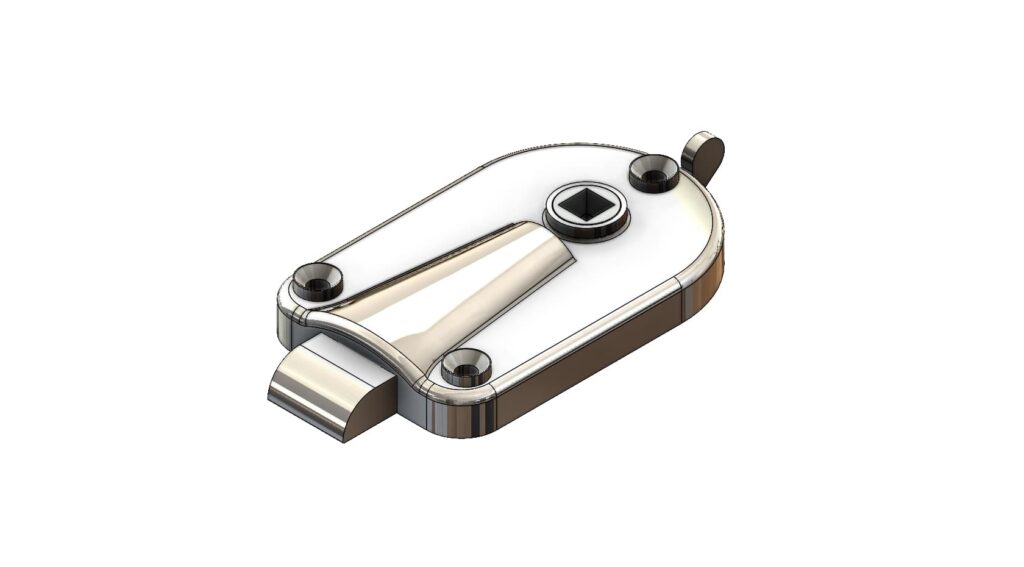

3/22510	Latch, (RH), with safety catch

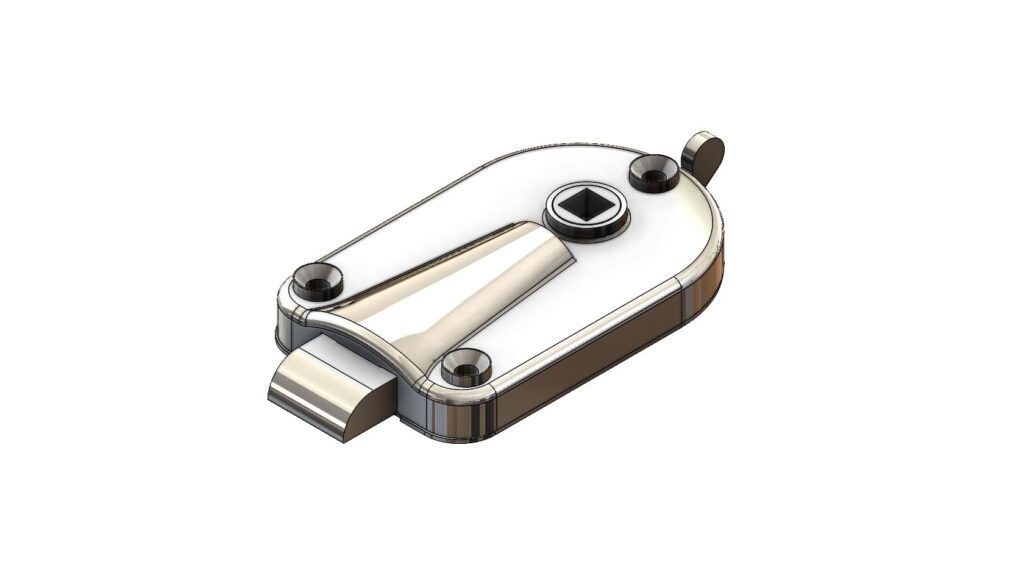

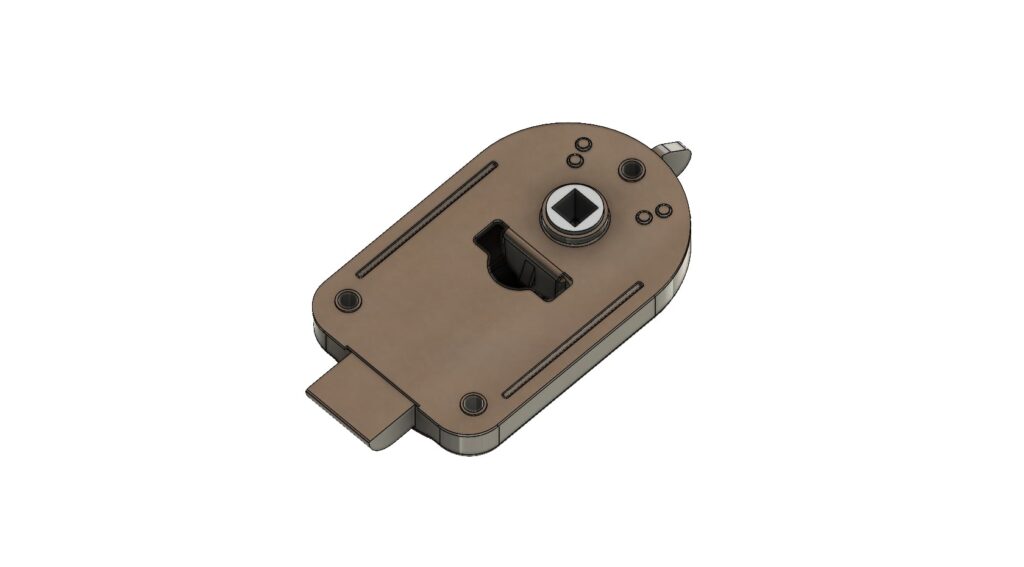

3/22511	Latch, (LH), with safety catch
3/22512	Latch, (RH), without safety catch

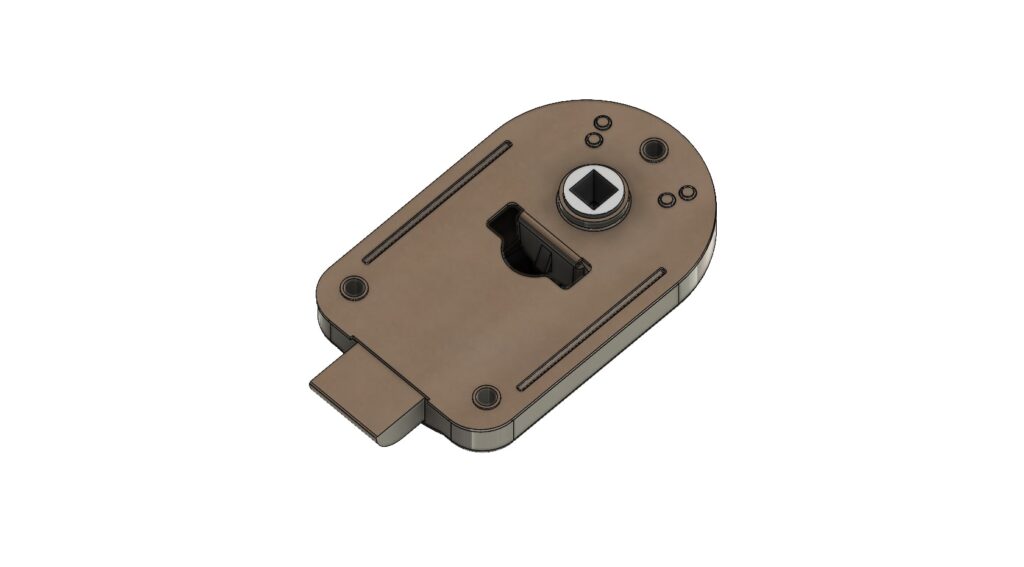

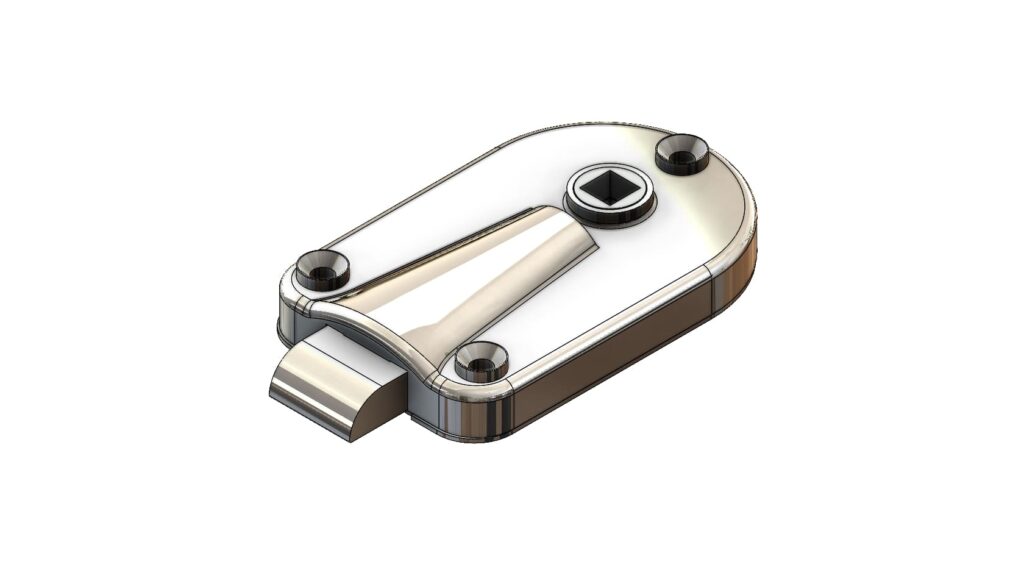

3/22513	Latch, (LH), without safety catch

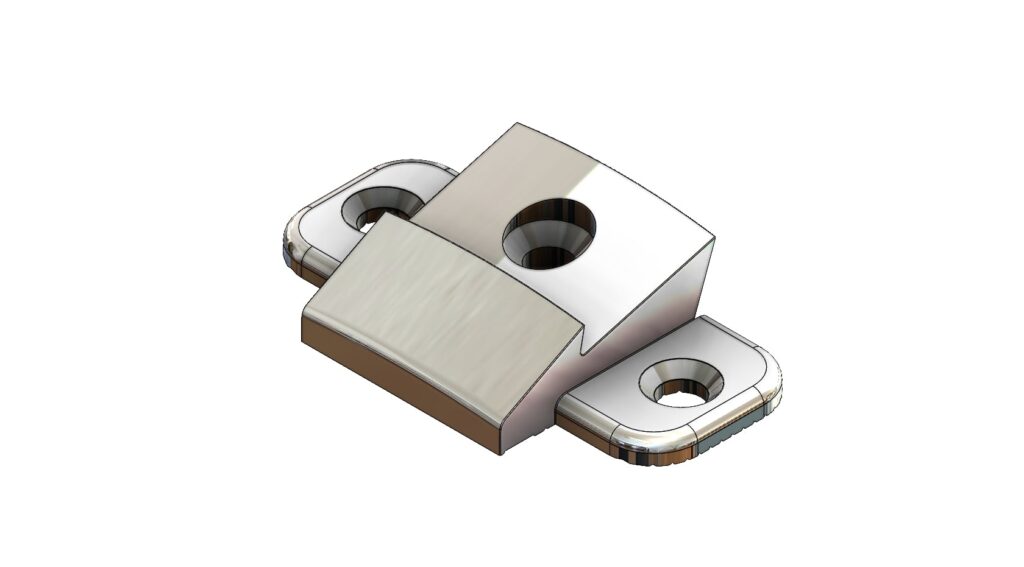

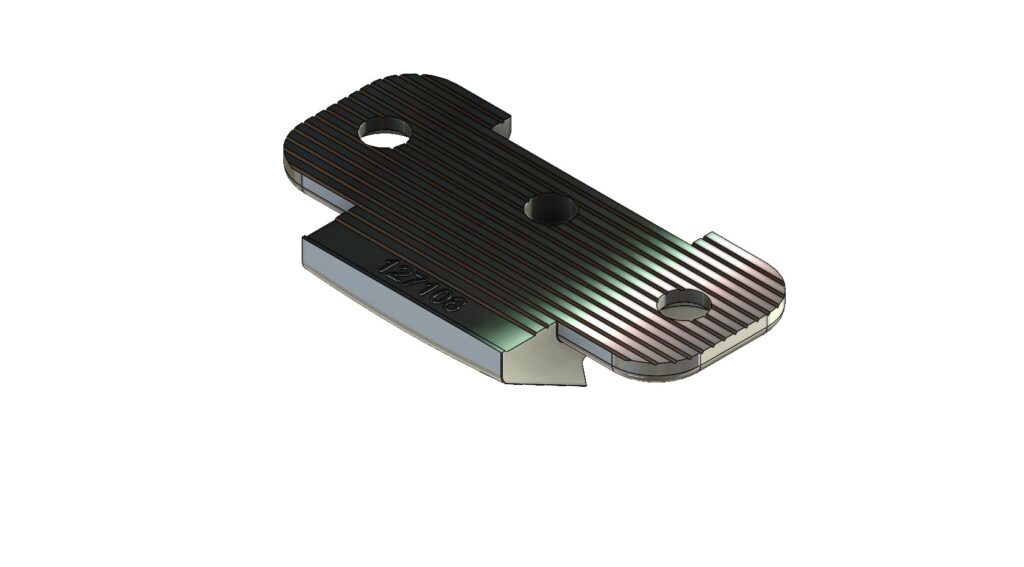

1/27106	Striker plate

D14-Diagram 02 — **3/22510 (RH)** - Models with safety catch

D14-Diagram 04 — **3/22511 (LH)** - Models with safety catch

D14-Diagram 05 — **3/22512 (RH)** - Models without safety catch

D14-Diagram 06 — **3/22513 (RH)** - Models without safety catch

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Case length	95 mm
B	Case width	60 mm
C	Case height	16 mm
D	Bolt width	22 mm
E	Bolt projection	18 mm
F	Location	66 mm
G	Hole centres	77 mm
H	Hole sizes	5 mm, c/s 9 mm
J	Holes centres	43 mm
K	Location	10 mm
L	Projection	4 mm
-	Total bush movement	45˚
-	Total bolt withdrwal	15 mm
-	Minimum load for full bolt retraction	6kg

Latch slams against striker plate; bolt is released by action of follow-bush.
Latches are ‘handed’ LH/RH by direction of rotation of bush, as shown. The safety catch (when fitted) prevents operation from outside, but allows latch to slam as normal.
Fully plant-on fixings by bolts or rivets through three 5 mm holes as shown.
Bright zinc-plated, with brass bolt and chromium plated safety catch.
Use with any of our outside handles, with 8 mm square shaft. Inside handle mounts directly onto through-shaft. Suggested striker plate is 1/27106.
