Low-Profile Compartment Locks

A new model, designed with a “shuttered” cylinder for weather protection but with a wider, lower head style for enhanced appearance. Larger panel piercing to match our ‘easy-fix’ handles, with nut-fixing for latch bar. A neoprene gasket and diecast spacer are provided. Finish is bright chromium-plated.
Download Our Section A Catalogue

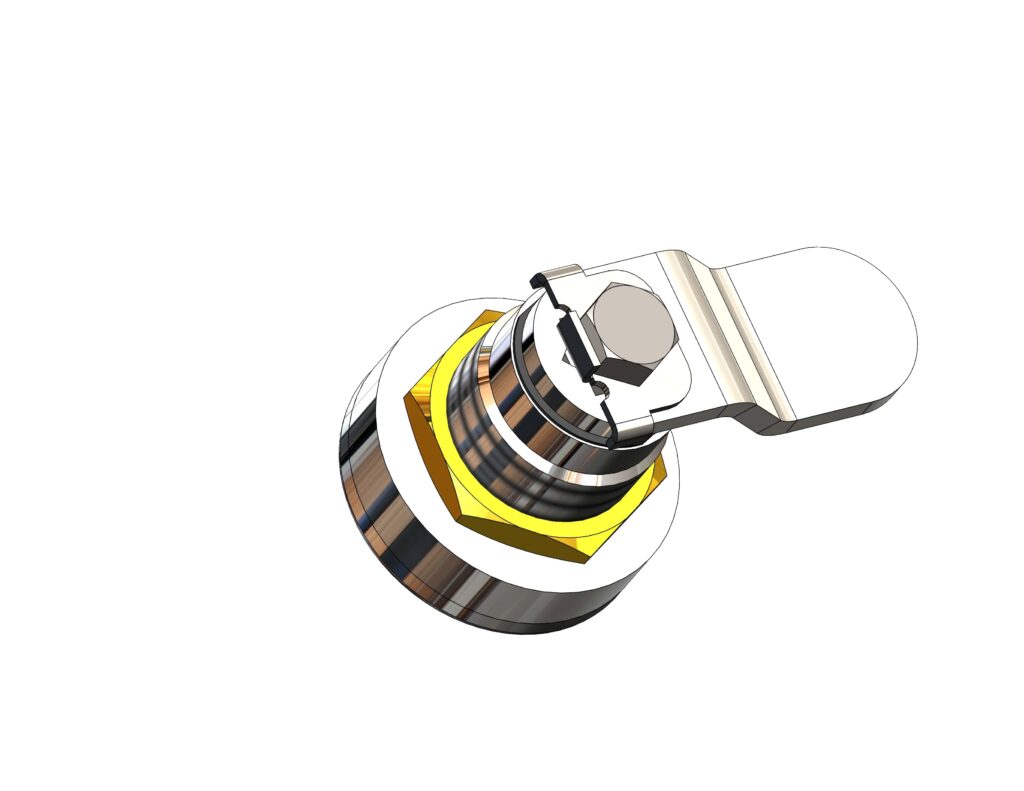

9/01930
9/01930
9/01930
9/01930
9/01930/01
9/01930/01
9/01930/01
9/01930/01

Ordering Code

9/01930 Low-profile lock, 90°, mixed keys
9/01930/01 Low-profile lock, 90°, FT 111
A9-Diagram 02-100
A9-Diagram 01-100
A9-Diagram 03-100
‘Type 2’ piercing This larger aperture also suits our ‘easy-fix’ range of handles

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

GDiecast spacer (depth)6 mm
A Head diameter 30 mm
B Total depth 29 mm
C Head projection 5 mm
D Depth to cranked latch 15 mm
D1 Body depth 22 mm
E Height of bar 37 mm
F Thread depth 17 mm
H Piercing, across flats 22 mm
J Piercing, diameter 24 mm
Latch bar reversible, can be fitted at 45° intervals.
  • 90° or 180° rotation as shown. Key will withdraw in unlocked (9 o’clock) position with 90° models.
  • ‘FT’ keys as standard with ‘shuttered’ keyway. Optionally ‘FS’, ‘92’ or ‘DLP’ keys.
  • Wide choice of latch bars, finish options. Special key numbers or sets.
