‘Low Line’ Minimal Projection ‘T’ Handles

Sitting almost directly onto the panel surface, this design has absolutely minimum projection, avoiding risk of injury from the ‘arms’ of the T-handle.

With hidden mounting holes (or internal studs) it is ideal for roller shutters, vehicle side compartments and special cabinets.

Ordering Code

With 40mm open-fixing

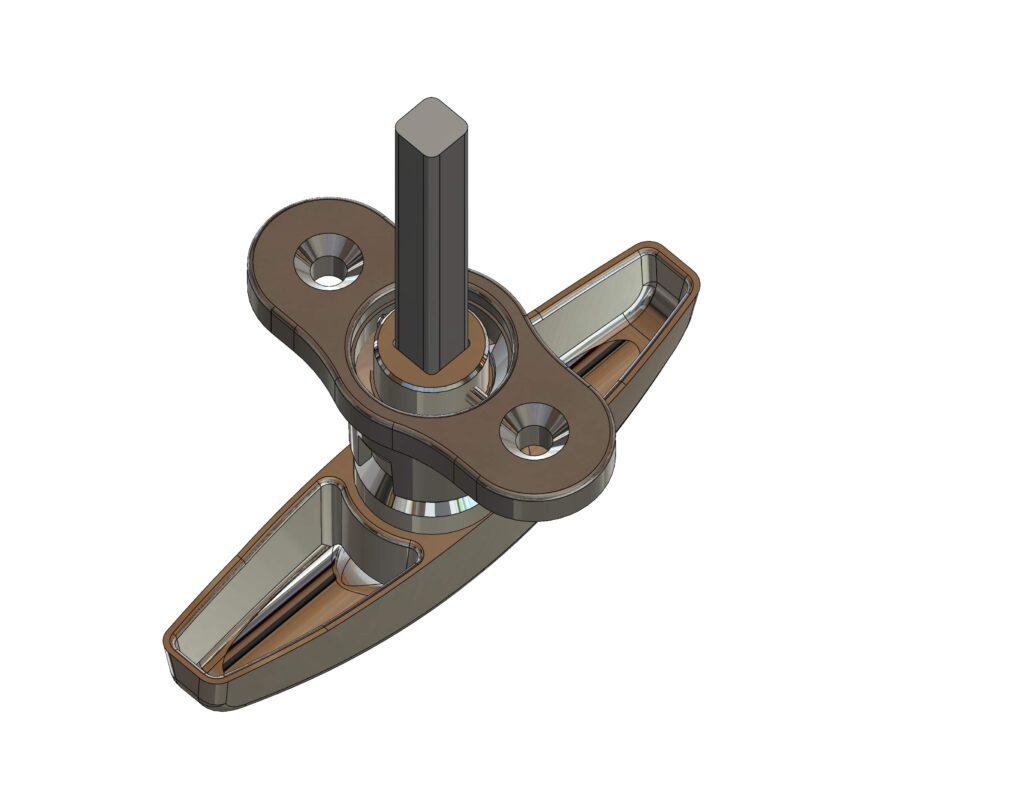

1/25515	‘Lowline T’, locking, chrome

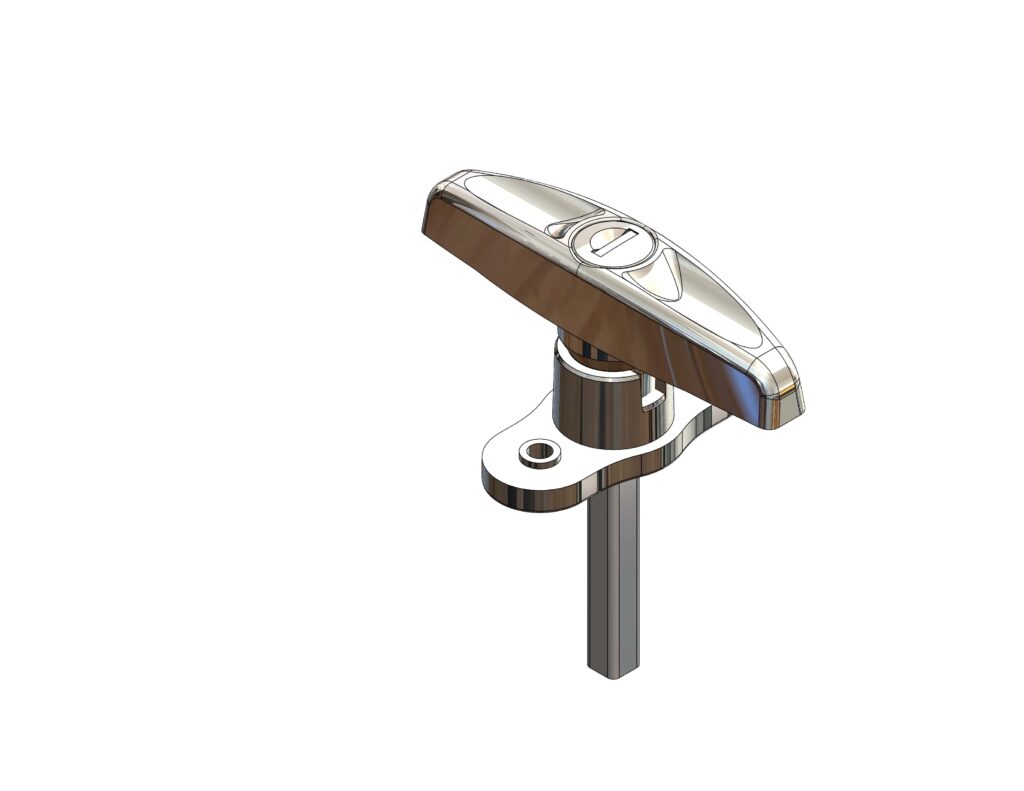

1/25515/01	As above, FS880

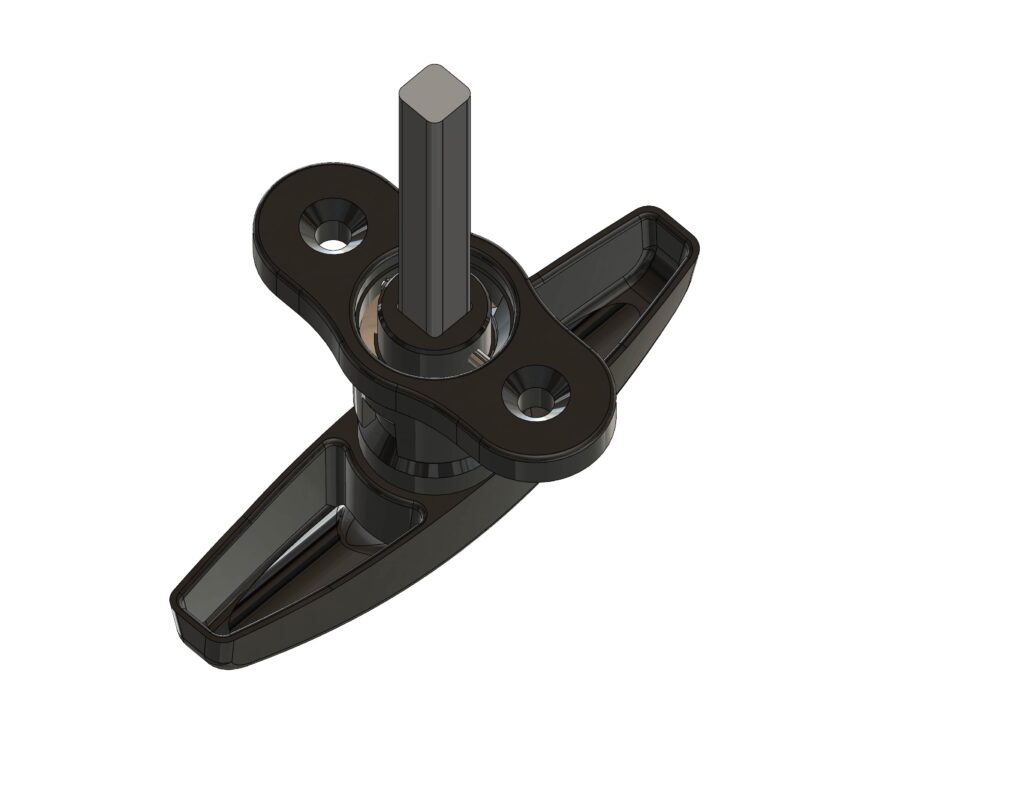

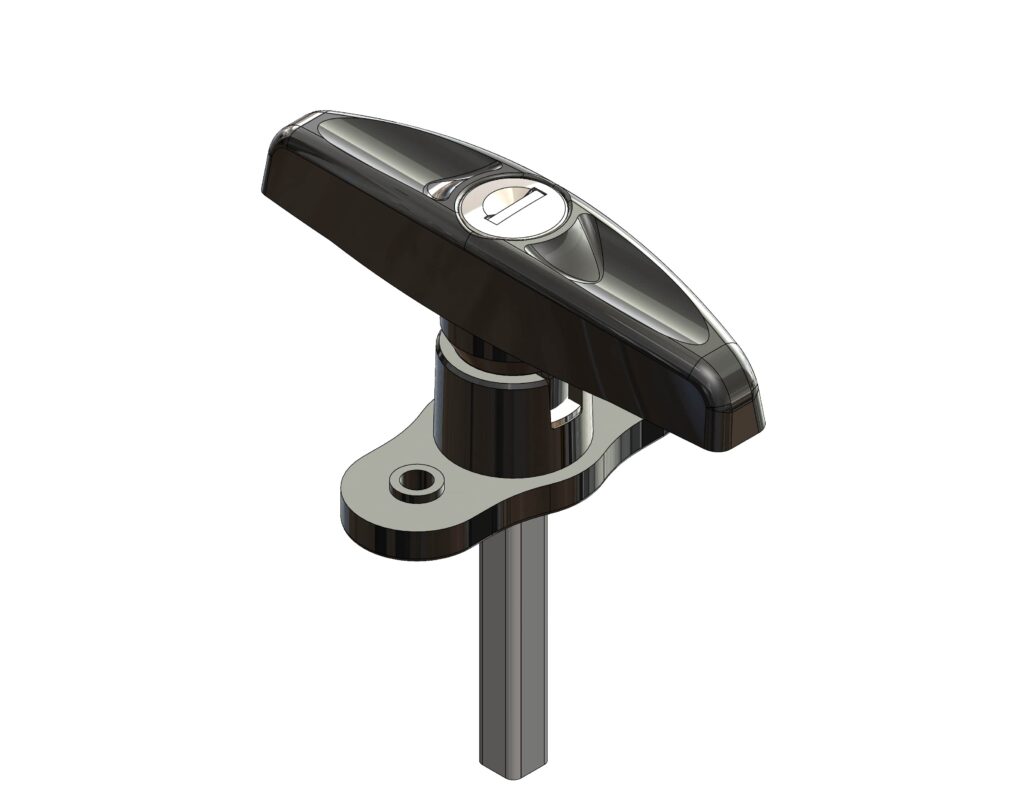

1/25515B	‘Lowline T’, locking, black

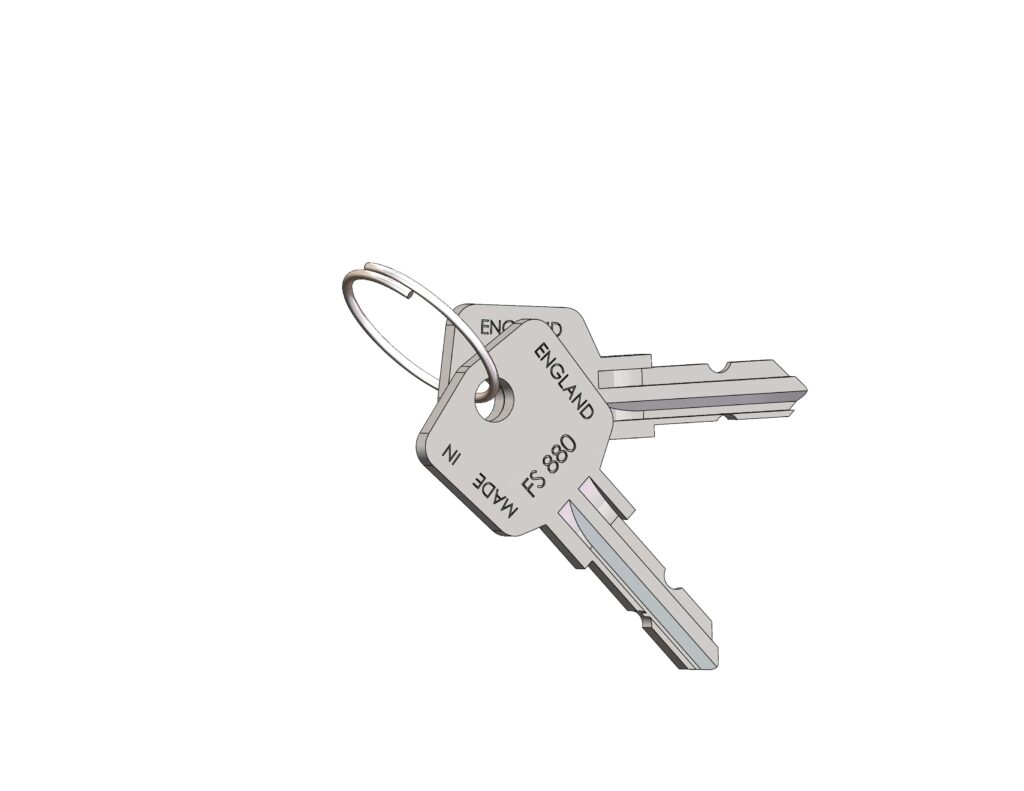

1/25515B/01	As above, FS880

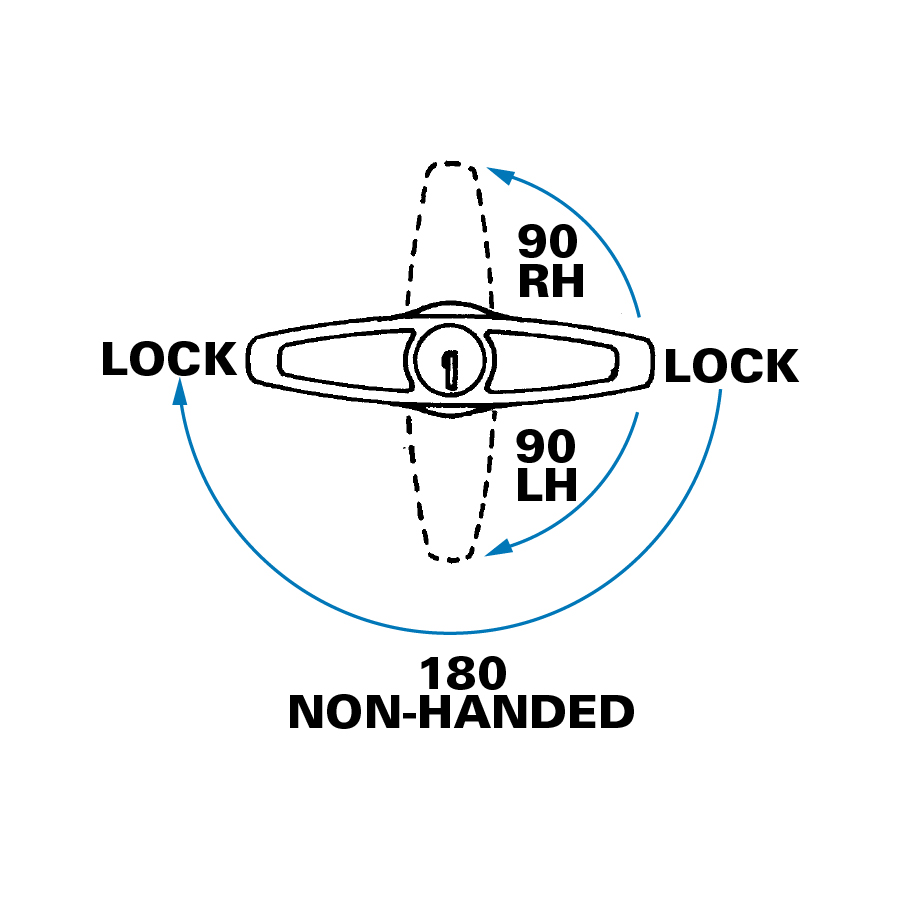

B11-Diagram 03 — Handles operate through 180° as standard (non-handed). Rotation can be limited to 90°LH (clockwise) or 90° RH (anticlockwise). Handles will lock in horizontal position only.

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Handle length	97 mm
B	Mounting width	28 mm
C	Face height	23 mm
D	Depth of handle boss	25 mm
E	Shaft length	76 mm
F	Diameter of boss	23 mm
G	Hole centres	40 mm
H	Hole sizes (open) dia. 5mm c/s 9mm

Concealed-fixing models have two threaded studs fitted into escutcheon, 10mm deep x 10-32 UNF. (Top face is plain).

180° as standard, rotation can be limited to 90°, LH/RH, or 360° free movement. Handle only locks in horizontal position.
Fix through countersunk holes (hidden when handle is locked), or with studs fitted to concealed-fixing models.

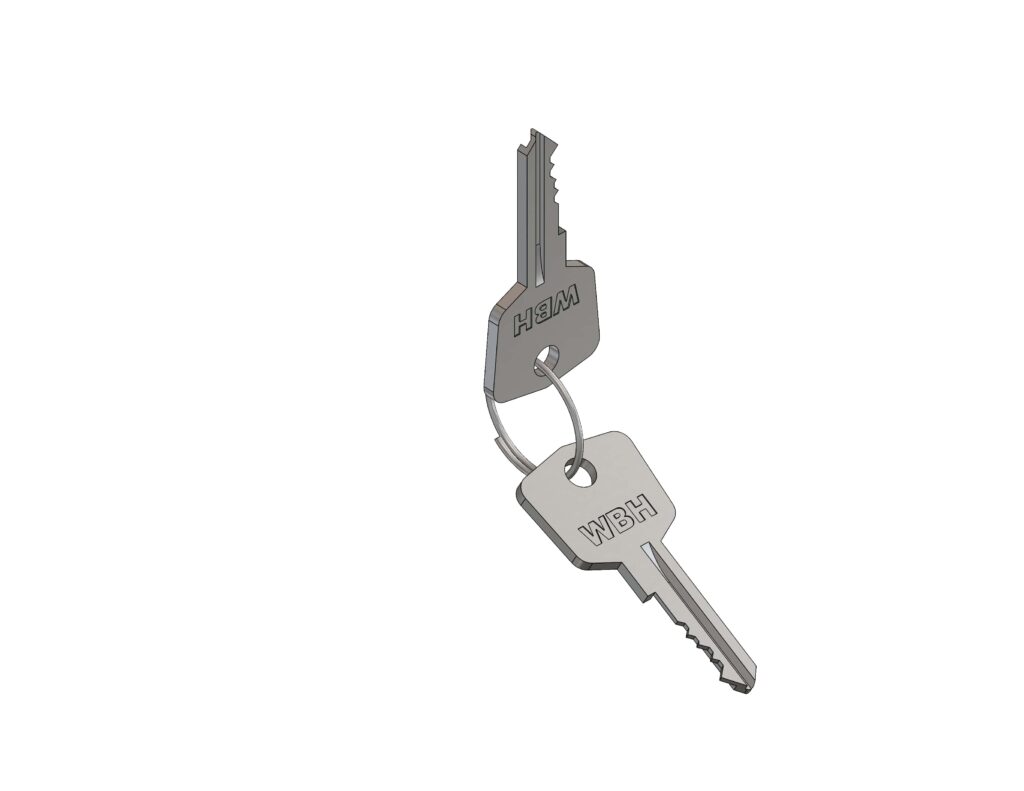

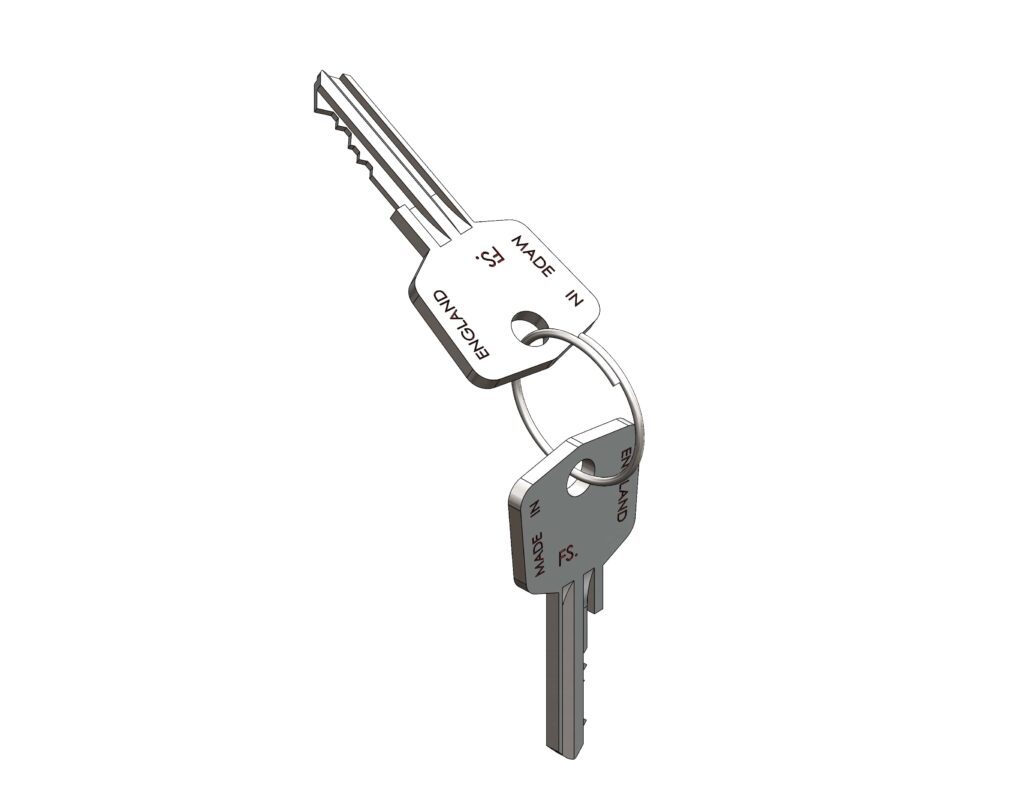

FS’ keys as standard with ‘shuttered’ keyway, optionally ‘FT’, or ‘DLP’ key types.
Chromium plated or black powder coated.
- Shaft lengths
- Threaded shafts (M10)
- Special key numbers/sets
- 90° LH/RH rotation
- Fully-flush fitting using recess pan
