Lift-Off ‘Torpedo’ Hinges

Our popular ‘torpedo’ hinges are widely used for electrical cabinets and enclosures, allowing doors to be quickly mounted or removed from frames. Chromium-plated finish and 10 mm stainless steel pin gives good resistance to normal environmental conditions. Left-hand and right-hand.
7/10015
7/10015
7/10015
7/10015
7/10015B
7/10015B
7/10015B
7/10015B
7/10016
7/10016
7/10016
7/10016
7/10016B
7/10016B
7/10016B
7/10016B
7/10015
7/10015

Ordering Code

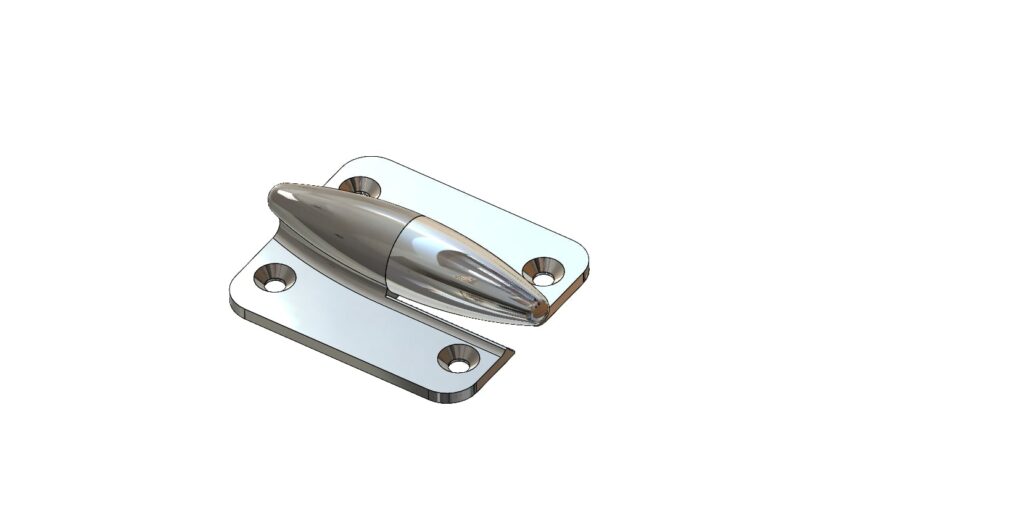

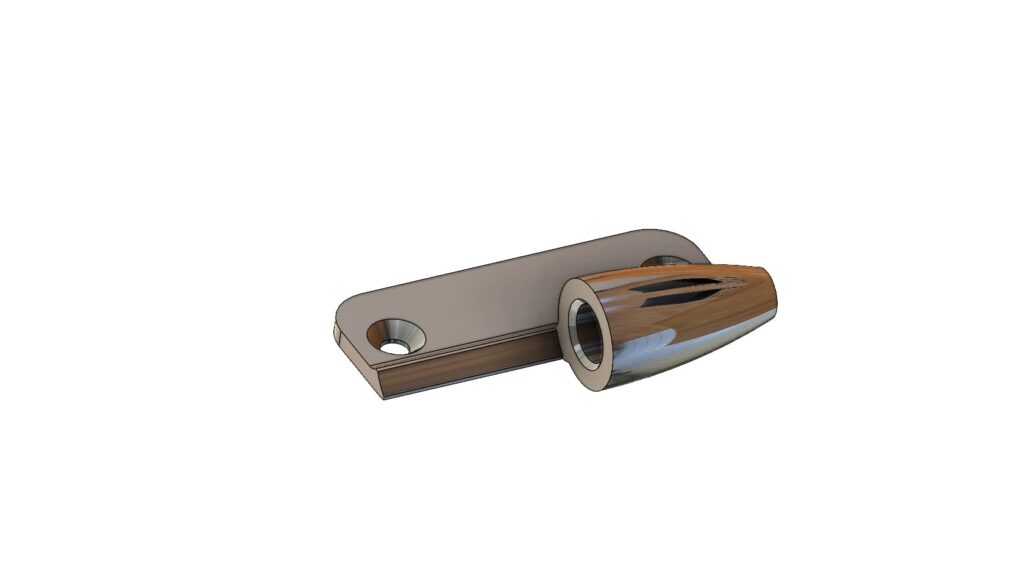

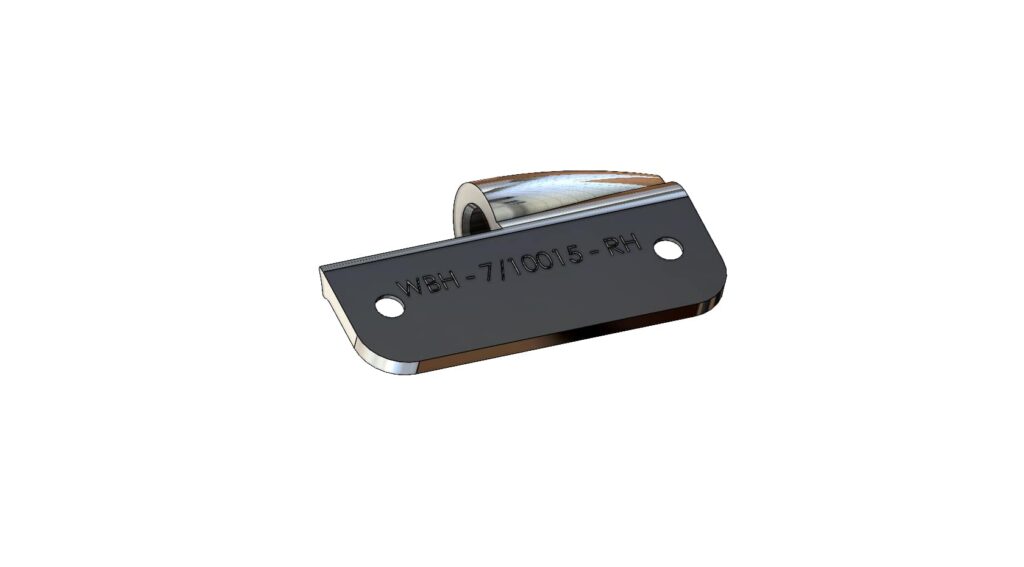

7/10015 Lift-off hinge, RH, chrome

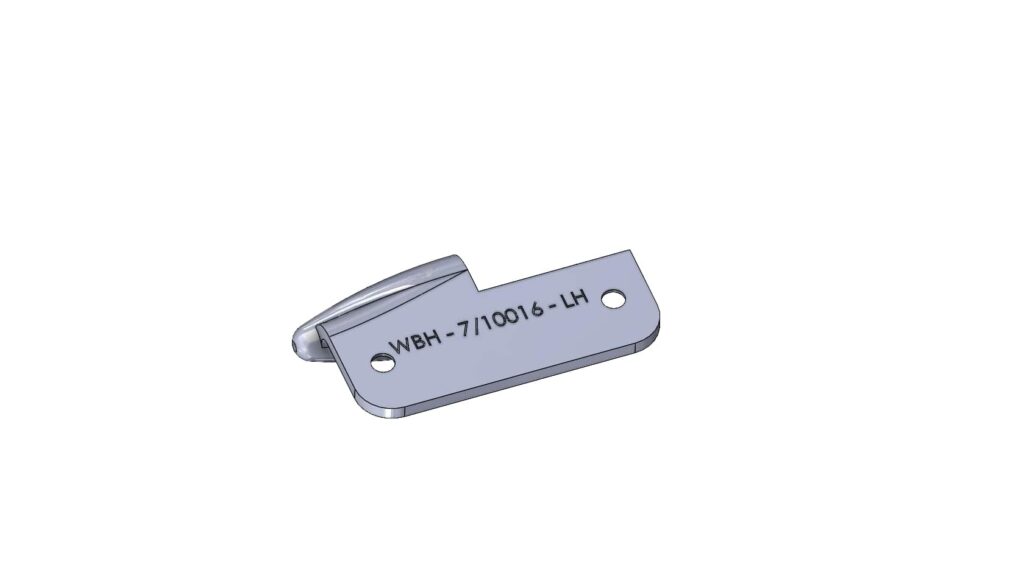

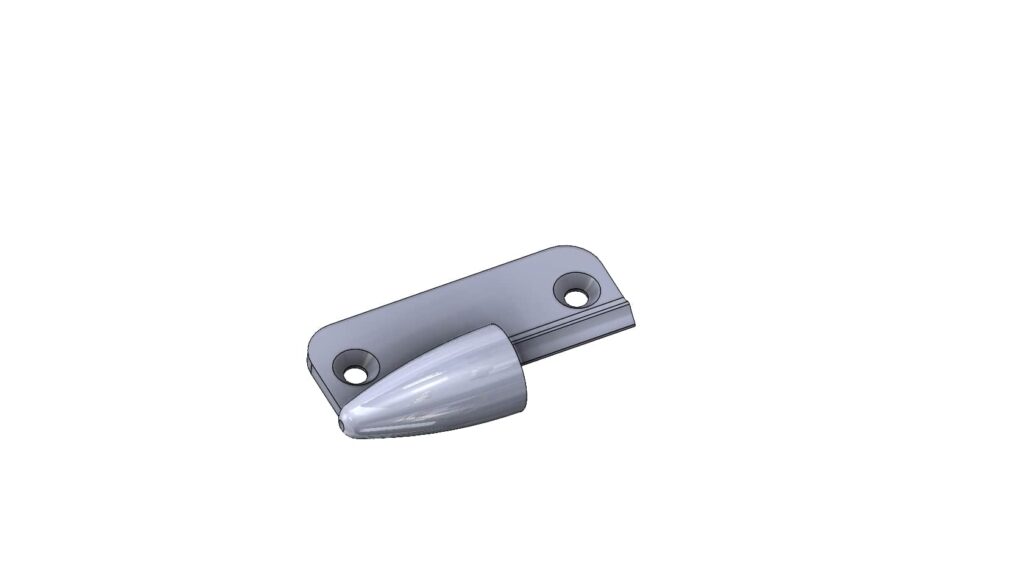

7/10016 Lift-off hinge, LH, chrome

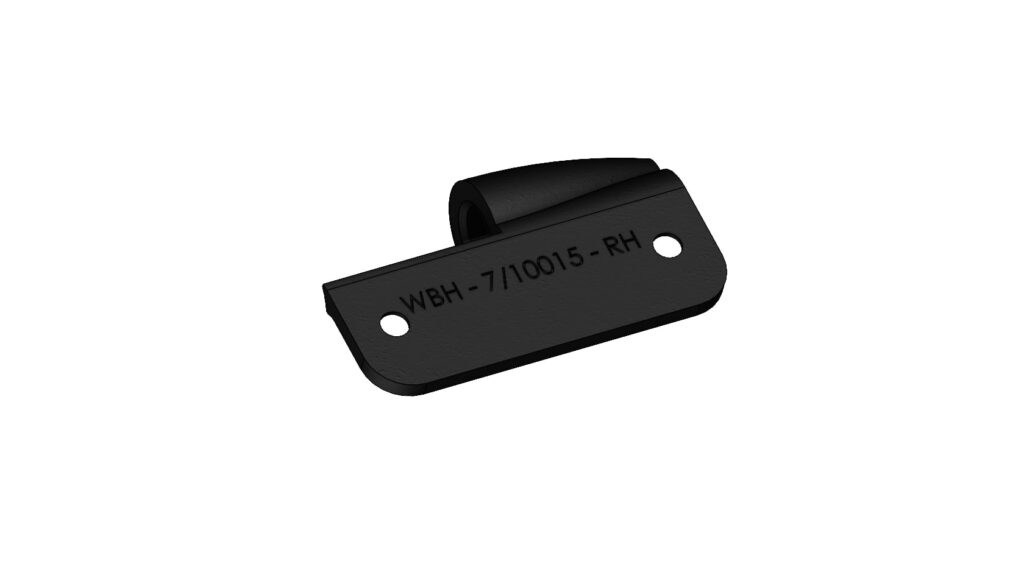

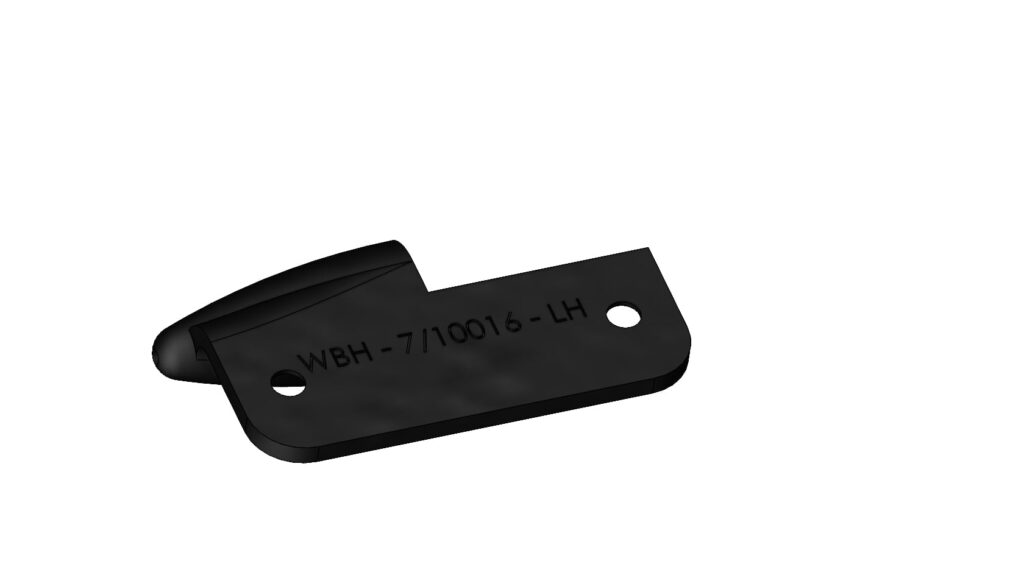

Add suffix ‘B’ for black finish
F6-Diagram 01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length (max) 76 mm
B Width (half) 30 mm
C Height 18 mm
D Location to axis 18 mm
E Hole centres 51 mm
H Hole sizes (diameter) 5 mm, c/s 9 mm
Angle of opening – Hinges will open fully forward to 180°, backward to 60° from horizontal
  • Doors lift-off fixed pin in bottom half of hinge. Use LH and RH together (opposed) when door is required to be permanently fixed.
  • Plant-on, and secured through countersunk holes in hinge leaf.
  • Bright chromium-plated or raw finish (for painting). Black to special order.
  • Zinc alloy diecast, with stainless steel pin.
  • Rig-tests show that two hinges (on a 1-metre frame) carried a load of 60kg. (130lb) without damage, equivalent to a moment of force of 60NM (3.43KN).
