Lift-Off Steel Hinges

These steel hinges carry relatively high loads and are suitable for larger enclosures such as compressors, generators and electrical cabinets. They are available in either mild steel or stainless steel, with end caps and stainless pin and bearing washer for smooth operation and corrosion resistance. Left-hand and right-hand available.

Interchangeable with our moulded & diecast lift-off models
9/01402
9/01402
9/01402
9/01402
9/01442
9/01442
9/01442
9/01442
9/01443
9/01443
9/01443
9/01443
9/01535
9/01535
9/01535
9/01535
9/01536
9/01536
9/01536
9/01536

Ordering Code

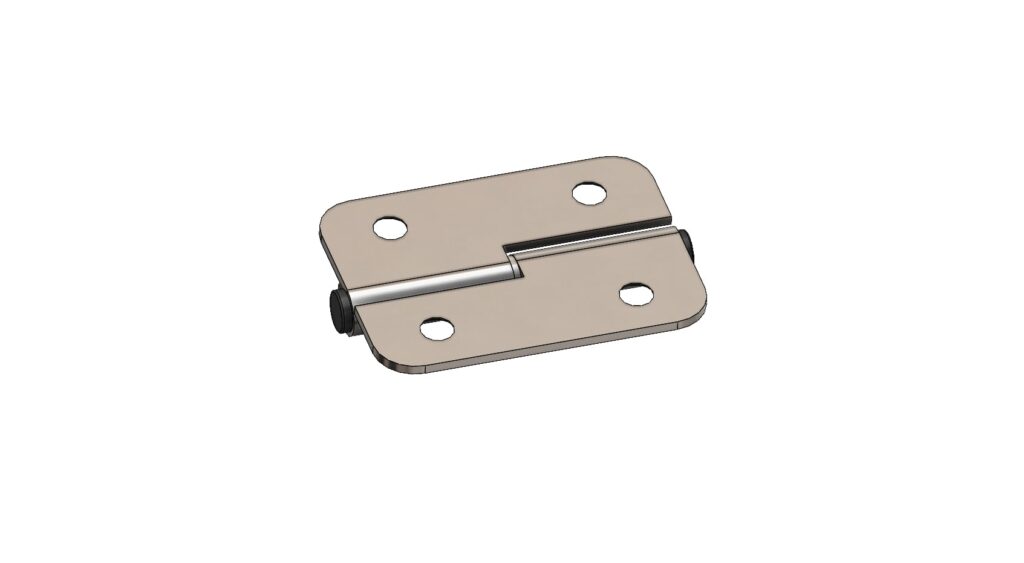

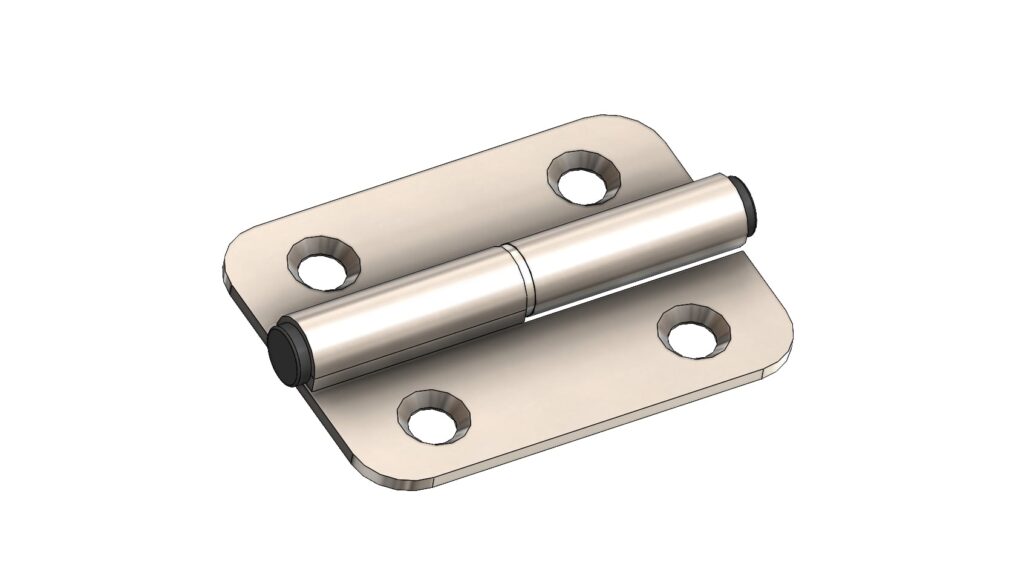

9/01442 Stainless lift-off hinge, RH

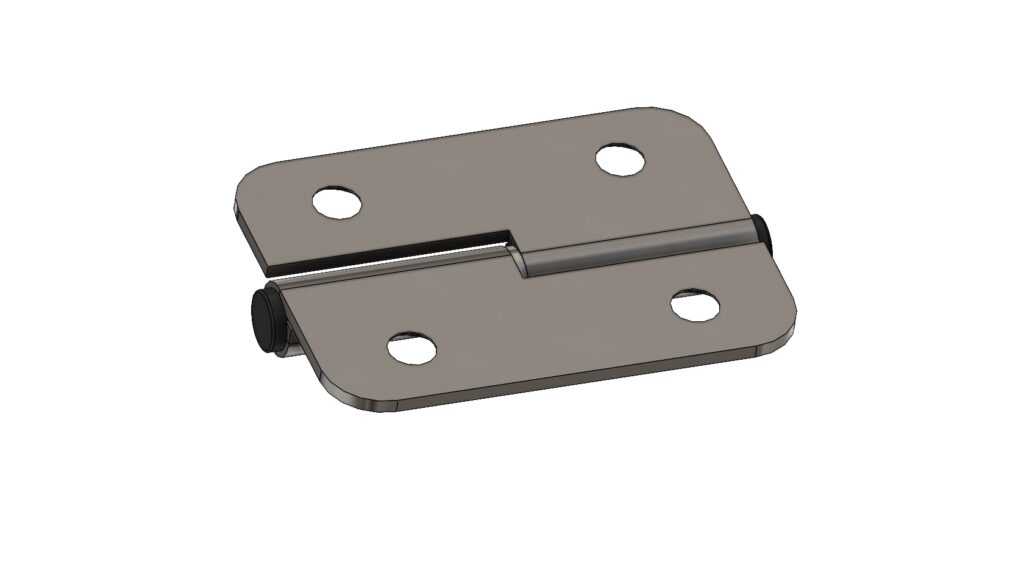

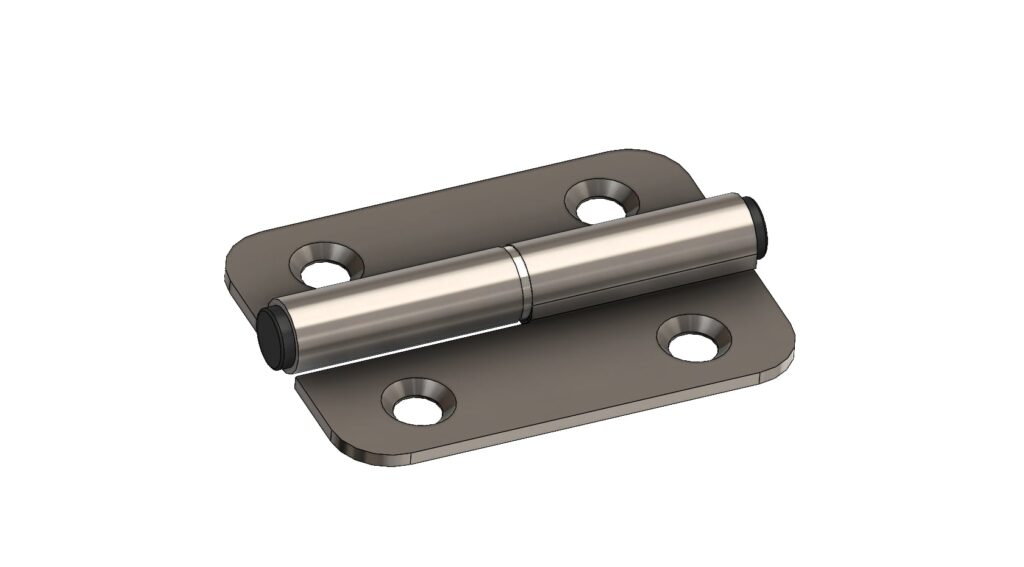

9/01443 Stainless lift-off hinge, LH

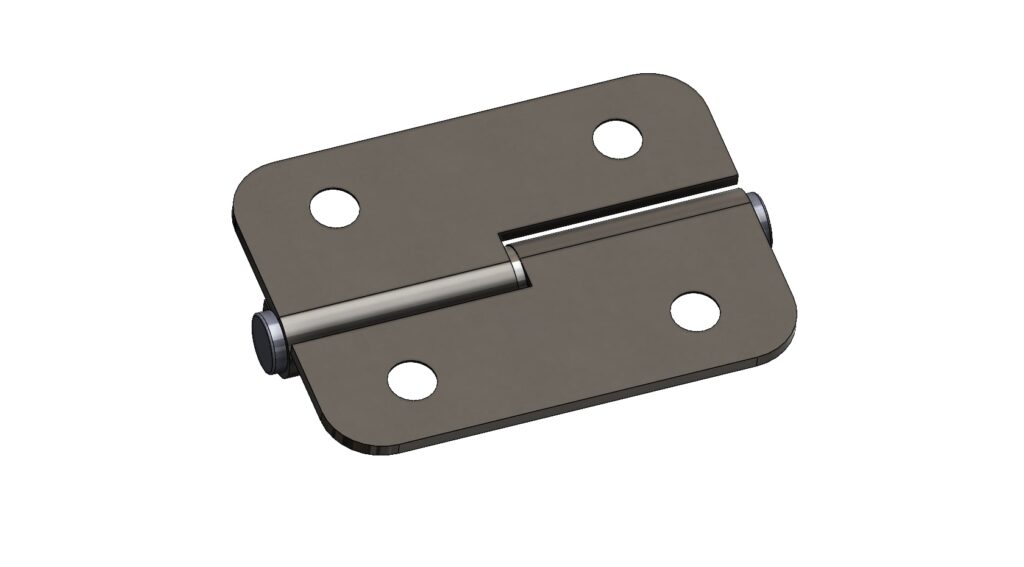

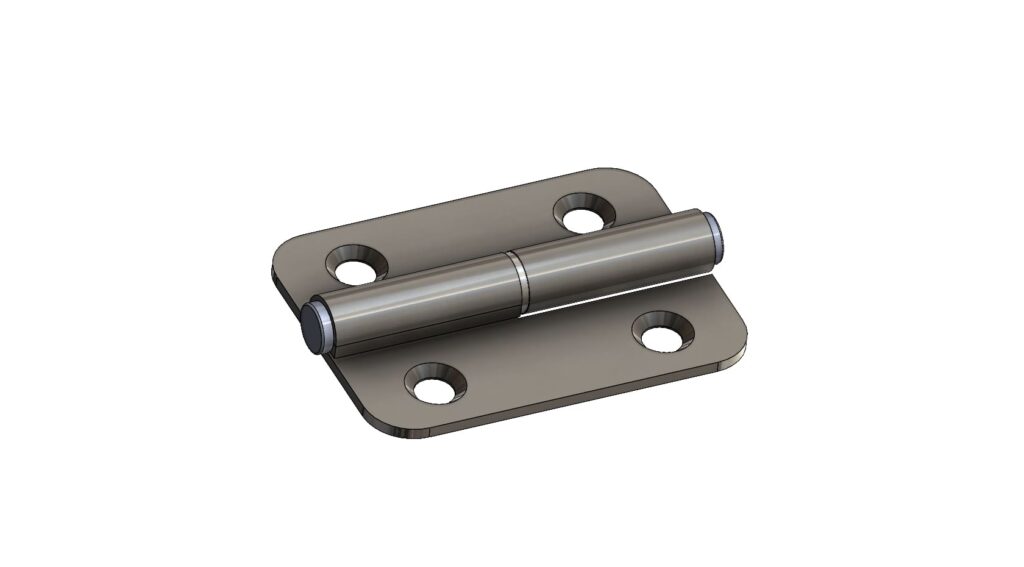

9/01402 Steel lift-off hinge, RH, zinc
9/01403 Steel lift-off hinge, LH, zinc

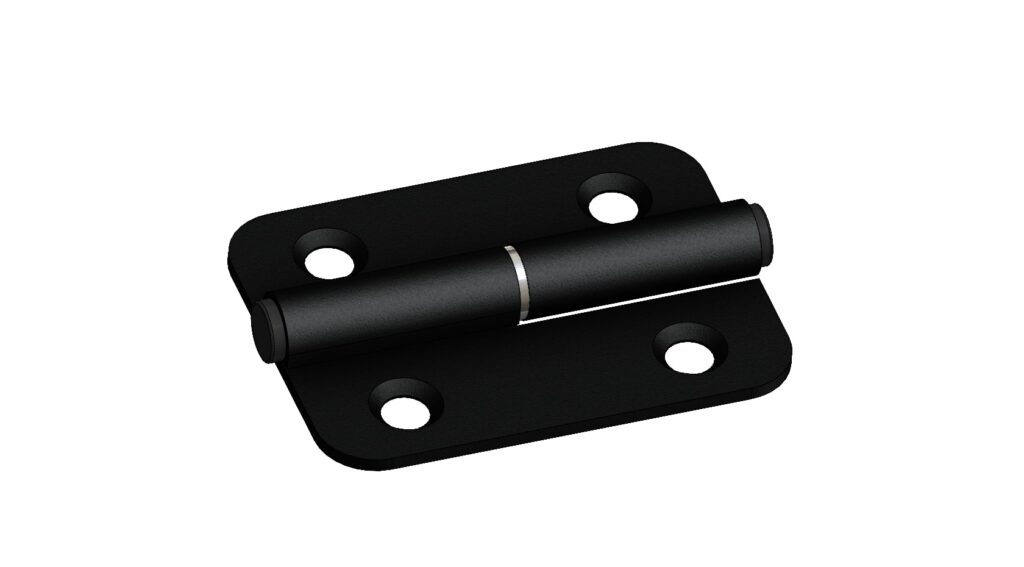

9/01536 Steel lift-off hinge, RH, black

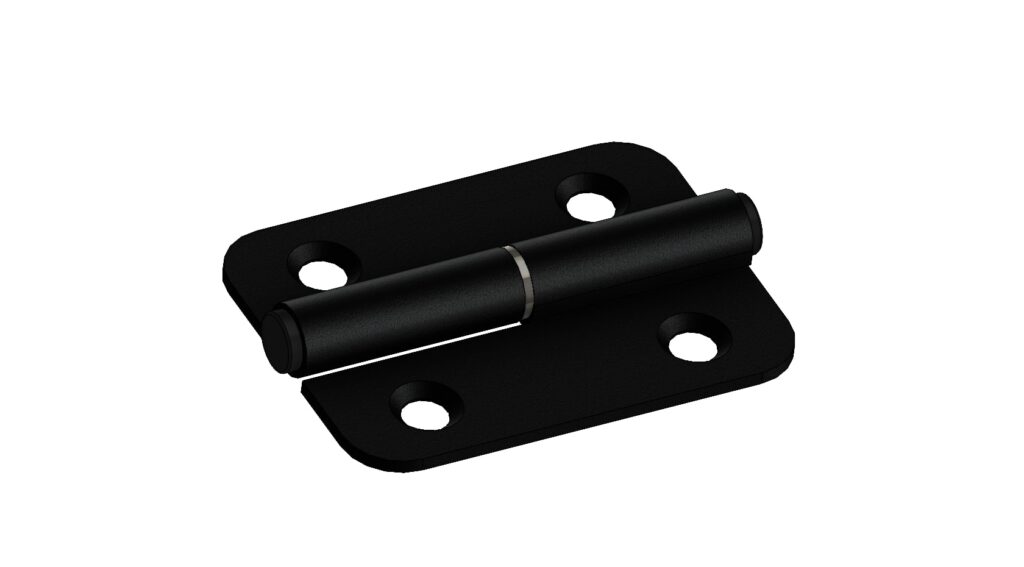

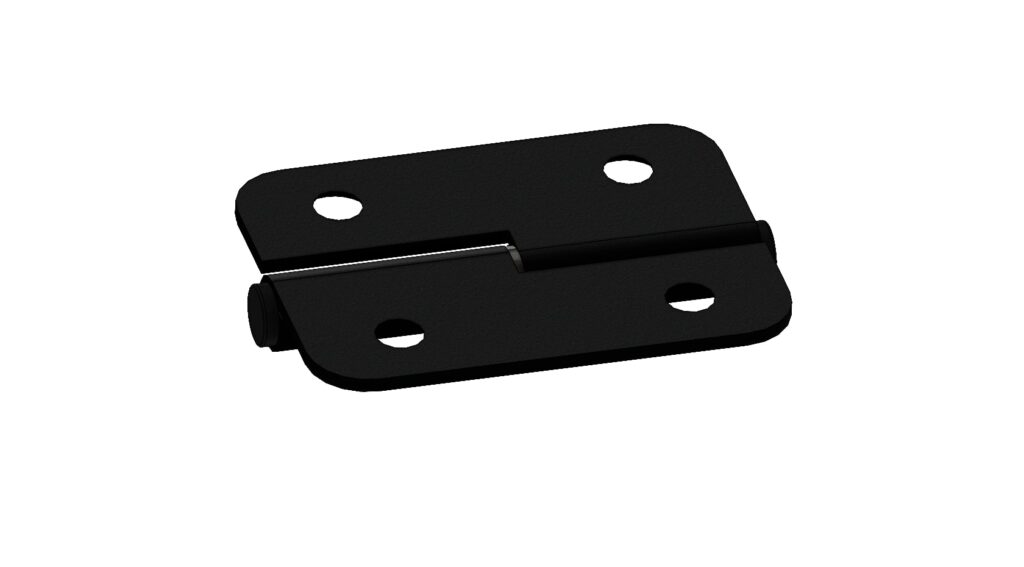

9/01535 Steel lift-off hinge, LH, black
F2-Diagram 01
Right hand illustrated
F2-Diagram 02
F2-Diagram 03

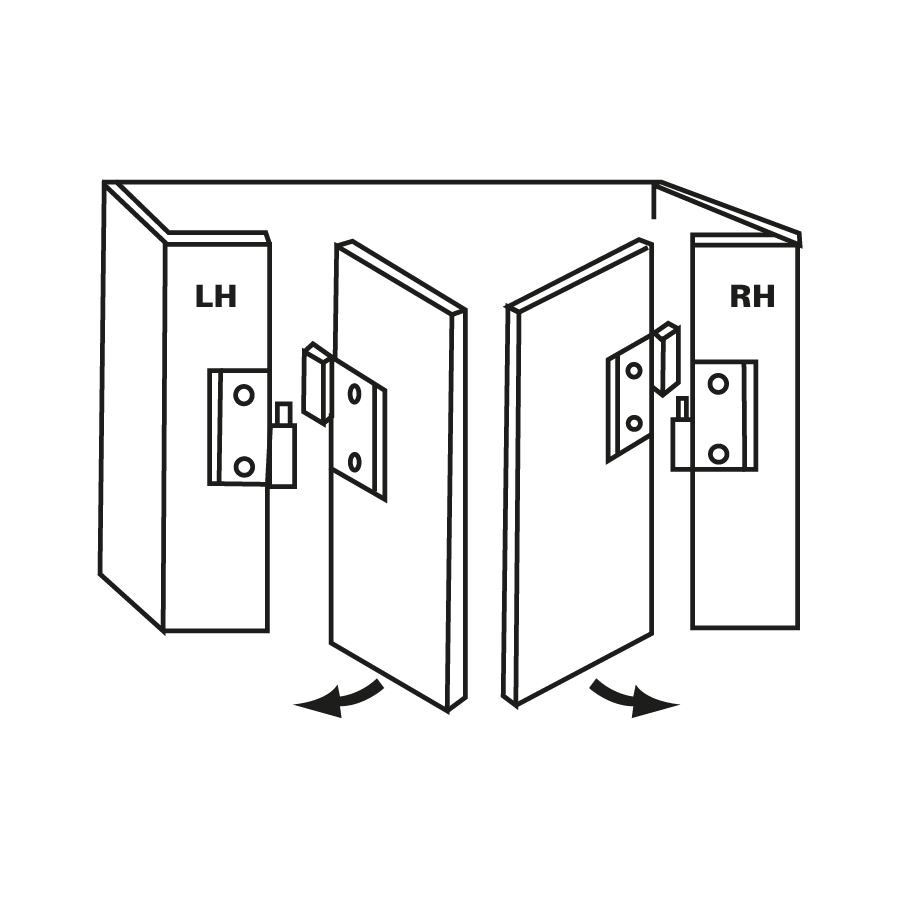

Explanation of 'handing' two hinges should be fitted to each door

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 100 mm
B Width (half) 37 mm
C Height 15 mm
D Location to axis 22.5 mm
E Hole centres 60 mm
H Hole sizes (diameter) 10 mm, c/s 15 mm
Material thickness – 3 mm, pin diameter 10 mm Angle of opening – Hinges will open fully forward to 180°, backward to 90° from horizontal
  • Excellent surface finish (stainless models are mirror-polished), 3 mm material thickness and large-diameter stainless pin for easy assembly.
  • Plant-on, and secured through countersunk holes in hinge leaf.
  • Stainless steel models are mirror-polished. Mild steel models are yellow zinc-plated or black powder-coated.
  • zinc-plated or black powder-coated. Stainless steel models in Grade 304, mild steel models in CR4, with stainless pin and washer and black moulded end-caps.
  • Stainless models
    Axial loading
    Maximum advised: 46.46kN
    Ultimate: 69.69kN.

    Radial loading
    Maximum advised: 7.70kN
    Ultimate: 11.60kN.
  • Mild steel models
    Axial loading
    Maximum advised: 26.60kN
    Ultimate: 39.90kN.

    Radial loading
    Maximum advised: 5.86kN
    Ultimate: 8.79kN.
