Lift-Off Moulded Hinges

These hinges have been designed for corrosion resistance, and to prevent stiffness and uneven action, common problems on construction sites and other ‘dirty’ environments. They are made from self-colour composite material, with a stainless pin ‘buried’ within the hinge and fitted with an ‘O’-ring to stop dirt and debris from entering. Left-hand & right-hand versions.
9/04440
9/04440
9/04441
9/04441
9/04441
9/04441
9/04442
9/04442
9/04442
9/04442
9/04443
9/04443
9/04443
9/04443
9/04446
9/04446
9/04446
9/04446

Ordering Code

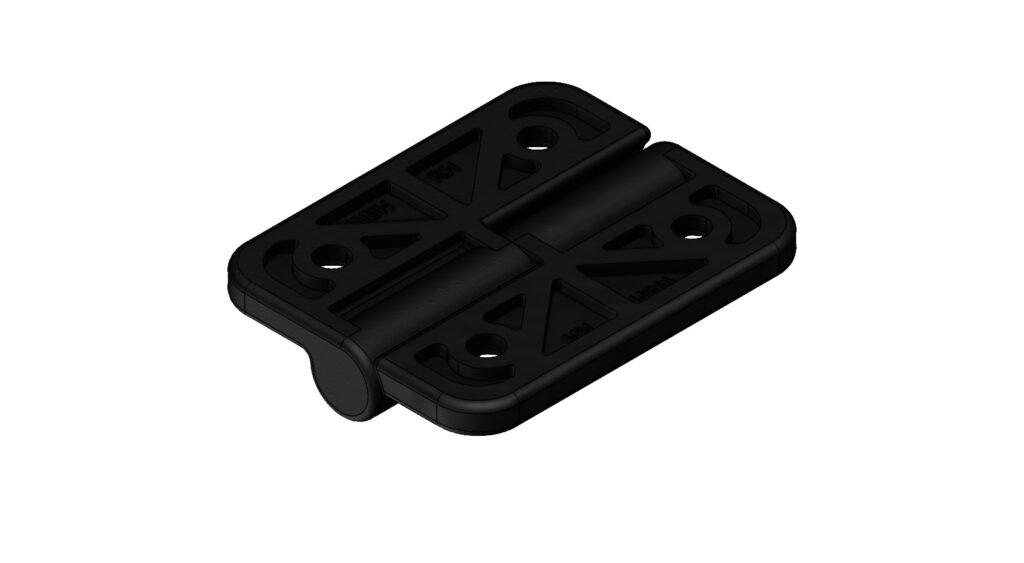

9/04442 Lift-off hinge, RH

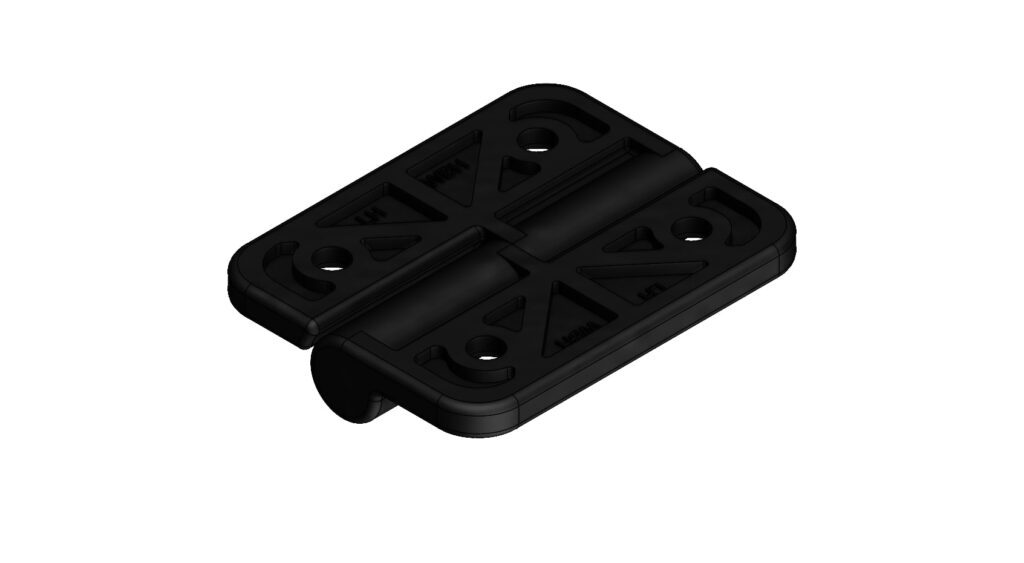

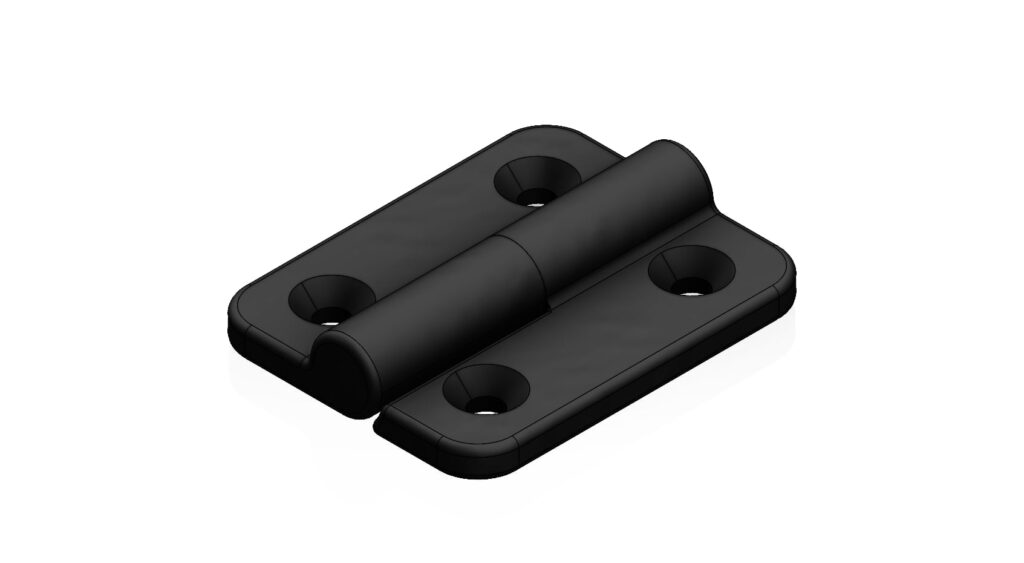

9/04443 Lift-off hinge, LH

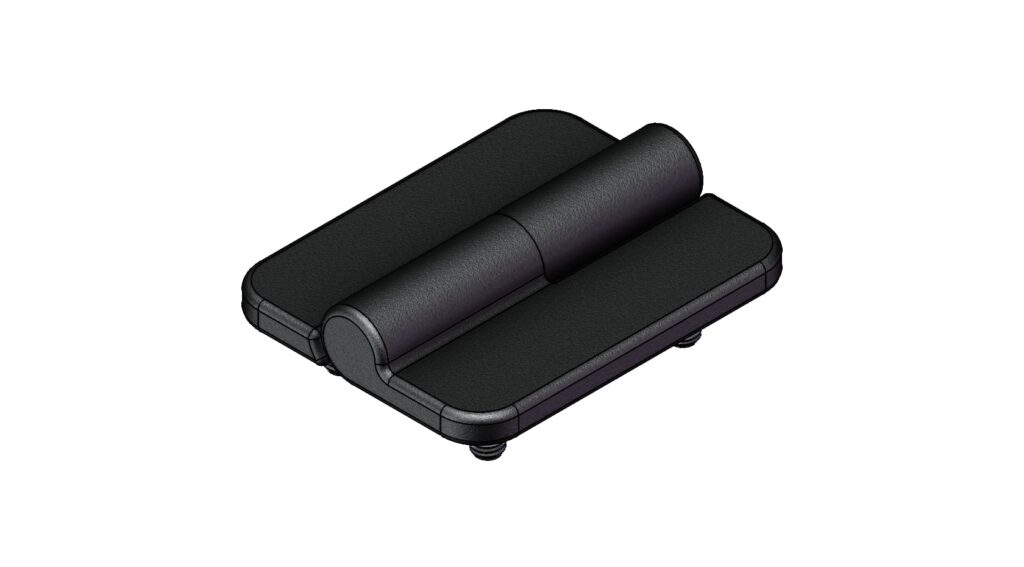

9/04440 Lift-off concealed fix, RH
9/04441 Lift-off concealed fix, LH

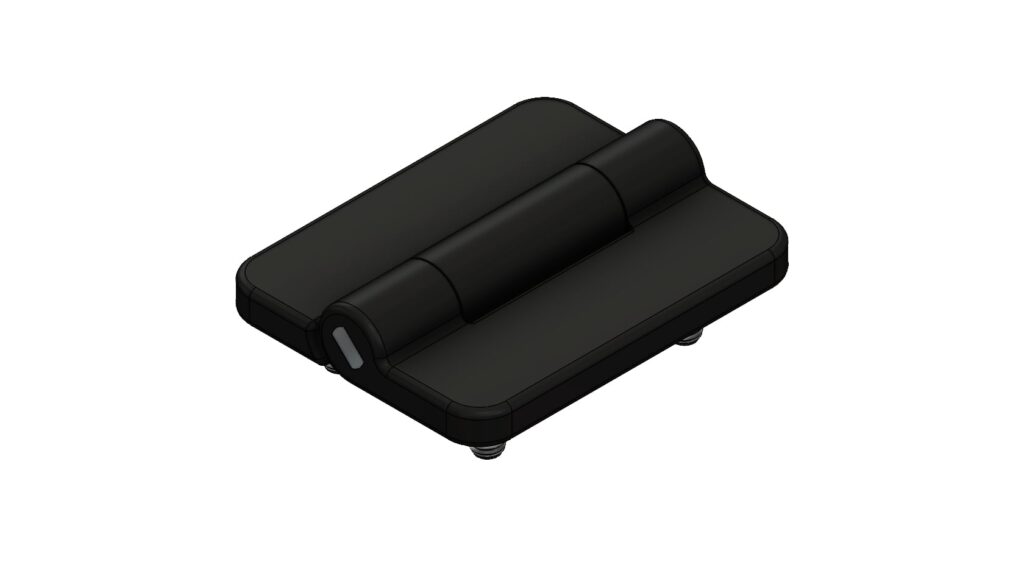

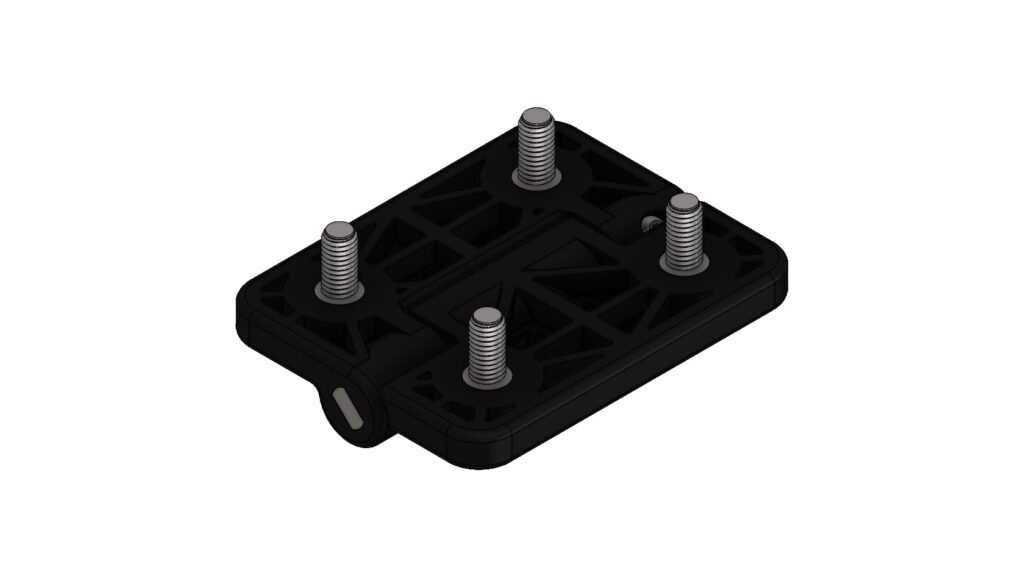

9/04446 Heavy duty, harsh environment, LH
F1-Diagram 03
Explanation of 'handing', two hinges should be fitted to each door

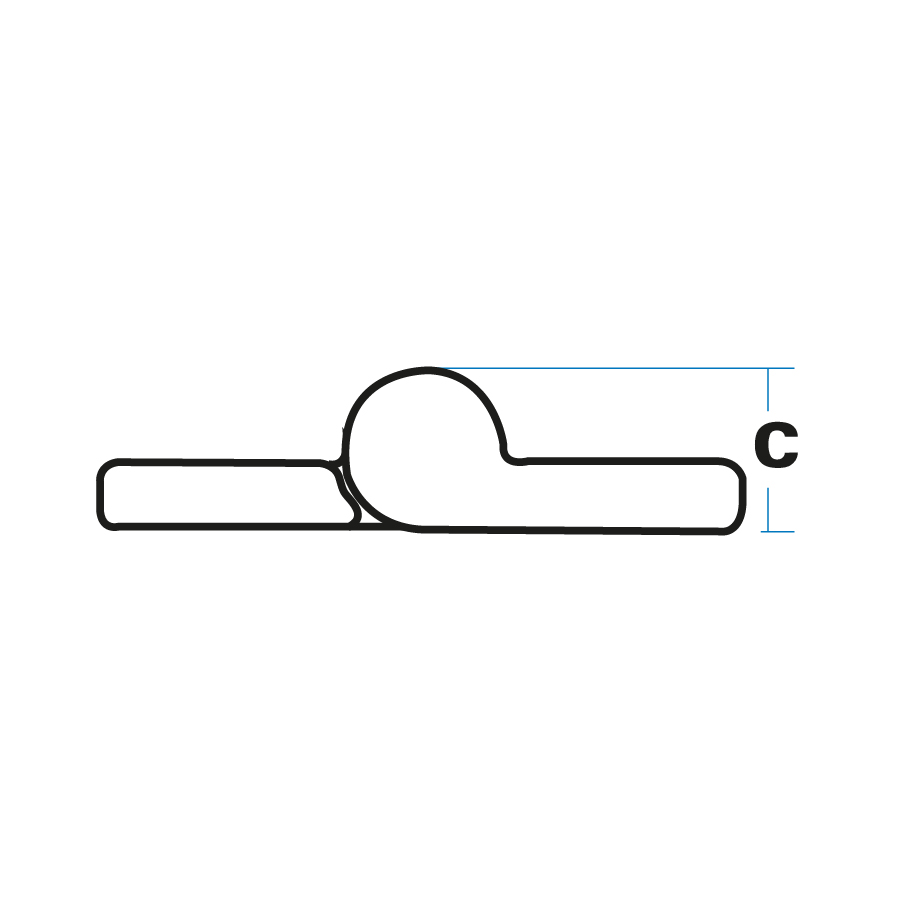

F1-Diagram 02
F1-Diagram 01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 100 mm
B Width (total) 80 mm
C Height (max) 20 mm
D Location, (width) 45 mm
E Location (height) 60 mm
H Hole sizes (dia.) 8.5mm, c/s 18 mm
Leaf thickness 8.5mm, pin diameter 10mm.
  • Moulded for strength and good appearance, large-diameter stainless steel pin for easy assembly, with ‘O’-ring fitted as shown.
  • Door lifts-off from fixed pin in bottom half of hinge. Oppose LH & RH if door is required to be permanently fixed.
  • Hinges open fully forward to 180°, backward to 110° from vertical.
  • Plant-on, and secured through countersunk holes in hinge leaf.
  • Black, self-coloured with fine-textured finish.
  • Moulded in 30% glass-filled, UV-stabilised nylon.
  • Axial loading: 10.87 kN (max advised) Radial loading: 2.42 kN (max advised) Endurance testing; 60,000 cycles (rig-tested to withstand salt/spray & debris injection).
