Lift-Off Moulded Hinges – Smaller Size

Developed as an alternative to our popular diecast ‘torpedo’ hinges, this smart design brings all the advantages of modern materials, yet is more economical and fully interchangeable with the diecast models. Left-hand and right-hand available.

Interchangeable with our diecast ‘torpedo’ hinges.

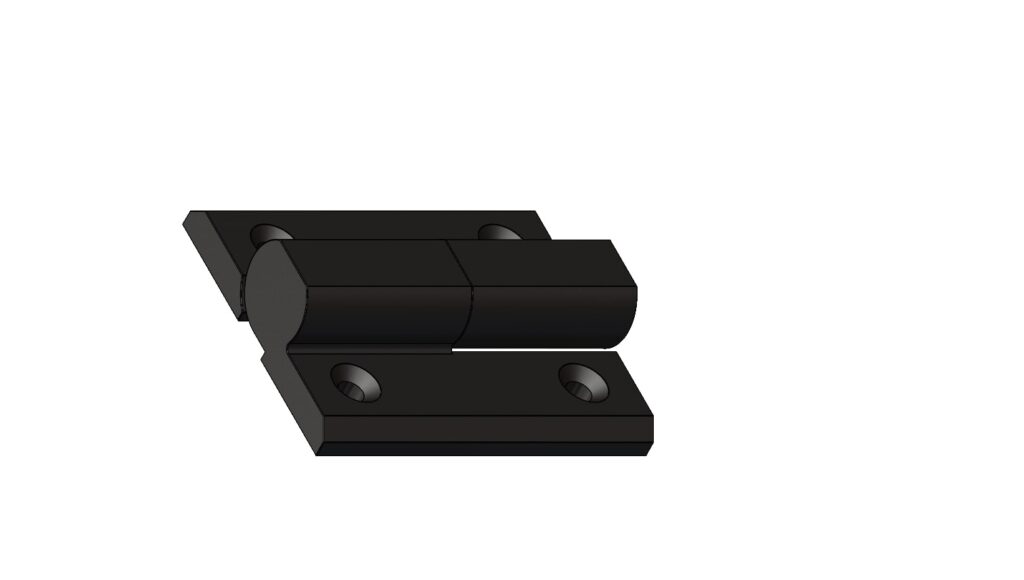

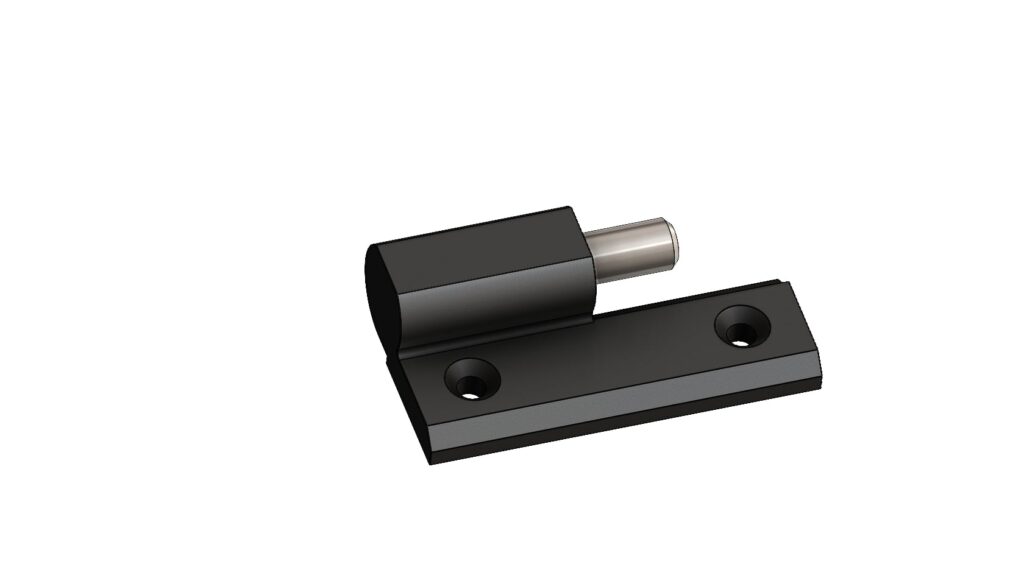

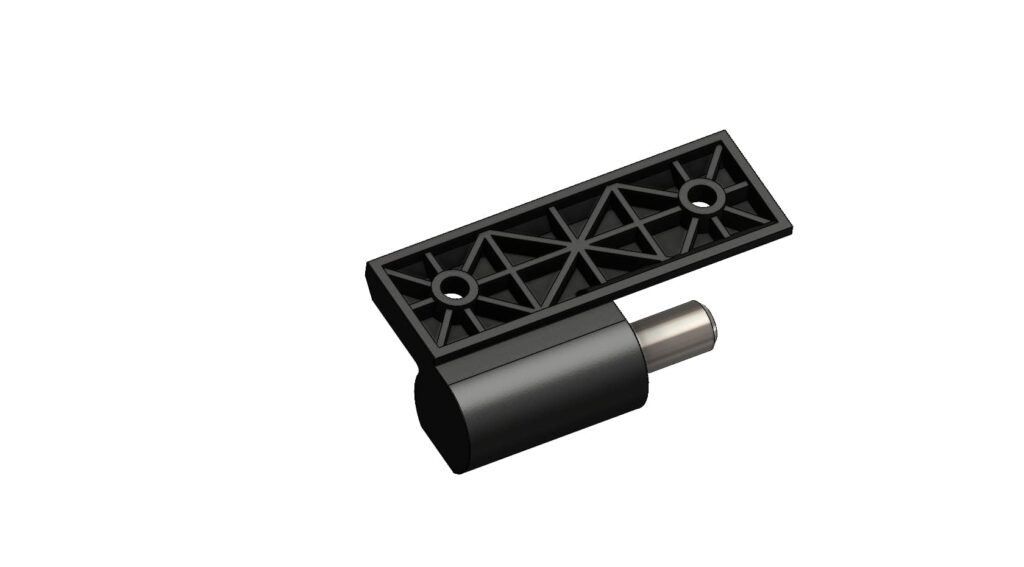

9/01380
9/01380
9/01380
9/01380

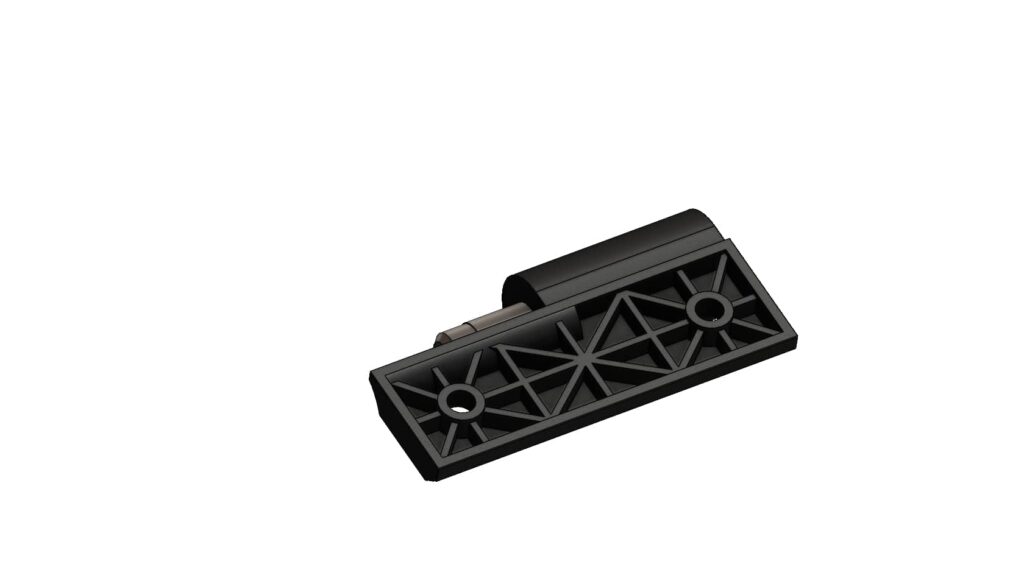

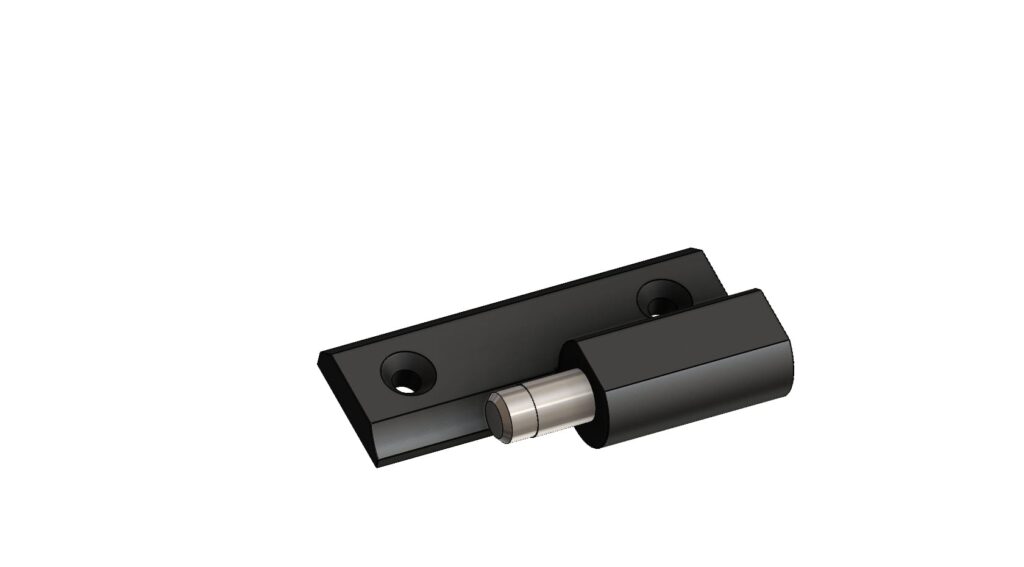

9/01381
9/01381
9/01381
9/01381
9/01380
9/01380

Ordering Code

9/01380 Lift-off moulded hinge, RH
9/01381 Lift-off moulded hinge, LH

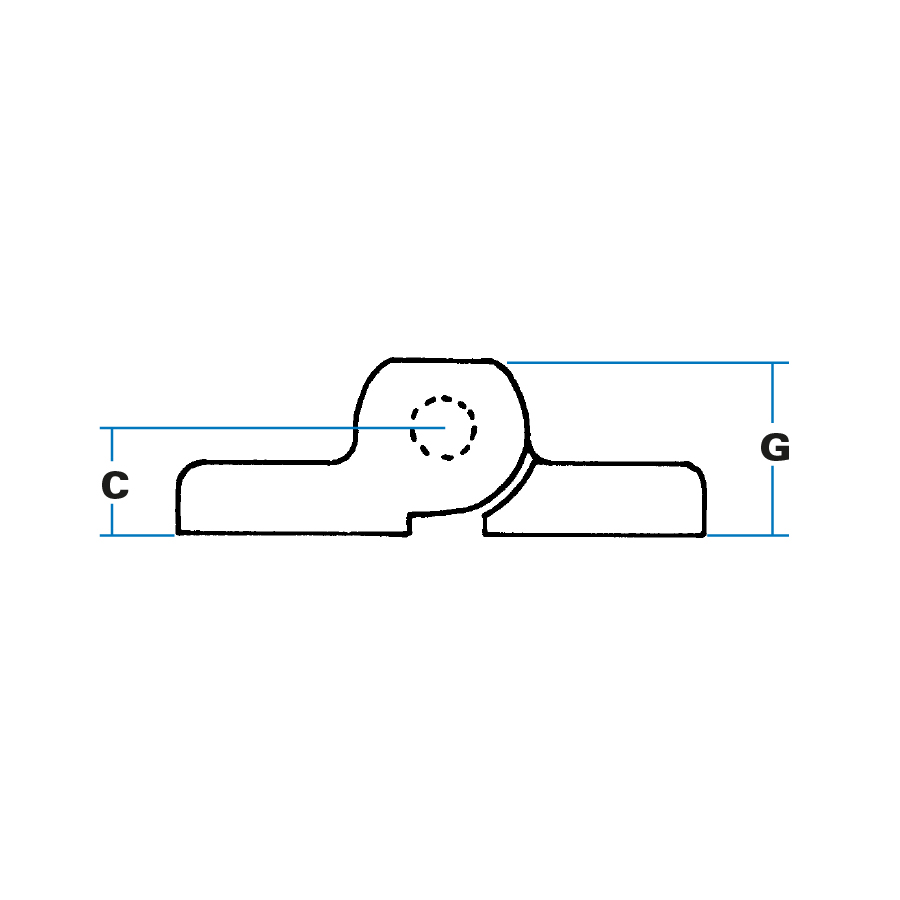

F5-Diagram 02

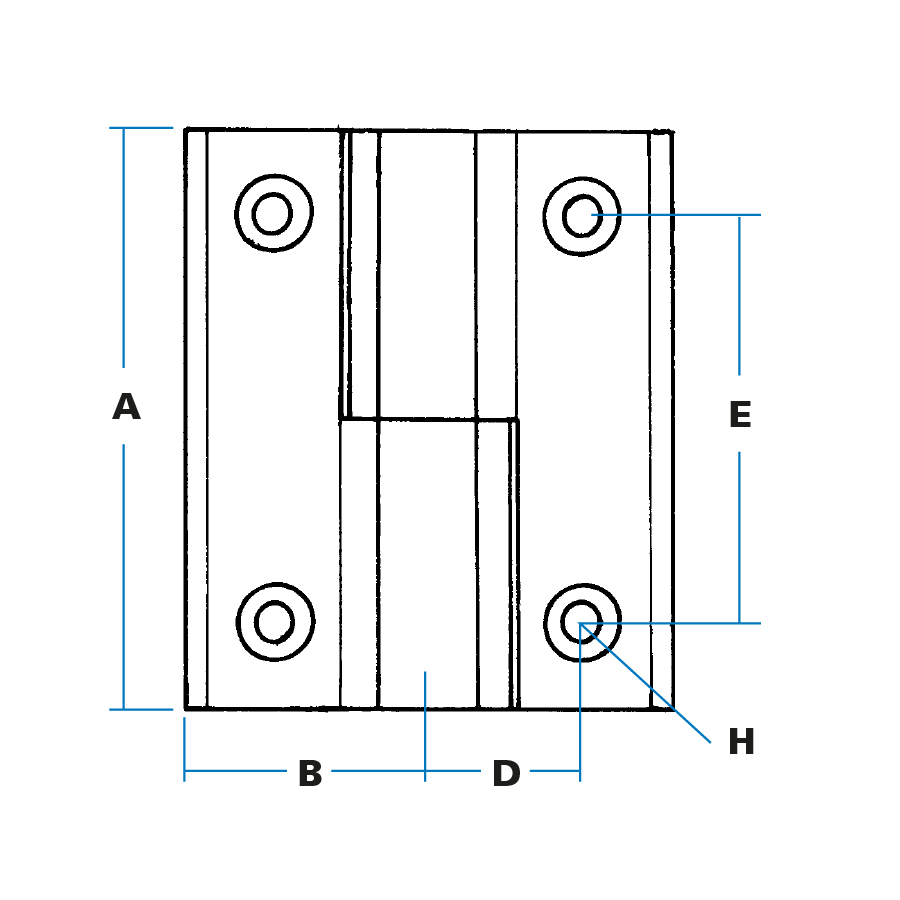

F5-Diagram 01
F5-Diagram 03
Explanation of 'handing', two hinges should be fitted to each door

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 74 mm
B Width (half) 30 mm
C Height to pin 12 mm
D Location to axis 18 mm
E Hole centres 51 mm
G Height 20 mm
H Hole sizes (diameter) 5 mm, c/s 9 mm
Angle of opening – Hinges will open fully forward to 180°, backward to 45° from horizontal.
  • Totally corrosion-resistant, for indoor/outdoor use, textured, self-colour finish, and self-lubricating - will not seize up or bind.
  • Doors lift-off fixed pin in bottom half of hinge. Use LH and RH together (opposed) when door is required to be permanently fixed.
  • Plant-on, and secured through countersunk holes in hinge leaf.
  • Black, with matt textured finish.
  • Hinges moulded in 15% glass-filled nylon, with 10 mm diameter pin in Grade 303 stainless steel, ultrasonically welded into lower half.
  • Moulded
    Axial loading
    Maximum advised: 2.63kN
    Ultimate: 3.95kN.

    Radial loading
    Maximum advised: 0.76kN
    Ultimate: 1.15kN.
