Lift-Off Concealed-Fix Stainless Steel Hinges

In Lift-Off Concealed-Fix Stainless Steel Hinges fixing holes are omitted and are replaced with welded-on M8 threaded studs. This provides an attractive, smooth, and tamper-proof visible surface, in either mirror-polished stainless steel or mild steel, black powder-coated. Left-hand and right-hand available.
9/01444
9/01444
9/01444
9/01444
9/01445
9/01445
9/01445
9/01445

Ordering Code

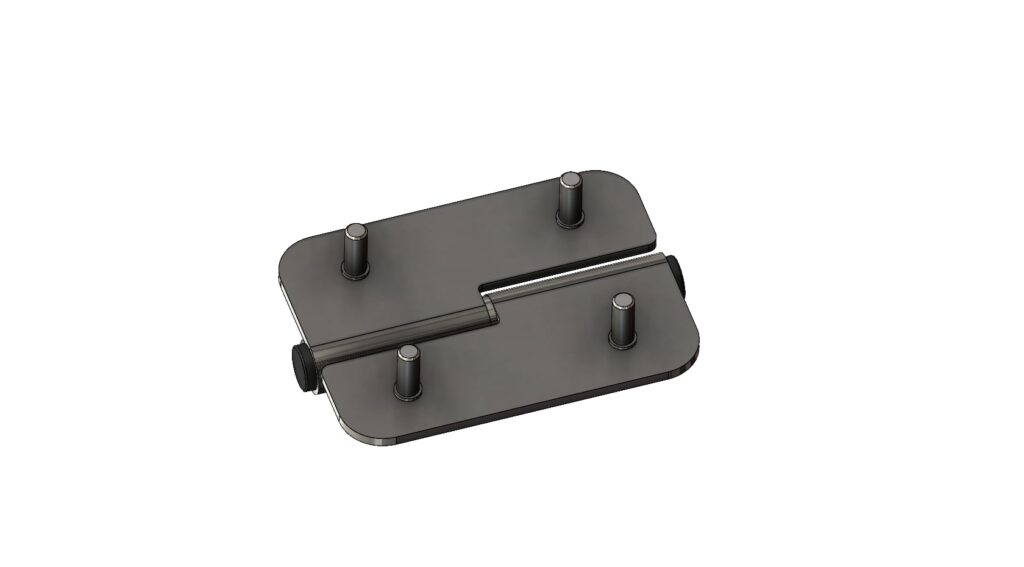

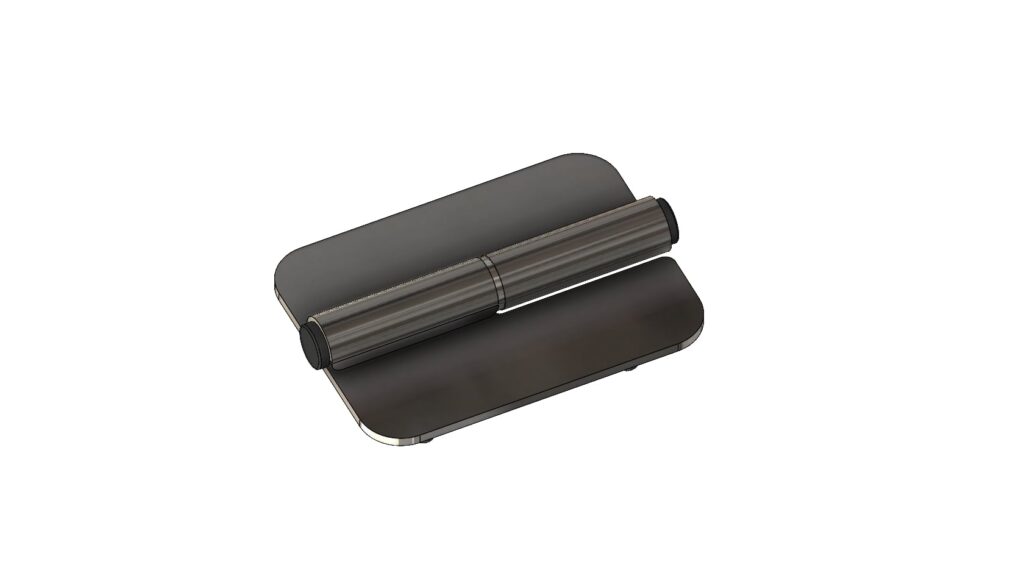

9/01444 Stainless concealed hinge, RH

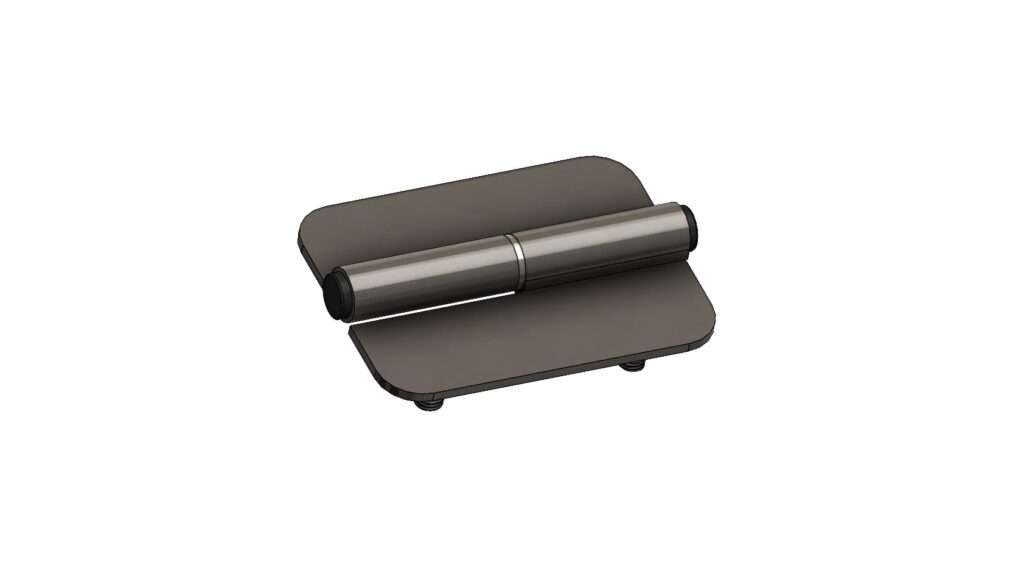

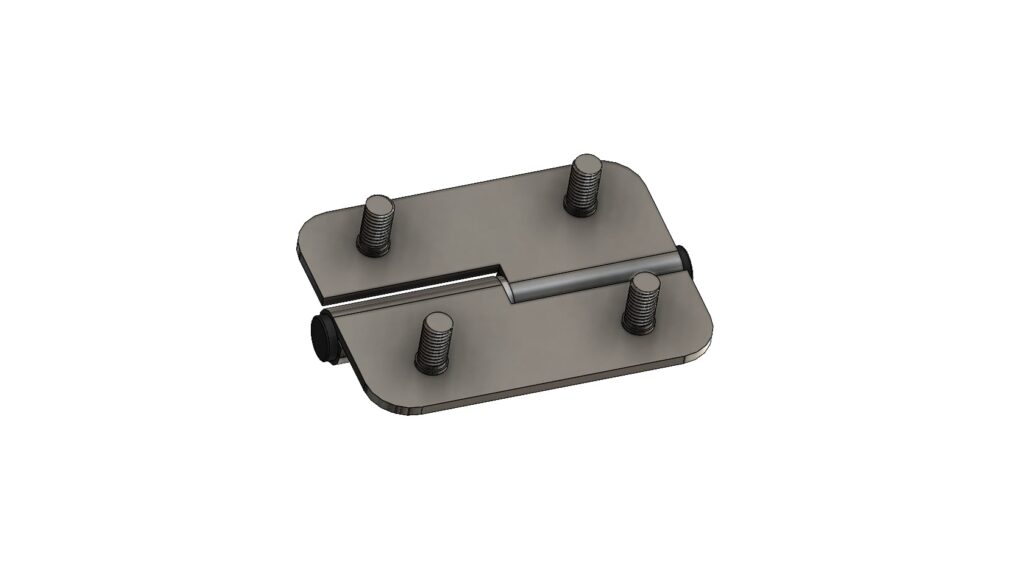

9/01445 Stainless concealed hinge, LH
F2-Diagram-01
Right hand illustrated
F2-Diagram-02
F2-Diagram-03

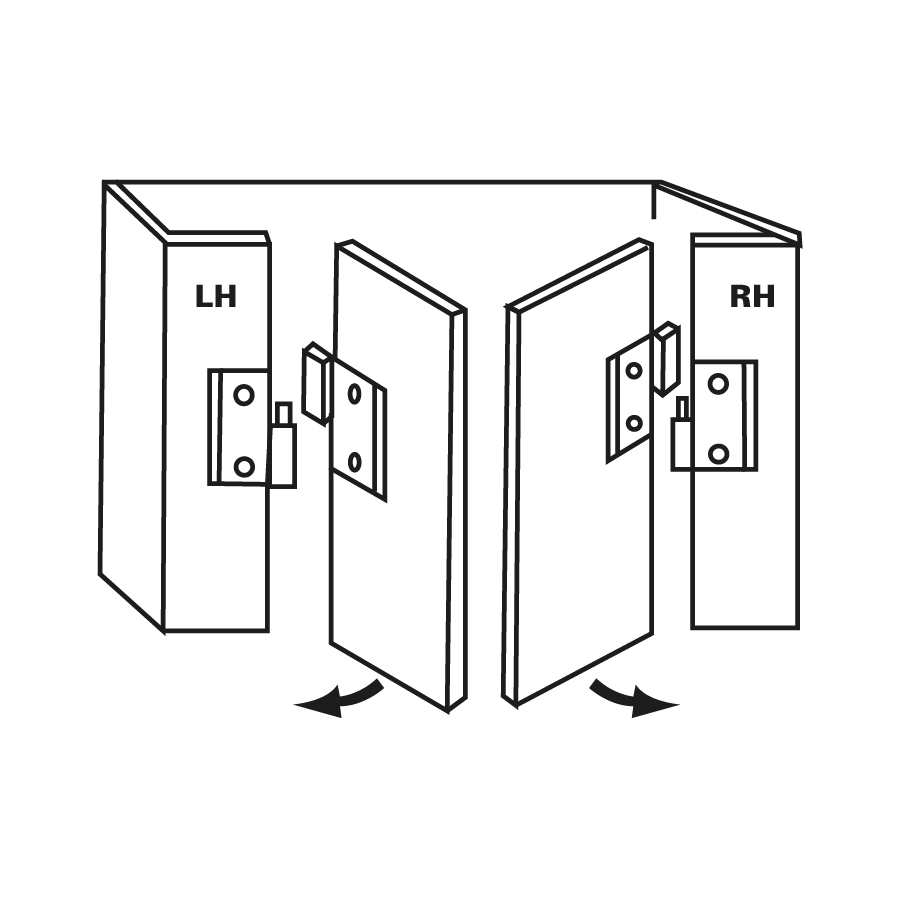

Explanation of 'handing' two hinges should be fitted to each door

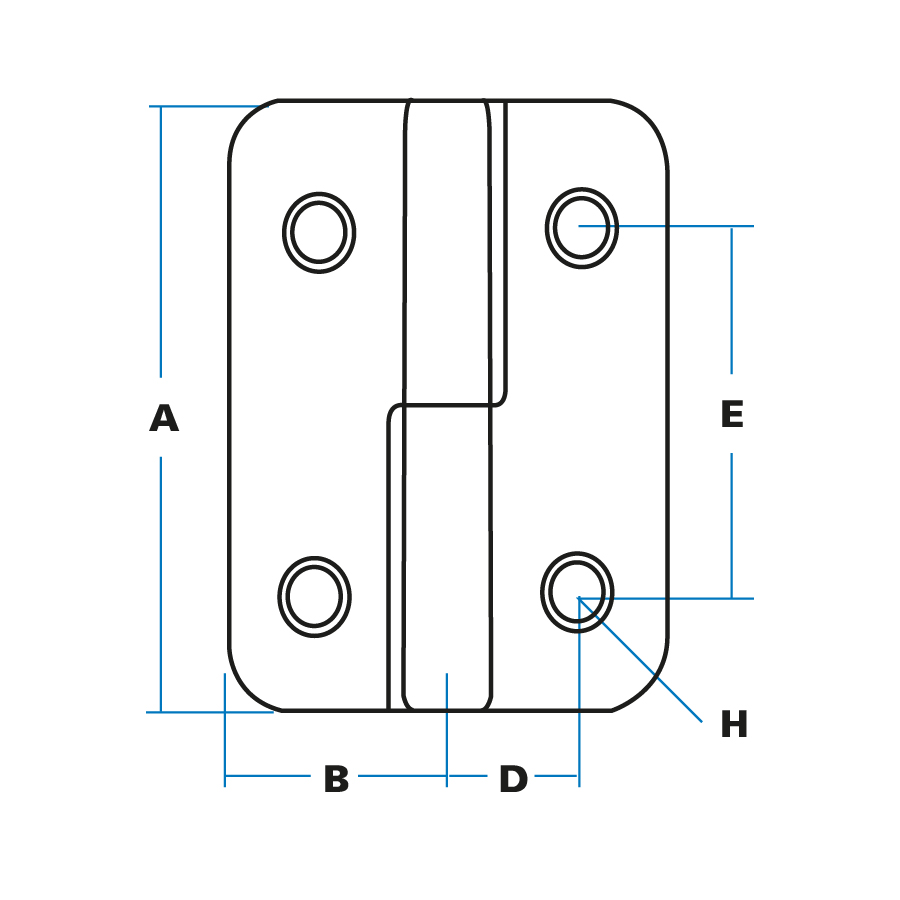

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 100 mm
B Width (half) 37 mm

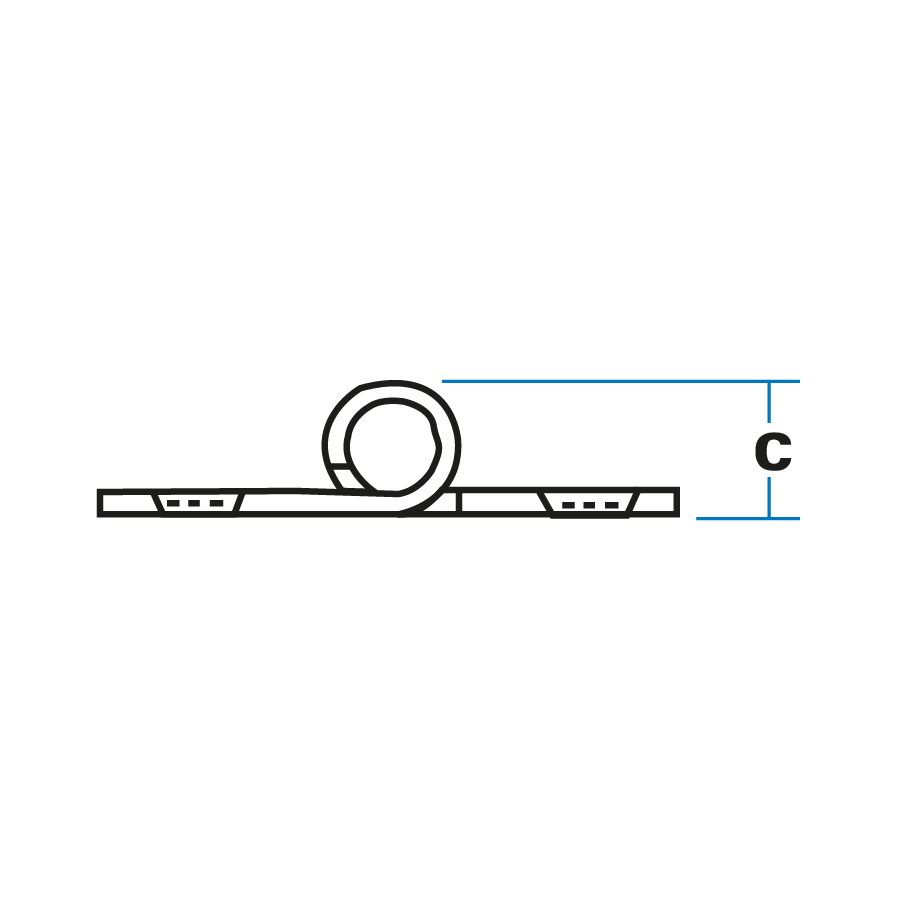

C Height 15 mm
D Location to axis 22.5 mm
E Hole centres 60 mm
H Hole sizes (diameter) 10 mm, c/s 15 mm
Material thickness – 3 mm, pin diameter 10 mm Angle of opening – Hinges will open fully forward to 180°, backward to 90° from horizontal
  • Excellent surface finish, 3 mm material thickness and large-diameter stainless pin or easy assembly.
  • Fixing by two threaded studs, 15mm x M8 on each leaf.
  • Stainless models
    Axial loading
    Maximum advised: 8.00kN
    Ultimate: 12.10kN.

    Radial loading
    Maximum advised: 4.10kN
    Ultimate: 6.10kN.
  • Mild Steel models
    Axial loading
    Maximum advised: 14.60kN
    Ultimate: 22.00kN.

    Radial loading
    Maximum advised: 3.70kN
    Ultimate: 5.60kN.
