Lever ‘L’ Handles With Surface Mounting

Good-looking handles with rectangular, surface-mounted escutcheons for either open- or concealed-fixing. Lock cylinders are “shuttered” for weather-resistance and there is choice of 38 mm (1.5 inch) or 44 mm (1.75 inch) hole centres
9/00183
9/00183
9/00183
9/00183
9/00173/01
9/00173/01
9/00173/01
9/00173/01
9/00173
9/00173
9/00173
9/00173
9/00170
9/00170
9/00170
9/00170
9/00167/01
9/00167/01
9/00167/01
9/00167/01
9/00167
9/00167
9/00167
9/00167

Ordering Code

With 38 mm open-fixing

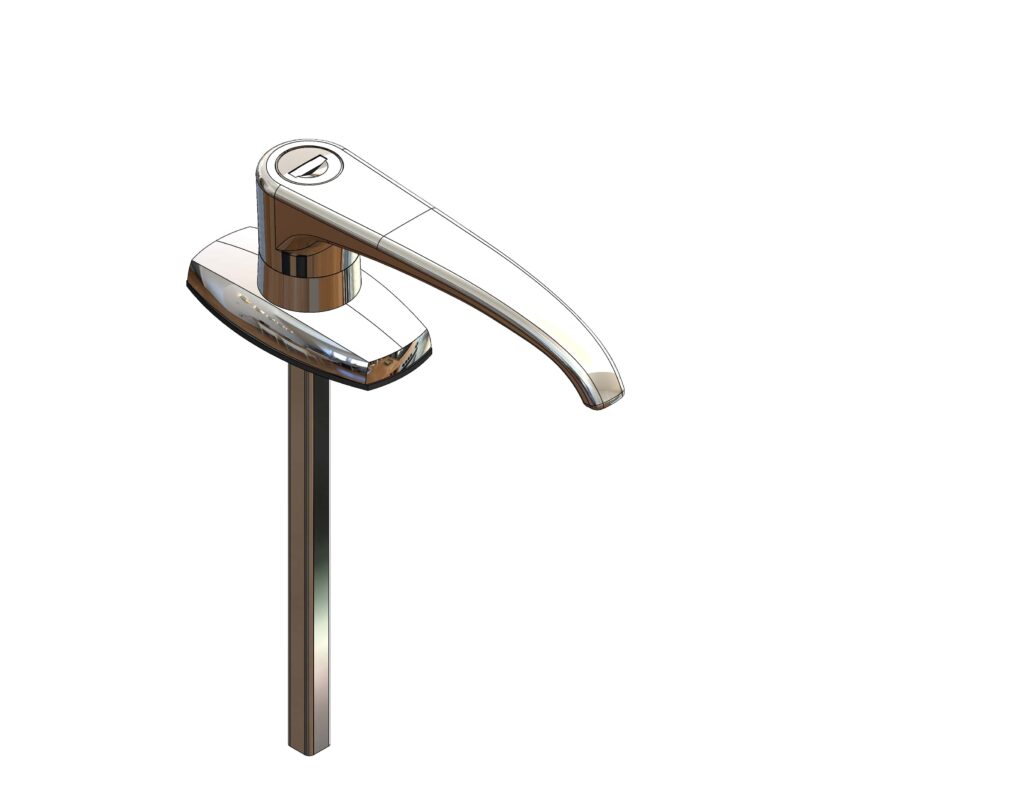

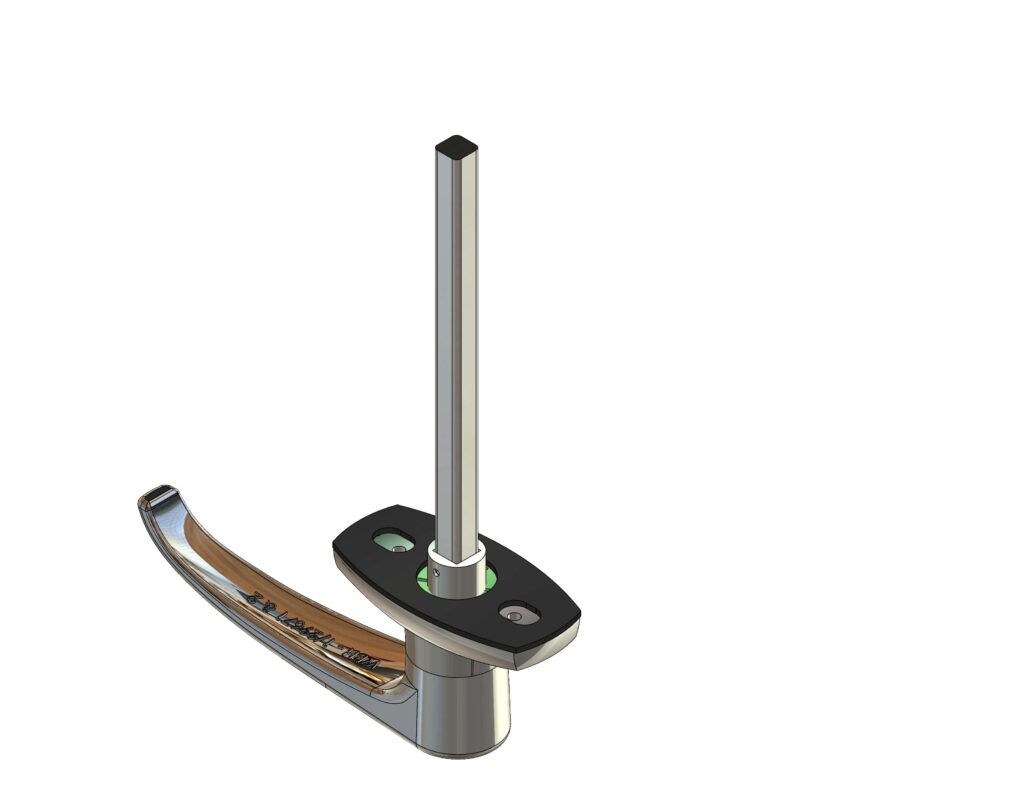

9/00167 Lever ‘L’, locking, chrome
9/00167/01 As above, FS 880 keys

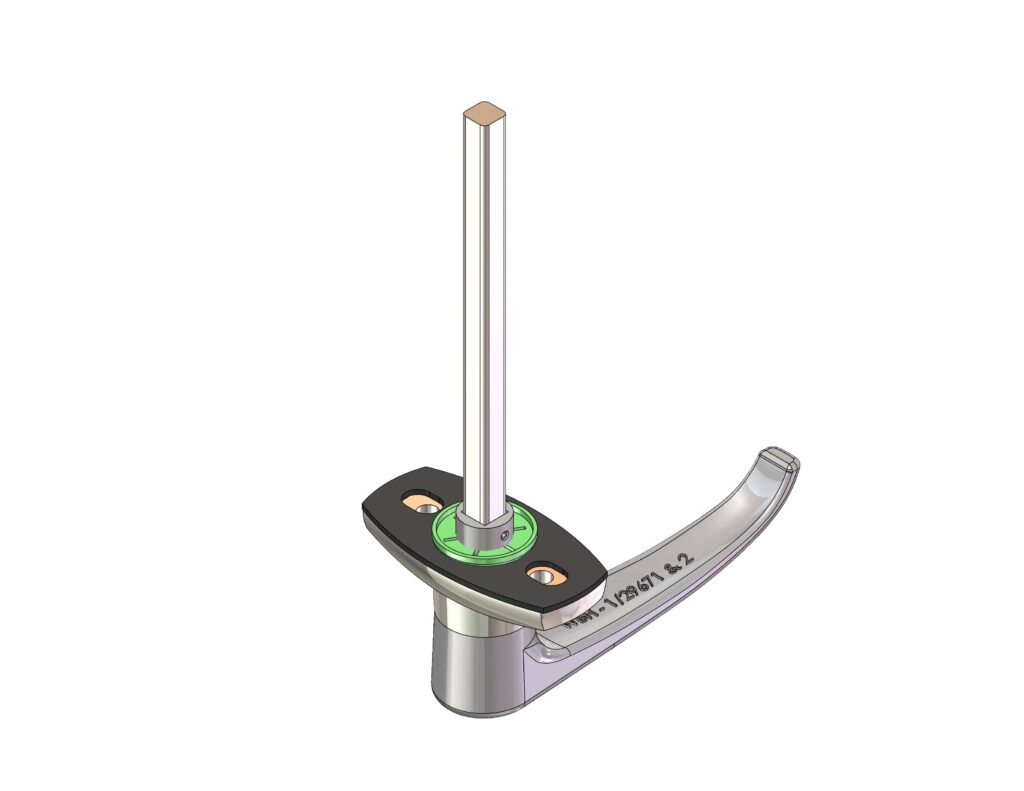

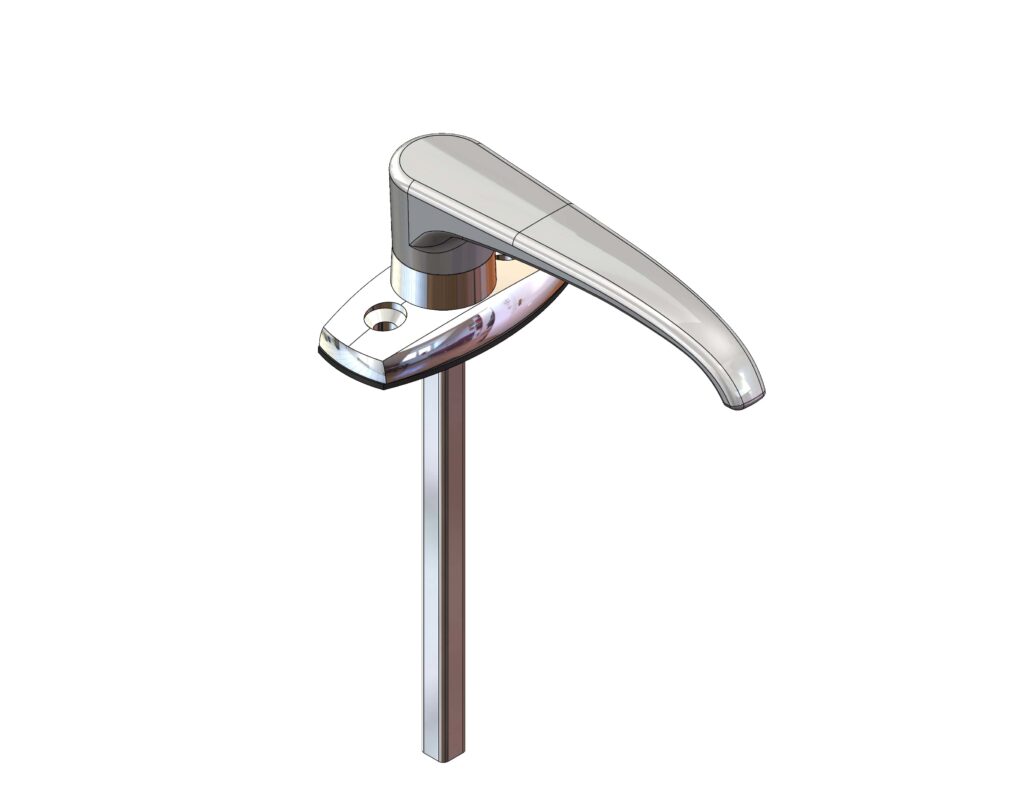

9/00170 Lever ‘L’, non-locking, chrome

With 44 mm open-fixing

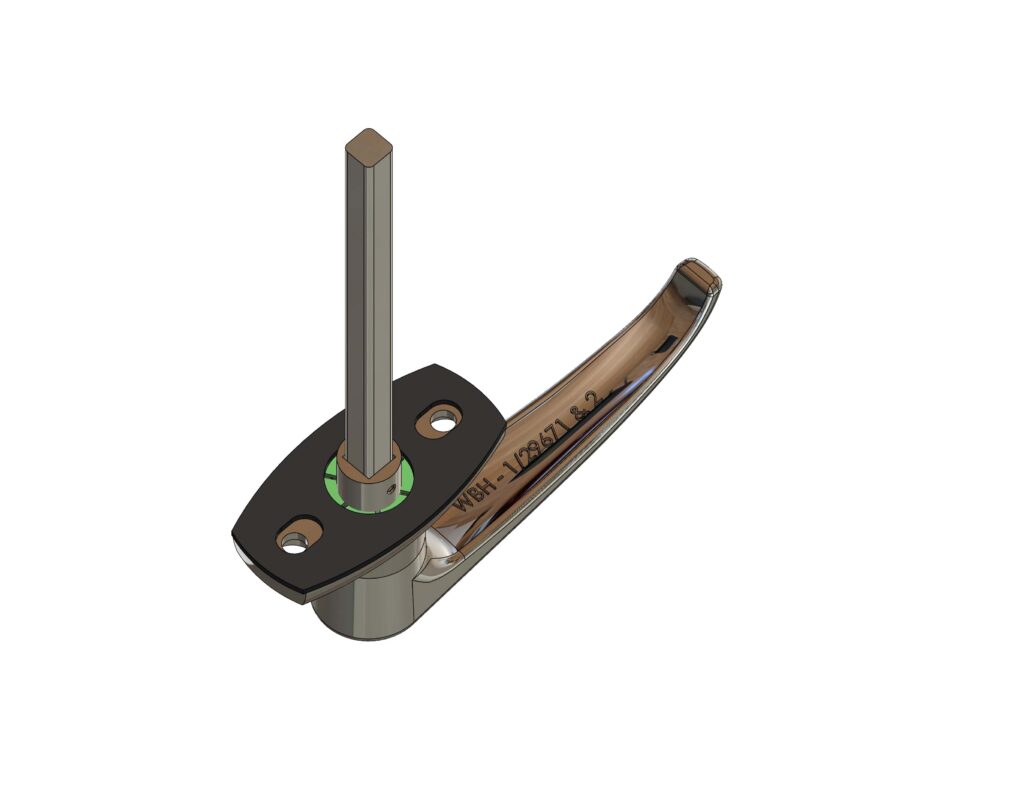

9/00173 Lever ‘L’, locking, chrome

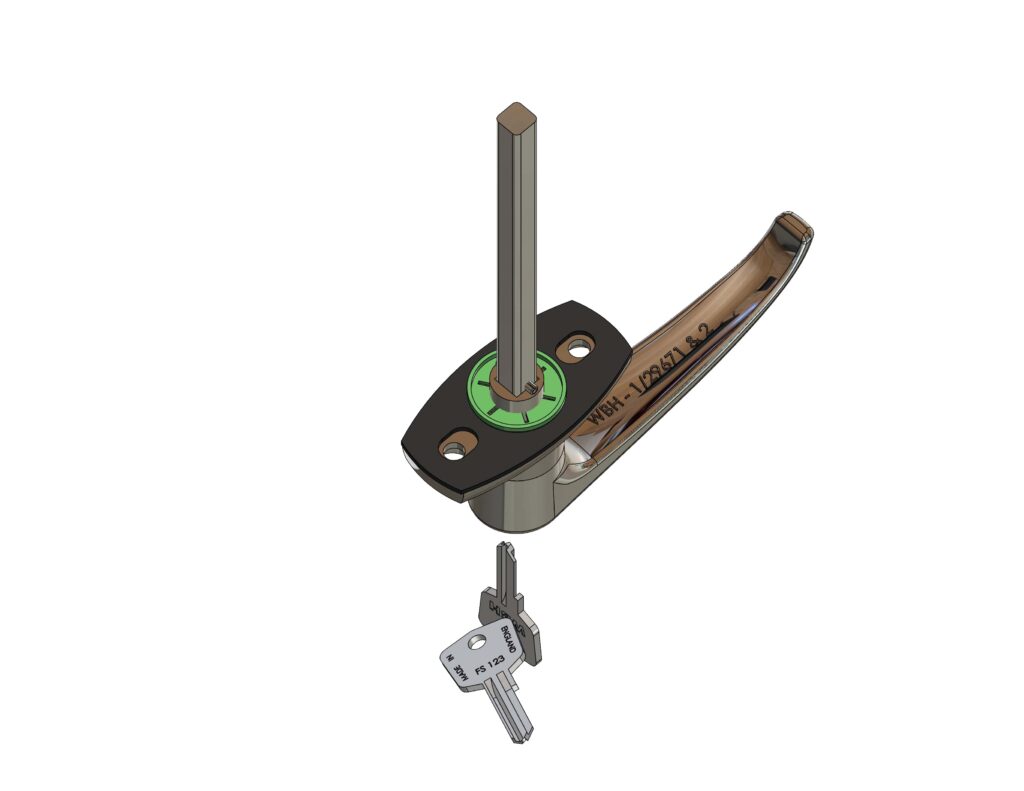

9/00173/01 As above, FS 880

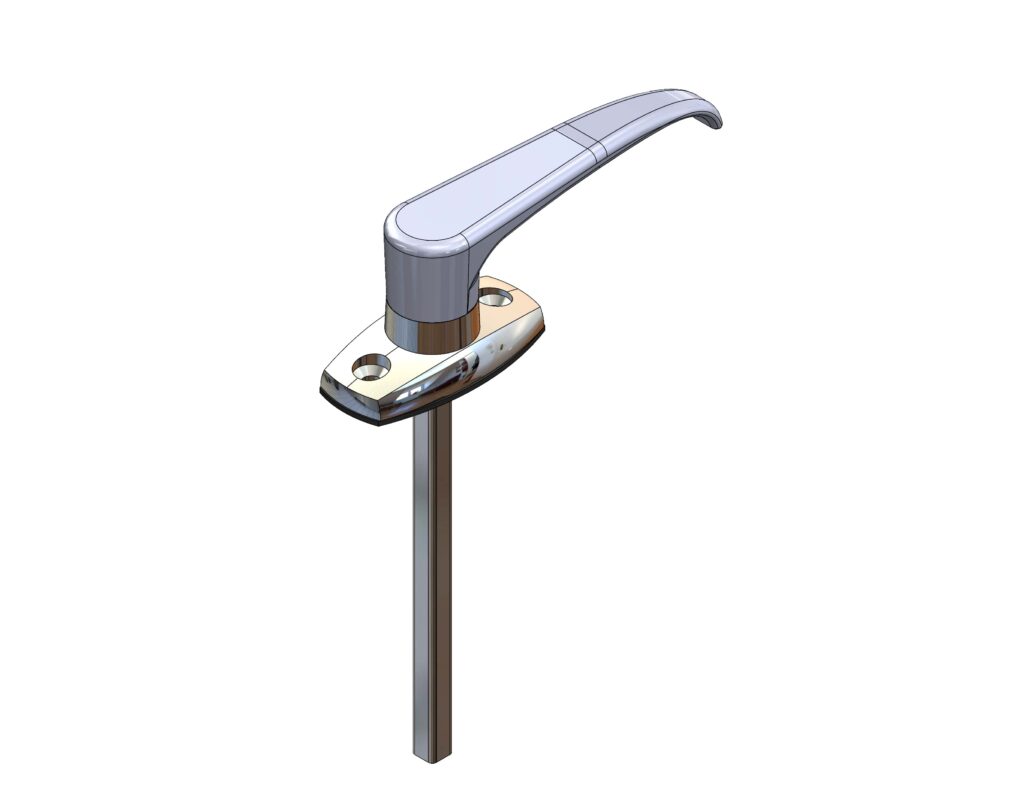

9/00183 Lever ‘L’, non-locking, chrome
B5-Diagram 01
B5-Diagram 02
B5-Diagram 03

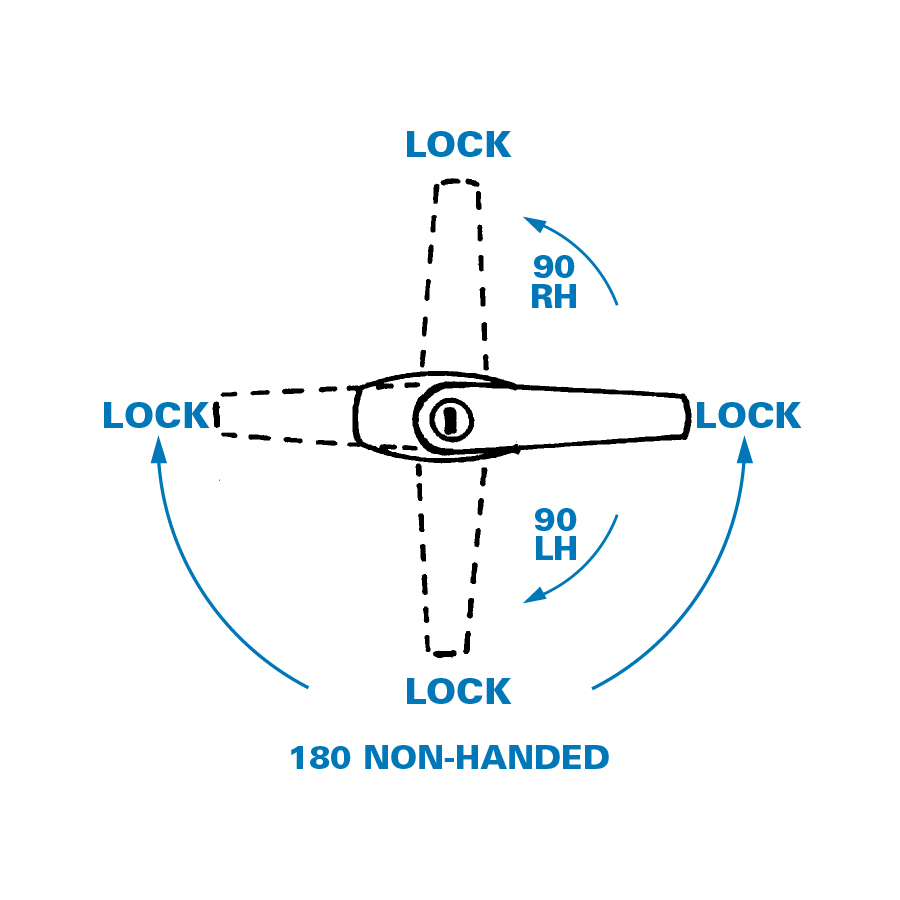

Handles operate through 180° as standard (non-handed). To special order, rotation can be limited to 90° LH (clockwise) or 90° RH (anticlockwise). Handles will lock at each 90°position.

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Handle length 115 mm
B Mounting width 33 mm
C Face height 42 mm
D Depth of handle boss 10 mm
E Shaft length 125 mm
F Diameter of boss 14 mm
G Hole centres 38/44 mm
H Hole sizes (open) dia. 5 mm, c/s 9 mm
  • 180° as standard, rotation can be limited to 90°, LH/RH, or 360° free-movement.
  • Fix through countersunk holes, use screws provided (M4 x 8 mm) to secure from beneath. Neoprene gasket provided.
  • ‘FS’ keys as standard with ‘shuttered’ keyway optionally ‘FT’ or ‘DLP’ key types.
  • Chromium plated or black powder coated.
  • - Shaft lengths
    - Threaded shafts (M10)
    - Special key numbers/sets
    - 90° LH/RH rotation
    - Spring-return, LH/RH
  • Use with latching cams, slam latches or rod systems.
