Large Budget Latches

With exceptionally strong construction, this model suits heavy applications and where a stronger, more substantial bolt is required to resist abuse. Uses include large storage containers, bus engine and luggage compartments.

Ordering Code

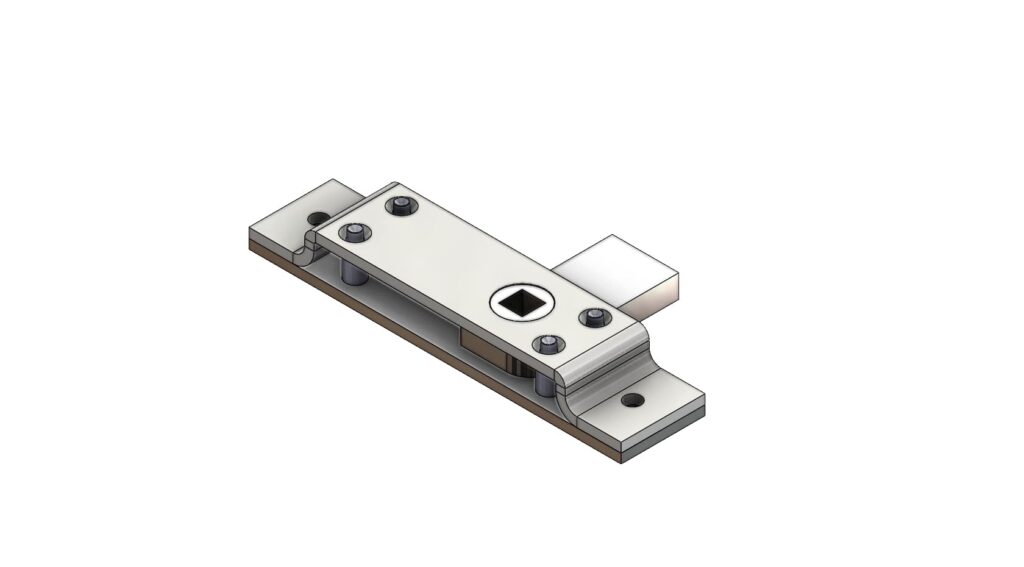

9/00755	Large budget latch, LH

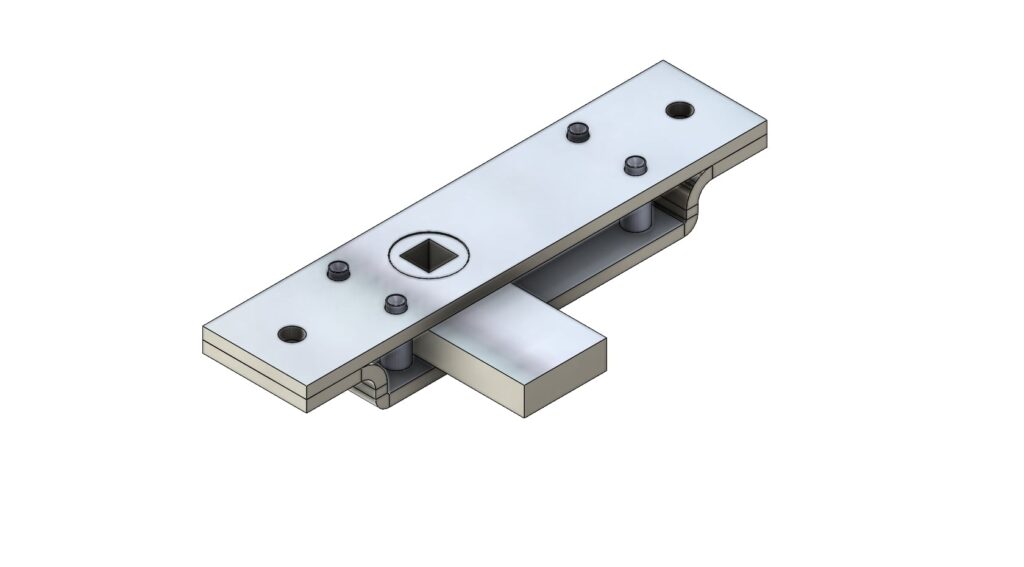

9/00756	Large budget latch, RH

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Hole Centres	108 mm
B	Bolt Height	25 mm
C	Case Width	28 mm
D	Location	48 mm
E	Case Length	127 mm
F	Case Depth	15 mm
G	Location	22 mm
H	Hole Sizes (Diameter)	Ø 5 mm

Very substantially constructed with 3mm steel plates for full length of latch, four steel pillar rivets to prevent ‘bowing’ and distortion, and forged 8 mm brass bolt.
‘Handed’ for 90° operation, LH/RH as shown operated by standard 8mm square follow bush.
Fixing through 5mm holes. These can be enlarged or countersunk to special order.
Zinc-plated, with chemically-blackened spring.
