Key-Operated Compression Locks

A lock design, intended for use with gasketed doors, which provides 6mm of compression to make a firm seal.

It is water-resistant, fully adjustable, and is mounted within an industry-standard 4-sided panel aperture. Straight latch asstandard, with a full range of other bars available.
Download Our Section A Catalogue
9/02300
9/02300
9/02300
9/02300

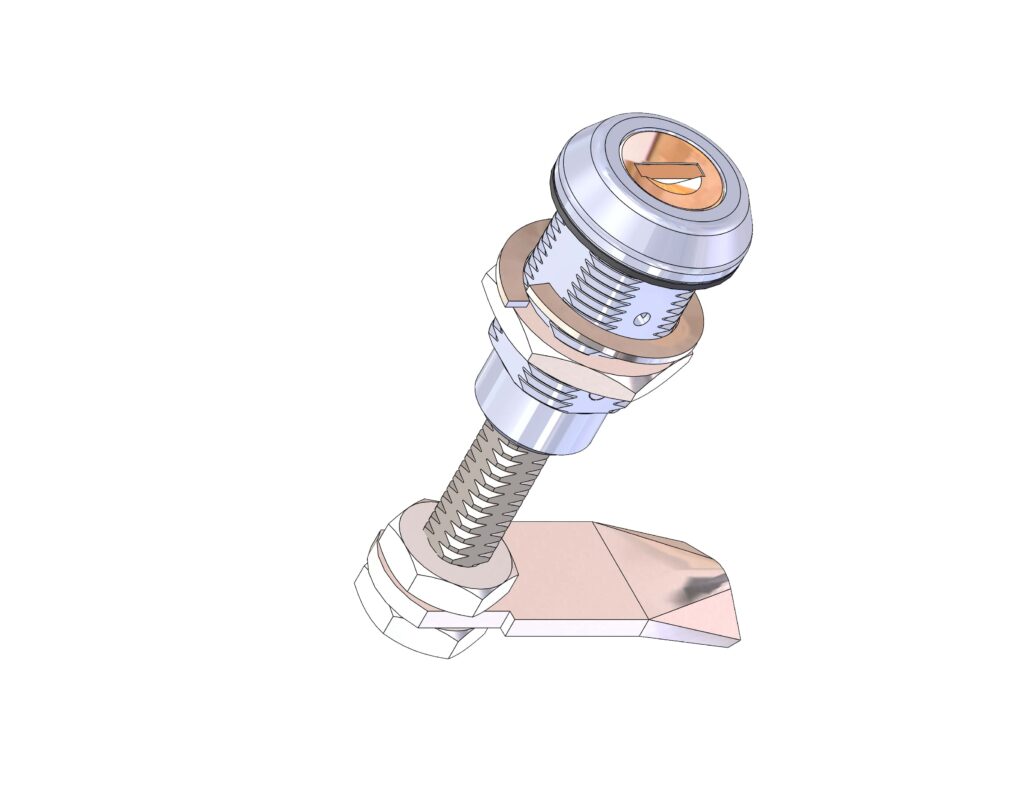

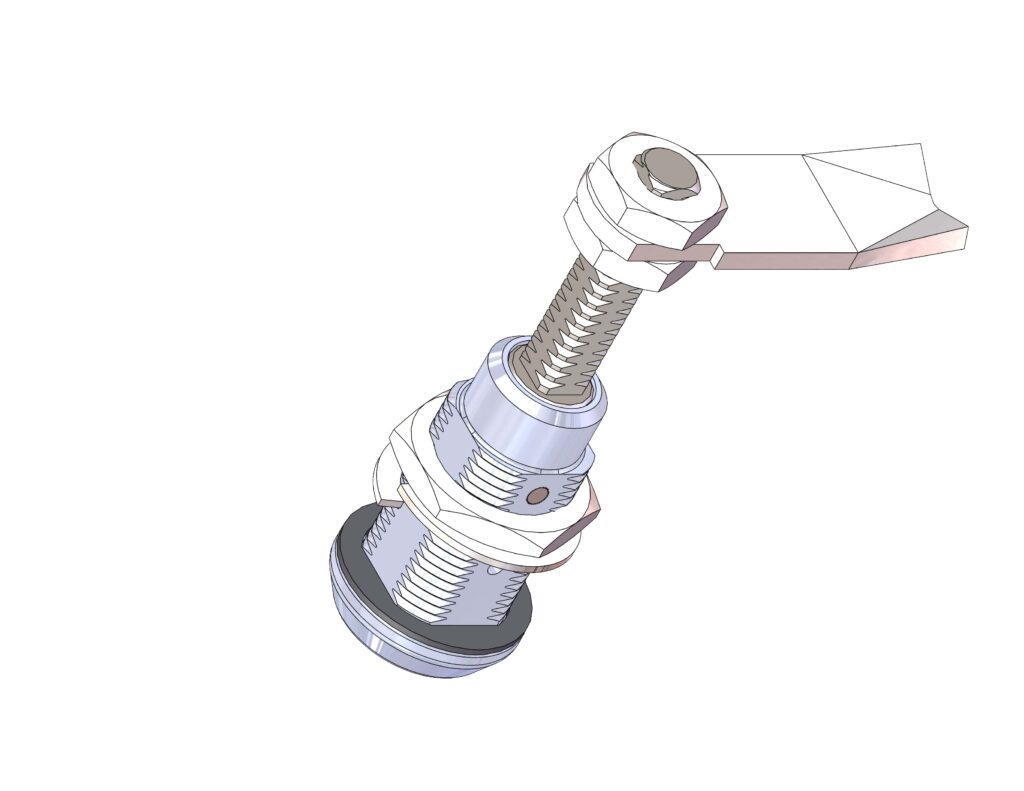

9/02300/01
9/02300/01
9/02300/01
9/02300/01
9/02300B
9/02300B
9/02300B
9/02300B
9/02300B/01
9/02300B/01
9/02300B/01
9/02300B/01

Ordering Code

9/02300 Compression lock, chrome
9/02300/01 as above, FT111
9/02300B/01 as above, FT111
A1-Diagram 01-100
A1-Diagram 02-100
A1-Diagram 03-100
A1-Diagram 04-100
Alternative latch bars allow dimension D1 to be reduced to 14mm Click here for available options

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Head Diameter 29 mm
B Total Depth (locked) 70 mm
C Head projection 8 mm
D1 Depth to latch (min) 44 mm
D2 Depth to latch (max) 55 mm
E Body depth 40 mm
F Engagement 47.6 mm
G Body across flats (square) 18.8 mm
H Body diameter 22 mm
I “Take-up” Depth 6 mm
  • Very positive engagement,
    water-resistant and adjustable.
  • Key brings latch bar into ‘closed’ position, then draws-up bar by 6mm against seal.
  • Key turns clockwise through 90 degrees to operate latch, then through a further quarter-turn to compress against door-edge or striker. Latch bar is adjustable through 11mm.
  • Fix through industry-standard 4-sided aperture with brass nut & stainless spring-washer on threaded body, and neoprene gasket. Latch-bar secured by nut and locknut on threaded spigot.
  • ‘FT’ keys with shuttered keyway as standard.
  • Chromium-plate as standard, optionally black powder-coated. Zinc alloy (body) & steel (latch bar).
  • Alternative latch bars. Special key numbers.
  • WBH design covered by UK Patent Application 0224237.8.
