Hooked Budget Latches

These models have a shaped ‘hooked’ bolt which engages with a pin to hold two panels together laterally. The shape of the hook and string spring provide very positive engagement.

Ordering Code

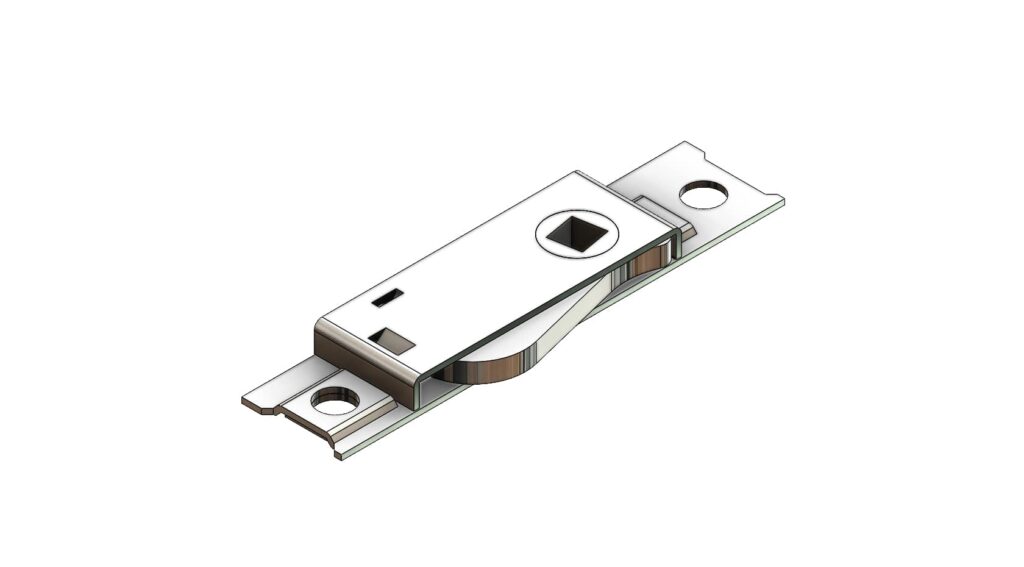

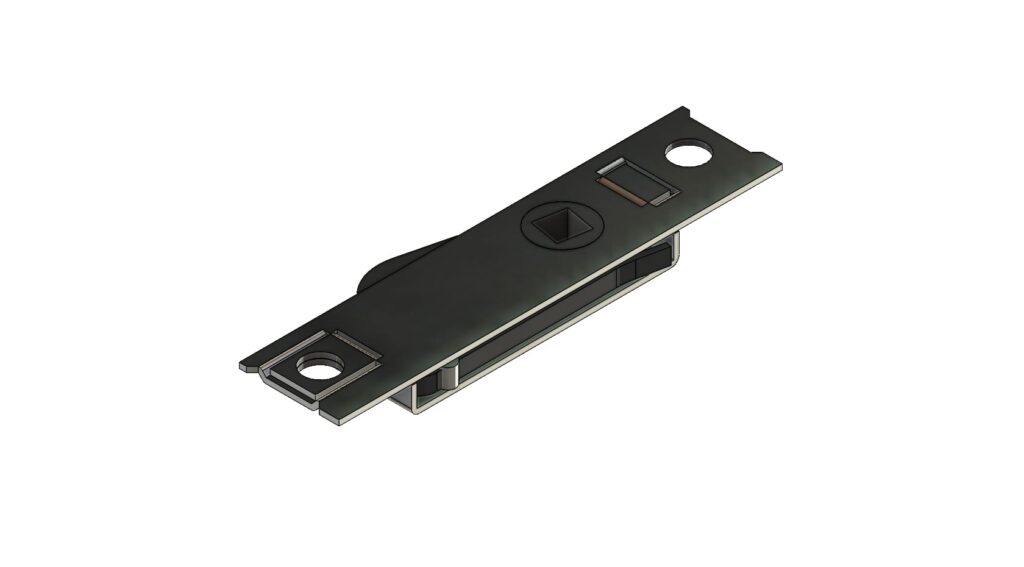

3/16200	Hooked budget latch, LH

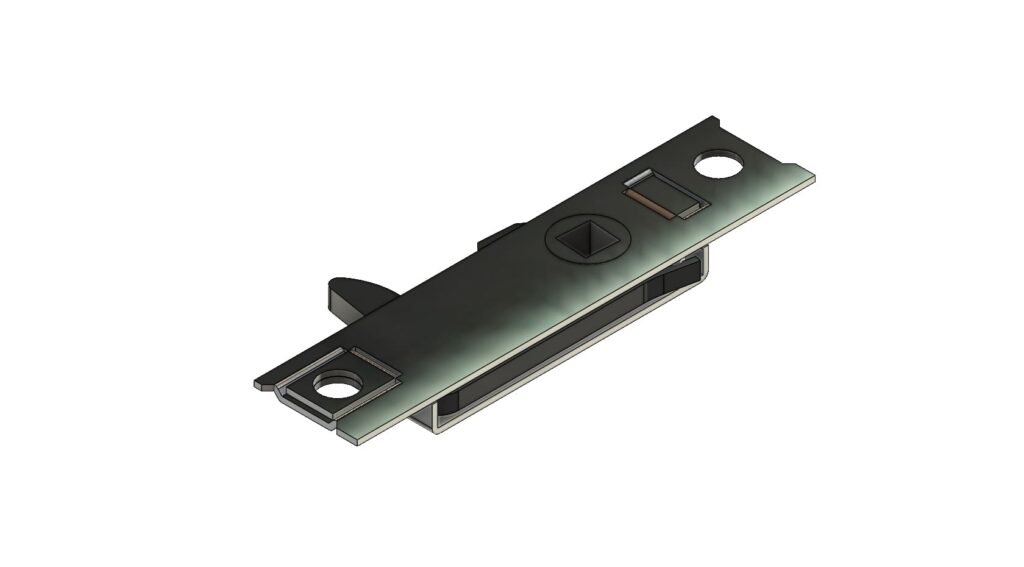

3/16201	Hooked budget latch, RH

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A	Hole Centres	93 mm
B	Engagement	24 mm
C	Case Width	25 mm
D	Location	42 mm
E	Case Length	112 mm
F	Max. Height	8 mm
G	Min. Projection	13 mm
H	Hole Sizes	9 mm

‘Handed’ for 90° operation, LH/RH as shown, with deadbolt held positively in both ‘open’ and ‘shut’ positions by fitted spring. Note that tip of bolt will project from case when bolt is withdrawn.
Plant-on fixing through 9mm holes. Note that top and bottom plates are mechanically interleaved for maximum strength.
Normal finish is zinc plated.
