‘Handed’ Budget Latches

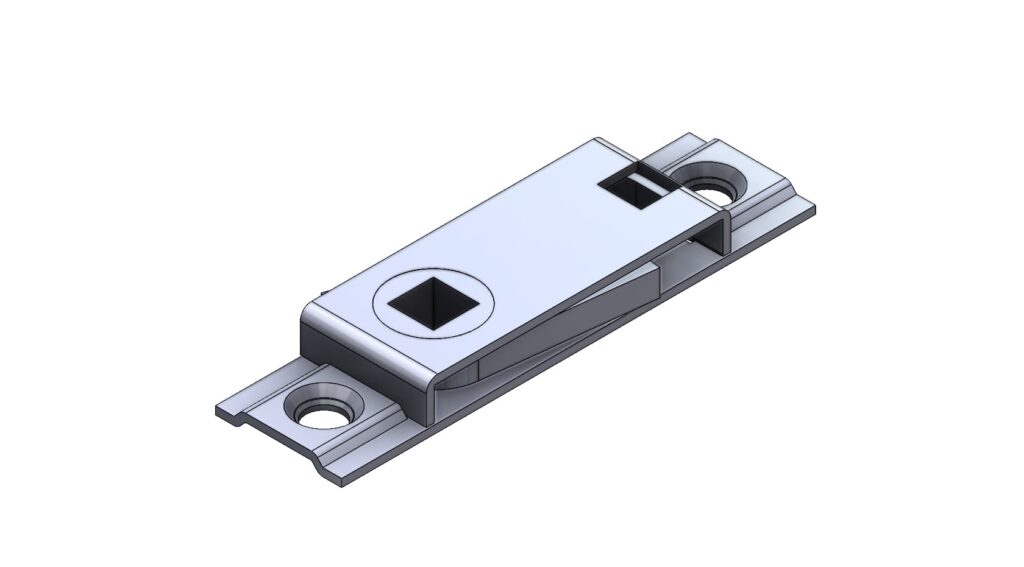

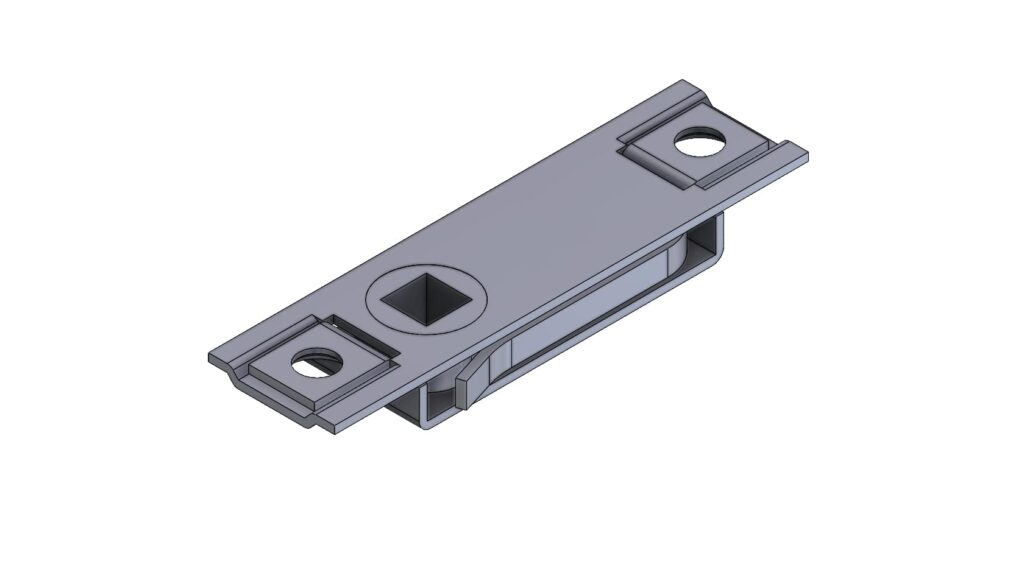

Cleverly designed so that top and bottom plates are mechanically interleaved for maximum strength, these latches have an exterior spring and are ‘handed’ as shown. Fixing holes on standard models are countersunk after plating but versions are available with plain 5mm holes.
3/10510
3/10510
3/10510
3/10510

Ordering Code

3/10510 Budget latch, LH
3/10511 Budget latch, RH
9/00749 Striker plate
D3-Diagram 01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Hole Centres 66 mm
B Bolt Height 18 mm
C Case Width 22 mm
D Location 28 mm
E Case Length 83 mm
F Thickness 10 mm
H Hole Sizes, (diameter) 6 mm, c/s 10 mm
  • Simple ‘deadbolt’ latch operated by 8mm square follow-bush.
  • Bolt travels 90° only, LH or RH as shown, and is positively held in both ‘open’ and ‘shut’ position by fitted sping.
  • Bolts or rivets through fixing holes.
  • Latches and striker plate are zinc-plated throughout.
