Foamed Steel-Cored ‘Hand-Hold’ – 150mm

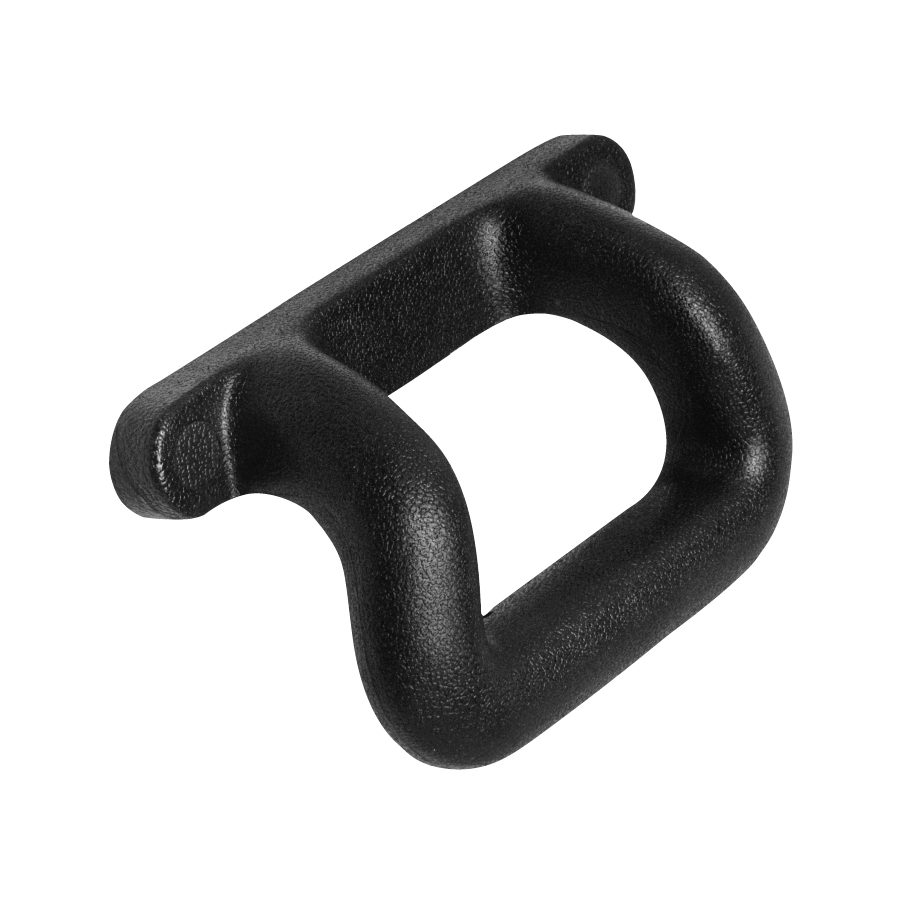

This unique design complements our range of larger "foamed" grab rails, but is suited to more restricted spaces. It makes an ideal alternative to traditional "6- inch" pulls, with textured, resilient surface, great strength, and a shape that lends itself to fixing in several modes as illustrated.
G3-Product 01
G3-Product 01

Ordering Code

9/01228 Hand-hold, black
G3-Diagram 01
G3-Diagram 02
G3-Diagram 03

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

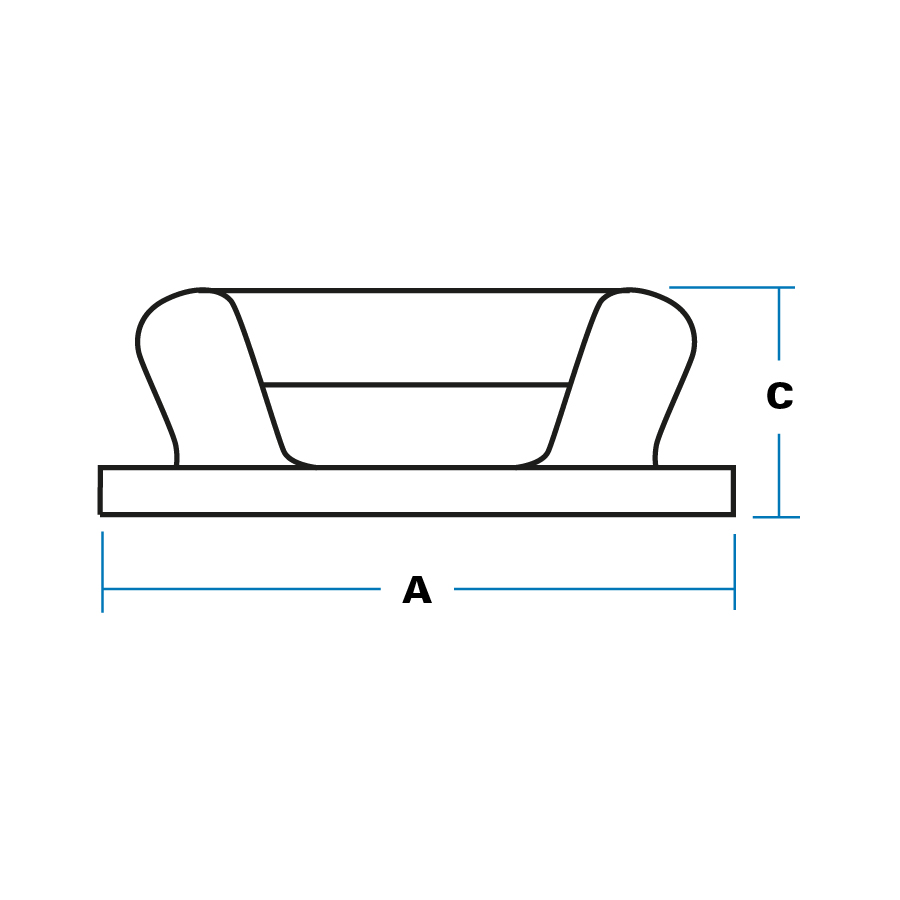

A Body Length 175 mm

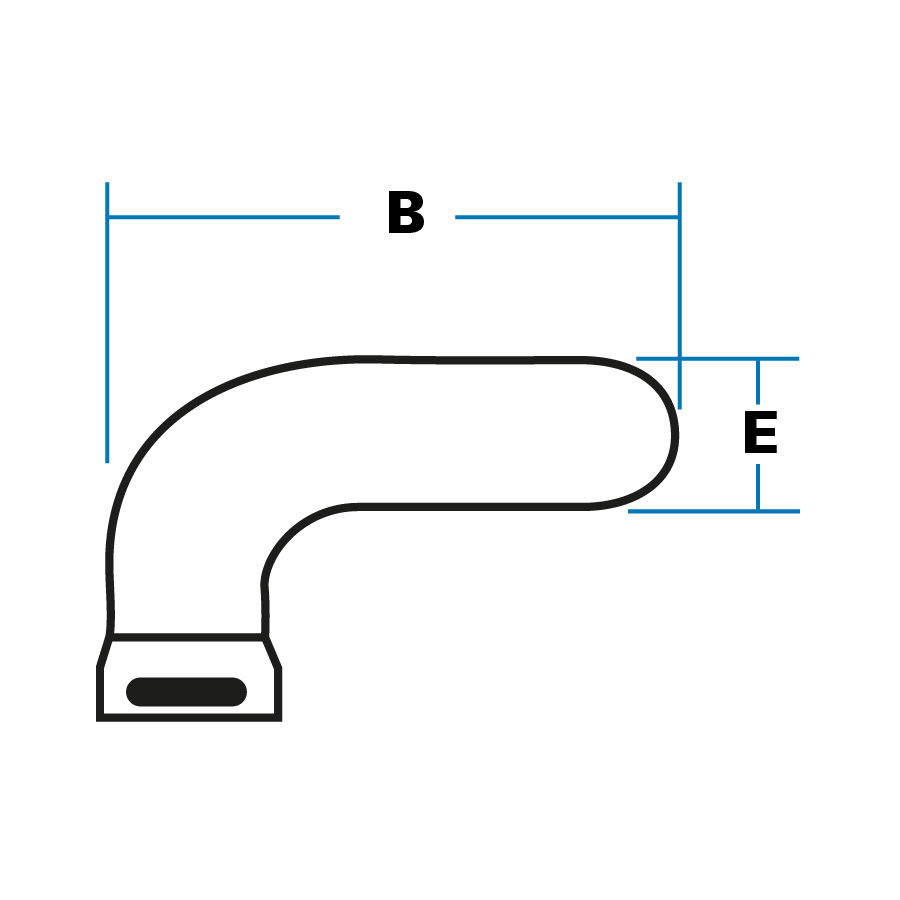

B Body Width 100 mm
C Body Height 66 mm
D Hole centres 151 mm
E Cross section 25 mm
H Hole sizes (core)
10 mm steel rod reinforcement core		 7 mm
Plug diameter 15mm accepting bolts to 12mm head diameter x 7mm shank. Plug ref. 5/00538 (specify colour).
  • Resilient, padded surface. No sharp edges, for maximum safety. Triangular section for good grip. Mounting holes concealed by 'snap-in' plugs.
  • Attractive, textured finish. Standard colours is black. Other colours can be moulded subject to batch-quantity requirements.
  • Fixing by bolting through holes in top rail (through steel core).
  • Moulded in expanded polyurethane foam around welded steel former (core). Meets EC 95/28/CE regulation for combustibility (less than 100mm per minute).
  • LOAD TESTING:
    The handle was tested to destruction, with the following results: Parallel to axis fixing, max load 14.84 Kilo-Newtons (1.51 tonnes) Vertical to fixing, max load 13.77 Kilo-Newtons (1.4 tonnes). With Ultimate strength over 1 tonne we recommend a safe working load of 500Kg (1100lbs) max.
