Foamed Steel-Cored Grab Rail – 475mm

This model meets the requirement for an entry-assist rail with extended length of grip for use with entry steps on buses and coaches, or for high cabs and trucks. It is made in solid 10mm steel rod to achieve maximum strength without 'flexing'.

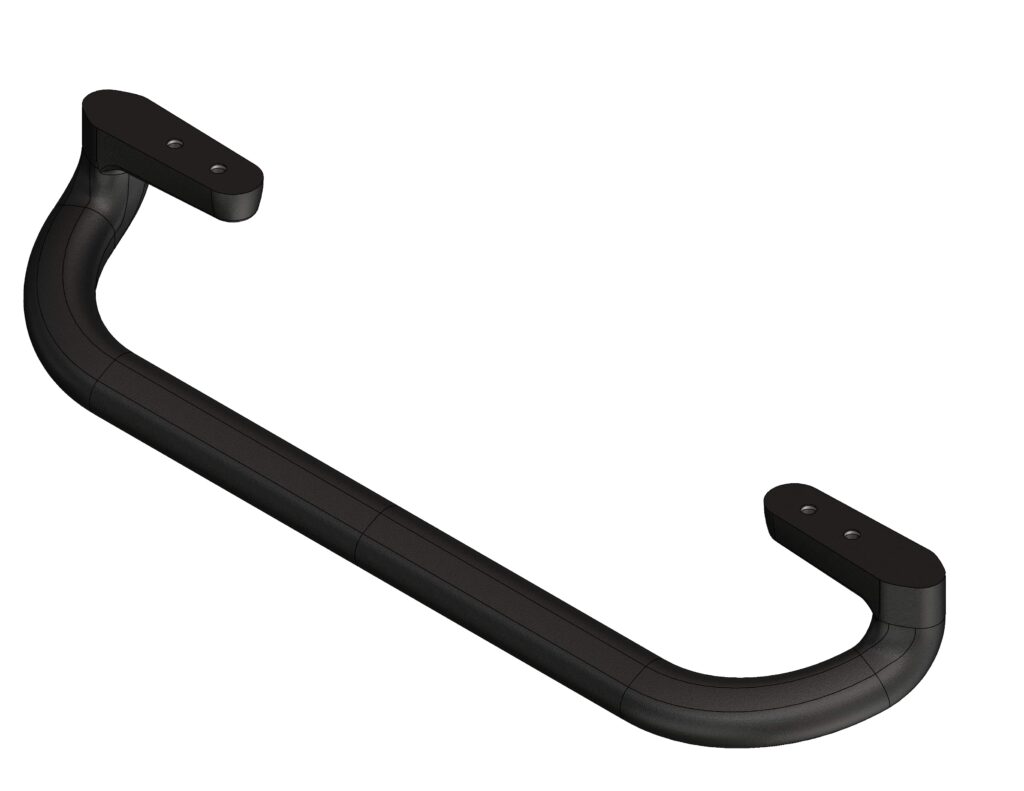

9/01226

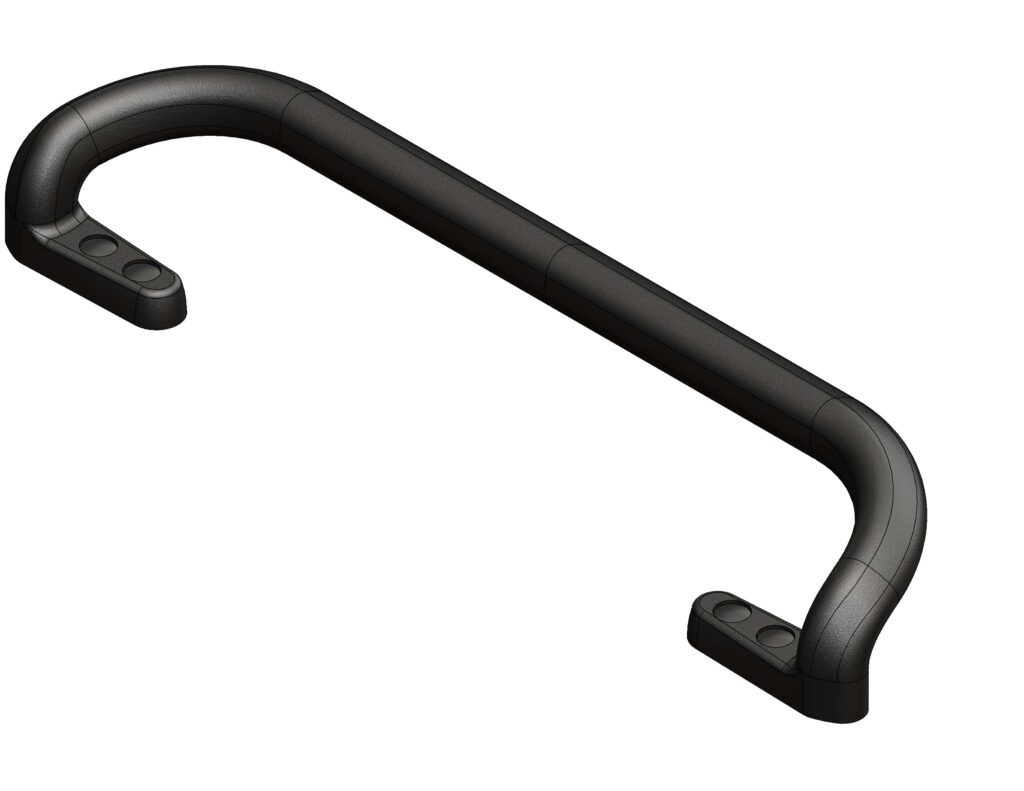

9/01226
9/01226
9/01226

Ordering Code

9/01226 475mm grab rail, black
9/01226/03 475mm grab rail, yellow, RAL 1021
G2-Diagram 01
G2-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

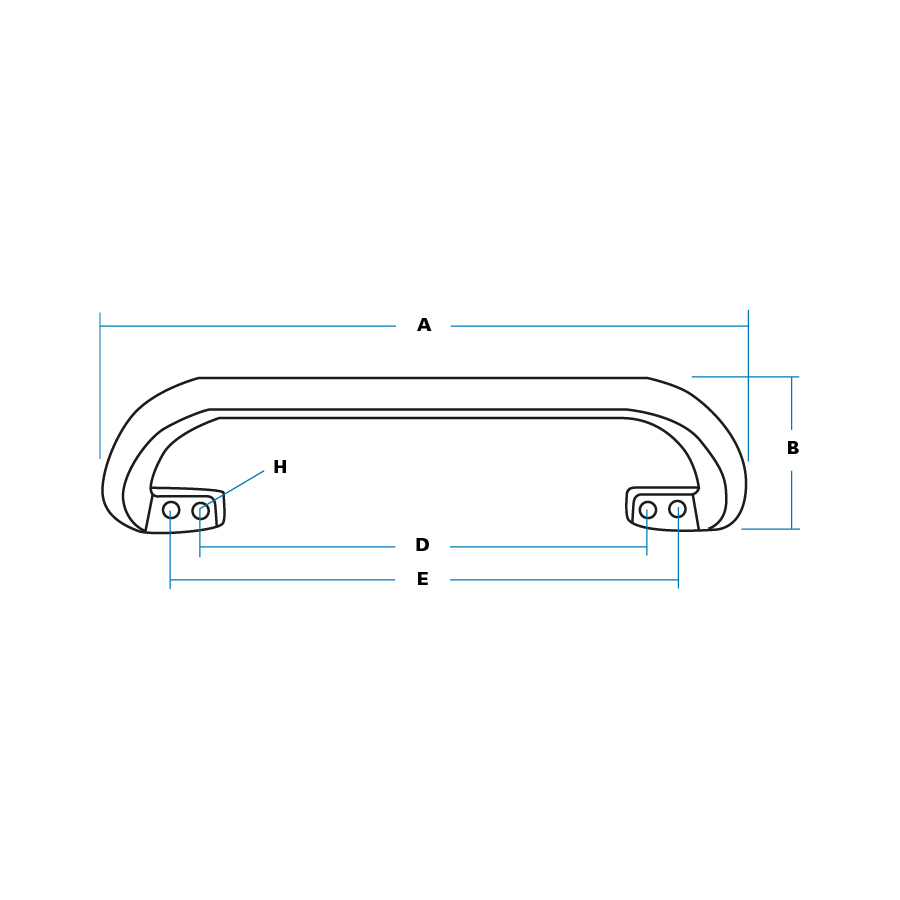

A Body Length 475 mm
B Body Width 90 mm
C Body Height 75 mm
D Hole centres 327 mm
E Hole centres 375 mm

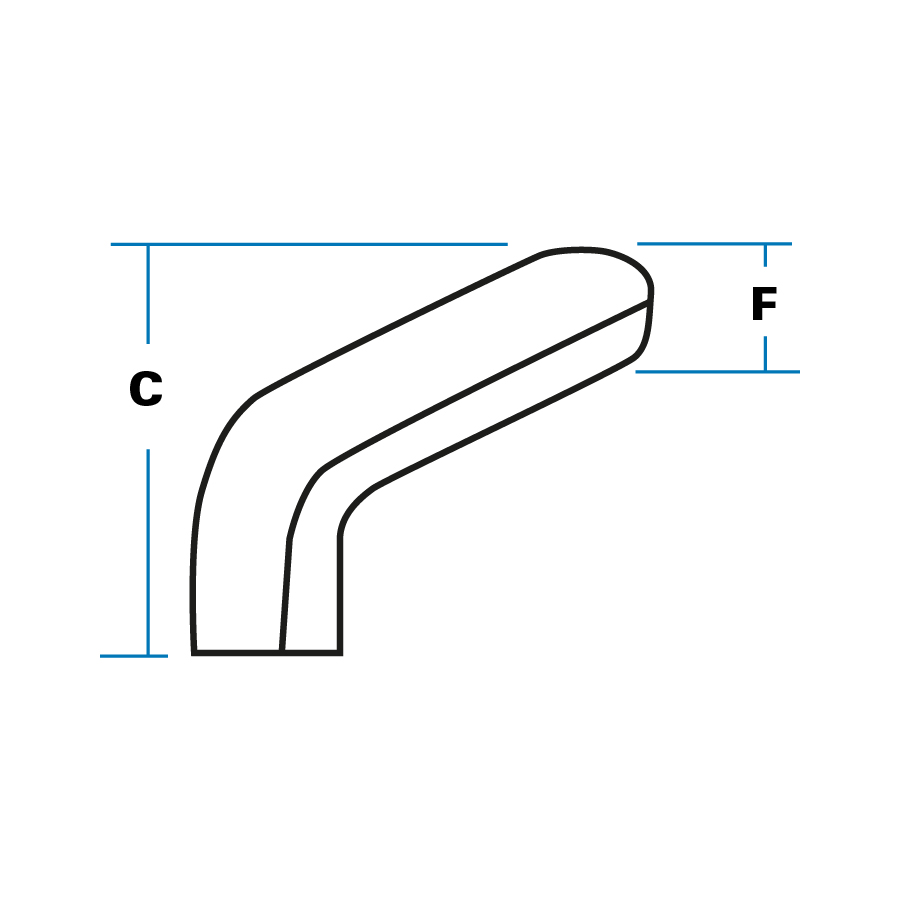

F Cross section 33 mm
H Hole sizes (core) 10 mm steel rod reinforcement core 7 mm
Plug diameter 15mm accepting bolts to 12mm head diameter x 7mm shank. Plug ref. 5/00538 (specify colour).
Note: Rigid steel core means that handle cannot be ‘flexed’ to accommodate deviations in fixing holes.
  • Soft, padded surface. No sharp edges, for maximum safety. Triangular section for good grip. Mounting holes concealed by 'snap-in' plugs.
  • Attractive, textured finish. Standard colours are black and yellow. Other colours on request.
  • Fixing by bolting through holes in steel core. Handle cannot be 'flexed'.
  • Moulded in expanded polyurethane foam around solid, 10mm steel rod. Meets EC 95/28/CE regulation for combustibility (less than 100mm per minute).
  • LOAD TESTING:
    Tests carried out by an independent proof house gave following results: Parallel to fixing, load 3.47 Kilo-Newtons (353Kg) before distortion. Vertical to fixing, load 3.45 Kilo-Newtons (352Kg) before distortion. With Ultimate strength over 1 tonne we recommend a safe working load of 250Kg (550lbs) max.
