Flush-Fit Steel Grab Handle

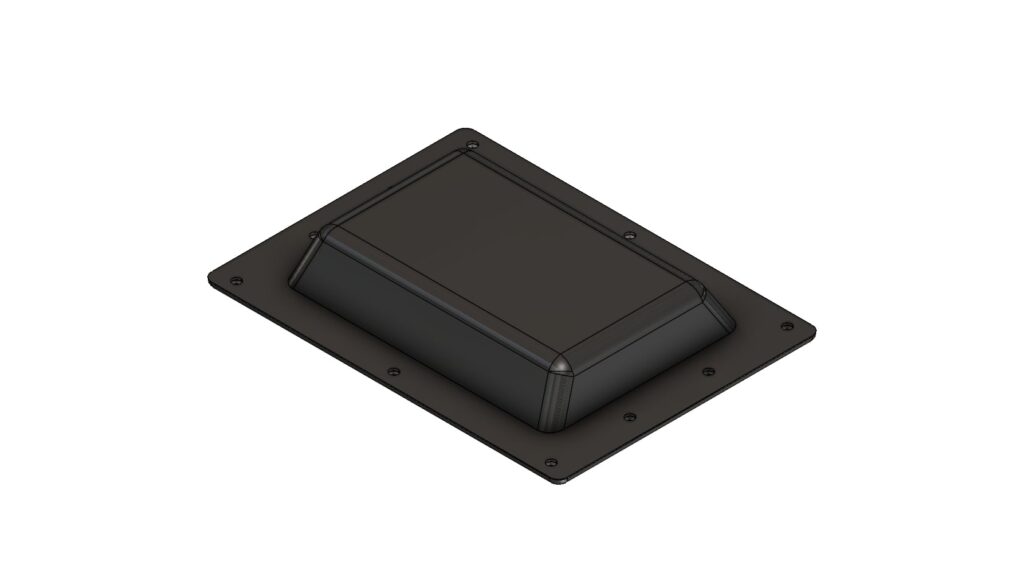

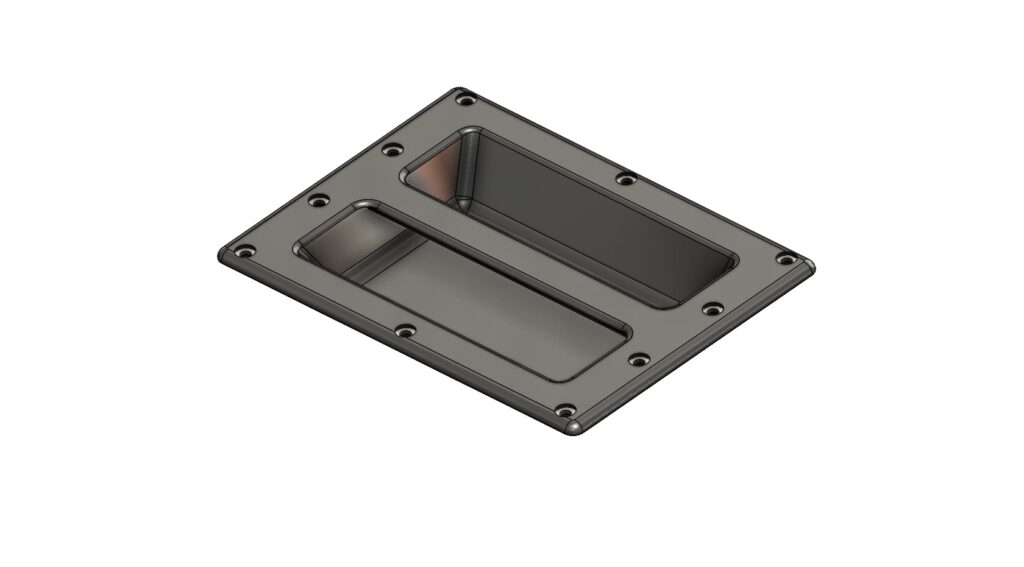

A fully-recessed grab handle, large enough to receive a gloved hand. The unit is completely corrosion-resistant and shaped to allow run-off of water (spray, etc.). It is suitable for large commercial vehicles and trailers, etc.
9/01389/01
9/01389/01
9/01389/01
9/01389/01

Ordering Code

9/01389/01 Flush-fit grab handle - black
G14-Diagram 01
G14-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 230 mm
B Width 170 mm
C Depth 30 mm
D Strap width 22 mm
E Hole centres 203 mm
F Hole centres 153 mm
H Hole sizes (diameter) 5 mm, 10 mm recess
Consult engineering drawing for details of hole positions. Frame in 2 mm galvanised steel.
  • Galvanised steel frame with resilient moulded covering for user-friendly feel.
  • Smooth, semi-gloss finish. Standard colour is black.
  • Fixing through recessed holes in rim, use stainless steel or plated screws/rivets to avoid corrosion stains.
  • LOAD TESTING:
    Rig testing parallel to fixings achieved loads of over 6.00KN (610Kg) before significant distortion. We recommend a Safe Working Load of 200Kg (440lb).
    THERMAL TESTING:
    Cycled between +15°C & -30°C without embrittlement. Does not soften below +70°C.
