Fixed-Pin Vertical Leaf Hinges

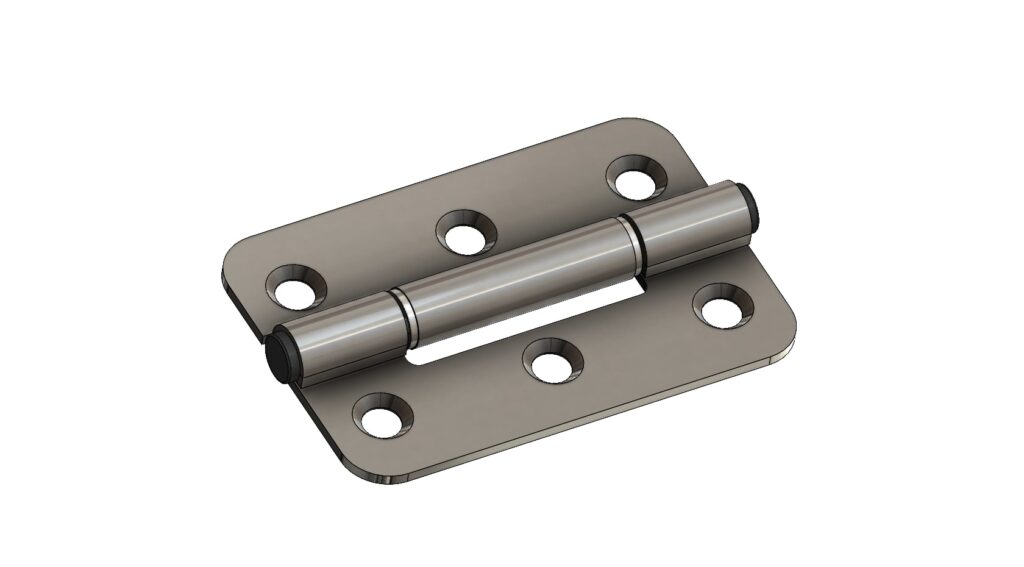

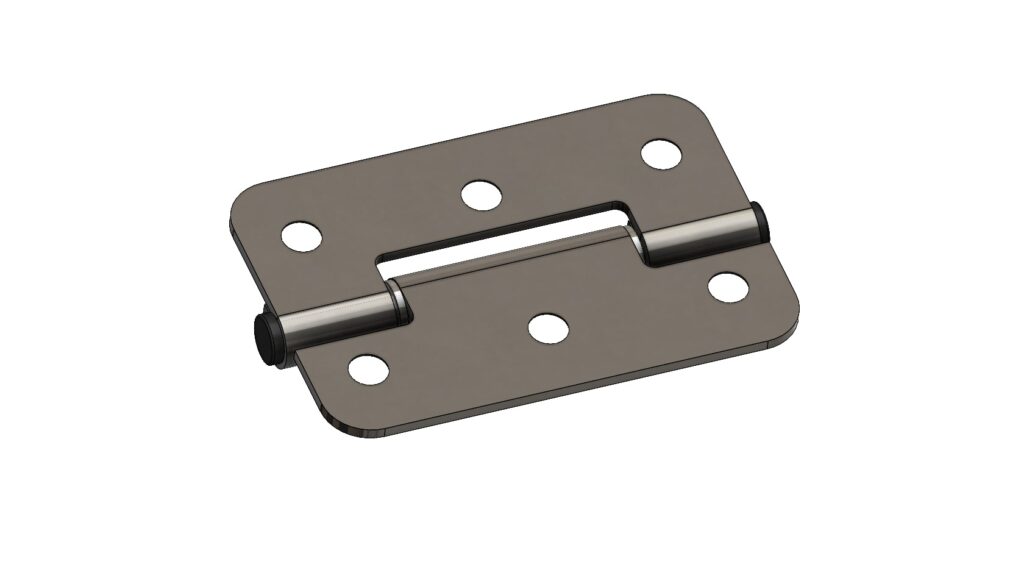

An attractive and useful hinge for large enclosures where door frame width is restricited, but where relatively heavy loading is anticipated. This is a fixed-pin hinge and it is non-handed.
9/01542
9/01542
9/01542
9/01542

Ordering Code

9/01542 Vertical hinge, stainless steel
F10-Diagram 01

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length 130 mm
B Widlth (half) 40 mm
C Height 15 mm
D Location to axis 22.5 mm
E Hole centres 94 mm
F Hole sizes (diameter) 10mm, c/s 15 min
Material thickness 3mm, pin diameter 10mm Angle of opening – Hinges will open fully forward to 180º, backward to 90º from horizontal
  • Mirror-polished stainless steel in 3 mm material thickness, with end caps and large-diameter stainless pin and bearing washers for smooth movement and corrosion resistance.
  • Plant-on, and secured through countersunk holes in hinge leaf.
  • Mirror-polished.
  • Stainless steel in Grade 304 with stainless pin and washers and black moulded end-caps.
  • - Weld-on studs
    - Mild steel model to special order.
  • Axial Loading
    Maximum advised: 31.80kN
    Ultimate: 47.70kN.

    Radial Loading
    Maximum advised: 10.53kN
    Ultimate: 15.80kN.
