‘Fix-Through’ Slam Latch in Steel

Special design allows ‘fix-through’ mounting, to suit narrow door pillars, sections and channels. This is interchangeable with our moulded model (9/01530) but may be preferred where there is possibility of impact loads or lateral stress.
9/01186
9/01186
9/01186
9/01186

Ordering Code

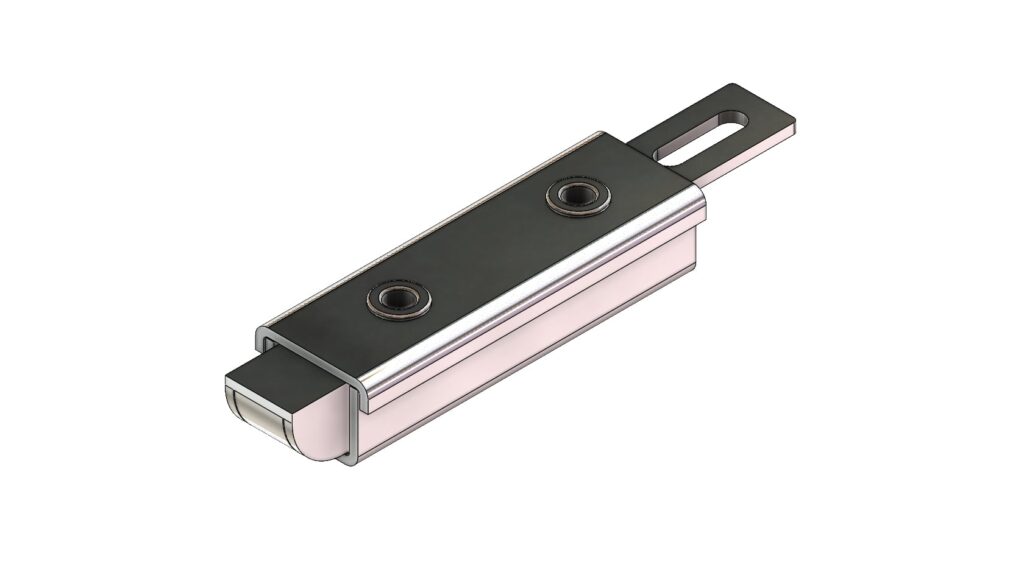

9/01186 ‘Fix-through’ slam latch steel
D8-Diagram 01
D8-Diagram 02
D8-Diagram 03

Specification

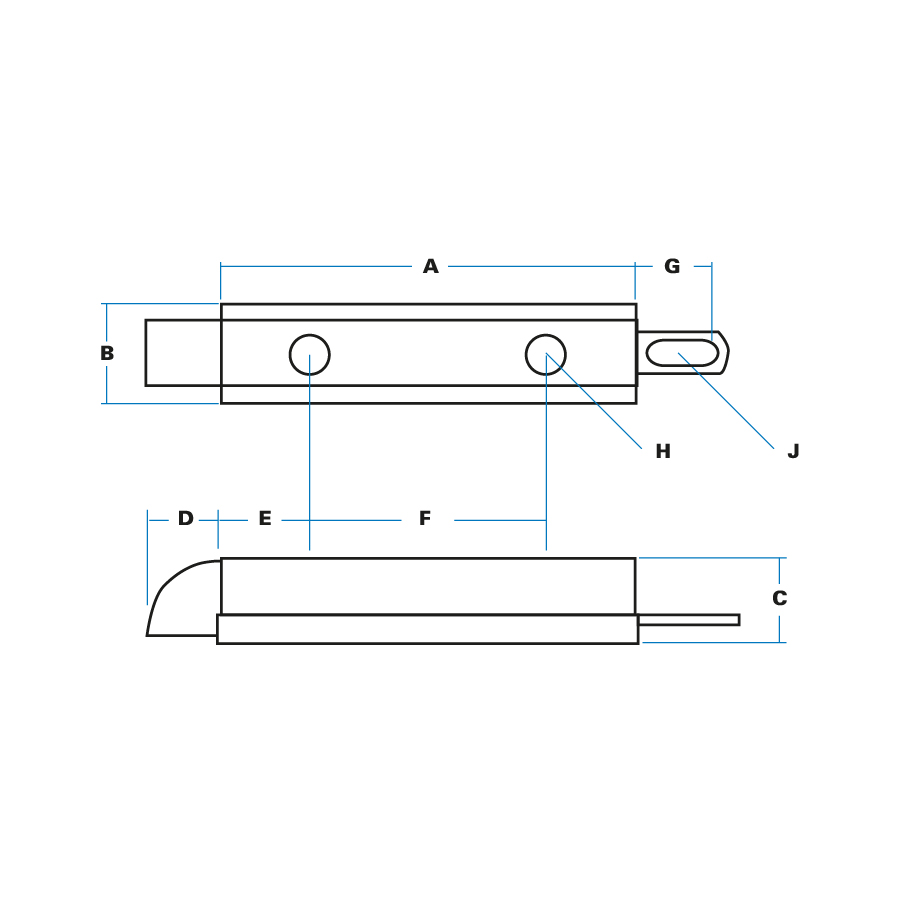

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Body Length 80 mm
B Max. Width 25 mm
C Max. Height 20 mm
D Projection 13 mm
E Location 20 mm
F Location 43 mm
G Location 23 mm
H Hole diameter 7 mm
J Slot dimensions 6×20 mm
K Knob diameter Ø38 mm
L Knob height (max) 20 mm
Spring pressure: 5kg to full bolt withdrawal
  • Slam bolt retracts fully into case when operated. Slotted bolt-pull provides ‘lost-motion’ so latches can always be slammed, even when a system is in ‘locked’ mode.
  • Fixing by rivets through 7mm holes in case. Use large-headed fasteners to spread load over area.
  • Bright zinc-plated.
