External-Fix Grab Handles with ‘Snap-Shut’ Trim Panels

Two useful grab handles, with integral 'snap-shut' panels to conceal fixing holes. Resilient, strong, with no sharp edges, they suit both inside and outside applications, such as vehicle seat-backs, cabinets, carrying-cases, etc.

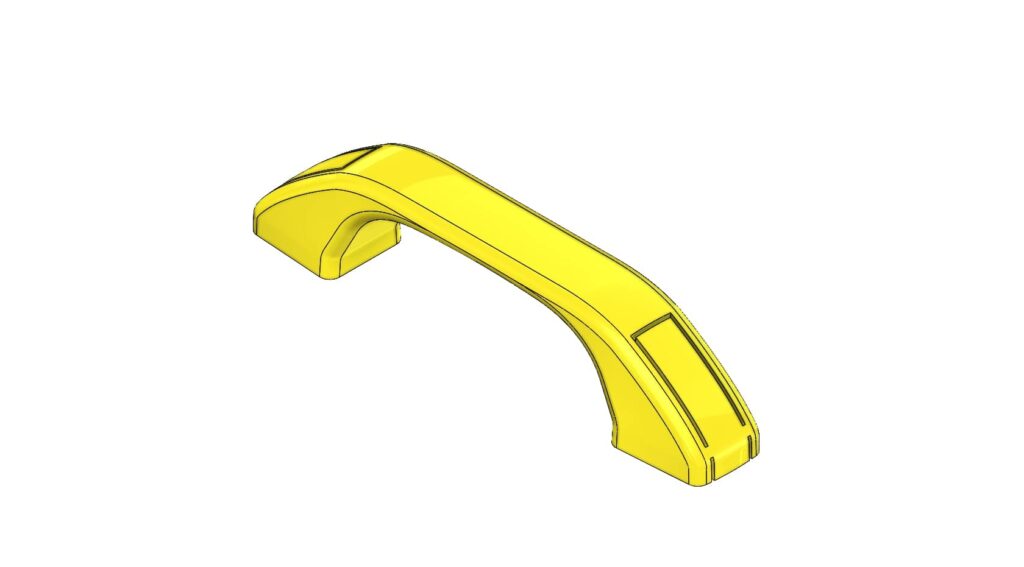

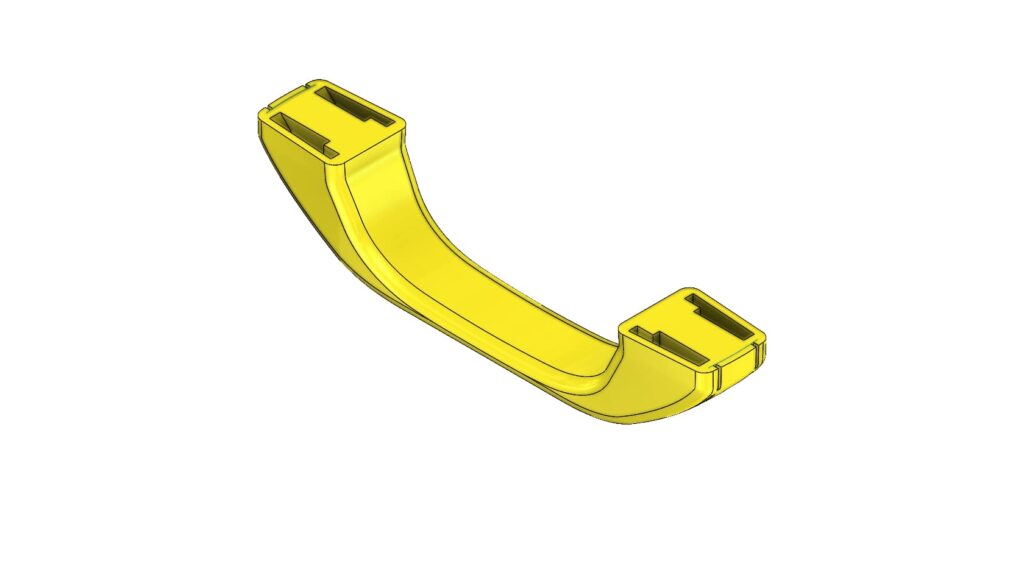

1/30357
1/30357
1/30357
1/30357

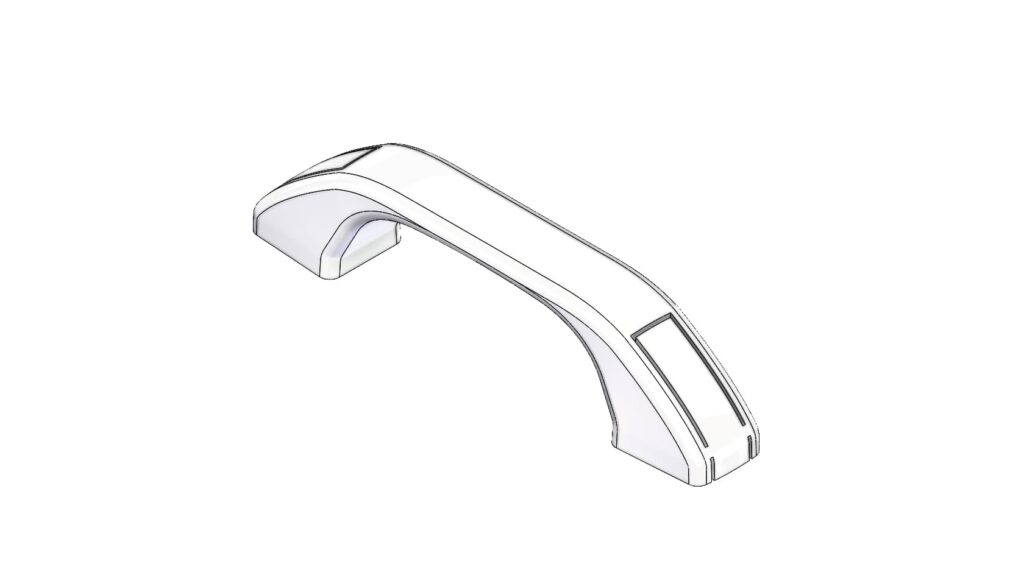

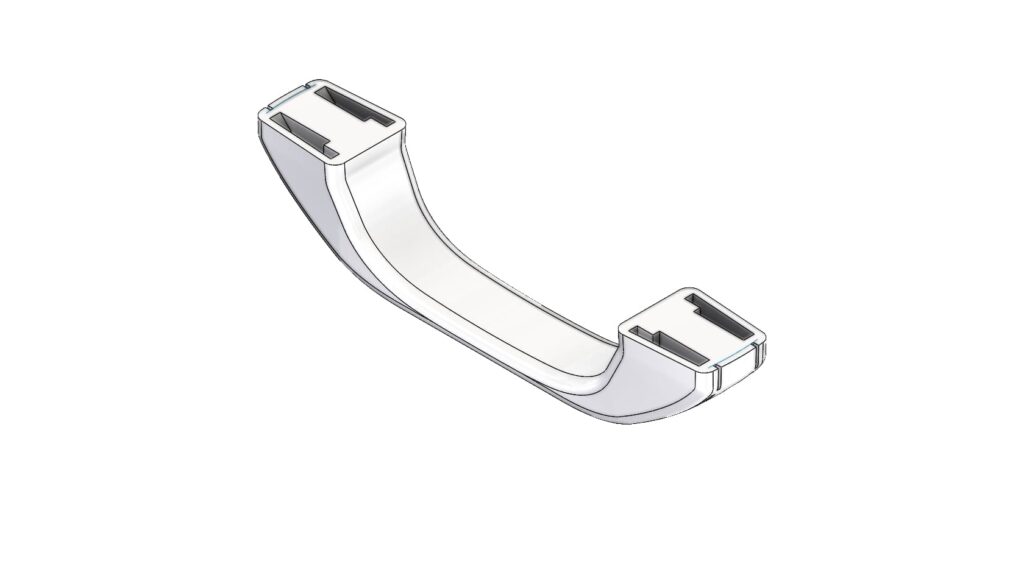

1/30357/02
1/30357/02
1/30357/02
1/30357/02

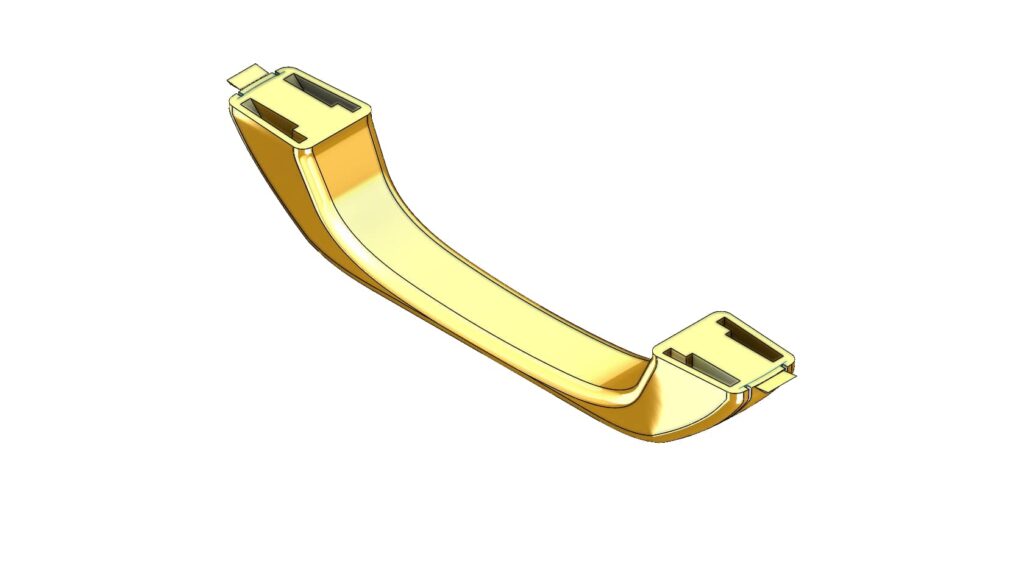

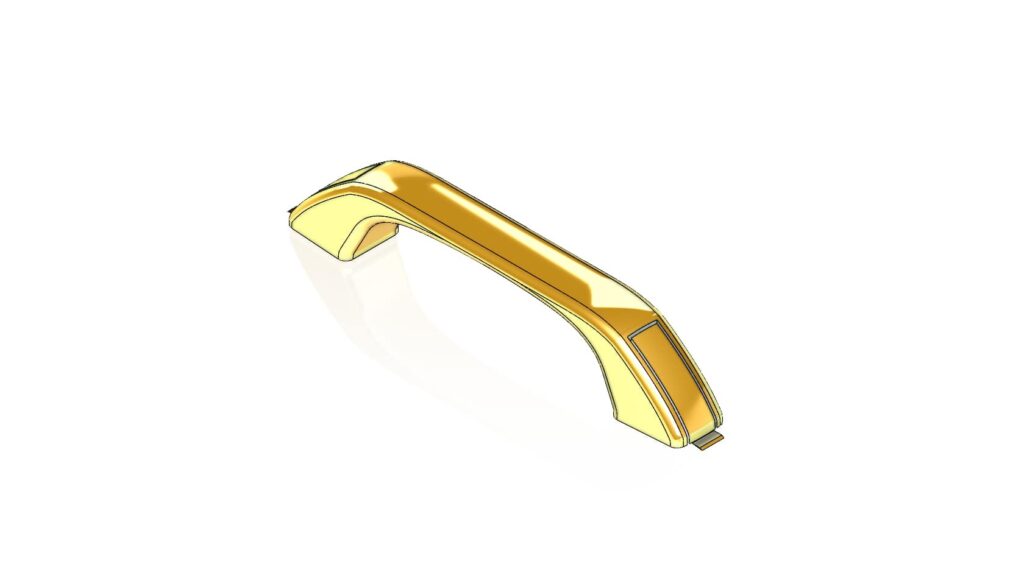

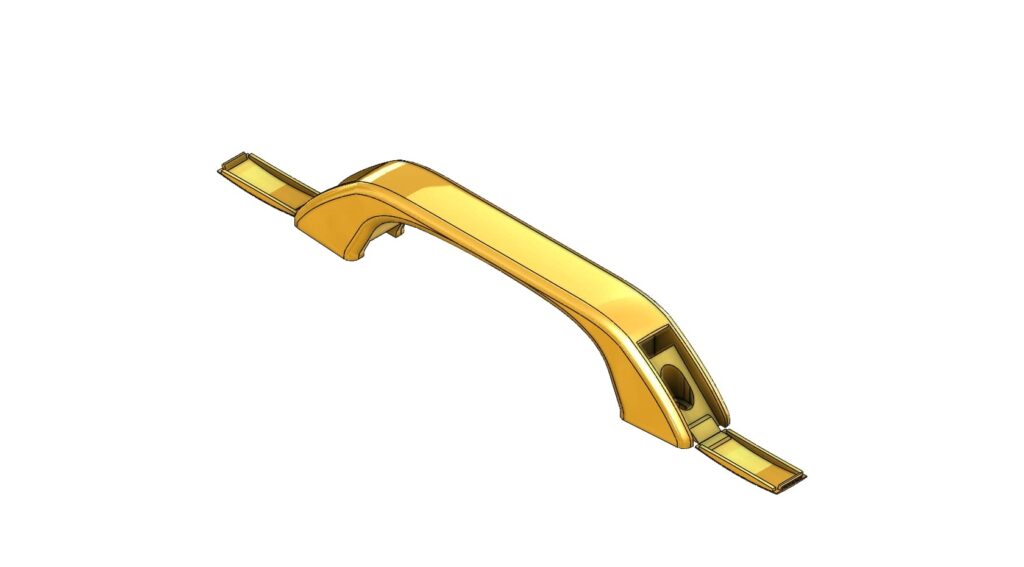

9/02357
9/02357
9/02357
9/02357
9/02357
9/02357

Ordering Code

1/30357 Grab handle, black, 173mm
1/30357/02 Grab handle, white (RAL 9016)
9/02357 Grab handle, black, 203mm

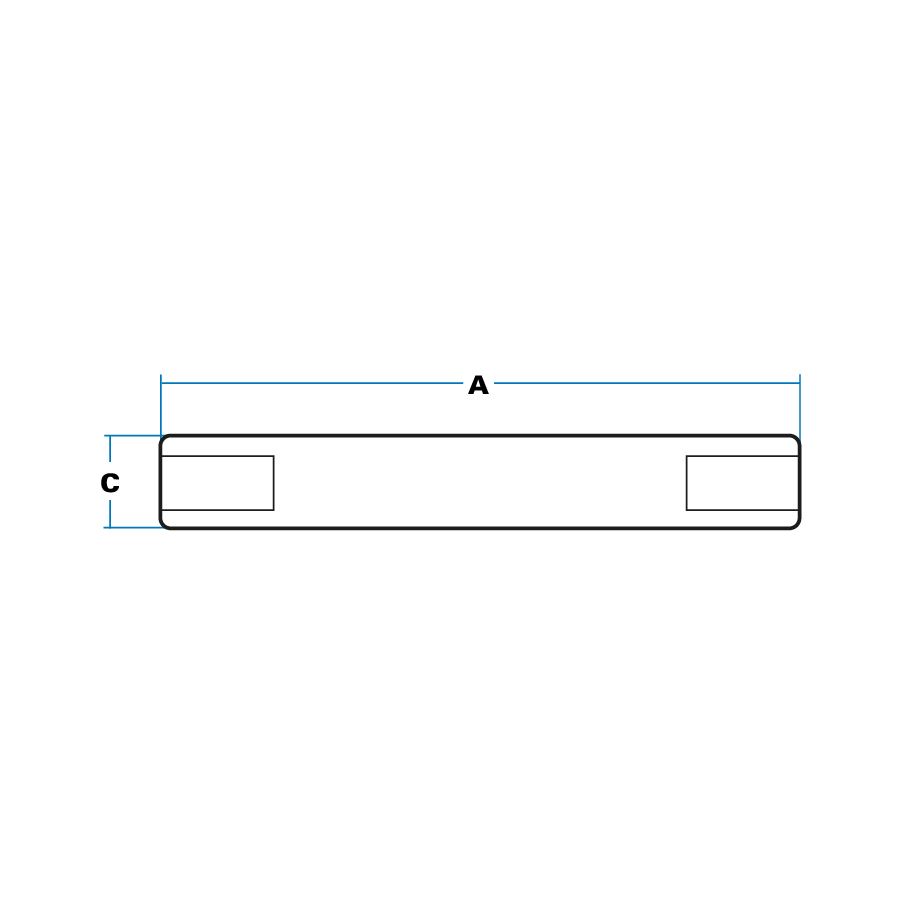

G9-Diagram 01
G9-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Length (1/30357) 173 mm
A1 Length (9/02357) 203 mm
B Hole centres (1/30357) 140 mm
B1 Hole centres (9/02357) 170 mm
C Width 30 mm
D Height 38 mm
H Hole sizes within recess 5 x 8 mm 10 x 13 mm
  • Strong, lightweight, attractive.
  • Plant-on fixing, secured with bolts into slotted holes, integral cover panels.
  • Textured finish, normal colours black, white and blue/grey. Other colours to special request.
  • Moulded in polypropylene. See table for physical properties. Meets EC 95/28CE regulation for combustibility (less than 100mm per minute).
  • LOAD TESTING: ON 1/30357:
    Tests carried out by an independent proof house gave following results (at 15°C).
    Parallel to fixing: Max load 3.00 Kilo-Newtons (306kg) before handle pulled away from bolts.
    Vertical to fixing: Max load 1.24 Kilo-Newtons (126kg) before handle pulled away from bolts.
    With ultimate strength over 300Kg we recommend a safe working load of 100Kg (220lbs) max.
