End-Slam Latches (End Bolts)

Precision-made latches which have become motor-industry ‘standards’, with solid, machinecut steel bolts and ‘quick-fit’ attachment point if desired. Adjustable bolt-pull allows bolt projection to be varied, and bolts are reversible to ‘nose-up’ position. Stainless steel models available.
3/22386
3/22386
3/22386
3/22386
3/22387
3/22387
3/22387
3/22387
3/22388
3/22388
3/22388
3/22388
3/22389
3/22389
3/22389
3/22389
3/22392
3/22392
3/22392
3/22392
9/01187
9/01187
9/01187
9/01187

Ordering Code

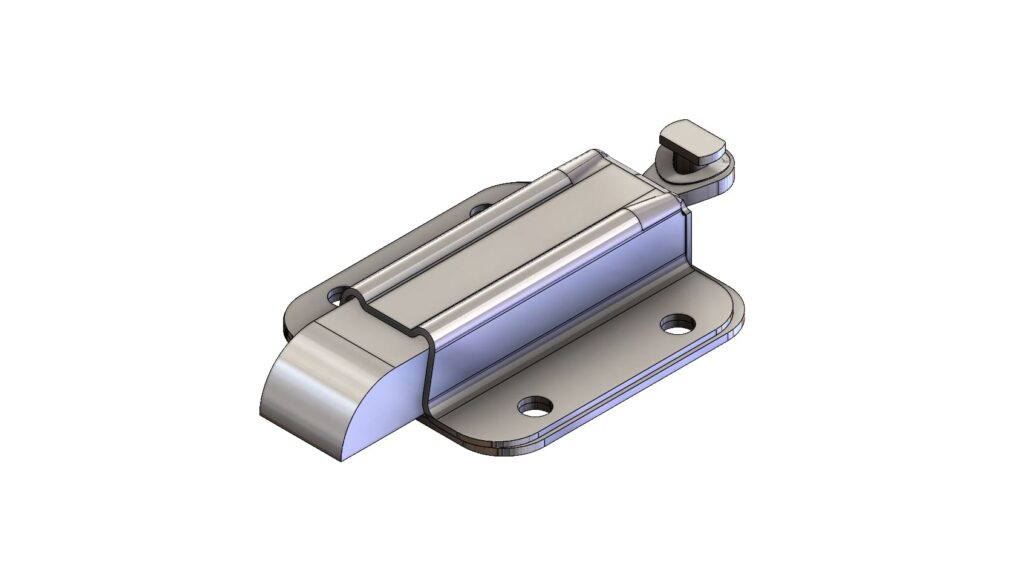

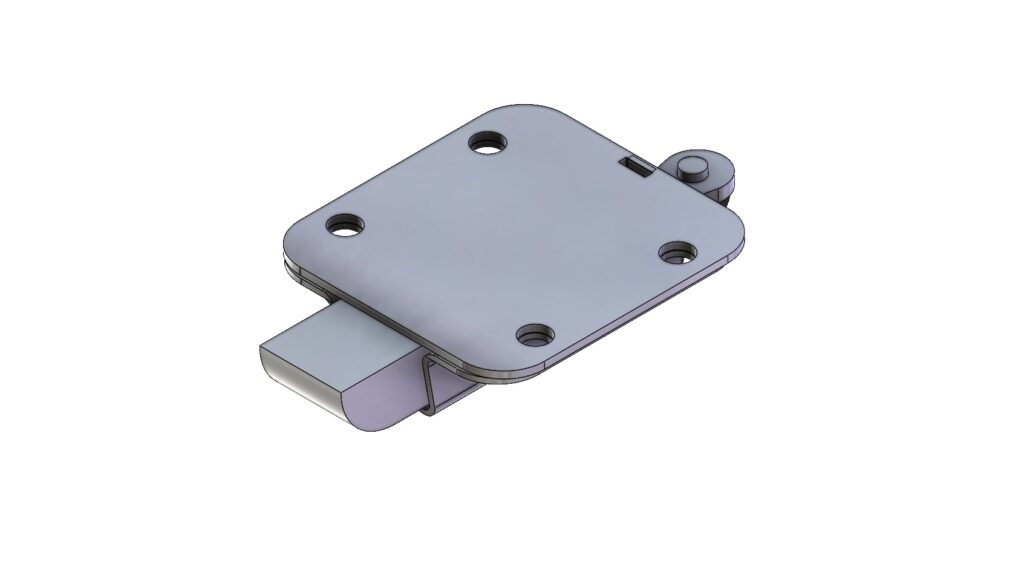

3/22386 End latch, nose-down, ‘quick-fit’ pull

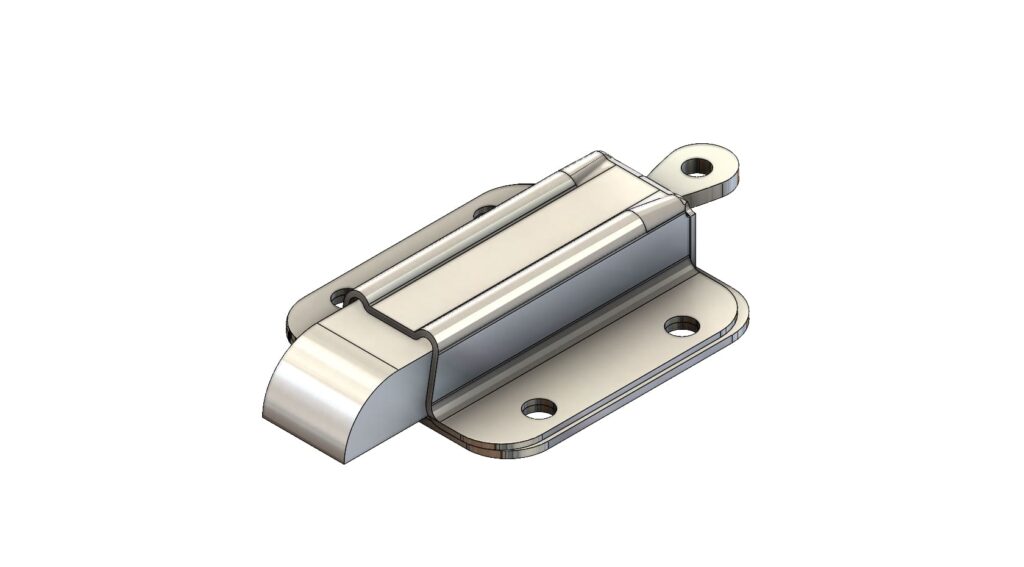

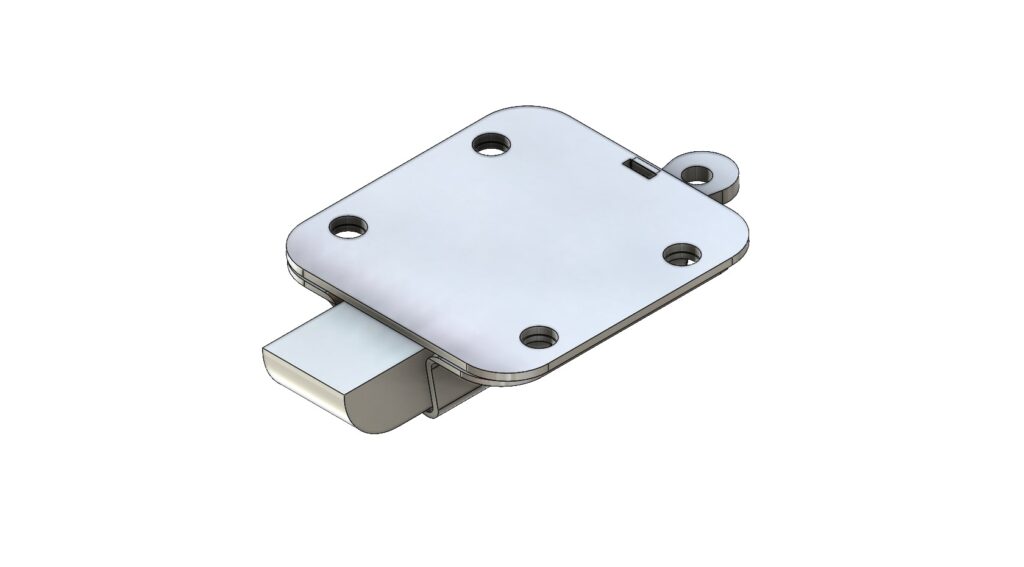

3/22387 End latch, nose-down, plain pull

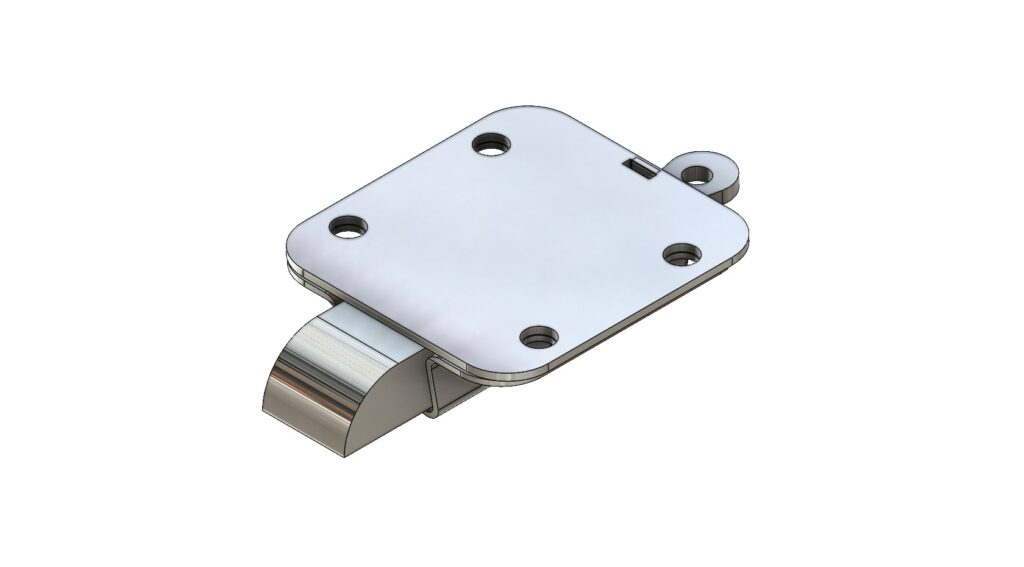

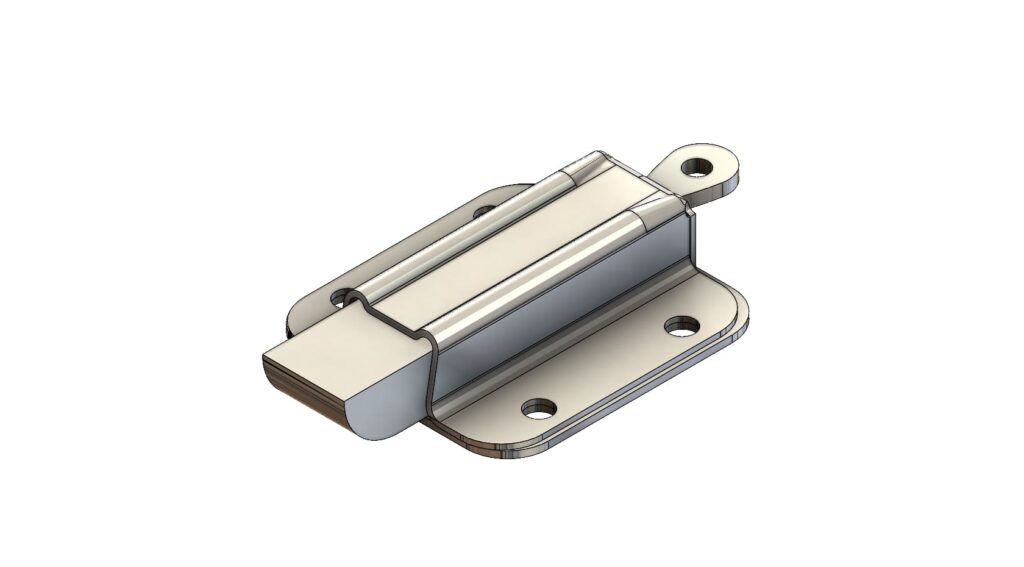

3/22388 End latch, nose-up, plain pull

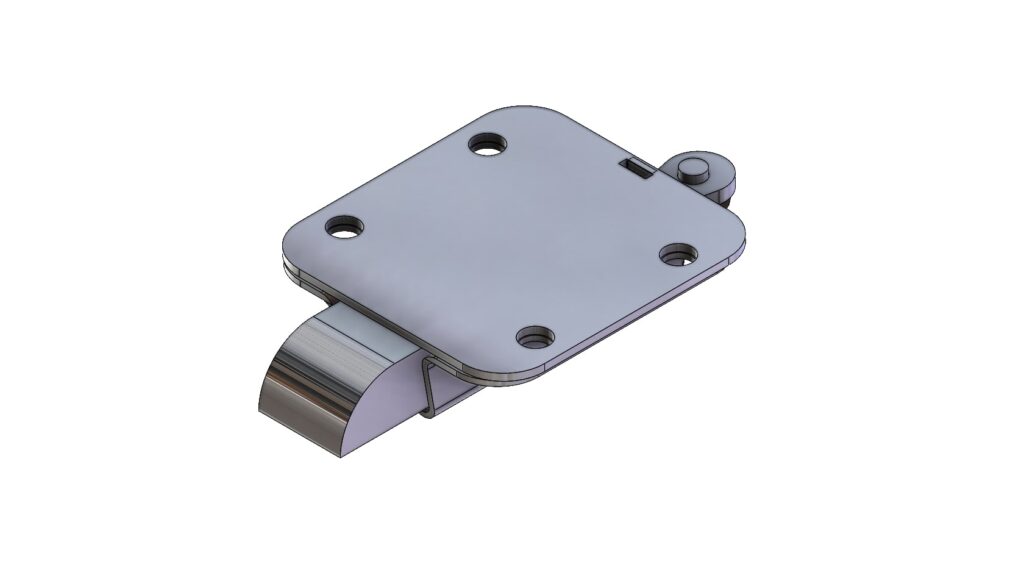

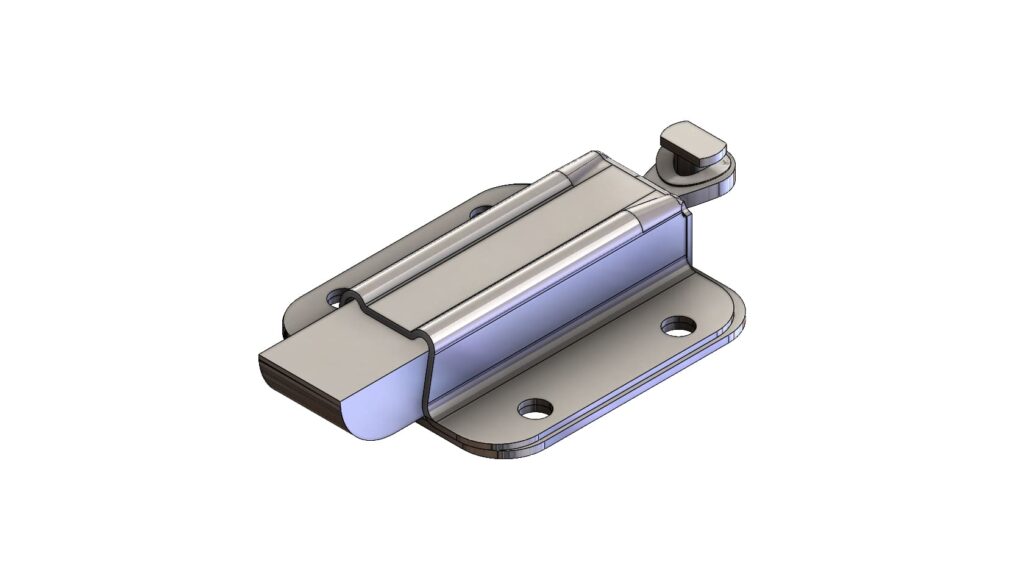

3/22389 End latch, nose-up, ‘quick-fit’ pull

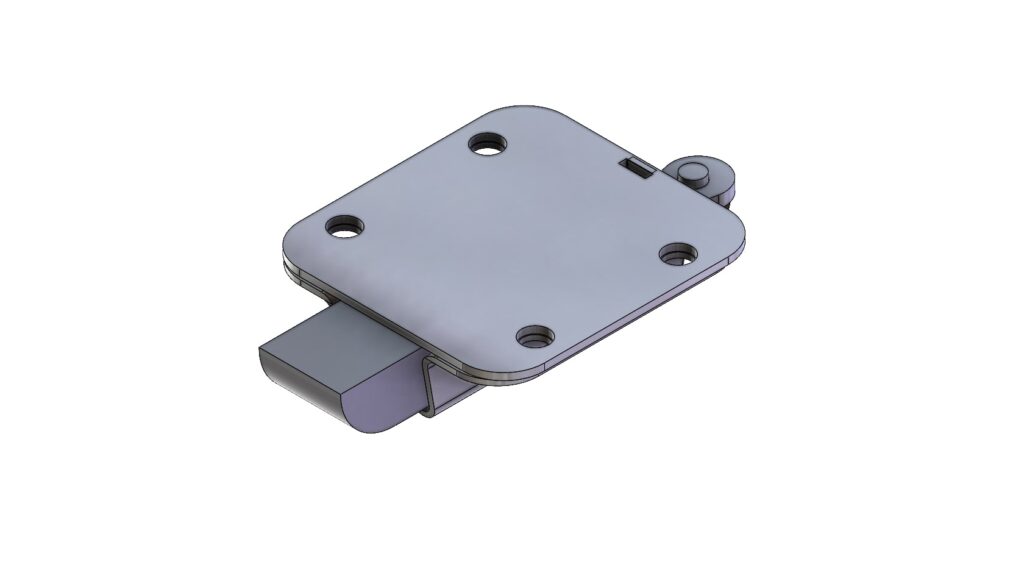

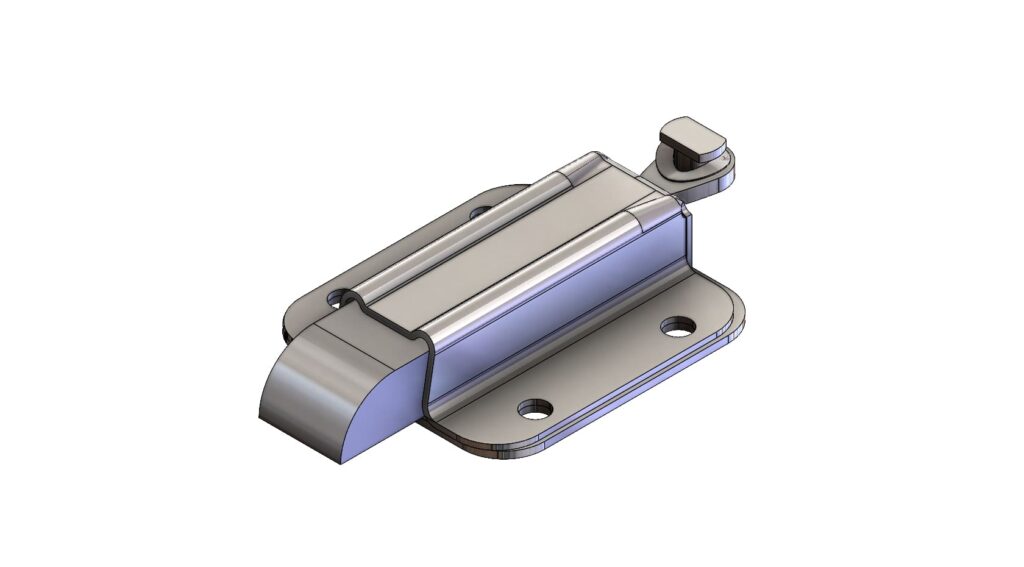

3/22392 End latch, special (non-reversible)

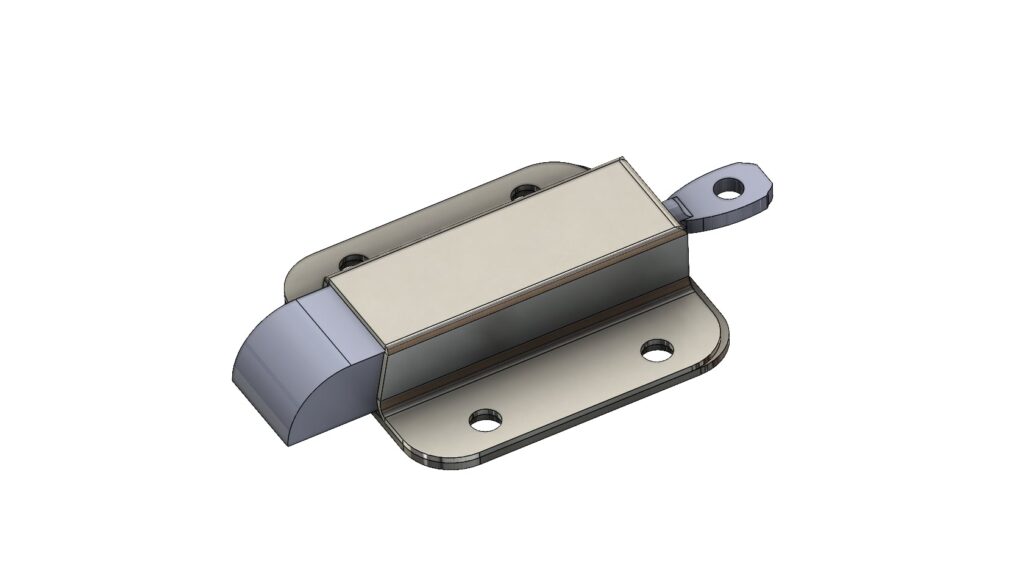

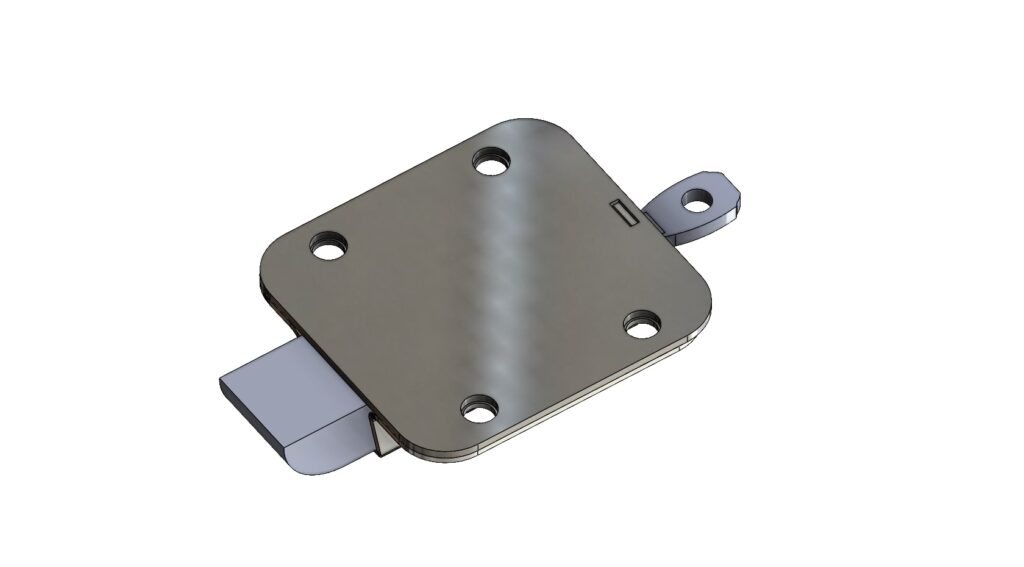

9/01187 Stainless steel latch (as 3/22387)
D9-Diagram 01
D9-Diagram 02

Specification

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Bolt Thickness 13 mm
B Bolt Pull 13 mm
C Width 57 mm
D Bolt Width 19 mm
E Body Length 62 mm
F Hole Centres 44.5 mm
G Hole Centres 33 mm
H Hole Diameter Ø 5.5 mm
J Hole Diameter Ø 5 mm
Bolt projection variable, 9-16 mm. Minimum load 5kg for full bolt travel. Mild steel model made in CR4. Stainless models in grade 304 with stainless bolt-pull, bolt and spring.
  • Spring-loaded slam latches, normally used as part of a 2-way or 3-way system.
  • Bolt retracts fully into case either by slam-action or by withdrawing bolt-pull.
  • Four holes, 5.5mm dia, through both thicknesses of material. A packing plate is available (3/22384).
  • Zinc-plated finish on mild steel models. Stainless steel models supplied in mill-finish, can be polished as an option.
  • Bolt spring pressure is 6kg (14lbs).
  • Bolt length can be varied and bolt-nose cut to special profiles. Model 3/22392 has off-centre pull and special non-reversible bolt.
