‘Economy’ Grab Handle

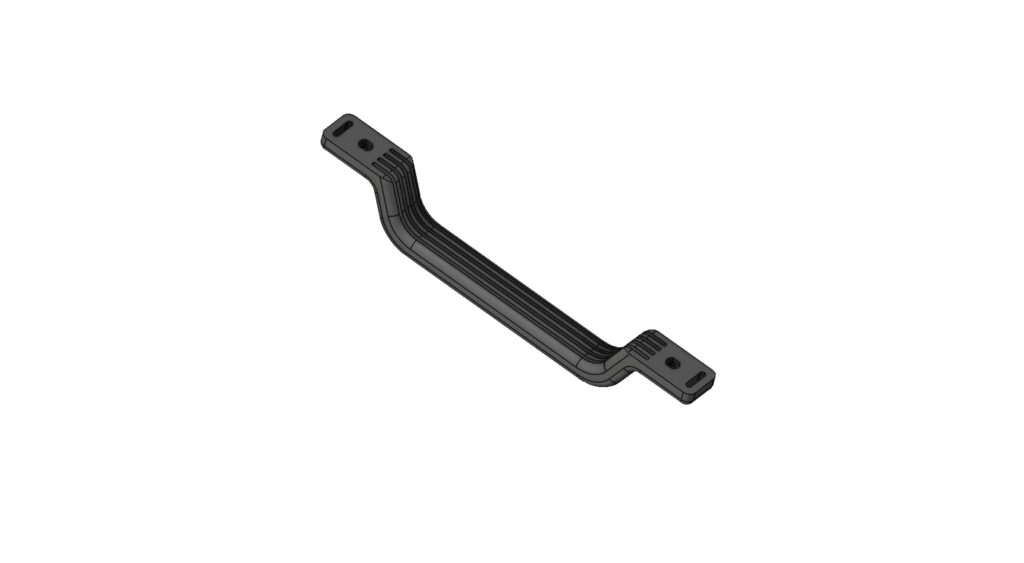

A smart, inexpensive handle with ‘plant-on’ fixing. It is made in black polypropylene with textured finish, with longitudinal ribbing to lighten weight and increase strength.
9/01790
9/01790
9/01790
9/01790

Ordering Code

9/01790 ‘Economy’ grab handle – open fixing
G8.1-Diagram 01
G8.1-Diagram 02

Specification

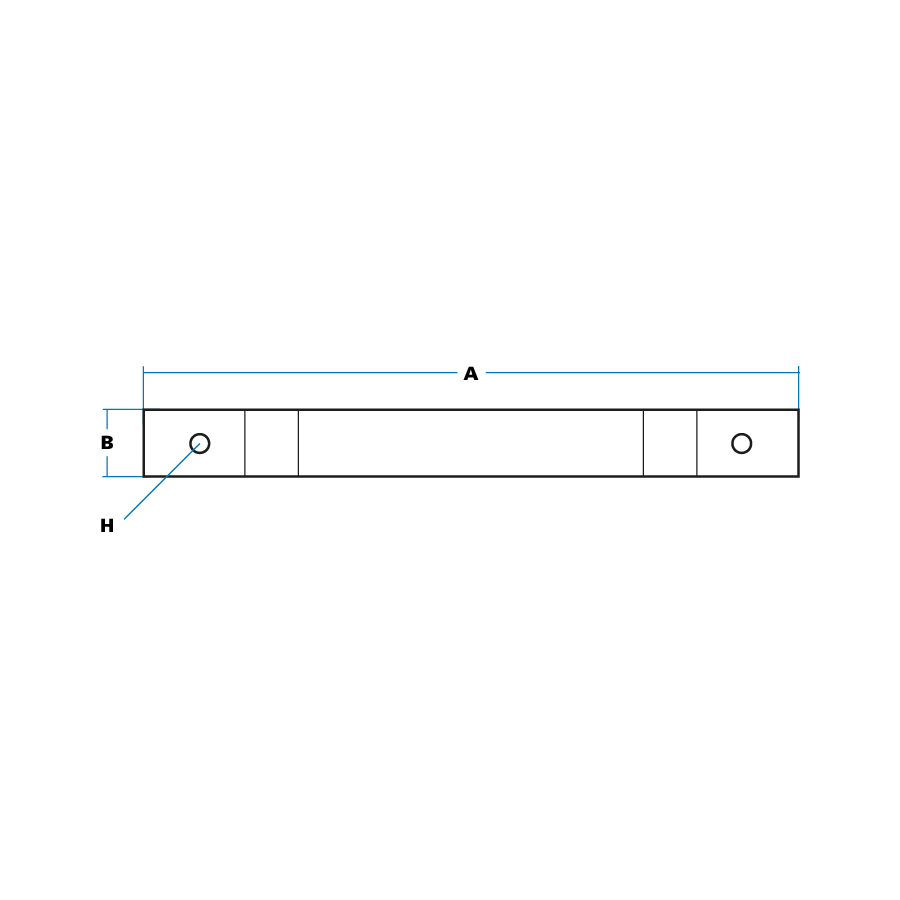

All dimensions shown are rounded to the nearest millimetre. Please request a drawing for the exact product specific and tolerances.

A Body Length 245 mm
B Body Width 25 mm
C Body Height 40 mm
D Hole centres 203 mm
H Hole sizes 7 mm, c/s 12 mm
  • LOAD TESTING:
    Tests carried out by an independent proof house gave following results.
    Parallel to fixing: Max load 3.64 Kilo-Newtons (407kg) before handle pulled away from bolts.
    Vertical to fixing: Max load 2.87 Kilo-Newtons (321kg) before handle pulled away from bolts.
    With ultimate strength over 500Kg we recommend a safe working load of 100Kg (220lbs) max.
